amiad Arkal 014000 Series Assembly Instructions

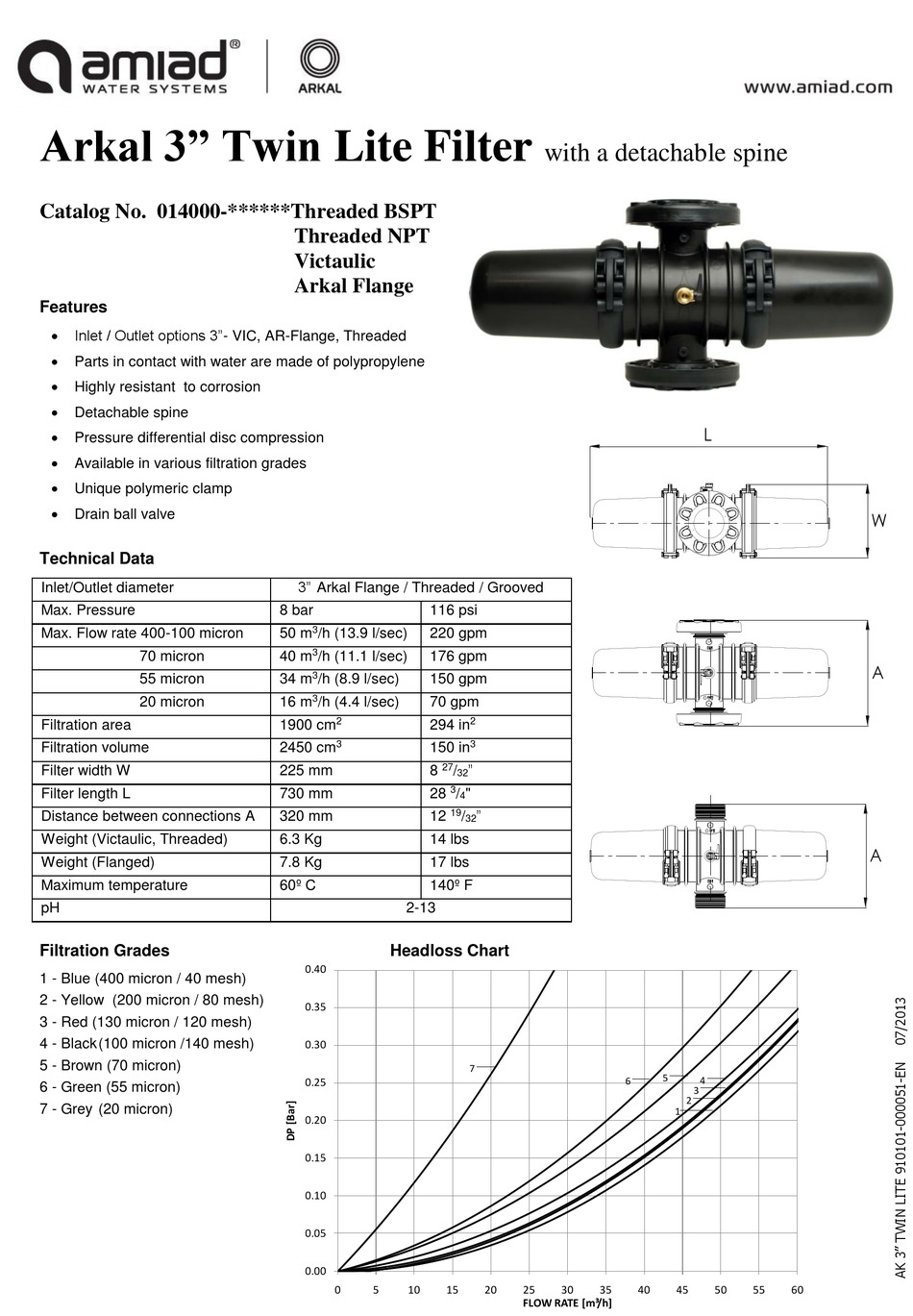

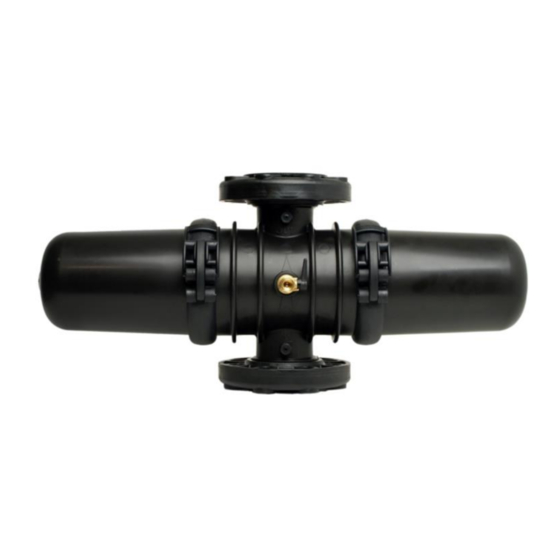

Arkal 3" Twin Lite Filter
Catalog No. 014000-******Threaded BSPT
Features

Inlet / Outlet options 3"- VIC, AR-Flange, Threaded

Parts in contact with water are made of polypropylene

Highly resistant to corrosion

Detachable spine

Pressure differential disc compression

Available in various filtration grades

Unique polymeric clamp

Drain ball valve
Technical Data
Inlet/Outlet diameter
Max. Pressure
Max. Flow rate 400-100 micron
70 micron
55 micron
20 micron
Filtration area
Filtration volume
Filter width W
Filter length L
Distance between connections A
Weight (Victaulic, Threaded)
Weight (Flanged)
Maximum temperature
pH
Filtration Grades
1 - Blue (400 micron / 40 mesh)
2 - Yellow (200 micron / 80 mesh)
3 - Red (130 micron / 120 mesh)
4 - Black (100 micron /140 mesh)
5 - Brown (70 micron)
6 - Green (55 micron)
7 - Grey (20 micron)
Threaded NPT
Victaulic
Arkal Flange
3" Arkal Flange / Threaded / Grooved
8 bar 116 psi
3
50 m /h (13.9 l/sec) 220 gpm
3
40 m /h (11.1 l/sec) 176 gpm
3
34 m /h (8.9 l/sec) 150 gpm
3
16 m /h (4.4 l/sec) 70 gpm
2
1900 cm 294 in
3
2450 cm 150 in
27
225 mm 8
3
730 mm 28
19
320 mm 12
6.3 Kg 14 lbs
7.8 Kg 17 lbs
60º C 140º F
2-13
Headloss Chart
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0 5 10 15
with a detachable spine
2
3
"
/
32
/ "
4
"
/
32
7
20 25 30 35
FLOW RATE [m³/h]
L
5
4
6
3
2
1
40 45 50 55 60
W
A
A
