- Page 1 AMIAD Water Systems Ltd. 48" AGF Automatic Filtration System Serial number: Order number: Catalog number: Tested by: Installation, Operation and Maintenance Instructions Ref. 910101-001049 / 01.2020 Original Instructions 48" AGF 910101-001049 / 01.2020 Page 1 of 21...
- Page 2 Amiad assumes that all users understand risks involved within this file and/or its attached materials. This document is given in good faith and is not intended to impose any obligation to Amiad. While every effort has been made to ensure the information in this manual is accurate and complete, we would appreciate if you can bring any errors or omissions to the knowledge of Amiad or consult Amiad experts or its authorized representatives if you have any questions.
-
Page 3: Table Of Contents
........................8 PERATION AND ONTROL AFETY NSTRUCTIONS 10. M ..........................8 AINTENANCE AFETY NSTRUCTIONS DIMENSIONAL DRAWING ..............................10 AGF FILTERS WORKING PRINCIPLE ............................11 ................................11 EDIA ILTERS AGF F ............................11 OW THE ILTERS PERATE ..............................12 ILTRATION ROCESS .............................. -
Page 4: Technical Specifications
155-180 gpm 3. Construction Materials Manifolds Polypropylene Filter housing Polyethylene coated by glass flakes and resin Media PEP Active / Quartz / Gravel Backwash valves Polyamide Distribution nozzles Polypropylene Seals EPDM 48" AGF 910101-001049 / 01.2020 Page 4 of 21... -
Page 5: Filtration Media Type
Mesh range Average effective size gravel inch Crushed Silica 12 80-130 1.1 - 1.2 0.043-0.047 Crushed Silica 16 155-200 0.6 – 0.7 0.023-0.275 Crushed Silica 20 170-230 0.45 – 0.5 0.017-0.019 48" AGF 910101-001049 / 01.2020 Page 5 of 21... -
Page 6: Safety Instructions
Safety Instructions 6. General Safety Instructions 1. Amiad filtration products always operate as components in a larger system. It is essential for the system designers, installers and operators to comply with all the relevant safety standards. 2. Prior to installation, operation, maintenance or any other type of action carried out on the filter, carefully read the safety, installation and operation instructions. - Page 7 4. Do not leave lifted equipment if there is no necessity. Avoid working below lifted equipment. 5. Wear a safety helmet while using lifting equipment. 6. Make sure that the flooring is sloped for drainage, and to avoid accumulation of liquids. 48" AGF 910101-001049 / 01.2020 Page 7 of 21...
-
Page 8: Commissioning Safety Instructions
Before disconnecting the filter from its water supply, electricity and pneumatics, and before releasing the filter’s residual pressure, do not: Loosen or unscrew bolts Remove any protection cover Open any service port flange 48" AGF 910101-001049 / 01.2020 Page 8 of 21... - Page 9 4. For filters used in potable water systems, it is required to disinfect the filter according to the local water authority standards and regulations before putting it back to service. 48" AGF 910101-001049 / 01.2020 Page 9 of 21...
-
Page 10: Dimensional Drawing
Dimensional Drawing 48" AGF 910101-001049 / 01.2020 Page 10 of 21... -
Page 11: Agf Filters Working Principle

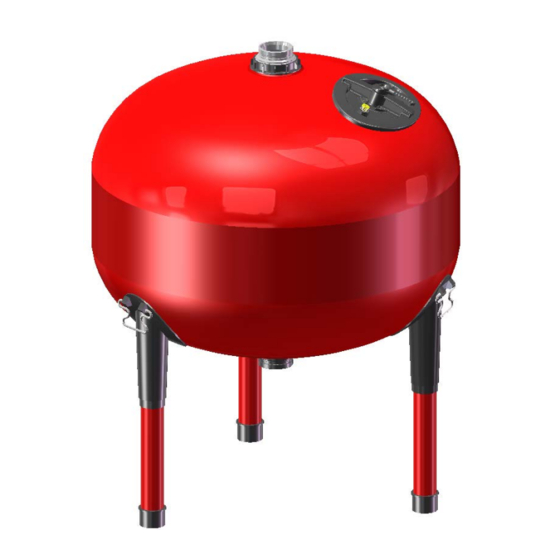

2. How the AGF Filters Operate The AGF is a pressurized media filter which operates by trapping the suspended particles in unfiltered water as it flows through a bed of media in a pressurized tank. -
Page 12: The Filtration Process
The restriction control flow valve on the drain manifold needs to be adjusted properly. This is essential so debris will be backwashed out of the filter while the media will remain in the filter tank. 48" AGF 910101-001049 / 01.2020 Page 12 of 21... -
Page 13: Installation
4. Take out the three filter's legs out of the packaging and carefully connect each leg to its base. 5. Check that both the top and bottom covers are in place and tighten firmly, by hand only. Do not over tighten the bolts. 48" AGF 910101-001049 / 01.2020 Page 13 of 21... -
Page 14: Leakage Test
1. Use personal protective gear when handling the media. Follow the media safety data instructions as provided by the media's manufacturer. 2. Remove the top access cover of the AGF filter vessel. Before adding any media to the filter, visually inspect the inside of the filter tank to make sure that there are no foreign objects inside. -
Page 15: Maintenance
8. Fill the tank with water until all the filter nozzles are covered and add the new media as described on page 14. 9. Open all the valves for normal operation, and readjust the flow control valve on the drain manifold. See instructions on page 11 for further instructions. 48" AGF 910101-001049 / 01.2020 Page 15 of 21... -
Page 16: Troubleshooting
Use a manual valve or pump control / during operation, sustaining valve. especially at start-up Unusual concentration of Check water source quality. Contact an authorized Amiad dealer contaminants for assistance. Controller output problem Check that the controller is on and programmed correctly. - Page 17 Verify that selector valve knob is pointed towards the solenoid. valve - valve setting incorrect Solenoids clogged or Open solenoids and inspect internal ports for damaged evidence of clogging. Open carefully to avoid losing the internal spring-loaded plunger. 48" AGF 910101-001049 / 01.2020 Page 17 of 21...
-
Page 18: Agf Filter Parts List
AGF Filter Parts List CAT. No. DESCRIPTION Material QTY. 710103-000376 Locking Nut R.P.A. 770101-000021 Seal 8*125 EPDM 710101-000393 Inlet R.P.P. 710103-000377 Distribution Plate R.P.P. 710101-000391 Upper Sealing Nut R.P.A. 700190-000159 AGF Sealing Nut+nozzle+Holder Various 710101-000833 Distribution nozzle P.P. 710103-000016 Lower Sealing Nut R.P.A. -
Page 19: Parts Drawing
Parts Drawing 48" AGF 910101-001049 / 01.2020 Page 19 of 21... -
Page 20: Amiad Limited Warranty
In no event shall Amiad be liable to the Buyer or any third party for any damages to property, or for any intangible or economic loss, including loss of profits, loss of customers or damage to reputation, for any damages, including indirect, special, consequential damages, or punitive damage arising out of or in connection with this Warranty, or arising out of or in connection with the product's performance or failure to perform, even if it has been advised of the possibility of such damages. - Page 21 SEP products do not bear the CE marking, in conformity with the art.4 par.3 Pressure Equipment Directive 2014/68/EU Manufacturer: Amiad Water Systems Ltd. D.N. Galil Elyon 1, 1233500, Israel Tel: 972 4 690 9500 | Fax: 972 4 814 1159 Email: info@amiad.com...
