www.ti.com
3
Software Overview
The GUI used to conveniently evaluate the kit can be found on the USB drive that is included with this kit.
It is named Lighting_DCDC.exe. this .exe is all the software necessary to do a quick evaluation of this kit.
to explore deeper, the underlying reference software can be found as Code Composer Studio project
within controlSUTIE.
3.1
Software Setup
Note: The GUI requires Microsoft.NET framework 3.0 to run. Please ensure that this software is installed
prior to running this program.

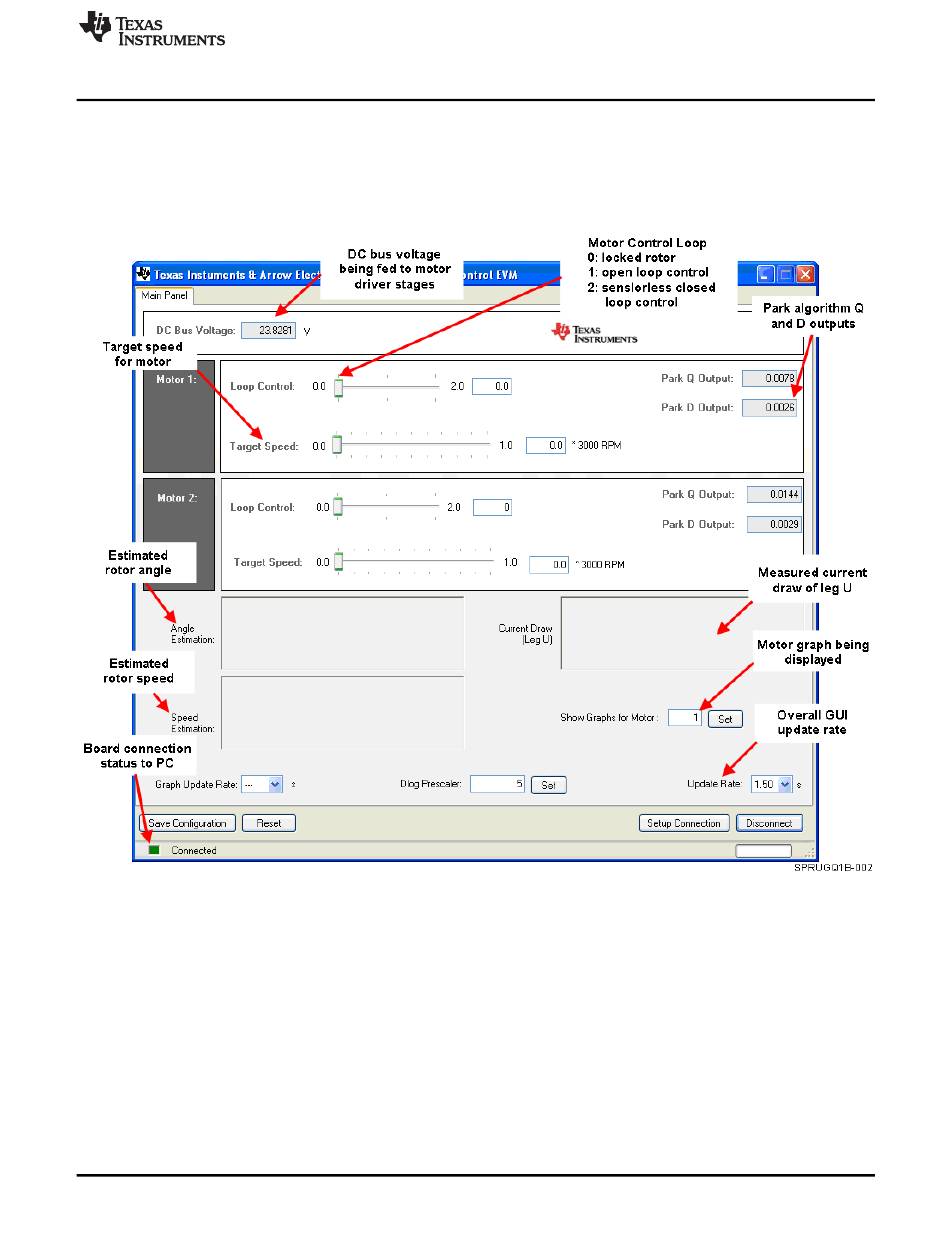

1. Browse to and open the program Multi-AxisGUI.exe found on the USB stick included with the kit. The
following screen should appear
SPRUGQ1B – July 2009 – Revised October 2010
Submit Documentation Feedback
Motor Control and PFC Developer's Kit Quick Start Guide
Copyright © 2009–2010, Texas Instruments Incorporated
Software Overview
5
