MSP-EXP430FR5739 FRAM Experimenter Board
User's Guide
Literature Number: SLAU343B
May 2011 – Revised February 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP430FR5739 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments MSP430FR5739

Summary of Contents for Texas Instruments MSP430FR5739

  • Page 1 MSP-EXP430FR5739 FRAM Experimenter Board User's Guide Literature Number: SLAU343B May 2011 – Revised February 2012...
  • Page 2 SLAU343B – May 2011 – Revised February 2012 Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 3: Table Of Contents

    ..............MSP430FR5739IRHA Device Pin Designation ......................Schematics ......................PCB Layout ....................Bill of Materials (BOM) ......................Suggested Reading ........................References SLAU343B – May 2011 – Revised February 2012 Table of Contents Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
  • Page 4 List of Figures ..................MSP-EXP430FR5739 Overview Comparing Write Speeds When Writing to Nonvolatile Memory (MSP430FR5739 FRAM vs ...................... MSP430F2274 Flash) Comparing Average Power When Writing to Nonvolatile Memory at 13 kBps (MSP430FR5739 FRAM vs ..................... MSP430F2274 Flash) ....................On-Board Accelerometer ....................

  • Page 5: Getting Started With The Msp-Exp430Fr5739 Fram Experimenter Board

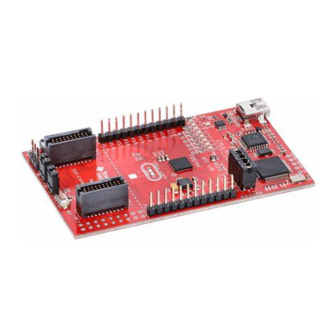

    Introduction The MSP-EXP430FR5739 Experimenter Board introduces TI's first embedded ferro-electric random access memory (FRAM) based MCU, the MSP430FR5739. The experimenter board is an ideal platform for evaluating the latest in embedded memory technology while allowing the user to easily develop, debug, and implement prototypes in an efficient manner.

  • Page 6: Kit Contents

    Double click on FRAM_GUI.exe to load the PC application. More information on how to use this application is provided in Section SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 7: Msp-Exp430Fr5739 User Experience Demo

    The MSP-EXP430FR5739 board is equipped with a reset switch. On reset, the device displays a short LED lighting sequence. SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 8: Comparing Write Speeds When Writing To Nonvolatile Memory (Msp430Fr5739 Fram Vs Msp430F2274 Flash)

    8MB per second depending on how the code is optimized. See the application report Achieving High-Speed FRAM Writes Using the MSP430FR5739 for more details. On entering Mode 1, the address of the FRAM scratchpad location is calculated. For the User Experience demo, the scratchpad location starts at 0xD400 and ends at 0xF000.
  • Page 9 USB or externally via a battery. When powering via the USB, it is recommended to disconnect the emulation portion from the MSP430FR5739 device. This can be done by removing jumpers TXD, RXD, Reset, and Test on J3. A multimeter can be used to measure the current into the MSP430FR5739 V removing the V jumper and placing the multimeter leads in series.

  • Page 10: Comparing Average Power When Writing To Nonvolatile Memory At 13 Kbps (Msp430Fr5739 Fram Vs Msp430F2274 Flash)

    FRAM Flash Figure 3. Comparing Average Power When Writing to Nonvolatile Memory at 13 kBps (MSP430FR5739 FRAM vs MSP430F2274 Flash) 2.2.3.2 Displaying Results on the PC GUI When in Mode 2, the GUI provides details on the time elapsed in the mode, number of bytes written, speed of emulated flash writes, and the endurance emulated over a 512 byte flash block.

  • Page 11: On-Board Accelerometer

    When in the accelerometer mode, the GUI mimics the LEDs that are lit up on the Experimenter Board and are a reflection of the tilt of the board. SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 12: On-Board Ntc Thermistor

    When in the temperature sense mode, the GUI mimics the LEDs that are lit up on the Experimenter Board and are a reflection of the thermistor's ambient temperature measurement. SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 13: View, Edit, Or Recompile The User Experience Code Using An Ide

    This file contains the definitions of all C functions used by main.c FR_EXP.h This file contains all the function declarations needed by main.c and FR_EXP.c SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 14: Msp-Exp430Fr5739 Hardware

    MSP-EXP430FR5739 Hardware www.ti.com MSP-EXP430FR5739 Hardware MSP430FR5739IRHA Device Pin Designation See the MSP430FR5739 data sheet (SLAS639) for the latest information. RHA PACKAGE (TOP VIEW) AVSS P2.4/TA1.0/UCA1CLK/A7*/CD11 PJ.4/XIN P2.3/TA0.0/UCA1STE/A6*/CD10 PJ.5/XOUT P2.7 AVSS DVCC AVCC DVSS P1.0/TA0.1/DMAE0/RTCCLK/A0*/CD0/VeREF-* VCORE P1.7/TB1.2/UCB0SOMI/UCB0SCL/TA1.0 P1.1/TA0.2/TA1CLK/CDOUT/A1*/CD1/VeREF+* MSP430FR5721 MSP430FR5723 P1.6/TB1.1/UCB0SIMO/UCB0SDA/TA0.0 P1.2/TA1.1/TA0CLK/CDOUT/A2*/CD2...

  • Page 15: Schematics

    The schematics and PCB layouts for the MSP-EXP430FR5739 are shown in the following pages. Figure 7. Schematics (1 of 3) SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
  • Page 16 MSP-EXP430FR5739 Hardware www.ti.com Figure 8. Schematics (2 of 3) SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
  • Page 17 MSP-EXP430FR5739 Hardware www.ti.com Figure 9. Schematics (3 of 3) SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 18: Pcb Layout

    MSP-EXP430FR5739 Hardware www.ti.com PCB Layout Figure 10. MSP-EXP430FR5739 Top Layer SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 19: Msp-Exp430Fr5739 Bottom Layer

    MSP-EXP430FR5739 Hardware www.ti.com Figure 11. MSP-EXP430FR5739 Bottom Layer SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 20: Msp-Exp430Fr5739 Silkscreen

    MSP-EXP430FR5739 Hardware www.ti.com Figure 12. MSP-EXP430FR5739 Silkscreen SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 21: Bill Of Materials (Bom)

    R1, R2, R3, R16, R17, R33 R4, R5, R6, R7, 100R 61k5 R13, R24, R25 R14, R15 R18, R20 100k/1% R19, R22 SLAU343B – May 2011 – Revised February 2012 MSP-EXP430FR5739 FRAM Experimenter Board Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 22: Suggested Reading

    CAT24FC32UI ADXL335 accelerometer Suggested Reading The primary sources of MSP430 information are the device-specific data sheets and user's guides. The most up-to-date versions of those documents can be found at the Texas Instruments MSP430 page www.ti.com/msp430. Visit www.ti.com/fram to find the latest information on TI's FRAM family.
