MSP430™ Hardware Tools
User's Guide
Literature Number: SLAU278AG
MAY 2009 – REVISED DECEMBER 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP430 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments MSP430 Series

Summary of Contents for Texas Instruments MSP430 Series

  • Page 1 MSP430™ Hardware Tools User’s Guide Literature Number: SLAU278AG MAY 2009 – REVISED DECEMBER 2020...

  • Page 3: Table Of Contents

    B.7 MSP-TS430PW24................................B.8 MSP-TS430RGE24A............................... B.9 MSP-TS430DW28................................B.10 MSP-TS430PW28................................. B.11 MSP-TS430PW28A............................... B.12 MSP-TS430RHB32A..............................B.13 MSP-TS430DA38................................B.14 MSP-TS430QFN23x0..............................72 B.15 MSP-TS430RSB40................................75 B.16 MSP-TS430RHA40A..............................SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 4 Figure B-20. MSP-TS430PW28 Target Socket Module, Schematic..................Figure B-21. MSP-TS430PW28 Target Socket Module, PCB....................Figure B-22. MSP-TS430PW28A Target Socket Module, Schematic..................63 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 5 Figure B-82. MSP-TS430PZ100USB Target Socket Module, Schematic................164 Figure B-83. MSP-TS430PZ100USB Target Socket Module, PCB..................Figure B-84. MSP-TS430PZ100AUSB Target Socket Module, Schematic................SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 6 Table B-44. MSP-TS430PEU128 Bill of Materials........................Table B-45. EM430F5137RF900 Bill of Materials........................178 Table B-46. EM430F6137RF900 Bill of Materials........................182 Table B-47. EM430F6147RF900 Bill of Materials........................186 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 7: Read This First

    (data sheets, user's guides, software, application information, and so on), visit the TI MSP430 website or contact your local TI sales office. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 8: Information About Cautions And Warnings

    MSP430x3xx Family User's Guide MSP430F4xx Family User's Guide MSP430F5xx and MSP430F6xx Family User's Guide CC430 Family User's Guide MSP430FR57xx Family User's Guide MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 9: If You Need Assistance

    MSP430FR58xx, MSP430FR59xx, and MSP430FR6xx Family User's Guide If You Need Assistance Support for the MSP430 devices and the FET development tools is provided by the Texas Instruments Product Information Center (PIC). Contact information for the PIC can be found on the TI website at www.ti.com/support.
  • Page 10 Read This First www.ti.com This page intentionally left blank. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 11: Get Started Now

    1.15 Hardware Installation, MSP-TS430xxx, MSP-FET430Uxx, FET430F6137RF900, EM430Fx1x7RF900....1.16 Hardware Installation, eZ430-XXXX, MSP-EXP430G2, MSP-EXP430FR5739, MSPEXP430F5529..... 1.17 Important MSP430 Documents on the Web......................SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 12: Kit Contents, Msp-Ts430Xx

    48-pin RGZ Eight PCB 1×12-pin headers MSP430FR58xx and MSP430FR59xx 2 × MSP430FR5969IRGZ (black PCB) (QFN ZIF) (four male and four female) MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 13 PDF document. Depending on the device, errata may also be found in device bug database. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 14: Kit Contents, Msp-Fet430Xx

    One QUICK START GUIDE document • One eZ430-F2013 development tool including one MSP430F2013 target board 1.7 Kit Contents, eZ430-T2012 • Three MSP430F2012-based target boards MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 15: Kit Contents, Ez430-Rf2500

    – One 868-MHz eZ430-Chronos access point eZ430-Chronos-915: – One 915-MHz eZ430-Chronos watch (battery included) – One 915-MHz eZ430-Chronos access point SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 16: Kit Contents, Fet430F6137Rf900

    Two 32.768-kHz crystals • 18 PCB 2×4-pin headers 1.14 Hardware Installation, MSP-FET and MSP-FET430UIF See the MSP Debuggers User’s Guide. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 17: Hardware Installation, Msp-Ts430Xxx, Msp-Fet430Uxx, Fet430F6137Rf900, Em430Fx1X7Rf900

    430\doc folders. Supplements to the documents (that is, the latest information) are available in HTML format in the same directories. An IAR-specific tool page is also available. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 18 Get Started Now! www.ti.com This page intentionally left blank. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 19: Design Considerations For In-Circuit Programming

    This chapter presents signal requirements for in-circuit programming of the MSP430. 2.1 Signal Connections for In-System Programming and Debugging.................20 2.2 External Power................................24 2.3 Bootloader (BSL)................................ SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 20: Signal Connections For In-System Programming And Debugging

    However, if this is unsuccessful, the RST signal of the JTAG connector may be used by the development tool or device programmer as an additional way to assert a device reset. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 21: Figure 2-1. Signal Connections For 4-Wire Jtag

    F. For extra ESD protection on the TEST pin, a 500ohm to 1k ohm pull down resistor can be added Figure 2-1. Signal Connections for 4-Wire JTAG Communication SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 22: Figure 2-2. Signal Connections For 2-Wire Jtag Communication (Spy-Bi-Wire) Used By Msp430F2Xx, Msp430G2Xx

    D. For extra ESD protection on the TEST pin, a 500ohm to 1k ohm pull down resistor can be added Figure 2-2. Signal Connections for 2-Wire JTAG Communication (Spy-Bi-Wire) Used by MSP430F2xx, MSP430G2xx, and MSP430F4xx Devices MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 23: Figure 2-3. Signal Connections For 2-Wire Jtag Communication (Spy-Bi-Wire) Used By All Msp430 Sbw-Capable Devices That Are Not Part Of F2Xx, G2Xx, F4Xx Families

    JTAG access stays disabled. Unintentional edges on SBWTCK can occur when the JTAG connector is connected to the target device. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 24: External Power

    See FAQ for a second alternative to sharing the JTAG and port pins. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 25: A Frequently Asked Questions And Known Issues

    Frequently Asked Questions and Known Issues This appendix presents solutions to frequently asked questions regarding the MSP-FET430 hardware. A.1 Hardware FAQs................................A.2 Known Issues................................28 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 26: Hardware Faqs

    Main memory of packaged devices is blank when the device is delivered from TI. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 27 100-pin device (PZ package): Yamaichi IC201-1004-008 • 128-pin device (PEU package): Yamaichi IC500-1284-009P Enplas: www.enplas.com Wells-CTI (Sensata Technologies): www.sensata.com Yamaichi: www.yeu.com SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 28: Known Issues

    Measure the voltage level of the parallel port. If it is too low, provide external 5 V to the V pads of the interface. The jumper on a the target socket must be switched to external power. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 29: Hardware

    Appendix B.28 MSP-TS430PN80 Appendix B.29 MSP-TS430PN80A Appendix B.30 MSP-TS430PN80B Appendix B.31 MSP-TS430PN80C Appendix B.32 MSP-TS430PN80USB Appendix B.33 MSP-TS430PZ100 Appendix B.34 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 30 Appendix B.40 MSP-TS430PZ100USB Appendix B.41 MSP-TS430PZ100AUSB Appendix B.42 MSP-TS430PEU128 Appendix B.43 EM430F5137RF900 Appendix B.44 EM430F6137RF900 Appendix B.45 EM430F6147RF900 Appendix B.46 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 31: Msp-Ts430D8

    Hardware B.1 MSP-TS430D8 Figure B-1. MSP-TS430D8 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 32: Figure B-2. Msp-Ts430D8 Target Socket Module, Pcb

    Open to disconnect LED Jumper J6 Open to measure current Orient Pin 1 of MSP430 device Figure B-2. MSP-TS430D8 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 33: Pcb

    Manuf.: Yamaichi red, LED 0603 DNP: enclosed with kit. Is supplied MSP430 MSP430G2210, MSP430G2230 by TI 50,0mmx44,5mm MSP-TS430D8 Rev. 1.0 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 34: Msp-Ts430Pw14

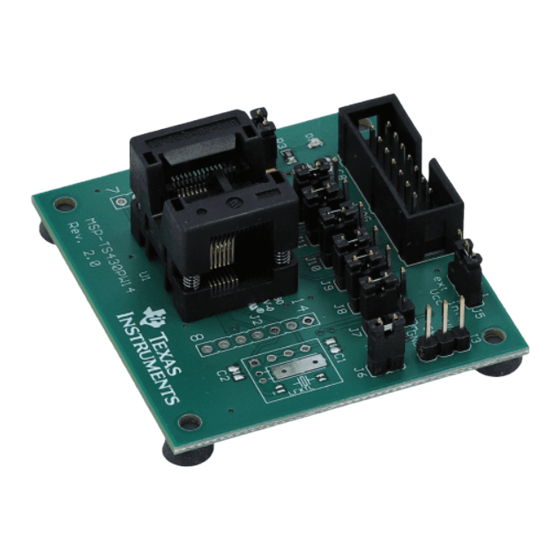

    Hardware www.ti.com B.2 MSP-TS430PW14 Figure B-3. MSP-TS430PW14 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 35: Figure B-4. Msp-Ts430Pw14 Target Socket Module, Pcb

    Open to disconnect LED Orient Pin 1 of MSP430 device Jumper J6 Open to measure current Figure B-4. MSP-TS430PW14 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 36: Table B-2. Msp-Ts430Pw14 Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height SJ-5302 MSP430 MSP430F2013IPW DNP: enclosed with kit, supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 37: Msp-Ts430L092

    Hardware B.3 MSP-TS430L092 Figure B-5. MSP-TS430L092 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 38: Figure B-6. Msp-Ts430L092 Target Socket Module, Pcb

    Write enable for EPROM Open to measure current Orient pin 1 of MSP430 device Figure B-6. MSP-TS430L092 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 39: Table B-3. Msp-Ts430L092 Bill Of Materials

    3.9k, SMD0603 6.8k, SMD0603 14 Pin Socket - Manuf. Yamaichi IC189-0142-146 DNP: Enclosed with kit. Is MSP430 MSP430L092PWR supplied by TI. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 40: Msp-Ts430L092 Active Cable

    Hardware www.ti.com B.4 MSP-TS430L092 Active Cable Figure B-7. MSP-TS430L092 Active Cable Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 41: Figure B-8. Msp-Ts430L092 Active Cable Target Socket Module, Pcb

    Without this jumper on the MSP-TS430L092, reset is set to zero. Connector JTAG For JTAG Tool Figure B-8. MSP-TS430L092 Active Cable Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 42: Table B-5. Msp-Ts430L092 Active Cable Bill Of Materials

    JTAG 14-pin connector, male, TH HRP14H-ND BC817-25LT1SMD, SOT23- Digi-Key: BC817-25LT1GOSCT-ND U1, U2 TLVH431IDBVR SOT23-5 Manu: TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 43: Msp-Ts430Pw20

    GROUP2: Jumpers on 3-5 and 4-6 for MSP430FR231x PW16 • GROUP1: Jumpers on 1-3 and 2-4 for all other compatible devices, including MSP430FR231x PW20 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 44: Figure B-10. Msp-Ts430Pw20 Target Socket Module, Schematic

    Hardware www.ti.com DVCC XTLGND 1uF/10V JP17 JP18 Figure B-10. MSP-TS430PW20 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 45: Figure B-11. Msp-Ts430Pw20 Target Socket Module, Pcb

    Open to disconnect LEDs D1 to D3 LEDs connected to P1.0 to P1.2 Close to reset Figure B-11. MSP-TS430PW20 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 46: Table B-6. Msp-Ts430Pw20 Bill Of Materials

    DNP: Crystal is enclosed with 20ppm / 12.5pF) green LED, HSMG-C170 516-1434-1-ND Avago, Farnell 5790852 DIODE0805 red LED, DIODE0805 yellow LED, DIODE0805 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 47 Ref Des No. Per Board Description Digi-Key Part No. Comment Rubber stand Buerklin: 20H1724 apply to corners at bottom side SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 48: Msp-Ts430Rhl20

    Hardware www.ti.com B.6 MSP-TS430RHL20 DVCC Figure B-12. MSP-TS430RHL20 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 49: Figure B-13. Msp-Ts430Rhl20 Target Socket Module, Pcb

    Open to disconnect LEDs D1 and D2 LEDs D1, D2 LEDs connector to P1.0 and P2.3 Figure B-13. MSP-TS430RHL20 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 50: Table B-7. Msp-Ts430Rhl20 Bill Of Materials

    OFF position, SW5 should be in the ON position TP1, TP2, TP3, TP4, Test Point, Miniature, Black, TH 36-5001-ND TP5, TP6 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 51: Msp-Ts430Pw24

    Hardware B.7 MSP-TS430PW24 Figure B-14. MSP-TS430PW24 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 52: Figure B-15. Msp-Ts430Pw24 Target Socket Module, Pcb

    Orient Pin 1 of MSP430 device LED connected to P1.0 Jumper JP3 Open to disconnect LED Figure B-15. MSP-TS430PW24 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 53: Table B-8. Msp-Ts430Pw24 Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 MSP430 MSP430AFE2xx DNP: enclosed with kit, supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 54: Msp-Ts430Rge24A

    P1.2/UCB0SIMO/UCB0SDA/TA0.2/A2 P2.1/XIN SPICLK/SCL1 XOUT P2.0/XOUT P1.3/UCB0SOMI/UCB0SCL/MCLK/A3 P2.2/ACLK P3.2 P3.0 P2.7 SAM1029-06-ND19-24 JP17 JP18 Figure B-16. MSP-TS430RGE24A Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 55: Figure B-17. Msp-Ts430Rge24A Target Socket Module, Pcb

    Jumper J1 to “ext” 2-3 (ext): External power supply Orient Pin 1 of MSP430 device Figure B-17. MSP-TS430RGE24A Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 56: Table B-9. Msp-Ts430Rge24A Bill Of Materials (Bom)

    Avago, Farnell 5790852 DIODE0805 red (DNP), DIODE0805 yellow (DNP), DIODE0805 Rubber stand Apply to corners at bottom Buerklin: 20H1724 side MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 57: Msp-Ts430Dw28

    Hardware B.9 MSP-TS430DW28 QUARZ3 Figure B-18. MSP-TS430DW28 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 58: Figure B-19. Msp-Ts430Dw28 Target Socket Module, Pcb

    For JTAG Tool Orient Pin 1 of MSP430 device Connector BOOTST For Bootloader Tool Figure B-19. MSP-TS430DW28 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 59: Table B-10. Msp-Ts430Dw28 Bill Of Materials

    R7, R8,R9, 0R, SMD0805 DNP: R1, R2, R9, R10 R10, R11 560R, SMD0805 47K, SMD0805 SOP28DW socket Yamaichi: IC189-0282-042 TSSOP SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 60: Msp-Ts430Pw28

    Hardware www.ti.com B.10 MSP-TS430PW28 Figure B-20. MSP-TS430PW28 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 61: Figure B-21. Msp-Ts430Pw28 Target Socket Module, Pcb

    Close 2-3 to debug in 4-wire JTAG mode Jumper JP3 Open to disconnect LED LED connected to P5.1 Figure B-21. MSP-TS430PW28 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 62: Table B-11. Msp-Ts430Pw28 Bill Of Materials

    0R, SMD0805 47K, SMD0805 SOP28PW socket Enplas: OTS-28-0.65-01 PCB 66 x 79 mm, two layers; Rubber stand off, four pieces MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 63: Msp-Ts430Pw28A

    Hardware B.11 MSP-TS430PW28A Figure B-22. MSP-TS430PW28A Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 64 R3 (0 Ω) must be assembled. If the board is supplied externally, R2 (0 Ω) must be assembled, and R3 must be removed. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 65: Table B-12. Msp-Ts430Pw28A Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 MSP430 MSP430G2553IPW28 DNP: enclosed with kit, supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 66: Msp-Ts430Rhb32A

    Hardware www.ti.com B.12 MSP-TS430RHB32A AVSS PWR3 Figure B-24. MSP-TS430RHB32A Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 67 Close 2-3 to debug in 4-wire JTAG mode Jumper JP2 Open to disconnect LED Orient Pin 1 of MSP430 device Figure B-25. MSP-TS430RHB32A Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 68: Table B-13. Msp-Ts430Rhb32A Bill Of Materials

    DNP: enclosed with kit. Is supplied by TI 3‐pin header, male, TH SAM1035‐03‐ND Rubber stand Buerklin: 20H1724 apply to corners at bottom side MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 69: Msp-Ts430Da38

    Hardware B.13 MSP-TS430DA38 Figure B-26. MSP-TS430DA38 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 70 Open to measure current Connector J3 External power connector Jumper JP1 to "ext" Figure B-27. MSP-TS430DA38 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 71: Table B-14. Msp-Ts430Da38 Bill Of Materials

    Apply to corners at bottom ~6mm width, 2mm height Plastic feet Part No. SJ-5302 side DNP: enclosed with kit MSP430 MSP430F2274IDA supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 72: Msp-Ts430Qfn23X0

    Hardware www.ti.com B.14 MSP-TS430QFN23x0 Figure B-28. MSP-TS430QFN23x0 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 73 R3 (0 Ω) must be assembled. If the board is supplied externally, R2 (0 Ω) must be assembled, and R3 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 74: Table B-15. Msp-Ts430Qfn23X0 Bill Of Materials

    Apply to corners at bottom ~6mm width, 2mm height Plastic feet Part No. SJ-5302 side DNP: enclosed with kit MSP430 MSP430F2370IRHA supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 75: Msp-Ts430Rsb40

    Hardware B.15 MSP-TS430RSB40 Figure B-30. MSP-TS430RSB40 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 76 R3 (0 Ω) must be assembled. If the board is supplied externally, R2 (0 Ω) must be assembled, and R3 must be removed. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 77: Table B-16. Msp-Ts430Rsb40 Bill Of Materials

    DNP: enclosed with kit. Is MSP430 MSP430F5132 supplied by TI Rubber stand select appropriate; for example, apply to corners at bottom side Buerklin: 20H1724 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 78: Msp-Ts430Rha40A

    Hardware www.ti.com B.16 MSP-TS430RHA40A Figure B-32. MSP-TS430RHA40A Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 79 LED connected to P1.0 Jumper JP3 Open to disconnect LED Orient Pin 1 of MSP430 device Figure B-33. MSP-TS430RHA40A Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 80: Table B-17. Msp-Ts430Rha40A Bill Of Materials

    Buerklin: apply to corners at bottom side stand off 20H1724 MSP430 MSP430N5736IRHA DNP: enclosed with kit. Is supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 81: Msp-Ts430Dl48

    Hardware B.17 MSP-TS430DL48 QUARZ3 Figure B-34. MSP-TS430DL48 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 82 Jumper JP2 to "ext" Jumper J4 Open to disconnect LED Orient pin 1 of MSP430 device Figure B-35. MSP-TS430DL48 Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 83: Table B-18. Msp-Ts430Dl48 Bill Of Materials

    Apply to corners at bottom ~6mm width, 2mm height Plastic feet Part No. SJ-5302 side DNP: Enclosed with kit MSP430 MSP430F4270IDL supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 84: Msp-Ts430Pt48

    Hardware www.ti.com B.18 MSP-TS430PT48 Figure B-36. MSP-TS430PT48 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 85 Orient pin 1 of MSP430 device D1, D2 LEDs connected to P1.0, P1.1 Figure B-37. MSP-TS430PT48 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 86: Table B-19. Msp-Ts430Pt48 Bill Of Materials

    On, 1 Pos, 0.15A, 30V, TH CAP, CERM, 12 pF, 50 V, C8, C9 12pF 0805 C0805C120J5GACTU Kemet +/- 5%, C0G/NP0, 0805 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 87 Black 5001 Keystone TP3, TP4 Black, TH testpoint Test Point, Miniature, Black miniature TP5, TP6 5001 Keystone Black, TH testpoint SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 88: Msp-Ts430Pt48A

    P5.5/UCB0CLK/TA2CLK P4.7/UCA0STE/TB0.1 P4.7 P5.6/UCB0STE/TA2.0 P6.2/TB0.0 P5.7/TA2.1/COMP0.2 P6.1/TB0CLK P6.0/TA2.2/COMP0.3 P3.6/UCB1SOMI/UCB1SCL P3.0/TA2.2 P3.2/UCB1SIMO/UCB1SDA P3.3/TA2.1 P3.5/UCB1CLK/TB0TRG Figure B-38. MSP-TS430PT48A Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 89 Open to disconnect LEDs D1 and D2 D1, D2 LEDs connected to P1.0, P4.7 Figure B-39. MSP-TS430PT48A Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 90: Table B-20. Msp-Ts430Pt48A Bill Of Materials

    JP9, SH- JP10, SH- JP11, SH- JP12 Switch, SPST-NO, Off- SW1, SW2 6x6mm EVQ-11A04M Panasonic Mom, 0.02 A, 15 VDC, TH MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 91 AEC-Q200 Grade 0, 0805 TP1, TP2, Test Point, Miniature, Black Miniature TP3, TP4, 5001 Keystone Black, TH Testpoint TP5, TP6 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 92: Msp-Ts430Rgz48B

    Hardware www.ti.com B.20 MSP-TS430RGZ48B Figure B-40. MSP-TS430RGZ48B Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 93 R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 94: Table B-21. Msp-Ts430Rgz48B Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 MSP430 MSP430F5342IRGZ DNP: enclosed with kit, supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 95: Msp-Ts430Rgz48C

    TEST/SBWTCK P2.3 22_TEST/SBWTCK 39_P2.3 RST/SBWTDIO P2.7 23_RST/SBWTDIO 38_P2.7 P2.0 DVCC 24_P2.0 37_DVCC QUARZ5 Figure B-42. MSP-TS430RGZ48C Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 96 43_HFXOUT (pin 43) → SV1 (pin 6) 45_LFXIN (pin 45) → SV1 (pin 10) 46_LFXOUT (pin 46) → SV1 (pin 9) MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 97: Table B-22. Msp-Ts430Rgz48C Bill Of Materials

    Buerklin: 20H1724 apply to corners at bottom side 79.6 x 91.0 mm MSP-TS430RGZ48C 2 layers, black solder mask Rev. 1.2 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 98: Msp-Ts430Pm64

    Connections between the JTAG header and pins XOUT and XIN are no longer required and should not be made. Figure B-44. MSP-TS430PM64 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 99 Open to measure current Jumper J6 Open to disconnect LED Orient Pin 1 of MSP430 device Figure B-45. MSP-TS430PM64 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 100: Table B-23. Msp-Ts430Pm64 Bill Of Materials

    Rubber select appropriate Apply to corners at bottom side standoff MSP430F2619IPM DNP: Enclosed with kit supplied MSP430 MSP430F417IPM by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 101: Msp-Ts430Pm64A

    Hardware B.23 MSP-TS430PM64A PWR3 Figure B-46. MSP-TS430PM64A Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 102 Orient Pin 1 of MSP430 device Jumper JP1 Open to disconnect LED LED connected to P5.1 Figure B-47. MSP-TS430PM64A Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 103: Table B-24. Msp-Ts430Pm64A Bill Of Materials

    4 layers Rubber stand select appropriate Apply to corners at bottom side DNP: Enclosed with kit supplied MSP430 MSP430F4152IPM by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 104: Msp-Ts430Pm64D

    P5.5/L37 P3.1/L9 P5.4/L36 P3.2/L10 P5.3/UCB0SOMI/UCB0SCL/L35 P3.3/L11 P5.2/UCB0SIMO/UCB0SDA/L34 P3.4/L12 P5.1/UCB0CLK/L33 P3.5/L13 P5.0/UCB0STE/L32 P3.6/L14 P3.7/L15 Figure B-48. MSP-TS430PM64D Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 105 R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 106: Table B-25. Msp-Ts430Pm64D Bill Of Materials

    SW1, SW2 2 Panasonic EVQ11 P8079STB-ND DNP, Lacon: 1251459 Rubber Buerklin: 20H1724 apply to corners at bottom side stand off MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 107: Msp-Ts430Pm64F

    P2.3/UCA0STE/TB0OUTH/S19 PJ.4/LFXIN AVSS P2.2/UCA0CLK/TB0.4/RTCCLK/S18 AVSS1 AVCC RXD/SIMO1 P2.1/UCA0SOMI/UCA0RXD/TB0.5/DMAE0/S17 AVCC1 QUARZ5 SAM1129-16-ND JP17 JP18 Figure B-50. MSP-TS430PM64F Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 108 I C BSL Configuration JP17 and JP18 Open Close JP16 Close 2-3 (UART) Close 1-2 (I2C) Figure B-51. MSP-TS430PM64F Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 109: Table B-26. Msp-Ts430Pm64F Bill Of Materials (Bom)

    Avago, Farnell 5790852 DIODE0805 red (DNP), DIODE0805 yellow (DNP), DIODE0805 Rubber stand off Buerklin: 20H1724 apply to corners at bottom side SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 110: Msp-Ts430Rgc64B

    Hardware www.ti.com B.26 MSP-TS430RGC64B Figure B-52. MSP-TS430RGC64B Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 111 R11 (0 Ω) must be assembled. If the board is supplied externally, R12 (0 Ω) must be assembled, and R11 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 112: Table B-27. Msp-Ts430Rgc64B Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 D3,D4 MSP430 MSP430F5310 RGC DNP: enclosed with kit, supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 113: Msp-Ts430Rgc64C

    Devices. For debugging of devices (MSP430F524x and MSP430F523x) without use of the DVIO power domain, short JP4 with the jumper. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 114 P7.1/TB0.1 P2.6/RTCCLK/DMAE0 P7.0/TB0.0 THERMAL_1 THERMAL_2 THERMAL_3 THERMAL_4 THERMAL_5 26MHz/ASX53 THERMAL_6 THERMAL_7 QUARZ_4PIN THERMAL_8 Figure B-54. MSP-TS430RGC64C Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 115 R11 (0 Ω) must be assembled. If the board is supplied externally, R12 (0 Ω) must be assembled, and R11 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 116: Table B-28. Msp-Ts430Rgc64C Bill Of Materials

    Rubber stand off Rubber stand off Buerklin: 20H1724 side 84 x 76 mm 84 x 76 mm MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 117: Msp-Ts430Rgc64Usb

    Set the voltage in the IDE to 0.3 V higher than desired; for example, to run the MCU at 3.0 V, set it to 3.3 V. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 118 Hardware www.ti.com Figure B-56. MSP-TS430RGC64USB Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 119 LED connected to P1.0 Jumper JP2 Clamshell Open to disconnect LED MSP-TS430RGC64USB Rev.: 1.4 RoHS Figure B-57. MSP-TS430RGC64USB Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 120: Table B-29. Msp-Ts430Rgc64Usb Bill Of Materials

    Buerklin: 56D102 220n SMD0603 Buerklin: 53D2074 4u7 SMD0603 Buerklin: 53D2086 0.1u SMD0603 Buerklin: 53D2068 D2, D3, D4 LL103A Buerklin: 24S3406 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 121 Buerklin: 07E564 1k4 / 1k5 Buerklin: 07E612 Buerklin: 07E444 Buerklin: 07E444 Buerklin: 07E740 P12225STB-ND P12225STB-ND P12225STB-ND USB1 USB_RECEPTACLE FARNELL: 117-7885 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 122: Msp-Ts430Pn80

    Connect pins 7 and 10 (GND) externally to DV (see data sheet). Connect load capacitance on V pin 60 when SD16 is used (see data sheet). MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 123 Jumper JP1 to "ext" Open to disconnect LED Orient Pin 1 of MSP430 device Figure B-59. MSP-TS430PN80 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 124: Table B-30. Msp-Ts430Pn80 Bill Of Materials

    ~6mm width, 2mm height Apply to corners at bottom side Plastic feet No. SJ-5302 DNP: Enclosed with kit supplied MSP430 MSP430FG439IPN by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 125: Msp-Ts430Pn80A

    Hardware B.30 MSP-TS430PN80A Figure B-60. MSP-TS430PN80A Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 126 R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 127: Table B-31. Msp-Ts430Pn80A Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 MSP430 MSP430F5329IPN DNP: enclosed with kit, supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 128: Msp-Ts430Pn80B

    P5.4/UCA2TXD/UCA2SIMO/TB0OUTH 65 P2.4/TA1.0/UCA1CLK/A7/C11 64 P2.3/TA0.0/UCA1STE/A6/C10 63 P2.7 DVCC DVCC SAM1029-20-ND 1uF/10V JP17 JP18 Figure B-62. MSP-TS430PN80B Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 129 JP11 Open to disconnect LEDs through LEDs connected to P1.0 through P1.2 Figure B-63. MSP-TS430PN80B Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 130: Table B-32. Msp-Ts430Pn80B Bill Of Materials

    DNP: Not enclosed in kit DNP: MS3V-TR1 Micro Crystal, DNP, enclosed in kit, keep (32768kHz, 20ppm, depends on application vias free of solder 12.5pF) MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 131: Msp-Ts430Pn80C

    Ch1IN P4.2/UCA0STE/TB0.5/UCA3SIMO/UCA3TXD/LCDS14 P3.5/ACLK/COM3/COUT/LCDS26 P4.3/UCA0SIMO/UCA0TXD/LCDS13 P3.4/SMCLK/COM6/DMAE0/LCDS27 P4.4/UCA0SOMI/UCA0RXD/LCDS12 P3.3/MCLK/TB0.3/XPB1/LCDS25 P4.5/TA0CLK/TA1CLK/LCDS11 P3.2/TA1.1/COM5/LCDS28 P4.6/TB0CLK/TA4CLK/LCDS10 P6.7/TA0.1/COM4/LCDS29 R33/LCDCAP LCDCAP Figure B-64. MSP-TS430PN80C Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 132 Open to disconnect LEDs D1 and D2 D1, D2 LEDs connected to P1.0, P1.1 Figure B-65. MSP-TS430PN80C Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 133: Table B-33. Msp-Ts430Pn80C Bill Of Materials

    RES, 4.7 k, 5%, R16, R17 4.7k 0805 CRCW08054K70JNEA Vishay-Dale 0.125 W, 0805 RES, 22, 5%, 0.1 W, 0603 CRCW060322R0JNEA Vishay-Dale 0603 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 134 Keystone TP3, TP4 Black, TH Testpoint TP5, TP6, Test Point, Miniature, Black Miniature 5001 Keystone TP7, TP8 Black, TH Testpoint MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 135: Msp-Ts430Pn80Usb

    Set the voltage in the IDE to 0.3 V higher than desired; for example, to run the MCU at 3.0 V, set it to 3.3 V. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 136 Hardware www.ti.com A. R11 should be populated. Figure B-66. MSP-TS430PN80USB Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 137 Orient Pin 1 of MSP430 device LED connected to P1.0 Jumper JP2 Open to disconnect LED Figure B-67. MSP-TS430PN80USB Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 138: Table B-34. Msp-Ts430Pn80Usb Bill Of Materials

    TI http://www.ettinger.de/ Insulating disk Insulating disk to Q2 Art_Detail.cfm? to Q2 ART_ARTNUM=70.08.121 220n Buerklin: 53D2074 Buerklin: 56D102 Buerklin: 56D102 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 139 R13, R15, 470R Buerklin: 07E564 Buerklin: 07E612 Buerklin: 07E444 Buerklin: 07E444 Buerklin: 07E740 P12225STB-ND P12225STB-ND P12225STB-ND USB1 USB_RECEPTACLE FARNELL: 117-7885 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 140: Msp-Ts430Pz100

    A. Connections between the JTAG header and pins XOUT and XIN are no longer required and should not be made. Figure B-68. MSP-TS430PZ100 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 141 External power connection Remove R8 and jumper R9 Orient Pin 1 of MSP430 device Figure B-69. MSP-TS430PZ100 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 142: Table B-35. Msp-Ts430Pz100 Bill Of Materials

    Apply to corners at bottom ~6mm width, 2mm height Plastic feet Part No. SJ-5302 side DNP: enclosed with kit MSP430 MSP430FG4619IPZ supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 143: Msp-Ts430Pz100A

    Hardware B.35 MSP-TS430PZ100A Figure B-70. MSP-TS430PZ100A Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 144 Jumper JP3 to "ext" LED connected to P5.1 Orient Pin 1 of MSP430 Device Figure B-71. MSP-TS430PZ100A Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 145: Table B-36. Msp-Ts430Pz100A Bill Of Materials

    4 layers Rubber Apply to corners at bottom Select appropriate standoff side DNP: Enclosed with kit MSP430 MSP430F47197IPZ supplied by TI SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 146: Msp-Ts430Pz100B

    Hardware www.ti.com B.36 MSP-TS430PZ100B Figure B-72. MSP-TS430PZ100B Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 147 R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 148: Table B-37. Msp-Ts430Pz100B Bill Of Materials

    Apply to corners at bottom side plastic feet 2mm height Part No. SJ-5302 MSP430 MSP430F6733IPZ DNP: enclosed with kit, supplied by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 149: Msp-Ts430Pz100C

    LDOI PU.1 PU.0 HCTC XTL 2 $1 HCTC XTL 2 $2 XTLGND2 PWR3 Figure B-74. MSP-TS430PZ100C Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 150 R11 (0 Ω) must be assembled. If the board is supplied externally, R10 (0 Ω) must be assembled, and R11 must be removed. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 151: Table B-38. Msp-Ts430Pz100C Bill Of Materials

    Place jumper on Pin 1 and Pin 2 4.7 uF, SMD0805 Buerklin 53 D 2430 220nF, SMD0805 Buerklin 53 D 2381 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 152: Msp-Ts430Pz100D

    P8.3/MCLK/S18 AVCC1 ESICOM P2.3/UCA0STE/TB0OUTH ESICOM P2.2/UCA0CLK/TB0.4/RTCCLK ESICI BSLRX ESIVSS P2.1/UCA0SOMI/UCA0RXD/TB0.5/DMAE0 ESIVSS FE25-1A4 QUARZ5 Figure B-76. MSP-TS430PZ100D Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 153 HF and LF oscillators with capacitors and resistors to connect pinheads ESIVCC JP12 AVCC Figure B-77. MSP-TS430PZ100D Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 154: Table B-39. Msp-Ts430Pz100D Bill Of Materials

    DNP, Crystal depends on application DNP, keep vias free of solder green LED, DIODE0805 P516TR-ND red (DNP), DIODE0805 yellow (DNP), DIODE0805 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 155 Pos. Ref Des Description Digi-Key Part No. Comment Board Rubber Buerklin: 20H1724 apply to corners at bottom side stand off SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 156: Msp-Ts430Pz100E

    Hardware www.ti.com B.39 MSP-TS430PZ100E Figure B-78. MSP-TS430PZ100E Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 157 Open to disconnect LEDs D1 and D2 D1, D2 LEDs connected to P1.0, P1.1 Figure B-79. MSP-TS430PZ100E Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 158: Table B-40. Msp-Ts430Pz100E Bill Of Materials

    RES, 47 k, 5%, 0.125 W, 0805 541-47KACT-ND RES, 47 k, 5%, 0.125 W, 0805 541-47KACT-ND R16, R17 RES, 4.7 k, 5%, 0.125 W, 0805 541-4.7KACT-ND MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 159 0.15A, 30V, TH "ON", S3 and S4 should be "OFF" TP1, TP2, TP3, TP4, Test Point, Miniature, Black, TH 36-5001-ND TP5, TP6 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 160: Msp-Ts430Pz5X100

    Hardware www.ti.com B.40 MSP-TS430PZ5x100 Figure B-80. MSP-TS430PZ5x100 Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 161 Orient Pin 1 ofMSP430 device LED connected to P1.0 Jumper JP2 Open to disconnect LED Figure B-81. MSP-TS430PZ5x100 Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 162: Table B-41. Msp-Ts430Pz5X100 Bill Of Materials

    2 layers Rubber Select appropriate Apply to corners at bottom side standoff DNP: Enclosed with kit supplied MSP430 MSP430F5438IPZ by TI MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 163: Msp-Ts430Pz100Usb

    Set the voltage in the IDE to 0.3 V higher than desired; for example, to run the MCU at 3.0 V, set it to 3.3 V. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 164 Hardware www.ti.com Figure B-82. MSP-TS430PZ100USB Target Socket Module, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 165 Jumpers LED 1, 2, 3 LEDs connected to P8.0, P8.1, P8.2 Open to disconnect LED1, Figure B-83. MSP-TS430PZ100USB Target Socket Module, PCB SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 166: Table B-42. Msp-Ts430Pz100Usb Bill Of Materials

    Insulating disk to Q2 Art_Detail.cfm? to Q2 ART_ARTNUM=70.08.121 4.7 nF SMD0603 220n SMD0603 Buerklin: 53D2074 C35, C36 10p SMD0603 Buerklin: 56D102 MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 167 DNP S1 and S2. (Only S3) USB1 USB_RECEPTACLE FARNELL: 117-7885 JP11 4-pin header, male, TH SAM1035-04-ND place jumper only on Pin 1 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 168: Msp-Ts430Pz100Ausb

    100-pin QFP package. MSP430FG6626IPZ devices are not included in the MSP- TS430PZ100AUSB kit. Free samples can be ordered from www.ti.com/product/MSP430FG6626/samplebuy. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 169 Q2G$2 XTLGND2 VUSB VBUS PU.1/DM PU.0/DP PWR3 LED1 470R LED2 470R LED3 470R Figure B-84. MSP-TS430PZ100AUSB Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 170 Jumpers LED 1, 2, 3 LEDs connected to P8.0, P8.1, P8.2 Open to disconnect LED1, Figure B-85. MSP-TS430PZ100AUSB Target Socket Module, PCB MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 171: Table B-43. Msp-Ts430Pz100Ausb Bill Of Materials

    R1, R2, R4 0 Ohm, SMD0805 541-0.0ATR-ND 100R, R0603 541-100GCT-ND 1M, R0603 541-1.0MGCT-ND R13, R15, R16 470R SMD0603 Buerklin: 07E564 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 172 Insulating disk Insulating disk for Q2 ettinger.de 70.08.121 for Q2 Rubber stand Buerklin: 20H1724 Apply to corners at bottom side MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 173: Msp-Ts430Peu128

    SD0N0 SD0P0 P7.5/S27 SD0P0 P7.6/S26 P7.7/S25 P8.0/S24 P8.1/S23 P8.2/S22 P8.3/S21 TP1 TP2 PWR3 Figure B-86. MSP-TS430PEU128 Target Socket Module, Schematic SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 174 • JP5 pin 2 is connected to IC1 pin 97. • BOOTST pin 7 is connected to IC1 pin 97. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 175: Table B-44. Msp-Ts430Peu128 Bill Of Materials

    DNP: Receptacles enclosed with kit. Keep vias J1, J3 free of solder. Rubber feet Rubber feet Buerklin: 20H1724 apply to bottom side corners SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 176: Em430F5137Rf900

    Hardware www.ti.com B.44 EM430F5137RF900 Figure B-88. EM430F5137RF900 Target Board, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 177 The battery pack that is included with the EM430F5137RF900 kit may be connected to CON12. Ensure correct battery insertion regarding the polarity as indicated in battery holder. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 178: Table B-45. Em430F5137Rf900 Bill Of Materials

    INDUCTOR, SMT, 0402, 6.2nH, 6.2nH LQP15MN6N2B02 Murata 0.1nH, 130mA, 500MHz ULTRA-SMALL TACTILE S1-S2 SWITCH, SMT, 2P, SPST-NO, B3U-1000P OMRON 1.2x3x2.5mm, 0.05A, 12V MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 179 WUERTH JP10 JP7, CON13 Pin Connector 1x2pin 61300211121 WUERTH Pin Connector 2x2pin 61300421121 WUERTH JP1a Pin Connector 2x3pin 61300621121 WUERTH SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 180: Em430F6137Rf900

    Hardware www.ti.com B.45 EM430F6137RF900 Figure B-90. EM430F6137RF900 Target Board, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 181 The battery pack that is included with the EM430F6137RF900 kit may be connected to CON12. Ensure correct battery insertion regarding the polarity as indicated in battery holder. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 182: Table B-46. Em430F6137Rf900 Bill Of Materials

    RESISTOR, SMT, THICK FILM, 56K, 1/16W, 1% ERJ-2RKF5602 PANASONIC RESISTOR/JUMPER, SMT, 0402, 0 Ω, 5%, ERJ-2GE0R00X PANASONIC 1/16W SMA STRIGHT JACK, SMT 32K10A-40ML5 ROSENBERGER MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 183 WUERTH Pin Connector 1x3pin 61300311121 WUERTH JP3, JP5, JP10 Pin Connector 1x2pin 61300211121 WUERTH JP1a Pin Connector 2x3pin 61300621121 WUERTH SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 184: Em430F6147Rf900

    Hardware www.ti.com B.46 EM430F6147RF900 Figure B-92. EM430F6147RF900 Target Board, Schematic MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 185 The battery pack which comes with the EM430F6147RF900 kit may be connected to CON12. Ensure correct battery insertion regarding the polarity as indicated in battery holder. SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 186: Table B-47. Em430F6147Rf900 Bill Of Materials

    CAP CERAMIC 4.7UF 6.3V X5R 0603 ECJ-1VB0J475M PANASONIC R441 RESISTOR, SMT, THICK FILM, 56K, 1/16W, 1% ERJ-2RKF5602 PANASONIC SMA STRIGHT JACK, SMT 32K10A-40ML5 ROSENBERGER MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 187 GRM31CR61C226ME15L MURATA C8-9 CAP, SMD, Ceramic, 0402, 2.2uF, X5R GRM155R60J225ME15D MURATA CAP, SMD, Ceramic, 0603, 4.7uF, 16V, 10%, C041 MURATA SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 188 Hardware www.ti.com This page intentionally left blank. MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 189: C Hardware Installation Guide

    • eZ430-RF2500 • eZ430-Chronos • eZ430-RF2780 • eZ430-RF2560 • MSP-WDSxx "Metawatch" • MSP-EXP430G2 LaunchPad development kit • MSP-EXP430FR5739 • MSP-EXP430F5529 SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 MSP430™ Hardware Tools Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...

  • Page 190: Revision History

    Figure 2-1 Figure 2-2 Figure 2-3 • Added recommendation for pull down resistor on TEST pin to Figure 2-1 Figure 2-2 Figure 2-3 ....MSP430™ Hardware Tools SLAU278AG – MAY 2009 – REVISED DECEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
  • Page 191 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2020, Texas Instruments Incorporated...

This manual is also suitable for:

Msp-ts430d8Msp-ts430pw14Msp-ts430l092Msp-ts430pw20Msp-ts430rhl20Msp-ts430pw24 ... Show all

Table of Contents
