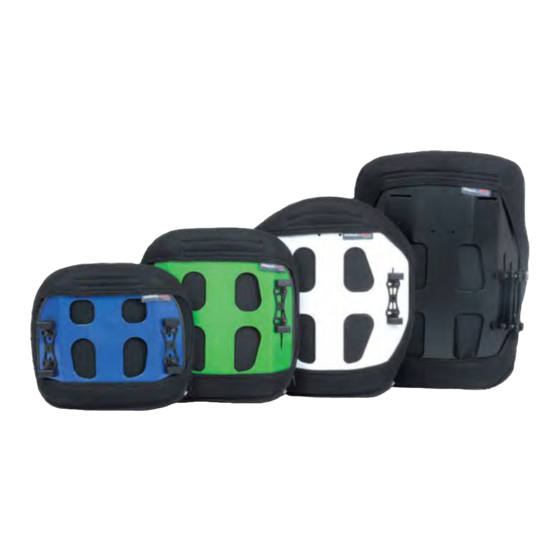

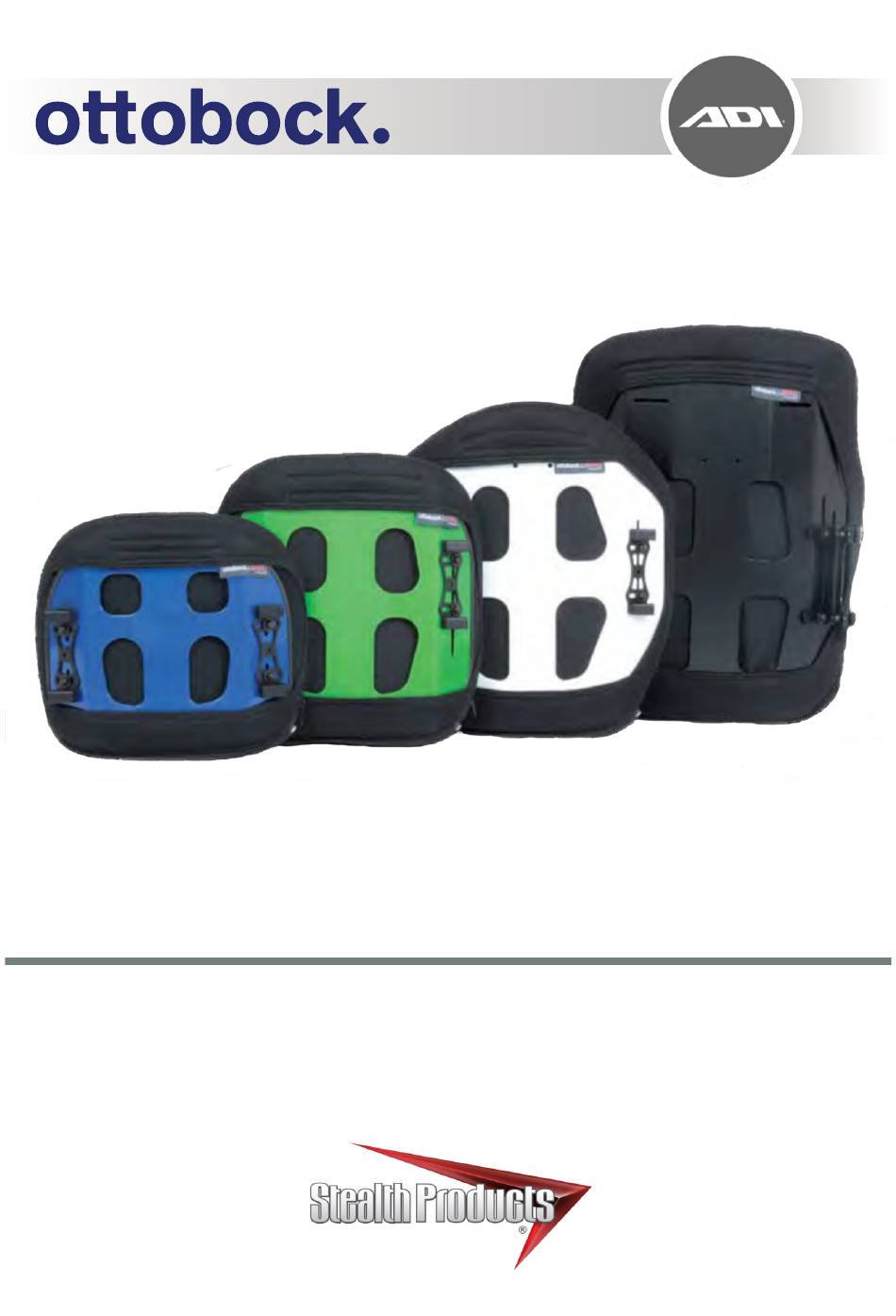

- Page 1 Backs & Support Baxx Back Supports Owner’s Manual - Maintenance Guide AL & AFT Series Back Supports...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ....................i General ................................i Important Information....................ii Warranty...............................ii Supplier Reference ...........................ii Warning Labels......................iii Warning Labels............................iii Limited Liability ............................iii Design and Function ....................1-2 Intended Use ............................. 1 Seating Philosophy ..........................1 Back Support Contours ......................... 2 Installation ......................3-12 Installation Plan............................ -
Page 3: Customer Satisfaction
Customer Satisfaction Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at: Stealth Products, LLC 104 John Kelly Drive Burnet, TX 78611... -
Page 4: Important Information
Important Information CAUTION These products are designed to be fitted, applied, and installed exclusively by a healthcare professional trained for these purposes. The fitting, application, and installation by a non-qualified individual could result in serious injury. Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. -
Page 5: Warning Labels
Important Information Warning Labels Warnings are included for the safety of the user, client, operator, and property. Please read and understand what the signal words DANGER, WARNING, CAUTION, NOTICE, and SAFETY mean, and how they could affect the user, those around the user, and property. -
Page 6: Design And Function
Design & Function Intended Use The Ottobock Baxx Line expands our seating and positioning portfolio and is designed to complement our seat cushions as part of our overall Seating Philosophy. Ottobock Baxx Line, divided into the Aluminium Back Series (AL) and the Aluminium Series Flat Top (AFT), provides posterior and lateral support to the trunk. -
Page 7: Back Support Contours
Design & Function Back Support Contours Active Contour 64 mm (2.5") Depth For users with good postural stability, or those who require separate lateral supports, e.g. scoliosis. Deep Contour 100mm (4") Depth For users who require moderate integral lateral supports, e.g. -
Page 8: Installation
Installation Installation Plan Set up an installation plan before installing hardware on the back shell. This plan should specify: • Where the clamps should be located on the canes. • The proper height of the hardware for the user. • The correct angle and depth of the hardware for the user. -
Page 9: Quick Release Mounting Hardware
Installation Quick Release Mounting Hardware Suitable for users who use their wheelchair as a seat in transportation, or require a quick removal system for easy transfer into a vehicle. The Quick Release mechanism is optimised for use by those with limited hand function, e.g. tetraplegics. Overview A. - Page 10 Installation B. Fasten Quick Release Latch to U-Block. 1. Insert two M6 x 1.0 x 20mm button head screws into split lock washers and flat washers. Using the 4mm hex key, attach the latch assembly as shown in the image below. It is essential that the included split lock washers be used NOTICE at all four attachment points to maintain...
- Page 11 Installation If the system is mounted on 1" canes, use the M5 x 0.8 x 25mm socket head screws included, CAUTION instead of the M5 x 0.8 x 22mm socket head screws. 2. Loosen the M5 screws. Open the jaws of the cane clamp and with the mounting stud facing inward (towards the opposite cane), slide the jaws over the cane.
-
Page 12: 2-Point Pro Mounting Hardware
Installation 2-Point Pro Mounting Hardware Suitable for manual and powered wheelchair users who do not remove their back support. Overview A. Install U-Block to Back Support. B. Fasten 2-Point Assembly to U-Block. C. Attach Clamp Assemblies to Canes. D. Tighten Hardware to Torque Specifications. 2-Point Pro hardware should be installed WARNING ONLY by a qualified service technician. - Page 13 Installation B. Fasten 2-Point Assembly to U-Block. 1. Align the 2-Point mounting bracket and cane clamp with the assembled and mounted U-block. 2. Insert two M6 x 1.0 x 20mm button head screws into split lock washers and flat washers. Using the 4mm hex key, attach the assembly as shown in the images below.
- Page 14 Installation 2. Loosen the M5 screws. Open the jaws of the cane clamp and with the mounting stud facing inward (toward the opposite cane), slide the jaws over the cane. Align the clamp with the mark made in the previous step and slightly tighten with the 4mm hex key to secure it to the cane.
-
Page 15: 4-Point Pro Mounting Hardware
Installation 4-Point Pro Mounting Hardware Suitable for manual or powered wheelchair users who do not remove their back support. Offers more depth and angle adjustment than the 2-Point Pro. 4-point mounts on the back canes make this hardware particularly suitable for users prone to higher levels of activity. - Page 16 Installation B. Determine Height of Back Support on Canes. 1. Hold the back support with bent brackets mounted up to the canes and visually determine the desired height. The width may have to be adjusted slightly for the brackets to reach the canes. 2.
- Page 17 Installation D. Install Back Support to Canes. tooltip 1. Slide the back support between the canes and line up the top slots in the bent brackets (BR5030) with the screws in the cane clamps. tooltip 2. Rotate the clamps until the 35mm bolts (HBR071) slide into the top slots in the bent brackets (BR5030).
-
Page 18: Adjustment
Adjustment Quick Release Hardware Height Adjustment 1. With a 10mm STEP wrench, loosen M6 STEP nuts (A) on the stud plate. 2. Slide stud plate up or down along the pre-cut slot in the back support to achieve the desired position. -
Page 19: Quick Release Hardware Angle Adjustment
Adjustment Quick Release Hardware Angle Adjustment 20° 1. On each side of the STEP hardware, loosen the STEP top and bottom M6 screws (A) with a 4mm Hex Key. 2. Adjust the back support to achieve the desired user angle. Approximately 20°... -
Page 20: 2-Point Pro Hardware Height Adjustment
tooltip Adjustment 2-Point Pro Hardware Height Adjustment tooltip 1. Loosen the two nylon lock nuts STEP STEP securing the mount to the back support. 2. Move the hardware or back support up or down to the desired position. 3. Tighten the nylon lock nuts as described on Page 3, Torque... -
Page 21: 2-Point Pro Hardware Angle Adjustment
Adjustment 2-Point Pro Hardware Angle Adjustment 1. Loosen the button 3. Tighten the button Approximately 20° of tooltip head screws securing head screws as adjustment is available. the hardware. described on Page 3, Torque Specifications. tooltip tooltip STEP STEP STEP 2. -
Page 22: Point Pro Hardware Height Adjustment
Adjustment 4-Point Pro Hardware Height Adjustment The back support can be adjusted for height by itself, or with the hardware: 1. Loosen the nylon lock nuts securing the bent bracket to the cane clamps. Loosen the button head screws securing the cane clamps to the cane. tooltip 2. -
Page 23: Point Pro Hardware Angle Adjustment
Adjustment 4-Point Pro Hardware Angle Adjustment tooltip tooltip 1. On each side of the STEP hardware, loosen the nylon lock nuts securing the bent bracket to the back support. 2. Adjust the angle of the back support to achieve desired user angle. 3. -
Page 24: First-Time Use
First Time Use Dealer Assistance During first time use by the client, it is advised that the dealer or service technician assists and explains the set up to the customer (the user and/or the attendant). If needed, the dealer may make final adjustments. Baxx back supports may not fit every chair. -
Page 25: Cleaning And Maintenance
Cleaning and Maintenance Cleaning • Use a soft cloth to clean the back shell. • Hand wash the foam pad cover with mild, soapy water or detergent and let dry. • Foam pad should NOT get wet. DO NOT immerse foam in water. DO NOT wash or machine dry. - Page 26 Notes...
- Page 27 Notes...
- Page 28 © 2022, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P133D22R1 Ottobock Baxx.afpub Aug 29, 2022...
