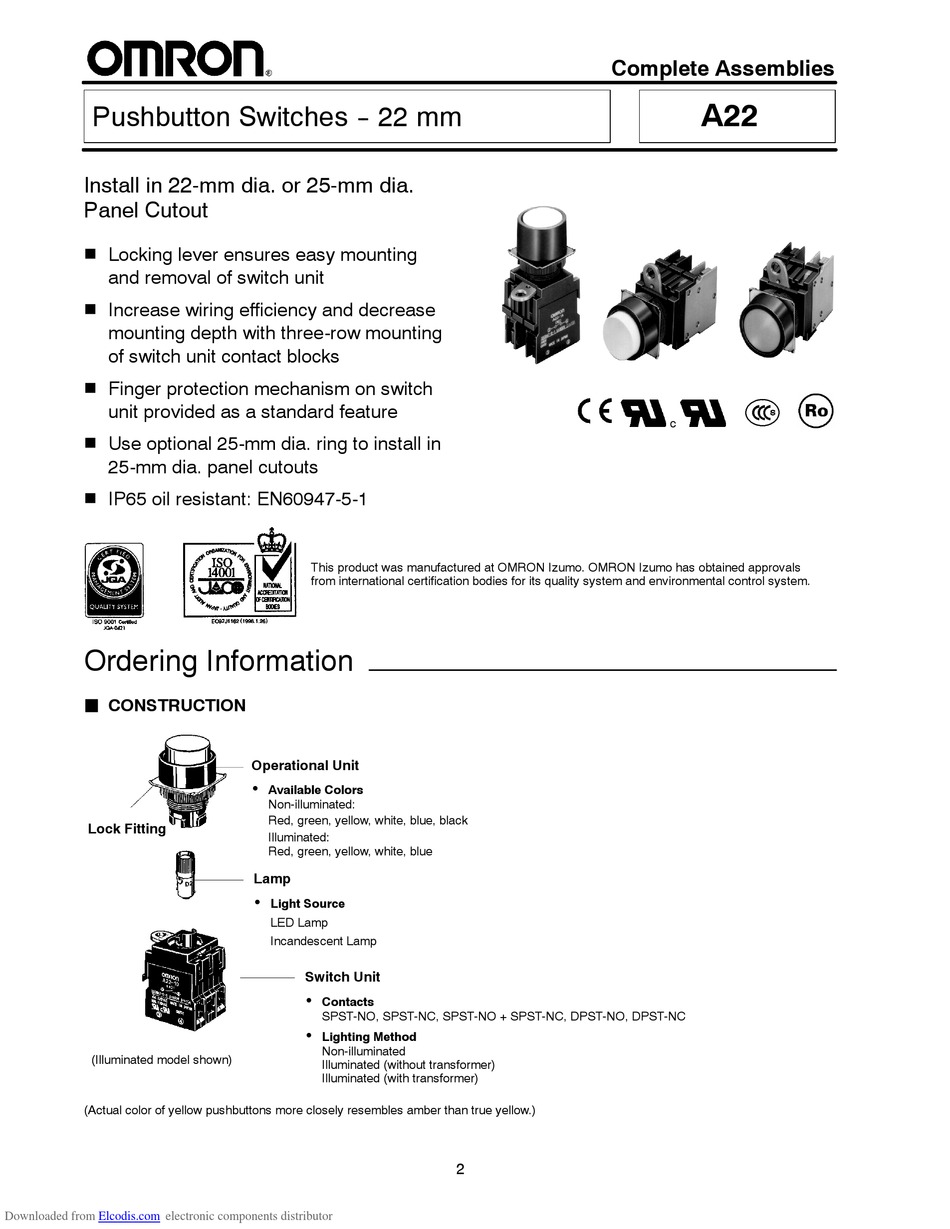

Pushbutton Switches -- 22 mm
Install in 22-mm dia. or 25-mm dia.
Panel Cutout
Locking lever ensures easy mounting
H
and removal of switch unit
Increase wiring efficiency and decrease
H
mounting depth with three-row mounting
of switch unit contact blocks
Finger protection mechanism on switch
H
unit provided as a standard feature
Use optional 25-mm dia. ring to install in
H
25-mm dia. panel cutouts
IP65 oil resistant: EN60947-5-1
H
Ordering Information
J CONSTRUCTION
Lock Fitting
(Illuminated model shown)
(Actual color of yellow pushbuttons more closely resembles amber than true yellow.)
Downloaded from
Elcodis.com
electronic components distributor
This product was manufactured at OMRON Izumo. OMRON Izumo has obtained approvals
from international certification bodies for its quality system and environmental control system.
Operational Unit
•
Available Colors
Non-illuminated:
Red, green, yellow, white, blue, black
Illuminated:
Red, green, yellow, white, blue
Lamp
•
Light Source
LED Lamp
Incandescent Lamp
Switch Unit
•
Contacts
SPST-NO, SPST-NC, SPST-NO + SPST-NC, DPST-NO, DPST-NC
•
Lighting Method
Non-illuminated
Illuminated (without transformer)
Illuminated (with transformer)
Complete Assemblies
2
A22
c
