A3C
Pushbutton Switch (Lighted/Non-Lighted) (Cylindrical 12-dia.)
Pushbutton Switch Series with
Cylindrical 20-mm × 12-dia. Body
• High-intensity uniform surface lighting.
• Round body enables easy hole making.
• Miniature size with excellent feeling of operation.
RoHS Compliant
Refer to Safety Precautions for All Pushbutton Switches and
Safety Precautions on page 12.
List of Models
Appearance
Rectangular
Models
Square
Models
Round
Models
■ Specifications: Refer to page 8. ■ Dimensions: Refer to page 10. ■ Accessories: Refer to page 7.
■ Precautions for correct use and safety precautions: Refer to page 12.
Model
A3CJ
A3CA
A3CT
CSM_A3C_DS_E_2_1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A3C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron A3C Series

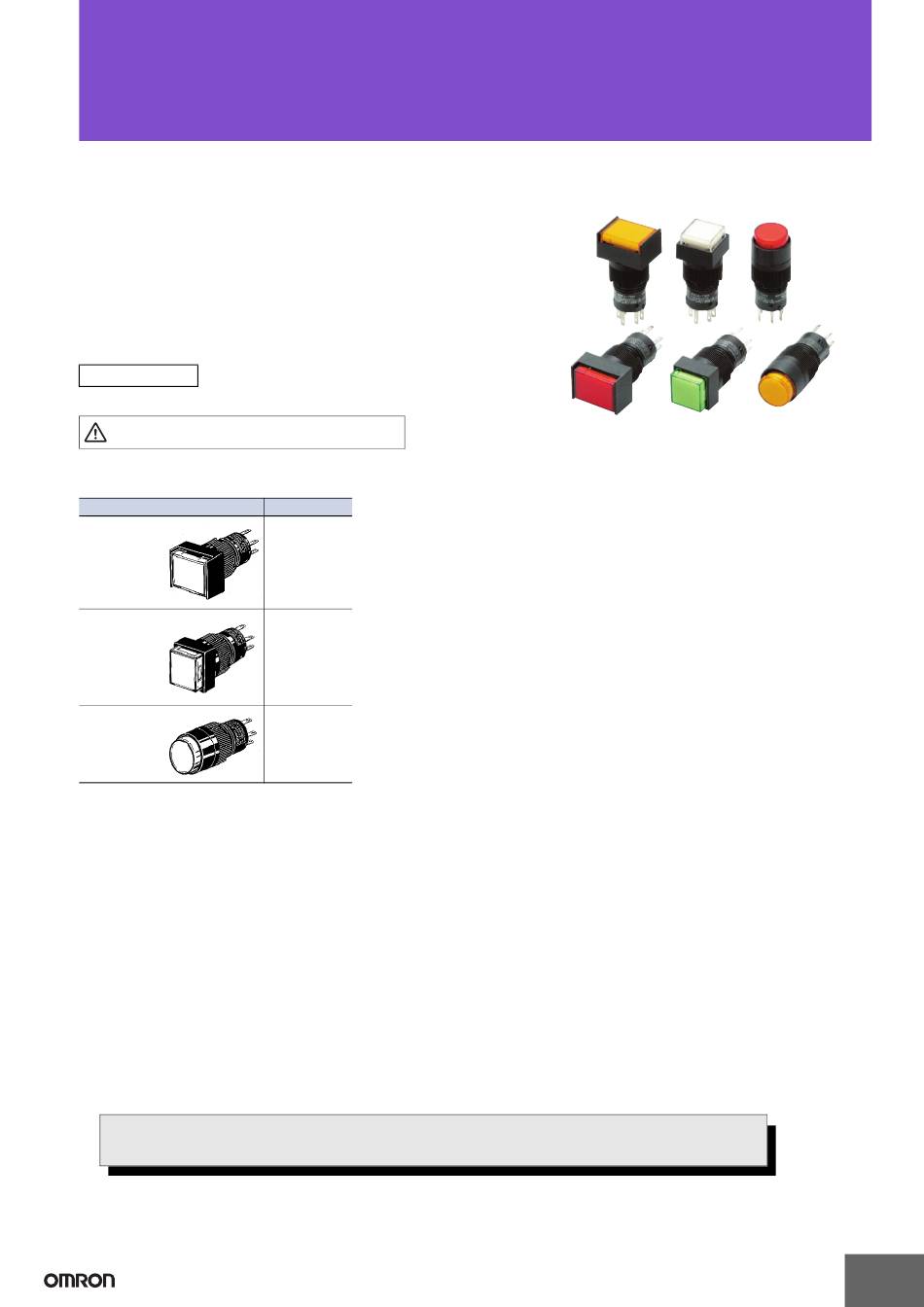

  • Page 1 Pushbutton Switch (Lighted/Non-Lighted) (Cylindrical 12-dia.) CSM_A3C_DS_E_2_1 Pushbutton Switch Series with Cylindrical 20-mm × 12-dia. Body • High-intensity uniform surface lighting. • Round body enables easy hole making. • Miniature size with excellent feeling of operation. RoHS Compliant Refer to Safety Precautions for All Pushbutton Switches and Safety Precautions on page 12.
