  • Page 1 master Easy FULL HD - KVM EXTENDER OVER IP Tune in the easy KVM World Tune in the easy KVM World • EASYLINE masterEASY Single in Copper/Fiber Dual in Copper/Fiber www.kvm-tec.com kvm-tec MANUAL Check out V10522 our Installation Channel:...
  • Page 2 OVERVIEW • Frontbridging for point to point or Matrix Switching Systems • Backbridging up to 56 endpoints without user system • Easy Cross Move Easyline gateway stand alone uncompressed redundant media4Kconnect • Simultaneous Ecosmart downscaling • Mouse glide & switch uncompressed redundant media4Kconnect SPECIAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENT 1. Introduction 1.1 Intended use 1.2 Safety instructions 1.3 Technical Specifications 1.4 About your masterEASY single copper 1.5 About your masterEASY dual copper 1.6 About your masterEASY extender single in fiber 1.7 About your masterEASY extender dual in fiber 1.8 About your masterEASY backpanel 1.9 About the status LED 2.
  • Page 4 TABLE OF CONTENT 2.9 Replacing the SFP module 2.10 Removing a CATx cable 2.11 Removing a fiber cable 2.12 Best practice for Windows 10 3. Extender settings 3.1 Using the on screen menu 3.2 Viewing the current firmware version 3.3 Features 3.4 Diagnosis Menu 3.5 DDC Menu 3.5.1 DDC Main (single)
  • Page 5 TABLE OF CONTENT 3.7.3 USB share any key 3.7.4 Audio input gain 3.7.5 Using the power saving mode 3.7.6 Hiding System status menu 3.7.7 Change keyboard fallback modus 3.7.8 Lock menu 3.7.9 Mouse speed 3.7.10 Monitor sync strength 3.8 Update 3.8.1 Firmware update with Switching Manager Demoversion 3.8.2 Firmware update with USB stick 3.9 Unlock an upgrade...
  • Page 6 TABLE OF CONTENT 4.2.6 to switch between PC‘s 4.2.7 rename the devices 4.2.8 Easy Manager On/Off 4.2.9 ALL In ONE - EASY Manager 4.2.10 more features 4.2.11 frontbridging 4.2.12 System Status Frontbridging 4.2.13 Change the Frontbridging Layout 4.2.14 backbridging 4.2.15 System Status Backbridging 4.2.16.
  • Page 7 TABLE OF CONTENT 7.1. Standard warranty 7.2 Extended warranty 8. Cable requirements 8.1 Requirements for CAT5e/6/7 cables 8.2 Requirements fiber cables 8.2.1 Multi-Mode (standard) 8.2.2 Single-Mode (optional) 9. Requirements network- switch 10. Address & phone / emails 11. Notes kvm-tec | 7...

  • Page 8: Introduction

    1. INTRODUCTION Congratulations on the purchase of your new masterEASY KVM Extender. You have bought a high quality extender. These instructions are part of this product. They contain important information regarding safety, use and disposal for every user of the masterEASY KVM Extender.

  • Page 9: Safety Instructions

    1. INTRODUCTION 1.2 SAFETY INSTRUCTIONS WARNING! Read and understand all safety instructions. • Follow all the instructions. This will avoid accidents, fire, explosions, electric shocks or other hazards that may result in damage to property and/or severe or fatal injuries. Please ensure that everyone who uses the product has read and followed these warnings and instructions.
  • Page 10 1. INTRODUCTION • Protect cables from being strained, pinched or buckled and place them in a way to prevent people from tripping over the cord. • In particular, ensure to avoid damage to the mains adapter. • Use the product with a suitable, properly installed and easily accessible mains power socket.

  • Page 11: Technical Specifications

    1. INTRODUCTION 1.3 TECHNICAL SPECIFICATIONS Type: KVM Extender (local unit and remote unit) Model: masterEASY single and dual copper masterEASY single and dual fiber Power supply input voltage: 100 - 240 V; 50/60 Hz AC Power supply output: 12V; 1A (external power supply) Power requirement: 12W VDC2A redundant pro Extender (without connected USB devices)

  • Page 12: About Your Mastereasy Single Copper

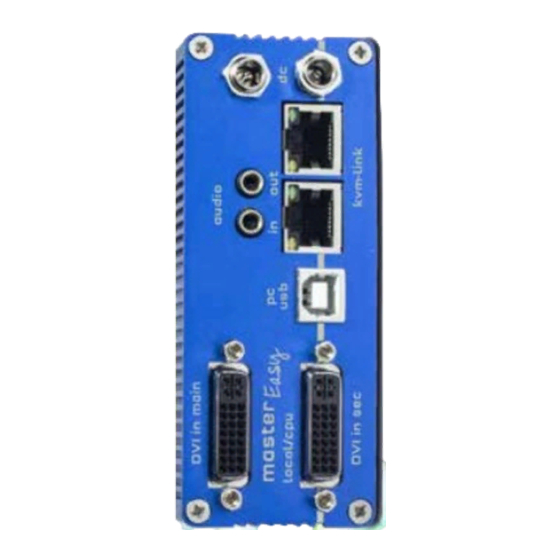

    1. INTRODUCTION 1.4 ABOUT YOUR MASTEREASY SINGLE COPPER Local Extender (CPU) Name Function dvi-in DVI connection to PC dvi-in DVI connection fromPC USB to PC audio in Audio in from PC audio out Audio out to PC kvm-link Networkcable redundant kvm-link Networkcable connection for 12V1A power supply redundant...
  • Page 13 1. INTRODUCTION Remote Extender (CON) Name Function DVI out DVi to monitor . USB from keyboard and mause audio in Audio in from microfon etc. audio out Audio to loudspeaker kvm-link connection for 12 V 1A network cable kvm-link connection for CAT5/6/7 cable redundant connection power supply 12V1A redundant connection power supply 12 V1A LED STATUS...

  • Page 14: About Your Mastereasy Dual Copper

    1. INTRODUCTION 1.5 ABOUT YOUR MASTEREASY DUAL COPPER Local Extender (CPU) Name Function dvi-in DVI in 2 from PC dvi-main DVI connection to PC USB to PC audio in Audio Out from PC audio out Audio Out to PC kvm-link connection network cable kvm-link connection network cablel...
  • Page 15 1. INTRODUCTION Remote Extender (CON) Name Function DVI to Monitor 2 DVI to Monitor 1 USB from Keyboard and mouse audio in Audio in from Microphone. audio out Audio to loudspeakerr kvm-link connection for 12 V networkcable kvm-link connection for CAT5/6/7 cable connection power supply 12V1A connection power supply 12V1A LED STATUS...

  • Page 16: About Your Mastereasy Extender Single In Fiber

    1. INTRODUCTION 1.6 ABOUT YOUR MASTEREASY EXTENDER SINGLE IN FIBER Local Extender (CPU) Name Function dvi-out DVI connection to monitor dvi-in DVI in from PC USB to PC audio in Audio in from PC audio out Audio out to PC kvm-link connection fiber cable redundant kvm-link...
  • Page 17 1. INTRODUCTION Remote Extender (CON) Name Function DVI-out DVI to Monitor. USB from keyboard and mouse audio in Audio in from microphone audio out Audio out to loudspeaker kvm-link connection fiber cable kvm-link connection fiber cable redundant connection 12V1A powee supply redundant connection power supply LED STATUS yellow...

  • Page 18: About Your Mastereasy Extender Dual In Fiber

    1. INTRODUCTION 1.7 ABOUT YOUR MASTEREASY EXTENDER DUAL IN FIBER Local Extender (CPU) Name FunCtion dvi-in DVI in 2 from PC dvi-main DVI connection from PC USB to PC audio in Audio Out from PC audio out Audio Out to PC kvm-link connection Fibercable redundant kvm-link...
  • Page 19 1. INTRODUCTION Remote Extender (CON) Name Function DVI out DVI to Monitor . USB from keyboard and mouse kvm-link connection for fibercable redundant kvm-link connection for fibercable connection power supply 12V1A redudant connection power supply 12V1A audio out Audio to loudspeaker audio in Audio in from microphone etc .

  • Page 20: About Your Mastereasy Backpanel

    1. INTRODUCTION 1.8 ABOUT YOUR MASTEREASY BACKPANEL BACKSIDE masterEASY Single & masterEASY Dual Name Function LED Status display LED Status Reset Button for Reset 20 | kvm-tec...

  • Page 21: About The Status Led

    1. INTRODUCTION 1.9 ABOUT THE STATUS LED LED Status Update: Colour Light display Autoupdate mode flashing quickly Update running shiny Update failed shiny Update successful Meaning LED displays Colour Light display Meaning shiny Only network connection available flashing quickly No active connection shiny No video signal shiny...

  • Page 22: Installation Of The Extender

    2. INSTALLATION OF THE EXTENDER 2. INSTALLATION OF THE EXTENDER 2.1 UNPACKING AND CHECKING THE CONTENTS Before using the product for the first time it should be checked for damage. In case of damage due to transport inform the carrier immediately. Before delivery the product is checked for its function and its operating safety.
  • Page 23 2. INSTALLATION OF THE EXTENDER Make sure that the packaging contains the following content: masterEASY single fiber Delivery content - Local (CPU) 1 x ME1-F local (CPU) 1 x wall power supply 12V 1A (EU-plug or Int plug)) 1 x DVI - DVI cable 1,8m/5.9ft 1 x USB cable 1,8m/5.9ft 1 x VGA - DVI cable 1,8m/5.9ft (opt) 2 x Audio cable 1,8m/5.9 ft (opt)

  • Page 24: Mounting Options

    2. INSTALLATION OF THE EXTENDER 2.2. MOUNTING OPTIONS 2.2.1 MOUNTING PADS AND RUBBER FEET The mounting pads and rubber feet can be used to hold the extenders in place and prevents them from sliding and falling. To attach the mounting pads or rubber feet: 1.

  • Page 25: Installing The Extender

    2. INSTALLATION OF THE EXTENDER 2.3 INSTALLING THE EXTENDER WARNING! Read and understand all safety information before installing the product. The units can be set up to access one host computer, or to access numerous host computers. In the case of the latter, an additional Network Switch must be installed. With a Network Switch, each user can gain quick access to any of the required computers.

  • Page 26: Quickinstallation Mastereasy Single Copper

    2. INSTALLATION OF THE EXTENDER 2.4 QUICKINSTALLATION MASTEREASY SINGLE COPPER Power plug 12V 1A Power plug 12V 1A (redundant) Network cable CAT5e/6/7/ up to 150m/492ft - main link Network cable CAT5e/6/7/ up to 150m/492ft (redundant) Quick Installation masterEASY Single local / CPU – remote / CON Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

  • Page 27: Quickinstallation Mastereasy Dual In Copper

    2. INSTALLATION OF THE EXTENDER 2.5 QUICKINSTALLATION MASTEREASY DUAL IN COPPER Power plug 12V 1A Power plug 12V 1A (redundant) Network cable CAT5e/6/7/ up to 150m/492ft - main link Network cable CAT5e/6/7/ up to 150m/492ft Quick Installation masterEASY Dual local / CPU – remote / CON Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

  • Page 28: Quickinstallation Masterflex Single In Fiber

    2. INSTALLATION OF THE EXTENDER 2.6 QUICKINSTALLATION MASTERFLEX SINGLE IN FIBER Power plug 12V 1A Power plug 12V 1A (redundant) OM3-Fiber cable up to 500m/1640ft - main link OM3-Fiber cable up to 500m/1640ft (redundant) Quick Installation masterEASY Single Fiber local / CPU – remote / CON Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

  • Page 29: Quickinstallation Mastereasy Dual In Fiber

    2. INSTALLATION OF THE EXTENDER 2.7 QUICKINSTALLATION MASTEREASY DUAL IN FIBER Power plug 12V 1A Power plug 12V 1A (redundant) OM3-Fiber cable up to 500m/1640ft - main link OM3-Fiber cable up to 500m/1640ft Quick Installation masterEASY Dual Fiber local / CPU – remote / CON Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

  • Page 30: Start Up

    2. INSTALLATION OF THE EXTENDER 2.8 START UP To start up the system without switch: 1. Make sure that the two monitors and the computer are switched on. 2. If you are using a Network Switch, connect the power supply to an earthed wall socket. 3.

  • Page 31: Removing A Catx Cable

    2. INSTALLATION OF THE EXTENDER 2.10 REMOVING A CATX CABLE To remove a CATx cable: • Press the latch down and slowly pull the cable out. 2.11 REMOVING A FIBER CABLE To remove a fiber cable: • Press the latch down and slowly pull the cable out. kvm-tec | 31...

  • Page 32: Best Practice For Windows 10

    2. INSTALLATION OF THE EXTENDER 2.12 BEST PRACTICE FOR WINDOWS 10 Disable USB Energy Savings in Windows 10 32 | kvm-tec...
  • Page 33 2. INSTALLATION OF THE EXTENDER kvm-tec | 33...
  • Page 34 2. INSTALLATION OF THE EXTENDER 34 | kvm-tec...

  • Page 35: Extender Settings

    3. EXTENDER SETTINGS 3.1 USING THE ON SCREEN MENU Use the monitor and keyboard to use the main menu. To access the main menu: 1. Make sure the extenders, the monitors and the computer are switched on. 2. Press the Scroll Lock key on your keyboard quickly five times. 3.

  • Page 36: Viewing The Current Firmware Version

    3. EXTENDER SETTINGS 3.2 VIEWING THE CURRENT FIRMWARE VERSION Under „A“ - About the currently installed firmware version of the remote (CON) and local (CPU) Extender is displayed (e.g. ‚4267‘) You will find the screenshot in menu item 3.10 3.3 FEATURES By pressing the F button the Fatures menu is displayed Features Menu The individual menu items are described in more detail in chapter 4 (page 52).

  • Page 37: Diagnosis Menu

    3. EXTENDER SETTINGS 3.4 DIAGNOSIS MENU In the Diagnosis menu, the runtimes of the individual connected channels are displayed. Both Remote Unit and Partner Local Unit are listed. Additionally you get the CPU temperature information of both units. Another feature is the cable test kvm-tec | 37...
  • Page 38 3. EXTENDER SETTINGS As soon as a connection to the partner has been established, the test can be started with the „Enter“ key or the arrow key on the right „→“. After a valid synchronization process, the test is started and the test run time and errors are displayed.

  • Page 39: Ddc Menu

    3. EXTENDER SETTINGS 3.5 DDC MENU The DDC Information menu allows the user to specify which DDC information is used by the PC. Definition of the DDC information used by the PC: 1. make sure that the main menu is open. Press the O button and the DDC option menu will be displayed.

  • Page 40: Ddc Main (Single)

    3. EXTENDER SETTINGS 3.5.1 DDC MAIN (SINGLE) 3.5.2 DDC SECOND (DUAL) 40 | kvm-tec...

  • Page 41: Extender Settings

    3. EXTENDER SETTINGS 3.6 EXTENDER SETTINGS The Extender Settings menu allows the user to change a number of other settings. Select one of the three options (VGA, Audio and RS232) to enter the submenu. The other four can be activated or deactivated by pressing the corresponding button. Display the Extender Settings menu: 1.Make sure that the main menu is open.

  • Page 42: Local Settings

    3. EXTENDER SETTINGS 3.6.1 LOCAL SETTINGS View the local or remote Extender settings: - Press the L button to display the Local Setting menu. USB Compatibility Mode Disabled/Enabled USB Remote Wakeup Disabled/Enabled Compatibility with Linux Disabled/Enabled Bandwidth Reduction VGA Parameters VGA-1 Parameters 42 | kvm-tec...

  • Page 43: Usb Compatibility Mode

    3. EXTENDER SETTINGS 3.6.2 USB COMPATIBILITY MODE Some PC‘s require a USB FullSpeed (USB 1.1) connection at startup. However, since our extenders are normally detected as USB 2.0 HUB‘s, some PC‘s may abort the boot process. This can be avoided with the USB Compatibility Mode. 3.6.3 USB REMOTE WAKE UP The PC can be put into sleep mode and reactivated with any key.

  • Page 44: Compatibility With Linux

    3. EXTENDER SETTINGS 3.6.4 COMPATIBILITY WITH LINUX Older Linux (before 2010) versions may not recognize the keyboard. In this case please activate the Linux compatibility mode 3.6.5 BANDWIDTH REDUCTION Here the bandwidth can be reduced. The basic setting is 0! You can change the bandwidth with +/- or u/d.

  • Page 45: Vga Parameters

    3. EXTENDER SETTINGS 3.6.6 VGA PARAMETERS VGA Parameters VGA-1 Parameters kvm-tec | 45...

  • Page 46: Remote Settings

    3. EXTENDER SETTINGS 3.7 REMOTE SETTINGS • Press the R button to display the Remote Setting menu. 3.7.1 EDITING A KEYBOARD LAYOUT The Keyboard Local menu lets you switch between keyboard layouts for navigating the on screen display menu (OSD). You can choose between French (FR), English (EN) and German (DE).

  • Page 47: Editing Keyboard Shortcuts

    3. EXTENDER SETTINGS 3.7.2 EDITING KEYBOARD SHORTCUTS You can change the keyboard shortcuts for common commands. You can choose your scroll speed. Edit shortcuts and change scroll speed on the Keyboard Shortcuts screen. To edit the shortcuts: 1. From the Extender Settings menu, press the R key. The Remote Settings menu appears. 2.

  • Page 48: Usb Share Any Key

    3. EXTENDER SETTINGS 3.7.3 USB SHARE ANY KEY By pressing the button „U“ the USB Share any Key mode can be activated or deactivated. If the USB share any key, the USB function can be taken over with any key. If the function is deactivated, this works with the predefined hotkeys (see 3.7.2.) 3.7.4 AUDIO INPUT GAIN The volume can be adjusted by pressing the A button.

  • Page 49: Using The Power Saving Mode

    3. EXTENDER SETTINGS 3.7.5 USING THE POWER SAVING MODE In power save mode, the Extender can switch off the video output. The power off delay can be set or deactivated as desired in the Power Save Setting menu. Power Save Modus 1.

  • Page 50: Hiding System Status Menu

    3. EXTENDER SETTINGS 3.7.6 HIDING SYSTEM STATUS MENU Press H in the Remote Settings menu. This will remove the status screen and the image remains black. 50 | kvm-tec...

  • Page 51: Change Keyboard Fallback Modus

    3. EXTENDER SETTINGS 3.7.7 CHANGE KEYBOARD FALLBACK MODUS To use the OSD menu, the keyboard on the remote device must be identified. For most keyboards, use the 0 setting. When using USB, some mice act like a keyboard. In this case, select fallback mode 1 or 2. To change the Keyboaed fallback mode press the button F kvm-tec | 51...

  • Page 52: Lock Menu

    3. EXTENDER SETTINGS 3.7.8 LOCK MENU This menu protects the OSD control. By pressing the L button, you can choose between: Password OSD can only be activated by password timer disabel, 1min, 5min, 10min, 15min, 30min, 60min 52 | kvm-tec...

  • Page 53: Mouse Speed

    3. EXTENDER SETTINGS 3.7.9 MOUSE SPEED Can be used in USB Emultation mode, Mouse glide & Switch and Multiview Commander. With this function the horizontal and vertical speed can be adjusted It can be chosen between 0-50 (Standard 30) The mouse speed can be adjusted by pressing the M button kvm-tec | 53...

  • Page 54: Monitor Sync Strength

    3. EXTENDER SETTINGS 3.7.10 MONITOR SYNC STRENGTH The frame start of the monitor is synchronized with the graphic card. Some monitors are very sensible regarding frequency changes. Therefore the changes should be done slow and the synchronization takes a bit more time The monitor sync strength can be adjusted between 0-3.

  • Page 55: Update

    3. EXTENDER SETTINGS 3.8 UPDATE 3.8.1 FIRMWARE UPDATE WITH SWITCHING MANAGER DEMOVERSION Update management is carried out via the Switching Manager software included in the delivery see User Manual Switching Manager 2000 chapter 10.2 In this view, all extenders for which a firmware update is to be performed are displayed. This function displays a list of the extenders that are assigned to the Switching Manager.

  • Page 56: Firmware Update With Usb Stick

    3. EXTENDER SETTINGS 3.8.2 FIRMWARE UPDATE WITH USB STICK For the update with an USB stick the following steps are necessary 1. you receive the message that you can plug in the USB stick. 2. copy the update file (ending in .kvm) to the USB stick 3.

  • Page 57: Unlock An Upgrade

    3. EXTENDER SETTINGS 3.9 UNLOCK AN UPGRADE 1. Make sure the main menu is open. 2. Press the M key. The Options Overview menu opens. The device ID will be shown. 3. Order the unlock code from your supplier by providing them with the 9-character device ID and the serial number of your KVM-extender.

  • Page 58: About This Device

    3. EXTENDER SETTINGS 3.10 ABOUT THIS DEVICE By pressing the „A“ button, or by selecting the arrow keys, you can access the info menu, where you can obtain information about hardware and software versions, as well as the activated upgrades. You can also see the current firmware version here. 58 | kvm-tec...

  • Page 59: Network Settings

    4. NETWORK SETTINGS 4.1 DISPLAY SWITCHING LIST 4.1.1 SWITCHING STATUS The „Status Menu“ shows the current status of the Extender connection. The menu displays the information about the connection, the video channel resolution and the USB status. The link status indicates whether a connection is possible. Connected shows if the kvm files can be transferred currently.
  • Page 60 4. NETWORK SETTINGS Switching Status as Backup Switching Status as EasyManager 60 | kvm-tec...

  • Page 61: Switching Features Menu

    4. NETWORK SETTINGS 4.2 SWITCHING FEATURES MENU Press the F key to enter the Features menu Features Menu Point to Point Mode Enabled/Disabled (Point to Point schließt sich mit Matrix mode aus) Matrix Switching Mode Disabled/Enabled USB Save Feature (mass storage usable) Disabled/Enabled Freeze last Image (Disabled)Disabled/Enabled USB Emulation Mode...

  • Page 62: Point To Point

    4. NETWORK SETTINGS 4.2.1 POINT TO POINT By pressing the “P” key you can switch the Point to Point mode on and off ATTENTION - if the Point to Point mode is activated, the Switching Mode cannot be activated. 4.2.2 MATRIX SWITCHING MODE By pressing the key “S”...

  • Page 63: Usb Emulation Mode

    4. NETWORK SETTINGS 4.2.4 USB EMULATION MODE When this mode is set, the local extender emulates a keyboard and mouse that are always con- nected to the PC. The result is switching from one PC to another PC without any switching delay. The emulation mode is limited to mouse and keyboard only.

  • Page 64: Rename The Devices

    4. NETWORK SETTINGS 4.2.7 RENAME THE DEVICES On the Receiver unit which ist activated as “Easy Manager”, you select the switching list, and there is an additional entry in the OSD-Menu, where you can rename the devices. 4.2.8 EASY MANAGER ON/OFF You can recognize whether the Easy Manager is activated or deactivated by the fact that the menu item “X”...

  • Page 65: All In One - Easy Manager

    4. NETWORK SETTINGS 4.2.9 ALL IN ONE - EASY MANAGER EASYLINE EXTENDERS DO NOT REQUIRE A USER SYSTEM The Remote unitin the switching system must have the „Easy Manager“ mode enabled to replace the role of the Switching Manager, the remoteExtender then takes care of the communication of the Extenders in the network.

  • Page 66: Frontbridging

    4. NETWORK SETTINGS 4.2.11 FRONTBRIDGING SWITCHING WITHOUT SWITCH A Remote Dual can be connected to two Local Single Extenders via Point-To-Point using this func- tion. When two monitors are connected, one Extender can be displayed on each monitor, and when driving over the edge of the screen it is easy to switch between the Local Units. With only one screen the key combination 5x Left + Control must be moved.
  • Page 67 4. NETWORK SETTINGS Features Menu: Make sure that you are in the main menu. Press the F key to enter the Features menu. kvm-tec | 67...

  • Page 68: System Status Frontbridging

    4. NETWORK SETTINGS 4.2.12 SYSTEM STATUS FRONTBRIDGING The „Status Menu“ displays the current status of the Extender connection. The menu displays the information about the connection, the video channel resolution and the USB status. The link status indicates whether a connection is possible. Connected shows if the kvm files can be transferred currently.

  • Page 69: Change The Frontbridging Layout

    4. NETWORK SETTINGS 4.2.13 CHANGE THE FRONTBRIDGING LAYOUT Features Menu: Make sure that you are in the main menu. Press the R button to access the Remote Settings. By pressing the B button “Frontbridge Layout” you can choose between horizontal or vertical kvm-tec | 69...
  • Page 70 4. NETWORK SETTINGS 70 | kvm-tec...

  • Page 71: Backbridging

    4. NETWORK SETTINGS 4.2.14 BACKBRIDGING SWITCHING WITHOUT SWITCH A Local Dual can be connected to two Remote Single Extenders via Point-To-Point using this function. Since there is only one USB socket on the Local device, only one remote can access the PC at a time.
  • Page 72 4. NETWORK SETTINGS Features Menu: Make sure that you are in the main menu. Press the F key to enter the Features menu. 72 | kvm-tec...

  • Page 73: System Status Backbridging

    4. NETWORK SETTINGS 4.2.15 SYSTEM STATUS BACKBRIDGING The „Status Menu“ displays the current status of the Extender connection. The menu displays the information about the connection, the video channel resolution and the USB status. The link status indicates whether a connection is possible. Connected shows if the kvm files can be transferred currently.

  • Page 74: Easy Cross Move - Software Feature

    4. NETWORK SETTINGS 4.2.16. EASY CROSS MOVE - SOFTWARE FEATURE SOFTWARE FEATURE Easy Cross Move is a software feature that is activated when frontbridging is used. both PCs can be operated with one mouse and one keyboard 2 local Units + 1 remote Unit = Easy Cross Move with 1 keyboard & 1 mouse EASY CROSS MOVE both PCs can be opera-...

  • Page 75: Change The Local Settings

    4. NETWORK SETTINGS 4.3 CHANGE THE LOCAL SETTINGS View the local or remote Extender settings: - Press the L button to display the Local Setting menu. USB Compatibility Mode Disabled/Enabled USB Remote Wakeup Disabled/Enabled Compatibility with Linux Disabled/Enabled Bandwidth Reduction VGA Parameters 4.3.1 BANDWIDTH REDUCTION Here the bandwidth can be reduced.

  • Page 76: Remote Settings

    4. NETWORK SETTINGS 4.4 REMOTE SETTINGS Press the R button to display the Remote Setting menu. Keyboard Locale Keyboard Shortcuts USB Share any Key Audio Input Gain Power Save Mode Hide Status Screen Fallback Mode Lock Menu Mouse Settings Video Sync Settings Easy Manager Sampling Rate 4.4.1 SAMPLING RATE SETTINGS To avoid flooding the CPU, a sampling rate was implemented.

  • Page 77: Push / Get List

    4. NETWORK SETTINGS 4.5 PUSH / GET LIST Display of all extenders that can be shared. The current image of the workstation can be shared with other remote units via this list Push List Get List kvm-tec | 77...

  • Page 78: Connecting, Disconnecting Or Selecting Acurrent Workplace Connected Devices

    4. NETWORK SETTINGS 4.6 CONNECTING, DISCONNECTING OR SELECTING A CURRENT WORKPLACE CONNECTED DEVICES The Overview display gives an overview of the currently connected PCs as well as the free PCs and consoles in the network. You can disconnect a connection remotely, or assign a new console to a PC, or vice versa.

  • Page 79: Troubleshooting & First Aid

    5. TROUBLESHOOTING & FIRST AID Error Cause Solution LED is not The devices get no Is the power supply connected? (white box) lighting power LED is light in No connection Check if the RJ45/network cable is connected well. between Loc and (Clicking noise when plugging in) Control local and remote , if it does not work - please send an e-mail to support@kvm-tec.com...
  • Page 80 5. TROUBLESHOOTING & FIRST AID kvm-tec First Aid No Video Video error No Power USB is not (stripes in the (No LED) working picture) Are the USB Check if all Check if all Check the Devices plugged cables are plug- cables are plug- powerplug in correctly?

  • Page 81: Maintance & Care

    6.MAINTANCE & CARE 6.MAINTANCE AND CARE 6.1 EXTENDER CARE Caution! Do not use solvent-containing cleaners. Do not use wipes, alcohols (e.g. spiritus) or chemicals as these could damage the surface. 6.2. DISPOSAL This symbol on the product, the accessories or packaging indicates that this product must not be treated as unsorted municipal waste, but must be collected separately! Dispose of the product via a collection point for the recycling of waste electrical and electronic equipment within the EU and in other European...

  • Page 82: Warranty

    7. WARRANTY 7.1. STANDARD WARRANTY The warranty period is 24 months from the date of purchase. The warranty expires in case of: • External effort • improper maintenance • Violation of the operating instructions • lightning damage Please, contact us first before returning the product. 7.2 EXTENDED WARRANTY 2 years standard warranty Art Nr 9003 warranty extension to 5 years...

  • Page 83: Cable Requirements

    8. CABLE REQUIREMENTS 8.1 REQUIREMENTS FOR CAT5E/6/7 CABLES A Cat5e/6/7 cable should meet the following requirements: • The pins are connected 1:1. Caution: the cable pairs must be twisted to EIA/TIA- 568A (rare) or EIA/TIA-568 B (common) pairs. • Erroneous assignments cannot be found with a simple cable tester. •...

  • Page 84: Requirements Fiber Cables

    8. CABLE REQUIREMENTS 8.2 REQUIREMENTS FIBER CABLES 8.2.1 MULTI-MODE (STANDARD) A Multi-Mode fiber cable should meet the following requirements: • Maximum length should be 500 m. The ME1-F includes a fiber Multimode – SFP Module which allows a transmission distance of up to 500 m. •...

  • Page 85: Requirements Network- Switch

    9. REQUIREMENTS NETWORK- SWITCH 9. REQUIREMENTS NETWORK SWITCH The entire switching network system requires its own separate network. For security reasons, it cannot be integrated into an existing corporate network. The network switch must meet the following specifications: 1 Gigabit switch, with a port-to-port transfer rate of 1 Gigabit/second. The following switches have all been tested and verified to work with all kvm-tec extenders.

  • Page 86: Address & Phone / Emails

    Fax: 0043 (0) 2253 81 912 99 Email: support@kvm-tec.com Web: www.kvm-tec.com Find our newest updates and FAQs on our homepage: https://www.kvm-tec.com/en/support/overview-support/ KVM-TEC IHSE GmbH IHSE USA LLC IHSE GMBH Asia IHSE China Co.,Ltd Gewerbepark Benzstr.1 1 Corp.Dr.Suite 158Kallang Room 814...

  • Page 87: Notes

    11. NOTES kvm-tec | 87...
