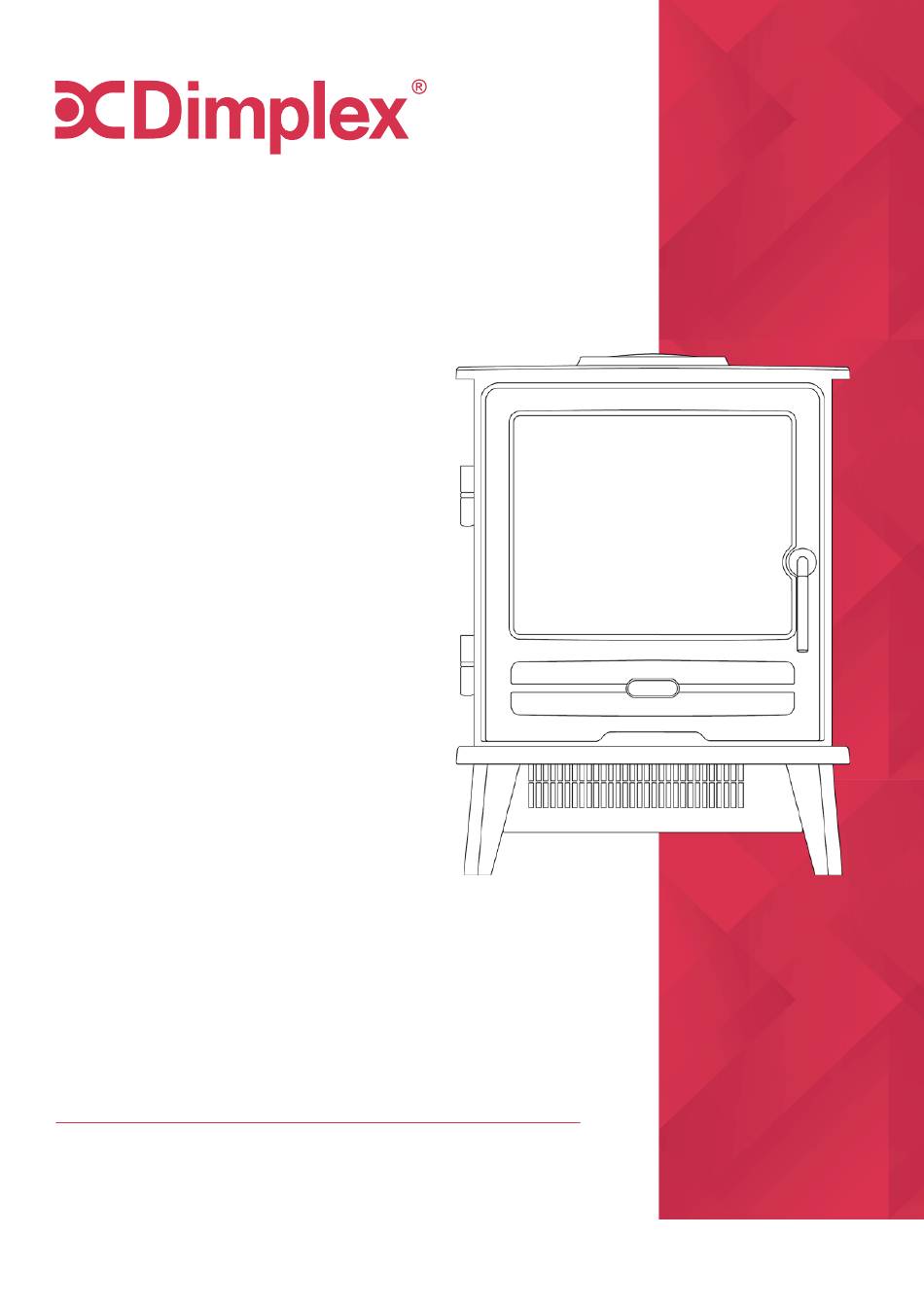

- Page 1 INSTRUCTION MANUAL Willowbrook 2kW Opti-myst Portable Electric Stove Model: WLL20-AU For domestic household use only. 08/53726/1 Issue 7 OCN 11905...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 • Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs • The appliance must be positioned so that the plug is accessible. • If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
- Page 4 WARNING: KEEP BATTERIES OUT OF REACH OF CHILDREN • Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical burns and potential perforation of the oesophagus. • If you suspect your child has swallowed or inserted a button battery immediately call the 24-hour Poisons Information Centre on 13 11 26 (in Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specifications
Specifications Model no. WLL20-AU Colour/Finish Black Wattage 2000 Heat Settings Thermostat Control Remote Control Warranty 2 Years Dimensions (w x d x h) 440 x 305 x 582mm For greater precision, please always refer to the rating label placed on the product. - Page 7 Setup General Information The fire incorporates a flame effect, which can be used with or without heat, so that the comforting effect may be enjoyed at any time of the year. To reduce heat loss and to prevent any chimney up draft affecting the operation of your stove fire, we recommend that the chimney flue is sealed off.
- Page 8 Setup WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON THIS PRODUCT. Thermal Safety Cut-out A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating.
-
Page 9: Installation
Installation Installing the Appliance 1. Clean the area where the fire will be installed e.g. remove ash residue from an existing fireplace. 2. Hold the fire by the sides of the surround and gently manoeuvre into position. 3. Plug the fire into a 10amp/230 volt outlet. Ensure that the supply cable is not trapped under the fire such that it might cause it to be damaged. - Page 10 Installation Filling the Water Tank 1. Gently lift out the fuel bed and carefully set aside. 2. Remove the water tank by lifting upwards and outwards. 3. Place the water tank in the sink and remove the cap. Turn anti-clockwise to open (Fig 8).
- Page 11 Control Panel & Remote WARNING: FAILURE TO FOLLOW THESE OPERATING INSTRUCTIONS MAY RESULT IN INJURY AND/OR DAMAGE. Remote control The maximum range of use is ~ 5 metres. WARNING: It takes time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for correct operation.
-
Page 12: Manual Operation
Manual Operation Operating Instructions But- Display Func- Description tion Press this button once to turn on the product. Press it again to turn off the product. When turned on, you will hear a beep and the digital display will show the 'ON,' icon, followed by displaying the current room temperature. -
Page 13: Remote Operation
Remote Operation Operating Instructions But- Display Func- Description tion Press this button once to turn on the product. Press it again to turn off the product. When turned on, you will hear a beep and the digital display will show the 'ON,' icon, followed by displaying the current room temperature. -
Page 14: Operation
Operation Setting the Thermostat Plug in the product and press the 'On' button. Press the 'Mode' button twice to enter the thermostat mode. The current room temperature will be displayed (e.g. r23C) followed by the current set point room temperature (e.g. 26C). Press the '+' and '-' buttons to select your set point room temperature. - Page 15 Cleaning Water Tank 1. Remove the water tank, as described earlier, and put into the sink and empty the water. 2. Using the supplied brush, gently run the inside surfaces of the cap, paying particular attention to the rubber ring in the outer groove and the centre rubber seal. 3.
-
Page 16: Warranty
Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
