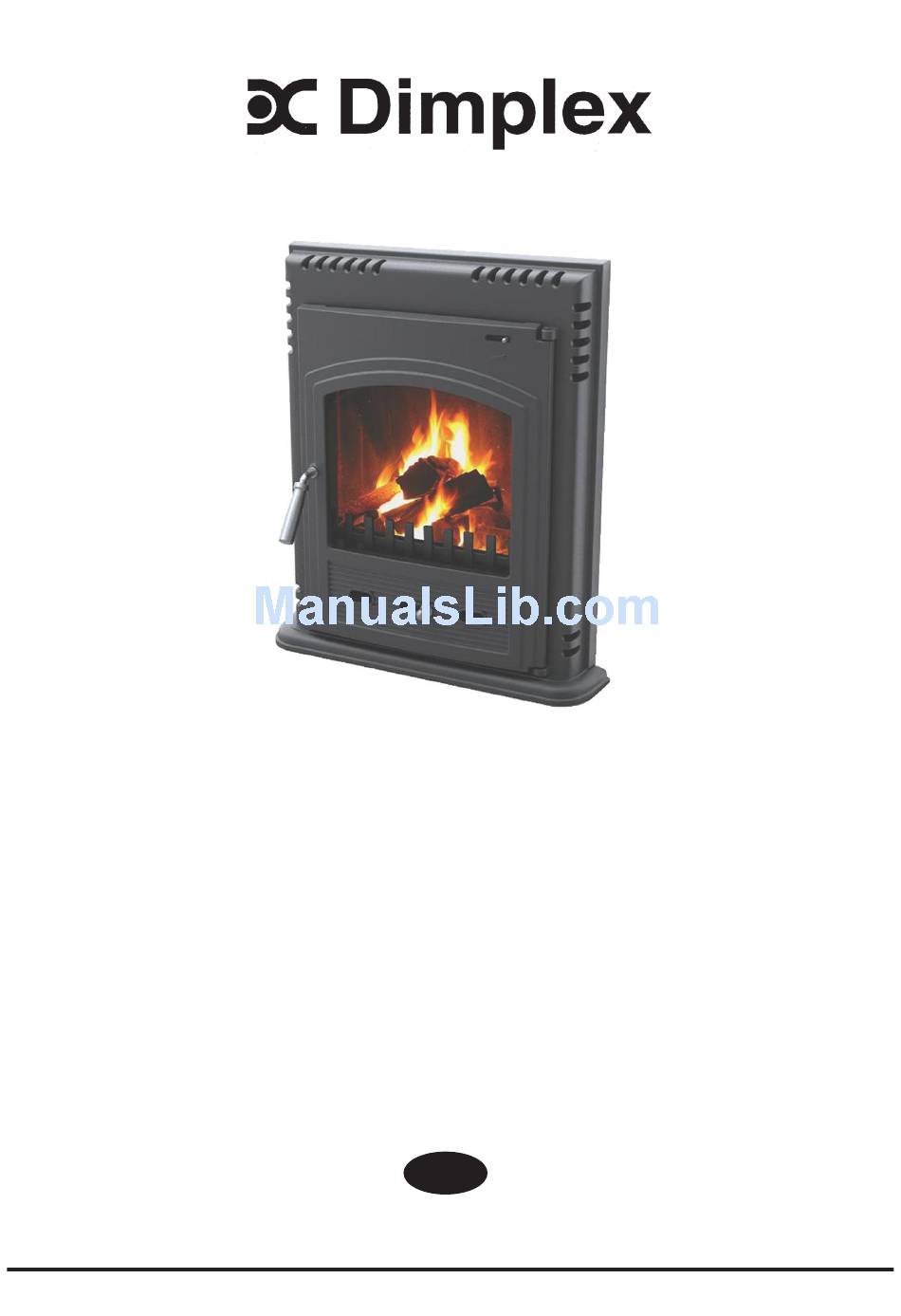

Westcott 4.3kW Multifuel Inset Stove
For Standard 16" Fireplace Opening
Please hand these instructions to the stove user when installation
is complete. Leave the system ready for operation and instruct the
user in the correct use of the appliance and operation of controls.
Installation should only be carried out by a suitably qualified
installer that is registered with HETAS (UK) or with the Irish
Nationwide Fireplace Organisation (INFO).
Installation must comply with Building Regulations.
UK
08/51337/0 - Issue 1
The product complies with the European Safety Standards EN13240 for Room heaters fired by solid fuel.
Advertisement
Table of Contents
Related Manuals for Dimplex Westcott 4.3kW
Summary of Contents for Dimplex Westcott 4.3kW
- Page 1 Westcott 4.3kW Multifuel Inset Stove For Standard 16” Fireplace Opening Please hand these instructions to the stove user when installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of controls.
- Page 2 45˚ L (Dia) Table 1 - Dimensions Westcott Insert Note: All Dimensions in mm. Dimensions stated may be subject to a slight ± variation. ( 25.4mm = 1”) Westcott Inset WST4i Table 2 - Technical Specification Wood Solid Fuel Nominal heat output Efficiency 80.9 75.0...
-
Page 3: Typical Installation
Typical installation non combustible wall Fireplace Opening Lintel or min thick Y 400mm (16”) Gather Clay Flue pipe Fireback to fireback and BS1251 insulated infill Change in flooring level to distinguish hearth CONSTRUCTIONAL HEARTH min 225mm NON COMBUSTIBLE 125mm THICK MINIMUM Constructional Hearth min 125mm thick Z = At least 150mm or to a... -
Page 4: Health And Safety Precautions
- 1 - Wescott 4.3kW Multifuel Inset Stove (WST4i) IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE Important Safety Advice Health and Safety Precautions Please read these instructions carefully before installing Handling: Adequate facilities must be available for the unloading or using this appliance. - Page 5 - 2 - Flue Deposits Flue Damper/Draught Stabiliser (Not Supplied) If the chimney was previously used as an open fire, it is possible A flue damper may be fitted to reduce the draught through the that the higher flue gas temperatures generated by the stove may stove if the draught is too high.
-
Page 6: Safety Notes For Your Guidance
- 3 - Operating Instructions Notes on Solid Fuel burning (Other than Wood) Always de-ash the grate before refuelling and do not let the ash Please read fully these operating instructions and advise any other build up to the underside of the grate bars. Solid fuel produces users of the correct operating procedures for this stove. -
Page 7: General Maintenance
Wet logs on heated glass, a badly aimed poker or heavy slamming of Your Dimplex Stove is guaranteed against defects arising from the doors could crack the glass panels. The glass will not fracture faulty manufacture for 1 year subject to the following conditions. - Page 8 TEL: 0845 600 5111 DIMPLEX FAX: 01489 773050 MILLBROOK HOUSE WEBSITE: www.dimplex.co.uk GRANGE DRIVE HEDGE END Republic of Ireland Tel: 01 842 4833 SOUTHAMPTON SO30 2DF [c]A Division of GDC Group Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of...
