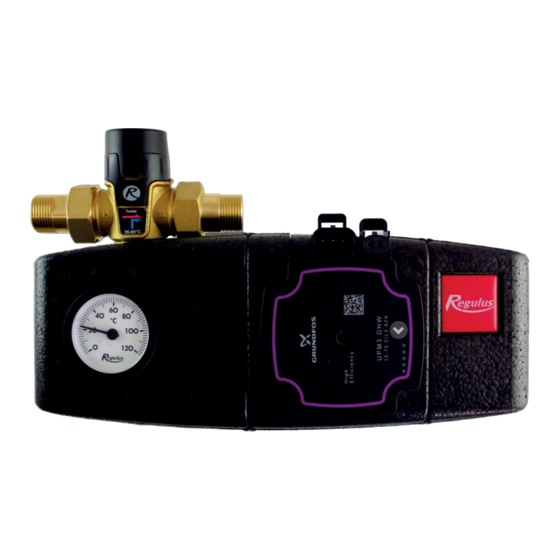

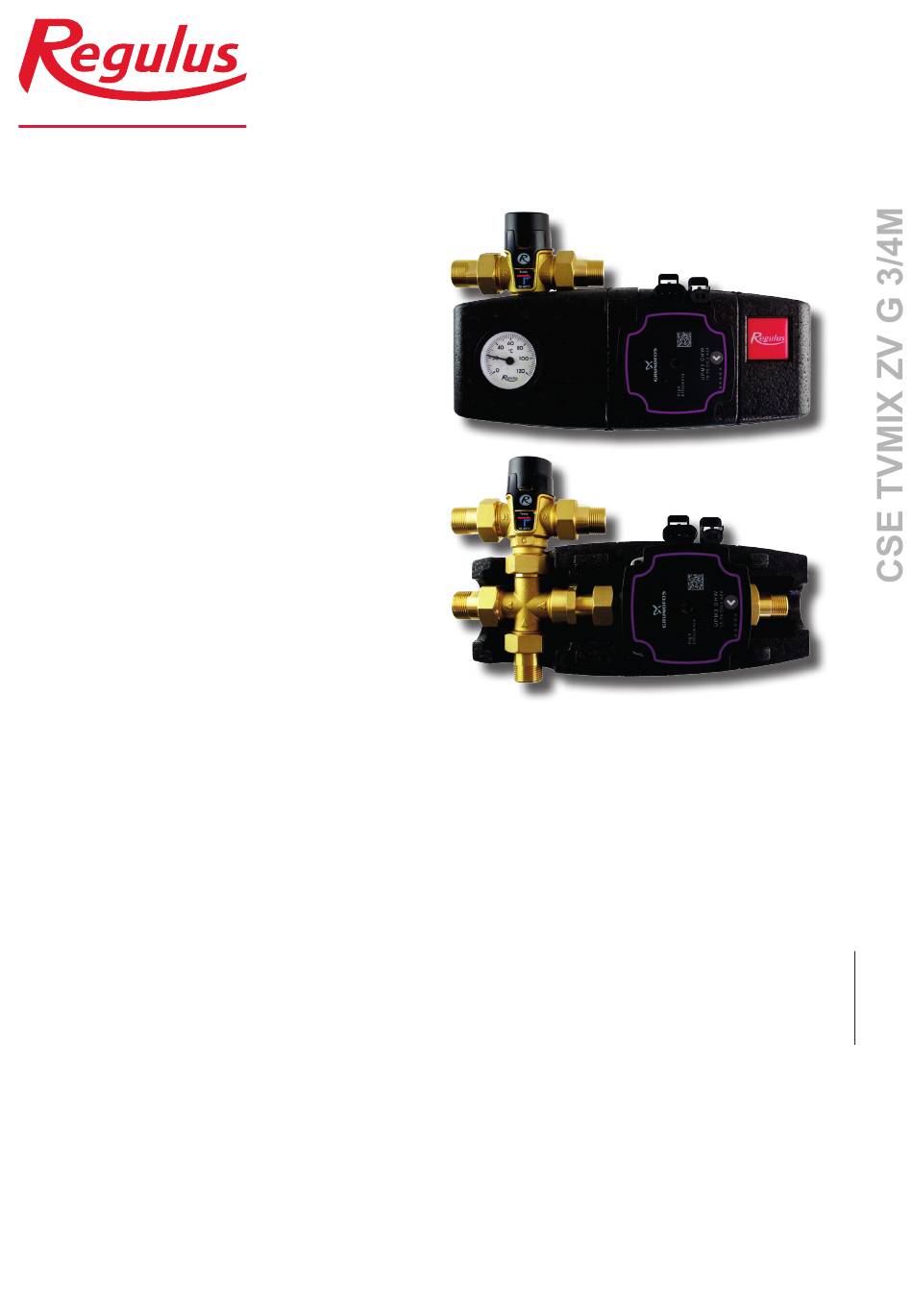

- Page 1 Installation and Operation Manual CSE TVMIX ZV G 3/4M Pump Station with anti-scald valve CSE TVMIX ZV G 3/4M...
- Page 2 Code 17893 Data of CSE TVMIX ZV G 3/4M Pump Station Fluid working temperature 5 to 95 °C Max. working pressure 10 bar Min.
- Page 3 PUMP STATION COMPONENTS UPM3 DHW 15-70 PUMP Electric Data Power supply 1 x 230 V, 50 Hz Power input (min./max.) 2 / 52 W Current (min./max.) 0.04 / 0.52 A Max. speed 5766 rpm Weighted average power ≤ 23 W Energy Efficiency Index ≤...
- Page 4 Performance display DISPLAY - LED MARKING The LED marking is further omitted for better clarity. Max. H (upper DISPLAY PERFORMANCE CURVE STATE graph) LOW PERFORMANCE MEDIUM PERFORMANCE HIGH PERFORMANCE WARNING: LEDs may be mirrored, depending on the specific pump type. GREEN LED FLASHING FREQUENCY PWM SIGNAL RECEPTION 1 flash per second...
- Page 5 TVMIX ANTI-SCALD VALVE Technical Data Working temperature range 5 to 95 °C Adjustable temperature range 35 to 65 °C ± 3 °C Max. working pressure 10 bar SETTING THE MIXING TEMPERATURE The adjustable measurement range is 35-65 °C with ±3 °C accuracy. │...
- Page 6 PUMP STATION INSTALLATION In order to fit and remove the insulation, the minimum distance of the pipe axis from the wall shall be 100mm. Prohibited Pump Station positions Permitted Pump Station positions │...
- Page 7 │...
- Page 8 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
