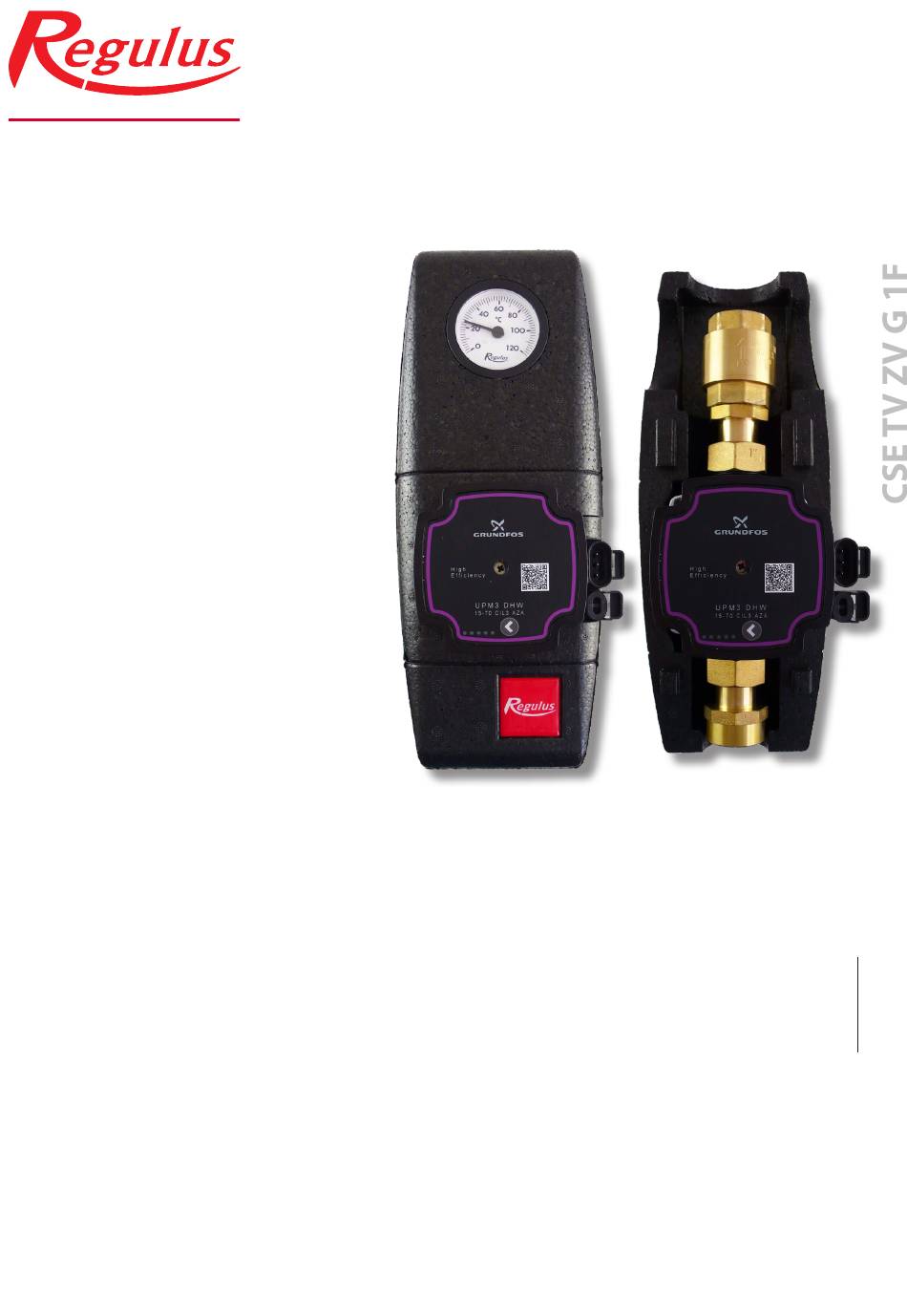

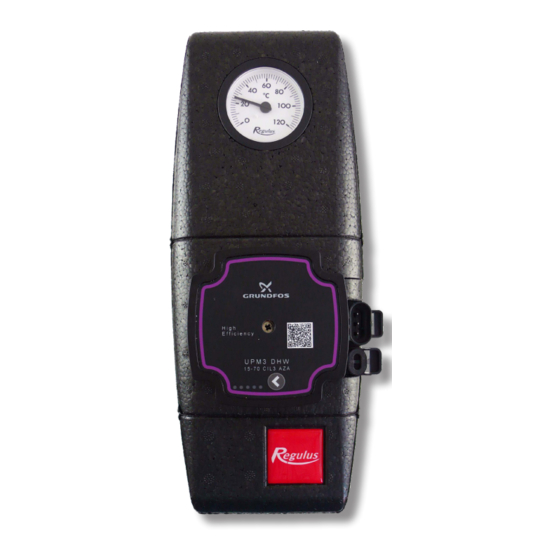

- Page 1 Installation and Operation Manual CSE TV ZV G 1F PUMP STATION CSE TV ZV G 1F...
- Page 2 Installation in a pipe, min. distance of the pipe axis from a wall is 100 mm Code 15 181 Technical data of CSE TV ZV G 1F pump station Fluid working temperature 2 - 95 °C Max. working pressure 10 bar Max.
-
Page 3: Flow Direction
3. Flow direction FLOW DIRECTION SMĚR PROUDĚNÍ 4. UPM3 DHW 15-70 Pump, 130 mm Design Wet-running circulation pump with G 1“ M connection. Electrical data Power supply 230 V, 50 Hz Power input (min./max.) 2/52 W Current (min./max.) 0.04/0.52 A IP rating IP44 Max. -
Page 4: Pump Control
Operation data Fluid working temp. 2 to 95 °C Max. working pressure 10 bar Max. ambient temperature 70 °C Max. rel. humidity 95 % non-condensing Materials Pump housing polyphenylene sulfide (PPS) Pump control The circulation pump can be controlled without a PWM signal by selecting a pump performance curve or by an external PWM signal (profile for use in heating systems). - Page 5 Performance display DISPLAY STATE PERFORMANCE in % of P STAND-BY MODE 1 flashing green LED (EXTERNAL CONTROL ONLY) 1 green + 1 yellow LEDs LOW PERFORMANCE 0-25 1 green + 2 yellow LEDs MEDIUM-LOW PERFORMANCE 25-50 1 green + 3 yellow LEDs MEDIUM-HIGH PERFORMANCE 50-75 1 green + 4 yellow LEDs...
- Page 6 The B terminal with a 2m cable is not included in supply; it can be purchased as an option, code 16792. v1.1-06/2020 ©2020 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
