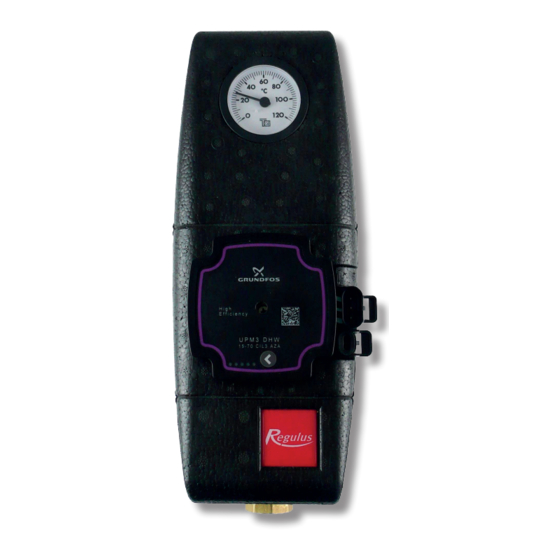

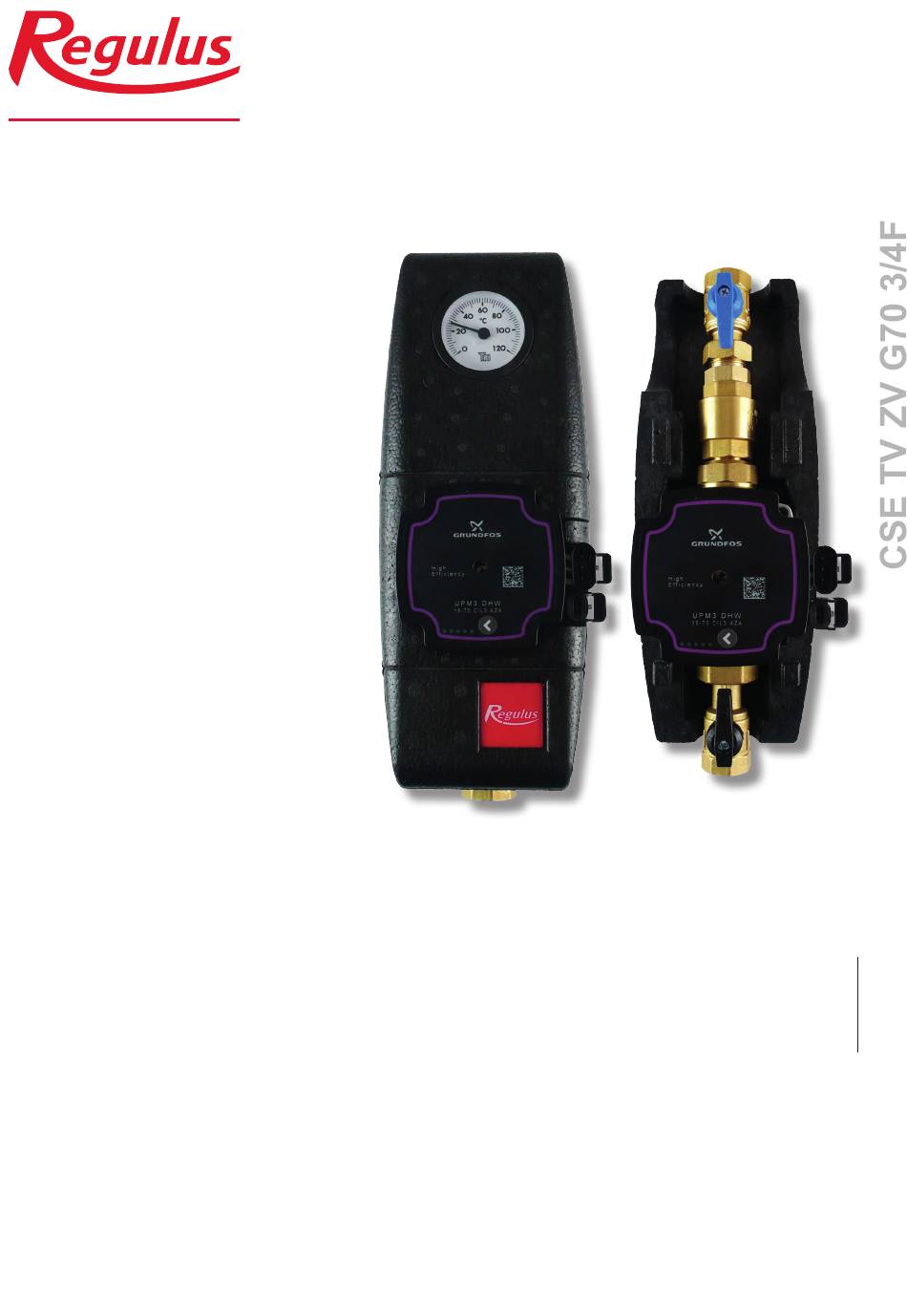

- Page 1 Installation and Operation Manual CSE TV ZV G70 3/4F PUMP STATION CSE TV ZV G70 3/4F...
- Page 2 Installation to the piping, min. distance of the pipe axis from a wall is 100 mm Code 18997 Data of CSE TV ZV G70 3/4F Pump Station Fluid working temperature 5 - 95 °C Max. working pressure 10 bar Min.
- Page 3 3. Direction of Flow through the Pump Station SMĚR PROUDĚNÍ FLOW DIRECTION 4. UPM3 DHW 15-70, 130 mm Pump Design A wet-running circulation pump, G 3/4“ M connection. Electric Data Power supply 230 V, 50 Hz Power input (min./max.) 2/52 W Current (min./max.) 0.04/0.52 A IP rating...
-
Page 4: Pump Control
Pump control The circulation pump can be controlled without a PWM signal by selecting the pump performance curve or using an external PWM control signal (profile for use in heating systems). A PWM pump control cab- le with connector is not included. It can be purchased as an optional accessory (code 16792), cable length 2 m. - Page 5 Performance display DISPLAY - LED MARKING The LED numbering is further omitted for better clarity. DISPLAY PERFORMANCE Max. H STATE (upper CURVE graph) LOW PERFORMANCE MEDIUM PERFORMANCE HIGH PERFORMANCE 7,0 m WARNING: LEDs may be mirrored, depending on the specific pump type. GREEN LED FLASHING FREQUENCY GREEN LED FLASHING FREQUENCY 1 flash per second...
- Page 6 Permissible positions Pump Wiring N (blue) L (brown) PE (yellow-green) PWM GDN (blue) iPWM out (black) PWM in (brown) power supply (A) socket for power supply (A) and signal (B) connectors and signal transmission (B) connector (B) with 2m cable is not included in supply;...
- Page 8 ©2022 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
