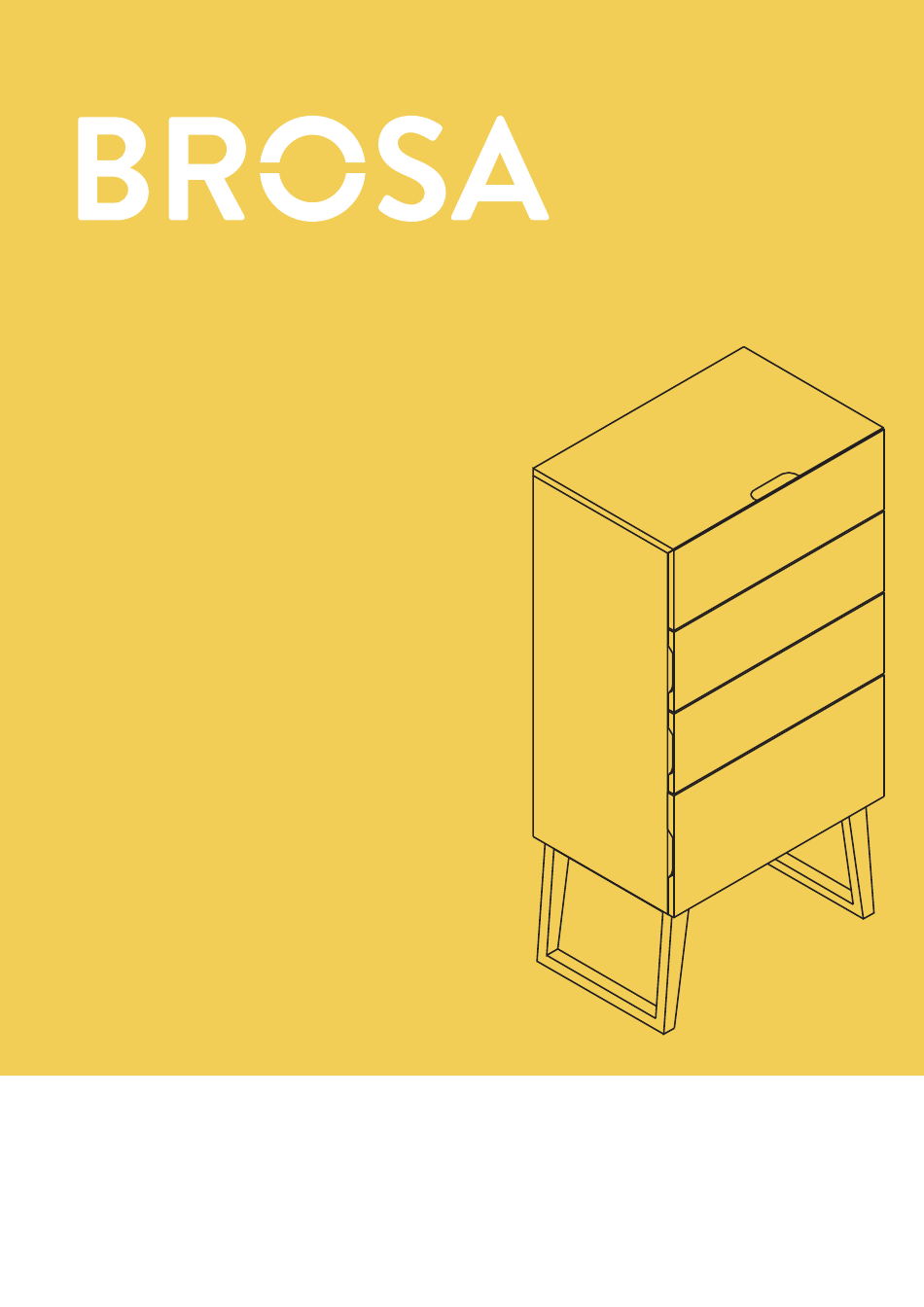

- Page 1 ASSEMBLY GUIDE Nancy Tall Boy...
-
Page 2: What You Need
Components Upon unpacking your storage from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new storage. Body x 1 Legs x 2 Hardware A x 10 (Bolt) B x 10 (Washer) C x 1 D x 2... - Page 3 Align a leg to the underside of the body so that the screw Step 1 holes are overlapping. Fit a washer to a bolt and screw into a hole using a screwdriver. Repeat for the other holes then for the second leg. Cover the bolt holes with the plastic caps (G).
- Page 4 Find a nice spot for the night stand and make two holes in Step 2 the wall using a drill and 7mm drilling head. Distance of the holes should be 37mm and height from the oor around 1177mm. Using a hammer instert two dowels into the holes.
- Page 5 Fit a washer to a screw and x the Mounting Plate Step 3 to the wall using a screwdriver. C x 1 E x 2 F x 2 WALL Attach the storage to the Mounting Plate. Step 4 WALL...
- Page 6 Align the drawer slides to the corresponding holes Step 5 on the side walls. Secure into place using small screws (H). H x 6 Continue using the screws to secure the slides. Step 6 H x 4...
- Page 7 Align the end hole on the drawer with the hook on the Step 7 slide and insert the drawer halfway into the cabinet. Pull the side lock out. Step 8...
- Page 8 Alight the vertical knob on the slide with the hole on Step 9 the drawer and lift the drawer down. Pull back the side lock to x the drawer on the slide Step 10 and close the drawer.
- Page 9 Follow those steps to remove the drawer from the Step 11 storage. Open the drawer, open the lock to the side, pull the second lock up and take out the drawer (4). Repeat the steps in reverse order to put the drawer back in it’s place.
- Page 10 Rotate the knob on the side of the drawer to adjust Step 12 the correct angle. ±2mm...
- Page 11 Place the storage upright on a level surface. Enjoy Step 12 your new storage!
