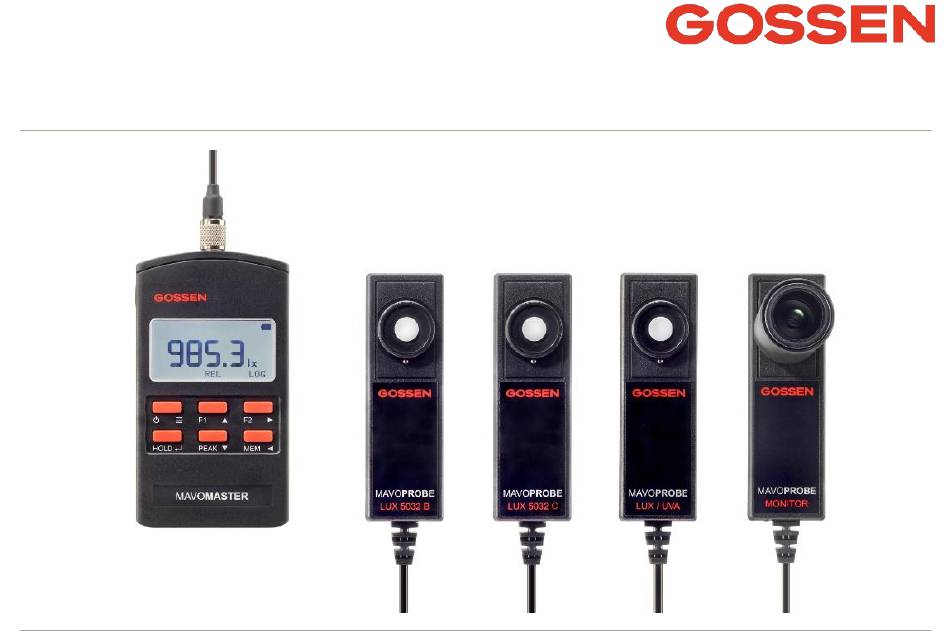

- Page 1 Operating Instructions MAVOMASTER, MAVOPROBE Light Metering System 1/09.22...

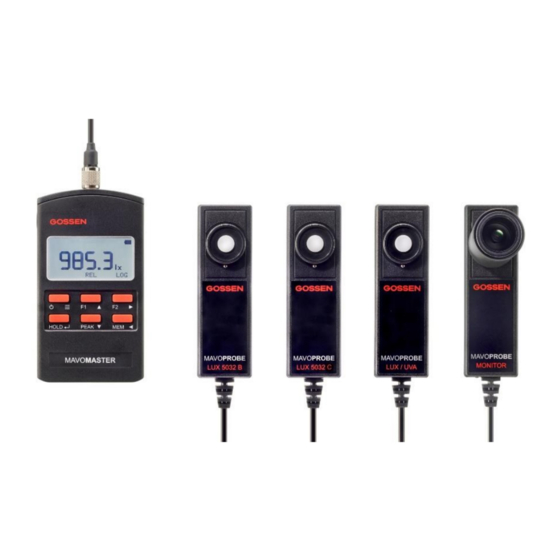

- Page 2 Device Overview, MAVOMASTER with MAVOPROBE MAVOMASTER, Bottom: - MAVOMASTER serial number USB port - Battery compartment with lid Light receiver Calibration seal Display Keypad, fluorescent MAVOPROBE, Bottom: lettering - MAVOPROBE serial number Rubber holster - ¼" tripod thread...
- Page 3 Large measured value memory – measured and function values stored in CSV format ▪ Prolonged operation with USB interface via PC, mains power pack or power bank ▪ MAVOPROBE can be used in combination with MAVOMASTER or autonomously via USB ▪ MAVOPROBE extension cord, 3, 5 or 10 meters ▪...
-
Page 4: Table Of Contents
Content Page Content Page Safety Precautions ....... 6 Measuring Functions......24 REL – Relative ........24 INT – Integral........25 Disposal ..........11 GRID – Grid ......... 26 B/A – Ratio ........... 27 Initial Start-Up ........12 %A – Percentage Deviation ....28 Inserting the Battery ...... - Page 5 USB Interface ........37 Firmware Update ........37 Accessories ........38 10.1 Scope of Delivery, MAVOMASTER ..38 10.2 Scope of Delivery, MAVOPROBE ..38 10.3 MAVOMASTER Accessories ....38 10.4 MAVOPROBE Accessories ....39 10.5 Calibration Certificates for MAVOPROBES ..........41 Service Notes........
-
Page 6: Safety Precautions
Safety Precautions Explanation of Symbols Signal words in warnings indicate the nature and severity of possible consequences if measures for the prevention of the respective hazard are not implemented. The signal words are defined below and may be used in this document. Means that serious to life-threatening personal injury may occur Warning! Caution... - Page 7 Warning! ▪ In the event of malfunction, switch the meter off immediately. If smoke or odors occur for which the meter is the cause, remove the battery from the meter – risk of fire and injury. ▪ Do not use the meter in proximity to flammable or combustible gases, as there is a risk of fire and explosion.
- Page 8 Caution ▪ Remove the batteries from the meter if it’s not used for lengthy periods of time, or when they’re fully depleted. In particular in the case of depleted batteries, leakage may occur and the meter may be damaged. ▪ Ensure correct polarity when inserting the battery.
- Page 9 Note Note identifies precautions or limitations with regard to use of the product. Please read all notes in order to avoid operating errors. ▪ Before starting one-time only measuring tasks, you should first make sure that the meter is working properly by performing a test measurement. ▪...
- Page 10 ▪ Reproduction of product documentation or duplication of any excerpts therefrom necessitates the express consent of GOSSEN. This applies as well to duplication in any electronic format and translation into other languages. Use for Intended Purpose The meter may only be used under the conditions and for the purposes for which it has been designed.
-
Page 11: Disposal
Disposal The legal regulations regarding disposal and recycling of batteries and electronic devices are different in every country. Please inform yourself about the respectively valid regulations for environmentally friendly disposal in your country, and proceed accordingly. In European countries, consumers must comply with the following regulations: ▪... -
Page 12: Initial Startup
Initial Startup Inserting the Battery Open the MAVOMASTER’s battery compartment by pressing the cover’s snap lock down in the direction indicated by the arrow and folding the cover out. Insert the included 1.5 V AA battery (IEC LR6) into the battery compartment, observing the polarity markings in the battery compartment. -
Page 13: Connecting The Mavoprobe
USB port Connecting the MAVOPROBE The MAVOMASTER has a sensor socket to which different MAVOPROBES with a standard cable length of 1.5 meters can be connected. Longer sensor cable lengths of up to 10 meters are made possible through the use of optional MAVOPROBE extension cords. The connected MAVOPROBE is detected automatically and its data is displayed in the settings menu under “Information”. -
Page 14: Display Elements And Controls
Display Elements and Controls Display Elements Sensor Socket USB Port Continuous Operation, Power Function and Designation Field Supply Status Function Key Labeling Message Window... -
Page 15: Controls
Controls The meter is operated with 6 keys. Any desired measuring functions can be assigned to function keys F1 and F2 in the settings menu and the corresponding labeling appears above the respective function key in the display. The PEAK key is permanently assigned to extreme and mean values. The settings menu is accessed by pressing and holding the key, and the 6 keys are used for navigation and selection functions as shown on the right edge of each key. -
Page 16: Operation In The Measuring Mode
Operation in the Measuring Mode Status Press Function Short Switch meter on Short Switch meter off Long Setting mode F1, F2 Inactive Short Activate assigned measuring function, reset all extreme values Active Short Terminate assigned measuring function, save results if required HOLD Measure Short... -
Page 17: Operation In The Setting Mode
Operation in the Setting Mode Function Function Return to measuring mode Apply settings ▲ ► Move cursor up Down one menu level ▼ ◄ Move cursor down Up one menu level... -
Page 18: Setting Mode
Setting Mode Various basic settings and presettings can be entered for the MAVOMASTER in the setting mode. The setting mode is entered from the measuring mode by pressing and holding the key. ► Long Short After selecting a parameter, it’s displayed inversely and the display alternates between the parameter and the currently selected value. - Page 19 Measurement lx – cd/m² lx – cd/m², fc - fL System of units Irradiation reference _/cm² _/cm², _/m² Function key F1 REL, LOG, GRID, B/A, %A, B-A, INT Function key F2 REL, LOG, GRID, B/A, %A, B-A, INT Storage Log interval 00:00 HH:MM:SS Filename...
-
Page 20: Settings Menu
Settings Menu Time/Date When saving data, the meter uses time and date for the filename and the point in time at which the measurement was performed. If time is not set by the user, time and date begin with the factory setting after inserting the battery, and is then used for data storage. -
Page 21: Measuring Menu
Automatic Shutdown The meter is shut down automatically if no keys are pressed during the specified time period in order to save energy. All measured values and settings are saved and retained until the meter is switched back on again by pressing the key. -
Page 22: Storage Menu
Storage Menu All of the settings in this menu are related to the memory mode. In order for the CSV file to be read in correctly by country-specific software applications, the time format, the date format and the decimal separator may need to be adjusted. Log Interval The log interval can be set in HH:MM:SS and specifies the time interval at which measured values are written to the file during data logger operation. -
Page 23: Information Menu
Information Menu Important device information is summarized in this menu. This includes serial number, the hardware and firmware versions of the MAVOMASTER and the connected MAVOPROBE, and the MAVOMASTER’s temperature and battery voltage level. -
Page 24: Measuring Functions
Measuring Functions The user can assign various measuring functions to the F1 and F2 function keys under Settings in the Measuring menu, which appear in the display above the key as a label. Briefly pressing the function key activates the respective measuring function, and briefly pressing it once again deactivates the measuring function. -
Page 25: Int - Integral
INT – Integral The INT measuring function is used to determine the irradiation dose and integrates irradiance over time. The INT measuring function is activated by briefly pressing the assigned function key. Irradiation dose then appears at the upper display and integration time at the lower display. The INT measuring function is terminated by briefly pressing the assigned function key and a prompt is displayed asking whether the function values should be saved or discarded. -
Page 26: Grid - Grid
GRID – Grid The GRID measuring function is used to assess workplaces and indoor lighting. It’s capable of processing any number of measuring points and, after saving a measuring point, it automatically determines mean value E , maximum value E , minimum value E , uniformity U non-uniformity U... -
Page 27: B/A - Ratio
B/A – Ratio The B/A measuring function is used for contrast measurement or to determine workplace luminance distribution. Reference value A can be frozen by pressing the HOLD key. After briefly pressing the assigned function key, the B/A measuring function is activated and the measured or frozen measured value is saved as reference value A. -
Page 28: A - Percentage Deviation
%A – Percentage Deviation Measuring function %A can be used to assess the uniformity of monitor screens, uniform illumination of projection surfaces and uniform lighting of workplaces. The value obtained at the center is usually used as reference value A. Reference value A can be frozen by pressing the HOLD key. After briefly pressing the assigned function key, the %A measuring function is activated and the measured or frozen measured value is saved as reference value A. -
Page 29: B-A - Relative Deviation
B-A – Relative Deviation Measuring function B-A can be used to determine deviation. The value obtained from the reference part is usually used as reference value A. Reference value A can be frozen by pressing the HOLD key. After briefly pressing the assigned function key, the B-A measuring function is activated and the measured or frozen measured value is saved as reference value A. -
Page 30: Log - Data Logger
LOG – Data Logger Measured values are saved at the log interval specified under Settings in the Storage menu in the LOG measuring function. A brief acoustic signal confirms each storage operation. The measuring function or the meter can only be switched off as long as the data logger is active. When the measuring function is ended, recording is stopped and the measured value file is closed. -
Page 31: Peak - Extreme Values, Mean Value
PEAK – Extreme Values, Mean Value The PEAK function acquires the largest value (MAX), the smallest value (MIN) and the arithmetic mean value (AVG) in the background during measurement. MAX, MIN and AVG values are displayed successively by briefly pressing the PEAK key repeatedly. If no further operation takes place during the PEAK display, the PEAK display is automatically exited. -
Page 32: Memory Functions
Memory Functions In addition to a display memory, the MAVOMASTER is also equipped with an 8 GB measured value memory. This makes it possible to record several measurements on site, and to read them out and evaluate them at a later point in time. Stored values are retained when the instrument is switched off, as well as when the batteries are replaced. -
Page 33: Saving Function Values
Saving Function Values A separate filename is assigned to each measuring function, which is laid out as described in section 7.2. When the measuring function is exited, a prompt appears asking the user whether or not the function values should be saved. If “Yes” is selected, a measured value file is saved to the daily folder. Storage is acknowledged by an acoustic signal and “saved”... -
Page 34: Mavoprobes
They can be used as autonomous measuring instruments in conjunction with the MAVOMASTER. As an alternative, each probe can be connected directly to a USB interface with the help of the optional USB adapter cable, and can be used in single or multi-channel measuring systems. -
Page 35: Mavoprobe Monitor
MAVOPROBE MONITOR – Luminance, Class B The luminance of actively luminous or transilluminated surfaces such as monitors of any type, TV screens, light tables, trough luminaires, illuminated advertising surfaces and viewing screens can be determined with the MAVOPROBE MONITOR by means of contact measurement in cd/m² or fL. The included adapter disc with velvety coating protects against incident light from the side during measurement and prevents scratches on sensitive surfaces. -
Page 36: Mavoprobe Lux / Uva
MAVOPROBE LUX / UVA – Illuminance, Class B / UV-A Irradiance The high-precision MAVOPROBE LUX/UVA combination probe for non-destructive testing is classified for class B illuminance in accordance with DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476, and measurement of UV-A irradiance complies with requirements set forth in DIN EN ISO 3059 and ASTM E2297 for measuring instruments for fluorescent penetrant and magnetic particle testing. -
Page 37: Usb Interface
If necessary, new firmware versions will be made available by GOSSEN, which the customer can install to the device himself. After updating the firmware, the meter is then fully up to date. User settings remain unchanged. Updating instructions and new firmware can be downloaded from the MAVOMASTER product page at www.gossen-photo.de. -
Page 38: Accessories
10.3 MAVOMASTER Accessories USB Interface Cable (V075A) The MAVOMASTER can be connected to a PC, a power bank or a USB mains power pack with the USB interface cable (USB 2.0 type A plug to type B micro plug, 1 m). -
Page 39: 10.4 Mavoprobe Accessories
Rubber Holster (V076A) The rubber holster protects the MAVOMASTER against impacts, provides it with a unique feel and also has an integrated tilt stand for convenient tabletop use. Aluminum Carrying Case (V077A) A high-quality aluminum case with matching foam insert can be used to transport the MAVOMASTER with rubber holster and up to two MAVOPROBES. - Page 40 USB Adapter Cable (V074A) Any MAVOPROBE can be connected directly to and operated via a USB interface using the USB adapter cable (USB 2.0 type A plug to Binder series 711 socket). The MAVOPROBE is supplied with electrical power from the USB interface. Luminance Attachment (M516G) The luminance attachment with measuring angle ...
-
Page 41: 10.5 Calibration Certificates For Mavoprobes
10.5 Calibration Certificates for MAVOPROBES MAVOPROBES are intelligent measuring probes with comprehensive measured value processing and serial data transmission. As a result, each measuring probe can be sent in separately for calibration. Depending on how the meter is used, we recommend a calibration interval of either 12 or 24 months. Factory Calibration Certificate Traceability of illuminance, directly to the national standards of the PTB (German Federal Institute of Physics and Metrology), is ensured by several standard calibration lamps... -
Page 42: Service Notes
Service Notes The instrument does not require any special maintenance if used in accordance with the operating instructions. ▪ If the outside of the device becomes contaminated during use, clean the surface of the housing with a slightly moistened cloth. Avoid the use of cleansers, abrasives and solvents. Make sure that the light receiver doesn’t become dusty, dirty or scratched because this can ▪... -
Page 43: Technical Data
Technical Data 12.1 MAVOMASTER – Control and Display Unit Operation Language settings German, English Display FSTN graphic display, 128 x 64 pixels, monochrome, 50 x 25 mm Modes Off – On – Hold – Auto Display illumination Brightness 10% to 100% in steps of 10%... -
Page 44: Mavoprobe Lux 5032 B
± 2.5% rdg. ± 1 digit Operation Interface USB 2.0 with adapter cable to PC Software MAVOSOFT Power Supply Continuous operation Power supply via MAVOMASTER or USB interface Ambient Conditions Same as MAVOMASTER Mechanical Design Dimensions 33 x 115 x 27 mm 110 g Weight... -
Page 46: Mavoprobe Lux 5032 C
± 3 % rdg. ± 1 digit Operation Interface USB 2.0 with adapter cable to PC Software MAVOSOFT Power Supply Continuous operation Power supply via MAVOMASTER or USB interface Ambient Conditions Same as MAVOMASTER Mechanical Design Dimensions 33 x 115 x 27 mm 110 g Weight... - Page 48 Luminance Measurement Accuracy with Luminance Attachment MAVOPROBE LUX 5032 B/C with dedicated luminance attachment + 4.5% + 1 digit MAVOPROBE LUX 5032 B/C with non-dedicated luminance attachment + 8.0% + 1 digit If the luminance attachment is ordered together with the MAVOPROBE and permanently dedicated to it, the accuracy of this specific combination can be fine-tuned.
-
Page 49: Mavoprobe Monitor
± 2.5% rdg. ± 1 digit Operation Interface USB 2.0 with adapter cable to PC Software MAVOSOFT Power Supply Continuous operation Power supply via MAVOMASTER or USB interface Ambient Conditions Same as MAVOMASTER Mechanical Design Dimensions 33 x 115 x 97 mm 180 g Weight... -
Page 51: Mavoprobe Lux / Uva
± 2.5% rdg. ± 1 digit (LUX) ± 10% rdg. ± 1 digit (UV-A 365 nm) Operation Interface USB 2.0 with adapter cable to PC Software MAVOSOFT Power Supply Continuous operation Power supply via MAVOMASTER or USB interface Ambient Conditions Same as MAVOMASTER Mechanical Design... - Page 52 Dimensions 33 x 115 x 27 mm 115 g Weight...
- Page 55 Additional Information ▪ Calibration of Measuring Equipment Information concerning the calibration of measuring equipment is available as a PDF download at under LICHTLABOR. You’ll also find information about our light lab, our www.gossen-photo.de calibration capabilities and samples of corresponding calibration certificates. ▪...
- Page 56 GOSSEN Foto- und Lichtmesstechnik GmbH I Lina-Ammon-Str. 22 I 90471 Nuremberg I Germany Phone: +49 911 800621-0 I Fax: +49 911 800621-29 I e-mail: info@gossen-photo.de Printed in Germany – Subject to change without notice www.gossen-photo.de...
