Cable Cubby 1202 and 1402 • Installation Guide (Continued)
Preparing the Table
Cut a hole in the surface where the enclosure will be installed. Read the following information before making a cut.
Determine the best location for the enclosure
…
Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.
…
Ensure that the edge on which the lid opens is oriented correctly.
…
Ensure that there is ample space under the table for cables. Allow at least 36 inches of cable loop for each cable (see
Routing and Connecting Cables
…
When installing Retractors in the Cable Cubby, ensure that there is enough space for the Retractor assembly under the table
or furniture (see the Retractor dimensions in the images below or go to www.extron.com).

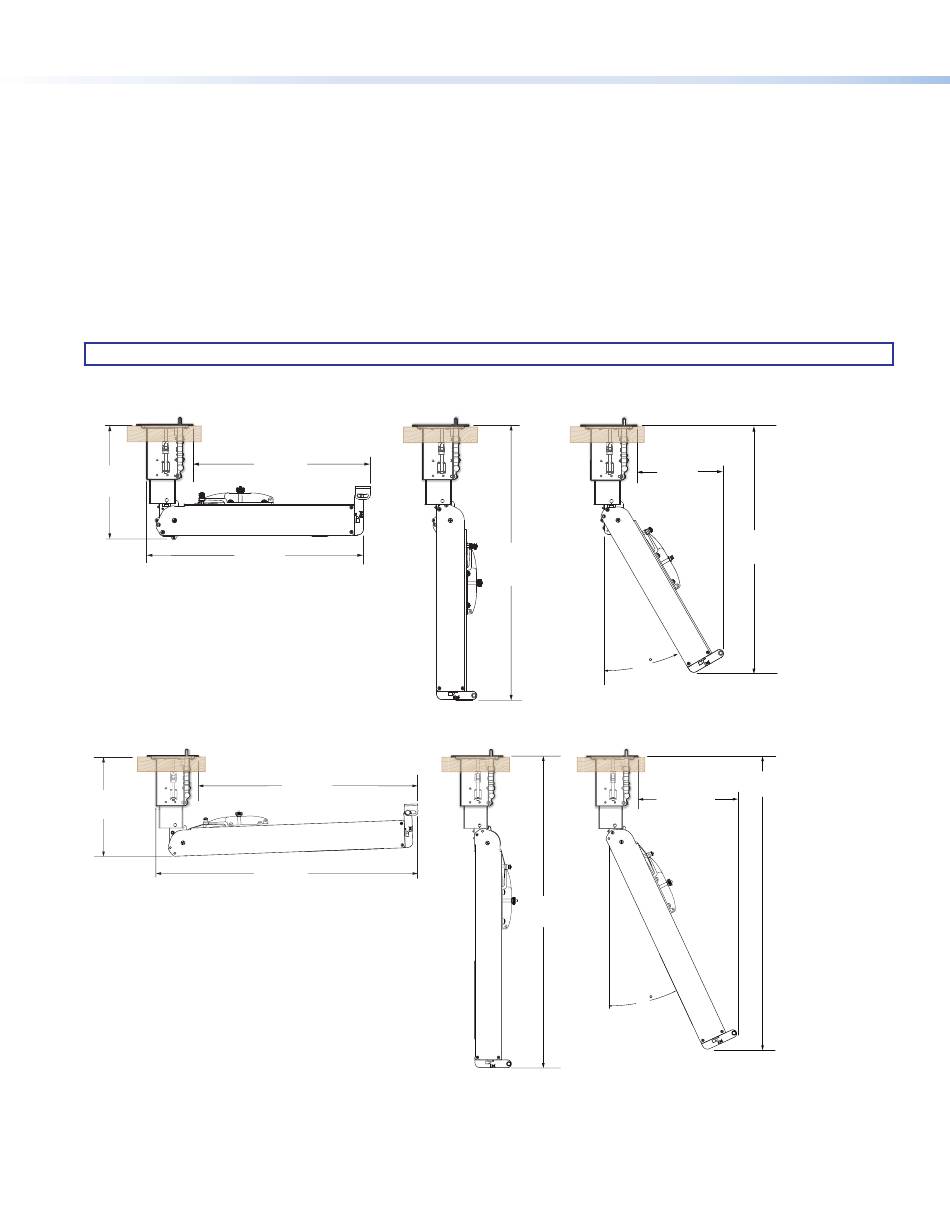

Retractor dimensions
NOTE: Shown with Cable Cubby 1202 enclosure
Retractor Series:
Horizontal Mounting
9.0"
(229 mm)
Retractor Series XL:
9.0"
(229 mm)
2
on page 8).
14.5"
(368 mm)
18.2"
(462 mm)
20.5"
(521 mm)
24.2"
(615 mm)
Angular Mounting
Vertical Mounting
23.3"
(592 mm)
29.4"
(747 mm)
8.0"
(203 mm)
21.7"
(551 mm)
30
26.9"
11.5" (683 mm)
(292 mm)
30
