Cable Cubby 1202 and 1402 • Installation Guide (Continued)

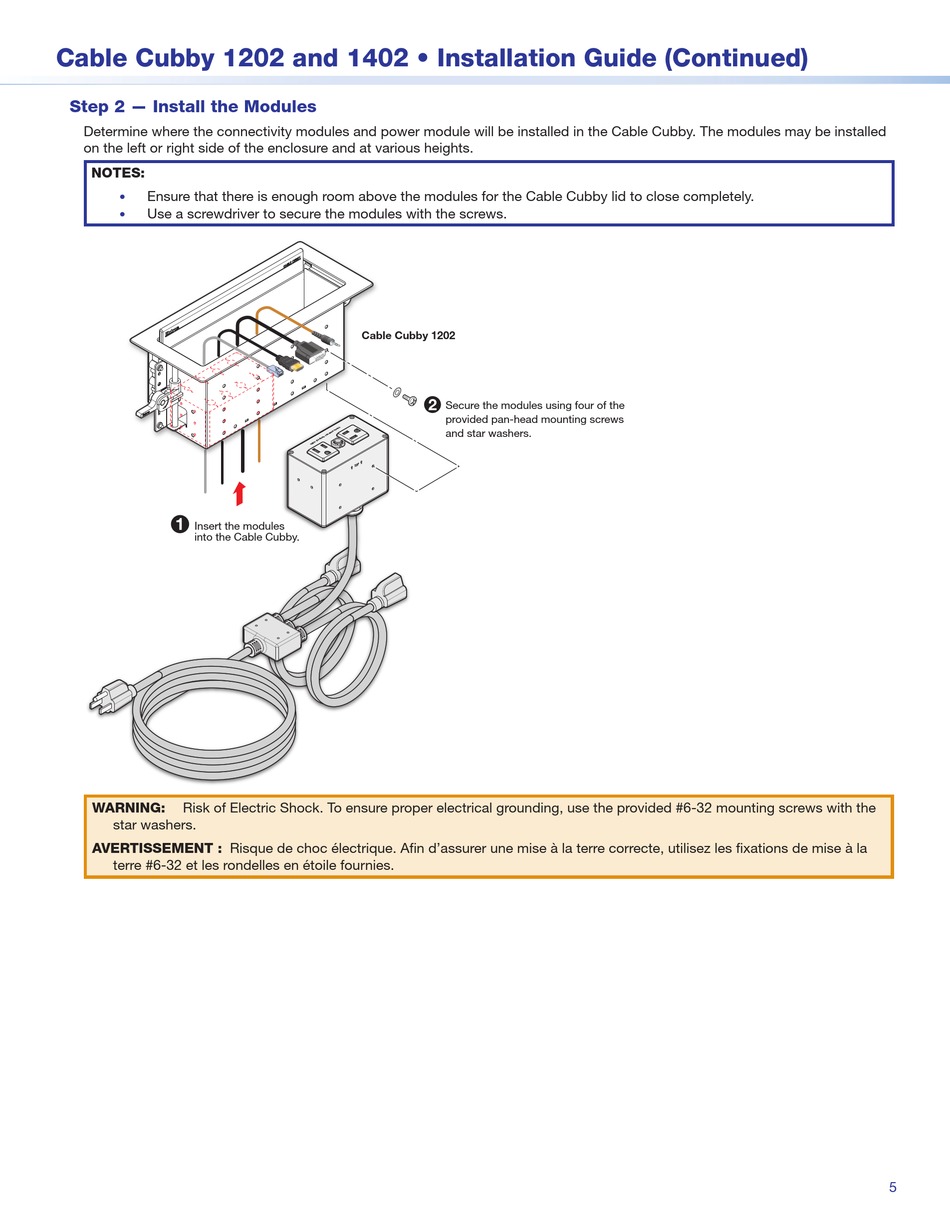

Step 2 — Install the Modules
Determine where the connectivity modules and power module will be installed in the Cable Cubby. The modules may be installed
on the left or right side of the enclosure and at various heights.
NOTES:
Ensure that there is enough room above the modules for the Cable Cubby lid to close completely.
•
Use a screwdriver to secure the modules with the screws.
•
1
Insert the modules
into the Cable Cubby.
WARNING: Risk of Electric Shock. To ensure proper electrical grounding, use the provided #6-32 mounting screws with the
star washers.
AVERTISSEMENT : Risque de choc électrique. Afin d'assurer une mise à la terre correcte, utilisez les fixations de mise à la
terre #6-32 et les rondelles en étoile fournies.
Cable Cubby 1202
2
Secure the modules using four of the
provided pan-head mounting screws
and star washers.
P
T O
5
