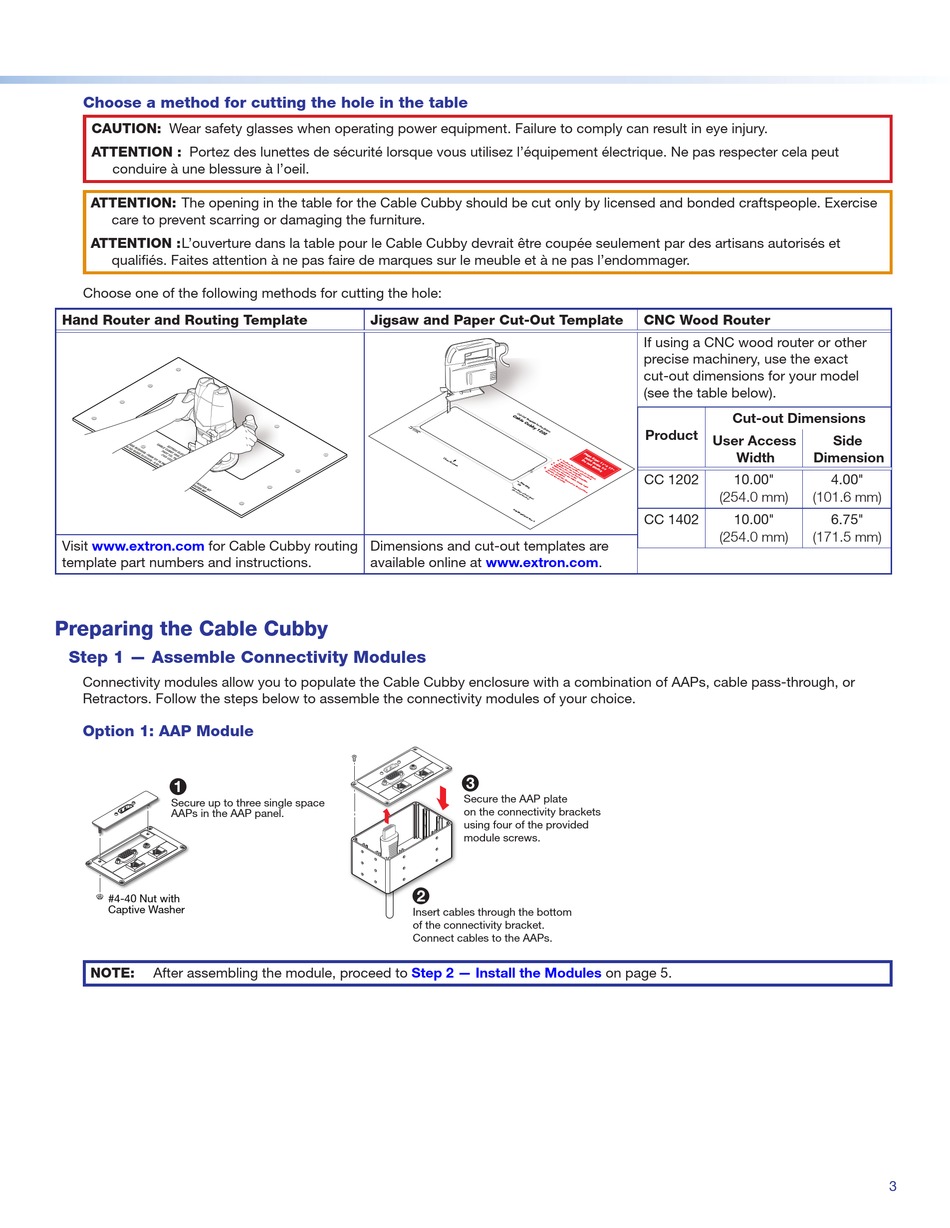

Extron electronics Cable Cubby 1202 Installation Manual page 3

Choose a method for cutting the hole in the table
CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.
ATTENTION : Portez des lunettes de sécurité lorsque vous utilisez l'équipement électrique. Ne pas respecter cela peut
conduire à une blessure à l'oeil.
ATTENTION: The opening in the table for the Cable Cubby should be cut only by licensed and bonded craftspeople. Exercise
care to prevent scarring or damaging the furniture.
ATTENTION : L'ouverture dans la table pour le Cable Cubby devrait être coupée seulement par des artisans autorisés et
qualifiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l'endommager.
Choose one of the following methods for cutting the hole:
Hand Router and Routing Template
Visit www.extron.com for Cable Cubby routing
template part numbers and instructions.
Preparing the Cable Cubby
Step 1 — Assemble Connectivity Modules
Connectivity modules allow you to populate the Cable Cubby enclosure with a combination of AAPs, cable pass-through, or
Retractors. Follow the steps below to assemble the connectivity modules of your choice.
Option 1: AAP Module
1
Secure up to three single space
AAPs in the AAP panel.
#4-40 Nut with
Captive Washer
NOTE: After assembling the module, proceed to
Jigsaw and Paper Cut-Out Template
Dimensions and cut-out templates are
available online at www.extron.com.
3
Secure the AAP plate
on the connectivity brackets
using four of the provided
module screws.
2
Insert cables through the bottom
of the connectivity bracket.
Connect cables to the AAPs.
Step 2 — Install the Modules
CNC Wood Router
If using a CNC wood router or other
precise machinery, use the exact
cut-out dimensions for your model
(see the table below).
Cut-out Dimensions
Product
User Access
Width
CC 1202 10.00"
(254.0 mm)
CC 1402 10.00"
(254.0 mm)
on page 5.
Side
Dimension
4.00"
(101.6 mm)
6.75"
(171.5 mm)
3
