4.4.1 Max. Protruding Objects
4.2.5 Forward Reach
4.2.6 Side Reach
4.27.4 Operation
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.The manufacturer
reserves the right to, and does from time to time, make changes and improvements in designs and dimensions without notice.
HORIZONTAL
RECESSED-MOUNTED
WITH STAINLESS STEEL FLANGE

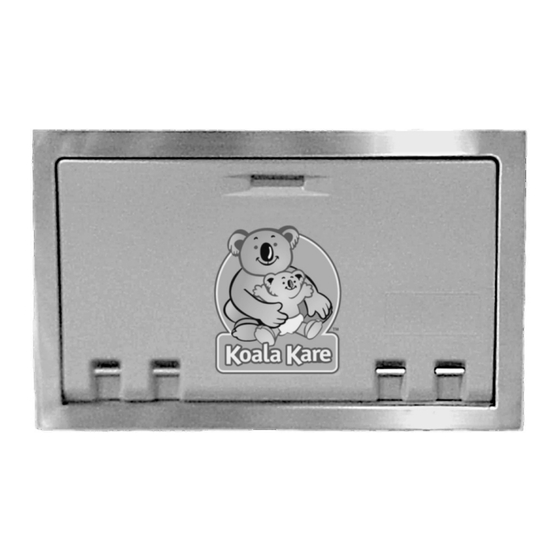

BABY CHANGING STATION
37.0 in.
(940 mm)
32.0 in.
(813 mm)
KB100-05ST-INB WHITE GRANITE
F i n i s h f a c e o f w a l l
8.25 in.
(210 mm)
23 in.
(584 mm)
15.25 in.
(387 mm)
33 in.
(838 mm)
from floor
max
Floor
Rough Wall Opening
35-1/2" (900mm) wide
20-1/2" (529mm) high
4" (102mm) minimum
recessed depth
KB100-00ST-INB CREAM
KB100-01ST-INB GREY
4.0 in.
102 mm
2.5 in.
64 mm
8.25 in.
(210 mm)
20 in.
508 mm
9.25 in.
(235 mm)
2 in.
(51 mm)
48 in.
(1,283 mm)
From Floor
(ADA)
Continued...
KB100-ST-INB Revised 12-12-07
© 2007 by Koala Kare Products, A Division of Bobrick
