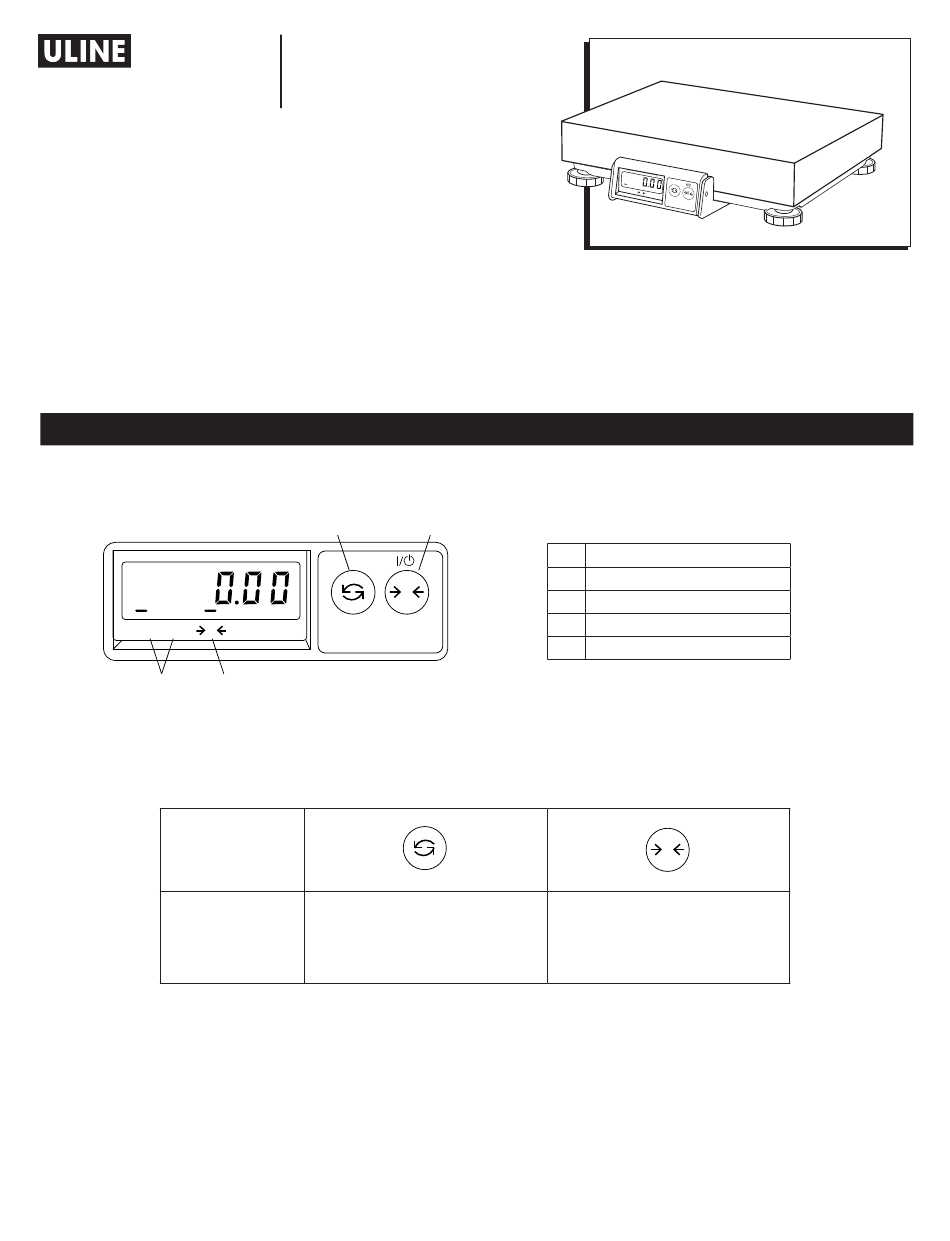

H-2714
150 LBS. x .05 LB.
PARCEL SCALE
CONTROL PANEL
Capacity: 150 x 0.05 lb / 60 x 0.02 kg
lb
kg
0
1
CONTROL FUNCTIONS
BUTTON
PRIMARY
FUNCTION
(Short Press)
PAGE 1 OF 18
1-800-295-5510
uline.com
OVERVIEW OF CONTROLS
3
0
METTLER
TOLEDO
2
Switches between units.
4
CONTROL PANEL PARTS
#
1
2
3
4
UNITS
Zero scale with no weight on
platter.
Para Español, vea páginas 7-12.
Pour le français, consulter les pages 13-18.
lb
kg
0
DESCRIPTION
Units Indicator
Zero Indicator
Units Button
Zero Button
0
ZERO
0521 IH-2714

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-2714 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-2714

  • Page 1 Para Español, vea páginas 7-12. Pour le français, consulter les pages 13-18. H-2714 1-800-295-5510 uline.com 150 LBS. x .05 LB. PARCEL SCALE OVERVIEW OF CONTROLS CONTROL PANEL CONTROL PANEL PARTS DESCRIPTION Capacity: 150 x 0.05 lb / 60 x 0.02 kg...
  • Page 2 SET UP PC AND POWER CONNECTIONS RS232 • Plug the Power Supply (required with RS232) into the 1. Choose one method of connecting the scale to your scale connector port marked "Power Supply". Plug PC: USB or RS232. (See Figure 1) the small end of the RS232 cable into the scale connector port marked "RS232".
  • Page 3: Software Configuration

    SET UP CONTINUED GEOCAL™ LOCATION CODES STATE CODE STATE CODE STATE CODE Alabama Indiana North Carolina Birmingham & North North of Indianapolis Raleigh & North South of Birmingham Indianapolis & South South of Raleigh Iowa North Dakota Alaska North of Des Moines Anchorage &...
  • Page 4 SET UP CONTINUED SOFTWARE CONFIGURATION CONTINUED UPS WORLD SHIP SOFTWARE SET UP 1. Connect the scale to your computer using the USB cable and open the UPS World Ship software. 2. Under the Tools Menu, select System Preferences Editor. (See Figure 5) Figure 5 3.
  • Page 5 SET UP CONTINUED SOFTWARE CONFIGURATION CONTINUED UPS WORLD SHIP SOFTWARE SET UP CONTINUED 4. From the Scale Type drop down menu, select Toledo PS60-5155 150 lb. Flat Top. (See Figure 7) Figure 7 5. Click Apply and then click OK. 6.
  • Page 6: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS The display indicates Invalid parity setting in the PC Select the correct scale model RS232 connection setting. in the shipping software and (Error Code 5) press any button to clear E5. No weight is displayed Power supply may be If using RS232, confirm power on the scale.
  • Page 7: Panel De Control

    H-2714 800-295-5510 uline.mx BÁSCULA PARA PAQUETES 150 LBS. x .05 LBS. RESUMEN DE LOS CONTROLES PANEL DE CONTROL PARTES DEL PANEL DE CONTROL DESCRIPCIÓN Capacity: 150 x 0.05 lb / 60 x 0.02 kg Indicador de unidades Indicador de cero...
  • Page 8: Instalación

    INSTALACIÓN CONEXIONES DE ELECTRICIDAD Y PC RS232 • Conecte el suministro de electricidad (necesario Elija un método para conectar la báscula a su PC: con RS232) al puerto de conexión de la báscula USB o RS232. (Vea Diagrama 1) marcado como "Power Supply" (suministro de electricidad).
  • Page 9 CONTINUACIÓN DE INSTALACIÓN • Presione la tecla ZERO (Cero) para desplazarse • Presione la tecla UNITS (Unidades) para hasta dicho número. Los números se repetirán. seleccionar el código, la pantalla mostrará "donE". Presione la tecla UNITS (Unidades) de nuevo y la báscula se reiniciará.
  • Page 10 CONTINUACIÓN DE INSTALACIÓN CONTINUACIÓN DE CONFIGURACIÓN DE SOFTWARE CONFIGURACIÓN DEL SOFTWARE UPS WORLD SHIP 1. Conecte la báscula a su computadora usando el cable USB ya ejecute el software UPS World Ship. 2. En el menú Tools (Herramientas), seleccione System Preferences Editor (Editor de preferencias del sistema). (Vea Diagrama 5) Diagrama 5 3.
  • Page 11 CONTINUACIÓN DE INSTALACIÓN CONTINUACIÓN DE CONFIGURACIÓN DE SOFTWARE CONTINUACIÓN DE CONFIGURACIÓN DEL SOFTWARE UPS WORLD SHIP En el menú desplegable Scale Type (Tipo de báscula), seleccione Toledo PS60-5155 150 lb. Flat Top. (Vea Diagrama 7) Diagrama 7 2. Haga clic en Apply (Aplicar) y luego en OK. 3.
  • Page 12: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE CAUSAS RECOMENDACIONES FUNCIONAMIENTO La pantalla muestra E5. Configuración de paridad no Seleccione el modelo de báscula (Código de error 5) válida en la configuración de la correcto en el software de envío conexión RS232 a la PC. y presione cualquier botón para borrar E5.
  • Page 13: Aperçu Des Commandes

    H-2714 1-800-295-5510 uline.ca BALANCE À COLIS DE 60 x 0,02 KG (150 x 0,05 LB) APERÇU DES COMMANDES PANNEAU DE COMMANDE ÉLÉMENTS DU PANNEAU DE COMMANDE Capacity: 150 x 0.05 lb / 60 x 0.02 kg DESCRIPTION Indicateur d'unités Indicateur de mise à zéro...
  • Page 14: Installation

    INSTALLATION BRANCHEMENT À L'ORDINATEUR RS232 • Branchez le cordon d'alimentation (nécessaire avec 1. Choisissez une méthode de branchement de la RS232) dans le port de connexion de la balance balance à votre ordinateur : USB ou RS232. marqué « Power Supply ». Branchez la petite (Voir Figure 1) extrémité...
  • Page 15: Configuration Du Logiciel

    INSTALLATION SUITE • Appuyez sur la touche ZERO pour faire défiler • Appuyez sur la touche UNITS pour sélectionner jusqu'à ce numéro. Les numéros se répéteront. le code. L'écran affichera « donE ». Appuyez de nouveau sur la touche UNITS et la balance redémarrera.
  • Page 16 INSTALLATION SUITE CONFIGURATION DU LOGICIEL SUITE CONFIGURATION DU LOGICIEL UPS WORLD SHIP Raccordez la balance à votre ordinateur à l'aide du câble USB et démarrez le logiciel UPS World Ship. 2. Dans le menu Tools, sélectionnez System Preferences Editor. (Voir Figure 5) Figure 5 3.
  • Page 17 INSTALLATION SUITE CONFIGURATION DU LOGICIEL SUITE CONFIGURATION DU LOGICIEL UPS WORLD SHIP SUITE 4. Dans le menu déroulant Scale Type, sélectionnez Toledo PS60-5155 150 lb. Flat Top. (Voir Figure 7) Figure 7 5. Cliquez sur Apply, puis cliquez sur OK. 6. Répétez l'étape 3. Cliquez sur Test Scale. (Voir Figure 8) Fermez la fenêtre System Preferences Editor.
  • Page 18: Dépannage

    DÉPANNAGE PROBLÈME CAUSES RECOMMANDATIONS L'écran affiche E5. Réglage de parité non valide Sélectionnez le modèle de (Code d'erreur 5) dans le paramètre de connexion à balance approprié dans le l'ordinateur RS232. logiciel d'expédition et appuyez sur n'importe quelle touche pour effacer E5.
