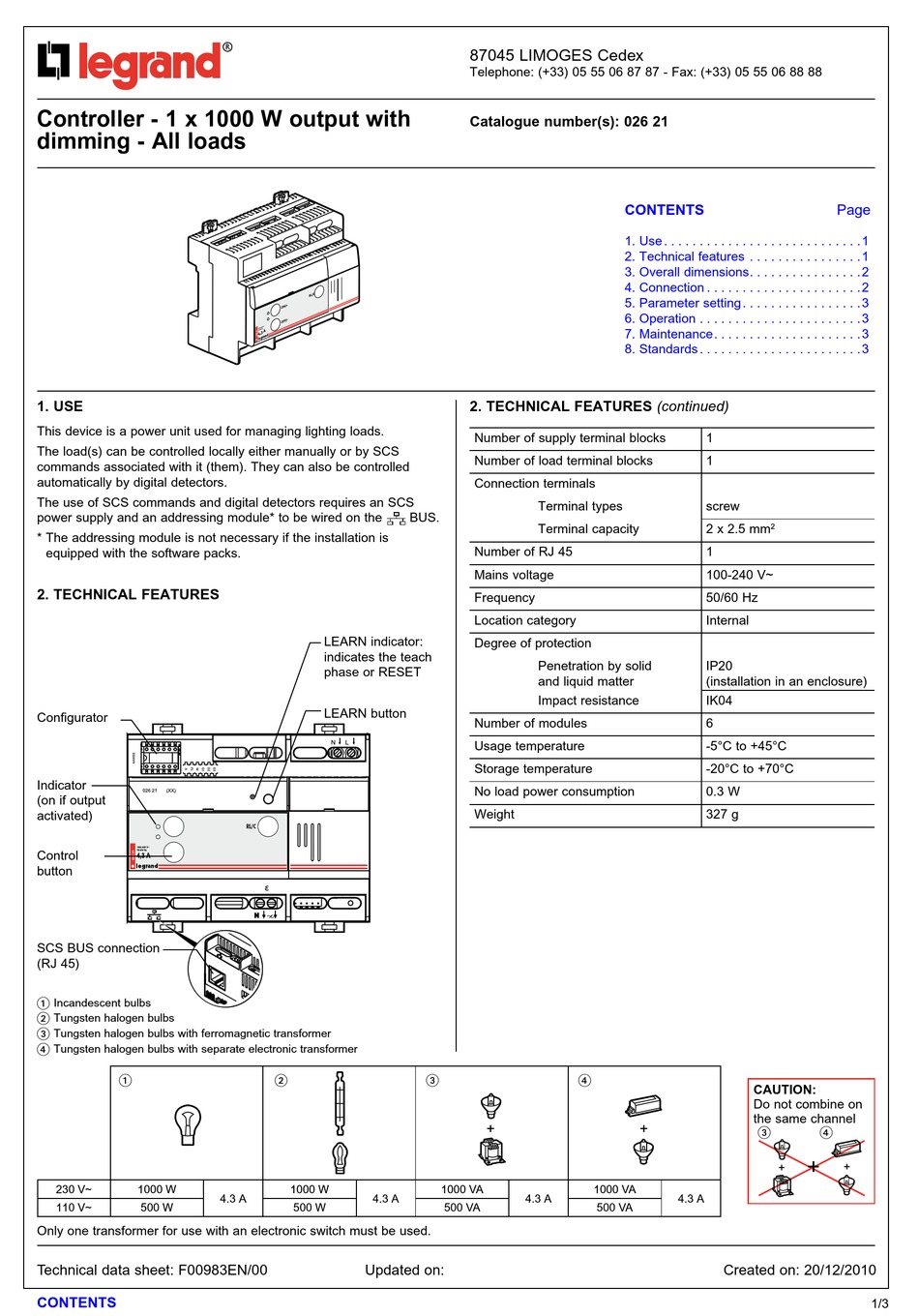

Controller - 1 x 1000 W output with
dimming - All loads
1. USE
This device is a power unit used for managing lighting loads.
The load(s) can be controlled locally either manually or by SCS
commands associated with it (them). They can also be controlled
automatically by digital detectors.
The use of SCS commands and digital detectors requires an SCS
power supply and an addressing module* to be wired on the
* The addressing module is not necessary if the installation is
equipped with the software packs.
2. TEChNiCAl fEATUrES
Configurator
Indicator
(on if output
activated)
Control
button
SCS BUS connection
(RJ 45)
1
Incandescent bulbs
2
Tungsten halogen bulbs
3
Tungsten halogen bulbs with ferromagnetic transformer
4
Tungsten halogen bulbs with separate electronic transformer
1
230 V~
1000 W
110 V~
500 W
Only one transformer for use with an electronic switch must be used.
Technical data sheet: F00983EN/00
CONTENTS
LEARN indicator:
indicates the teach
phase or RESET
LEARN button
2
1000 W
4.3 A
4.3 A
500 W
Updated on:
87045 LIMOGES Cedex
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 026 21
2. TEChNiCAl fEATUrES (continued)
Number of supply terminal blocks
Number of load terminal blocks
Connection terminals
Terminal types
BUS.
Terminal capacity
Number of RJ 45
Mains voltage
Frequency
Location category
Degree of protection
Penetration by solid
and liquid matter
Impact resistance
Number of modules
Usage temperature
Storage temperature
No load power consumption
Weight
3
4
1000 VA
4.3 A
500 VA
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . .1
3. Overall dimensions. . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . .2
5. Parameter setting . . . . . . . . . . . . . . . . .3
6. Operation . . . . . . . . . . . . . . . . . . . . . . .3
7. Maintenance. . . . . . . . . . . . . . . . . . . . .3
8. Standards . . . . . . . . . . . . . . . . . . . . . . .3
1
1
screw
2 x 2.5 mm
1
100-240 V~
50/60 Hz
Internal
IP20
(installation in an enclosure)
IK04
6
-5°C to +45°C
-20°C to +70°C
0.3 W
327 g
CAUTiON:
Do not combine on
the same channel
3
1000 VA
4.3 A
500 VA
Created on: 20/12/2010
Page
2
4
+
1/3
