LINC-CUT
LINC-CUT
1020w - 1530w
1020w - 1530w
SAFETY INSTRUCTIONS FOR OPERATING AND MAINTENANCE
SAFETY INSTRUCTIONS FOR OPERATING AND MAINTENANCE
AS-CM-LCS1020WTH80; AS-CM-LCS1530WTH80
AS-CM-LCS1020WTH80; AS-CM-LCS1530WTH80
ISSUE
: EN
REVISION
: E
DATE
: 05 - 2022
CUTTING MACHINE
MACHINE No
MACHINE No
AS-CM-LCS1020WF125; AS-CM-LCS1530WF125
AS-CM-LCS1020WF125; AS-CM-LCS1530WF125
Instruction manual
S S
® ®
REF : 8695 4795
Original instructions
Advertisement
Table of Contents
Related Manuals for Lincoln Electric LINC-CUT S 1020w
Summary of Contents for Lincoln Electric LINC-CUT S 1020w

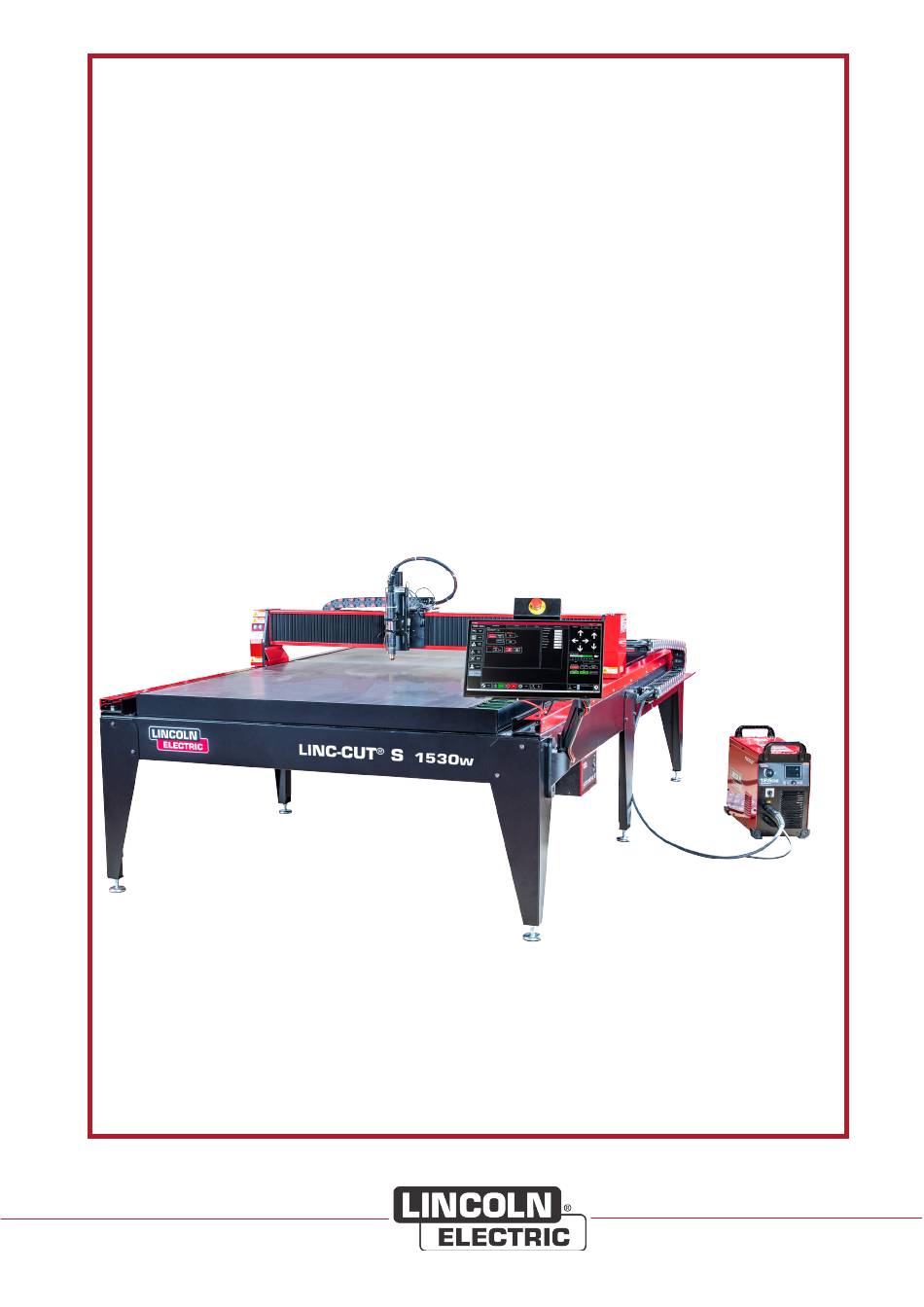

- Page 1 CUTTING MACHINE LINC-CUT LINC-CUT ® ® 1020w - 1530w 1020w - 1530w SAFETY INSTRUCTIONS FOR OPERATING AND MAINTENANCE SAFETY INSTRUCTIONS FOR OPERATING AND MAINTENANCE MACHINE No MACHINE No AS-CM-LCS1020WF125; AS-CM-LCS1530WF125 AS-CM-LCS1020WF125; AS-CM-LCS1530WF125 AS-CM-LCS1020WTH80; AS-CM-LCS1530WTH80 AS-CM-LCS1020WTH80; AS-CM-LCS1530WTH80 ISSUE : EN Instruction manual REF : 8695 4795 REVISION DATE...
- Page 2 Thank you very much for the trust you have shown by choosing this piece of equipment. It will give you trouble-free service if it is used and maintained as recommended. Its design, component specifications and manufacturing are in accordance with applicable European directives.
-
Page 3: Table Of Contents
Table of contents Description of LINC-CUT S 1020w-1530w ................. 1 ® Technical support/on-site maintenance ..................2 Unpacking your LINC-CUT S 1020w-1530w ................3 ® Putting in place the LINC-CUT S 1020w ..................4 ® Putting in place the LINC-CUT S 1530w ..................5 ®... - Page 4 Develop your own cut chart ....................... 36 Nesting ............................37 Performing Your First Test Cut ....................40 Maintenance ..........................41 Daily maintenance ---------------------------------------------------------------------------------------------------------- Monthly maintenance: ---------------------------------------------------------------------------------------------------- Maintenance as needed: ------------------------------------------------------------------------------------------------- Bevel base ........................... 45 How the torch position affects bevel ..................46 What causes bad cuts ........................
-
Page 5: Description Of Linc-Cut ® S 1020W-1530W
Description of LINC-CUT S 1020w-1530w ® The LINC-CUT S 1020w-1530w solution is a plasma cutting machine that is quick to put into service, easy ® to use, and an investment that can pay for itself in a short time. The machine frame is made up of a steel table incorporating expendable plates that support the stock to cut and contain water mixed with a special fluid called “Plateguard red”. -
Page 6: Technical Support/On-Site Maintenance
0825 132 132 for more information. • Telephone assistance Telephone assistance is available from Monday to Friday from 8 am to 5 pm. Lincoln Electric will ® make every effort to respond to telephone calls as soon as possible. Because of the nature of machine troubleshooting and the varying abilities of operators, we are unable to give any guarantee as to the telephone waiting time for support. -
Page 7: Unpacking Your Linc-Cut
Check that all the items have been received without damage before you accept the delivery from the carrier. Inform Lincoln Electric at 0825 132 132 to report any shipping damage. Your machine has been fully tested ®... -
Page 8: Putting In Place The Linc-Cut ® S 1020W
Putting in place the LINC-CUT S 1020w ® 650 daN 650 daN The LINC-CUT S 1020w model is supplied ® with factory-installed locks. The locking devices must be removed before using the machine. DO NOT PUT BACK the bolts after removing the locking devices, as that will lead to permanent damage to the gantry. -
Page 9: Putting In Place The Linc-Cut ® S 1530W
Putting in place the LINC-CUT S 1530w ® 850 daN 850 daN The LINC-CUT S 1530w model is supplied ® with factory-installed locks. The locking devices must be removed before using the machine. DO NOT PUT BACK the bolts after removing the locking devices, as that will lead to permanent damage to the gantry. -
Page 10: Safety First
Safety first S 1020w-1530w supplied by Lincoln Electric The equipment for LINC-CUT is designed and manufactured ® ® to ensure safety. However, you can heighten the overall safety of your machine by installing it correctly and using it wisely. WARNING MAKE SURE YOU DO NOT INSTALL, USE OR REPAIR THE EQUIPMENT WITHOUT FIRST READING THE SAFETY INSTRUCTIONS IN THIS MANUAL. -
Page 11: Laser Safety
Before any work on the torch, it is absolutely necessary to switch off the FLEXCUT 125 CE or 1538 power source. TOMAHAWK ® Conditions of use: • No object is to be placed on the rolling tracks. • Do not climb on the cable drag chain. •... -
Page 12: Fumes/Gas
The quantity of residual fumes emitted depends closely on the quality of the cut metal, cutting parameter settings and the water level height. That is why Lincoln Electric cannot commit to specific values regarding the fume concentration at the ®... -
Page 13: Preparing The Floor
Flatness over the entire site with additional travelling tracks ± 10 mm. Slab level difference 30 mm (maximum 5 mm/m). • While preparing the installation of a Lincoln Electric CNC cutting machine, provide for sufficient ® space. 800 mm clear space around the machine. -
Page 14: Dimensions And Weight Of Linc-Cut ® S 1020W
Dimensions and weight of LINC-CUT S 1020w ® FLEXCUT 125 CE 55 daN 650 daN* 526 mm 638 mm 311 mm TOMAHAWK 1538 ® 34 daN 455 mm * Weight without water 640 mm 301 mm General characteristics of LINC-CUT S 1020w ®... -
Page 15: Dimensions And Weight Of Linc-Cut ® S 1530W
Dimensions and weight of LINC-CUT S 1530w ® FLEXCUT 125 CE 55 daN 526 mm 638 mm 311 mm TOMAHAWK 1538 ® 34 daN 455 mm 640 mm * Weight without water 301 mm General characteristics of LINC-CUT S 1530w ®... -
Page 16: Options
Options Marker See “Marker installation and configuration” section Connecting your machine to the earth The machine must be connected to the earth appropriately to keep personnel safe and suppress high- frequency noise. The foundation for satisfactory earthing is an effective earth rod. A ground point is connected to the rod with a short, heavy conductor. - Page 17 Supply by the customer of two power supplies + earth FLEXCUT 125 CE 15.6 m3/h - 7.2 bar Power source Machine: FLEXCUT 125 CE: 0.75 Kw - 0.9 kVA - 4A - 22 Kw - 28 kVA - 40A - Building earth 220/230 V 400 V...
-
Page 18: 125A Plasma Process: Flexcut Tm 125 Ce + Lc125M Torch
125A plasma process: FLEXCUT 125 CE + LC125M torch Controls and parameters of the FLEXCUT 125 CE plasma Please refer to the operating manual of your FLEXCUT 125 CE supplied with the plasma cutting unit. When the machine is on and the automatic test is executed, all the indicators light up on the control panel. Front controls LCD display Main air, gas pressure gauge and... -
Page 19: Main Specifications Of The Flexcut
Main specifications of the FLEXCUT 125 CE plasma power source Weight 53 kg Primary power supply 380/400/415 V (+/-10%) - Three phase - 50 - 60 Hz Input current 40 A @ 100% Duty factor 125 A - 175 V @ 100 % (40 °C) No-load voltage 300 V Cutting current regulation... -
Page 20: Plasma Process: Tomahawk ® 1538 + Lc100M Torch
80A plasma process: + LC100M torch TOMAHAWK 1538 ® Controls and parameters of the TOMAHAWK 1538 plasma unit ® Please refer to the operating manual of your TOMAHAWK 1538 supplied with the plasma cutting unit. When ® the machine is on and the automatic test is executed, all the indicators light up on the control panel. Front controls Cutting mode selection Pressure regulator... -
Page 21: Main Specifications Of The Tomahawk
Main specifications of the TOMAHAWK 1538 plasma power source ® Power supply 400V ± 15%, three phase 7.1 kW at 100% DF Power consumption 13.7 kW at 40% DF Frequency 50/60 Hz Nominal output at 40°C Duty factor Output current Output voltage 100% 104 VDC... -
Page 22: Use Of Consumables Of The Lc100M Torch - Tomahawk ® 1538
Use of consumables of the LC100M torch - TOMAHAWK 1538 ® Please refer to the operating manual of the TOMAHAWK 1538 for complete ® installation and operating instructions. Do not tighten the consumables excessively. Tighten only till the parts are securely seated. Consumables starter pack for LC100M torch (BK12849-SK) BK12849-3 Qty 5... -
Page 23: Starting Up The Linc-Cut ® S 1020W-1530W
Starting up the LINC-CUT S 1020w-1530w ® To start up the LINC-CUT S 1020w-1530w CNC machine, please follow the instructions below. The ® complete user guide is available as an embedded file in VMD. Use the button with the question mark to access the file. - Page 24 To switch on the machine: Step 4 Release the emergency stop; the Accumove will start. Step 5 The PC will notice network activity and come out of standby. Step 6 VMD will start. + Method 2 Shutting down the machine when it is to be disconnected from the electrical system: Apply the machine emergency stop.
-
Page 25: Overview Of Visual Machine Designer (Vmd)
Overview of Visual Machine Designer (VMD) Visual Machine Designer (VMD) is the software that drives all ACCUMOVE CNC controllers. Most table ® commands can be found on the main screen, along with features for creating and manipulating files. This quick guide will provide you with an overview of its features and operation. The main screen of VMD is broken into sections for easy navigation and operation. -
Page 26: Job Group
Job Group: The JOB GROUP at the top, covers any “job” type functions. This group directly allows you to select a job, cre- ate a job (shape library) or modify job functions. Selecting a job: Here is how to open a job in VMD. In the SELECT JOB area, you will find the HOT FOLDER and the loaded jobs in that folder. - Page 27 Process Stations: PROCESS STATIONS configures and controls the parameters of the tools used with the machine. KERF and DWELL times can be added by programming the offset with the pneumatic marker. Log On: LOG ON switches users of the VMD software. ADMIN opens the MACHINE SETTINGS.
-
Page 28: View Screen
View Screen: The main VIEW SCREEN of VMD has tabs that control and display the job and the corresponding parameters for cutting the material. The tab at the top of the screen offers the operator different views and controls for planning the cutting job. - Page 29 Graphics View: MACHINE LIMITS is used to display the machine limits in blue. The head position is represented by crossed white lines. The paths assigned to the plasma tool are displayed in red. The paths assigned to the pneumatic marker are displayed in green. Rapid trav- els are represented by a dotted grey line.
-
Page 30: Datum/Program Zero Group
Datum/Program Zero Group: This group controls the starting of the machine and the work being carried out. Datum: Datum has several features. When you first start up your machine, Datum will switch on your motors and move the machine to establish the zero point (MACHINE ZERO). -
Page 31: Jogging
Jogging: Jogging allows you to move the head by pressing the direction arrow. The JOGGING group has tabs for moving the head to the appropriate location anywhere on the table. Jog: The JOG keys are laid out in the manner as the table moves. Pressing towards the centre of the JOG key makes the torch move slowly, and pressing it towards the outside leads to a faster movement. -
Page 32: Avhc And Dashboard
AVHC and Dashboard: AVHC (Arc Voltage Height Control) hosts how the controller manages the tool holder. The dashboard provides the operator with an overview of the head position and other status indicators. AVHC (Automatic Voltage Height Control): Cut Parameters may be switched between pre-defined program and user-defined program. - Page 33 IHS (Initial Height Sense): this setting activates or deactivates the ohmic detection function (OHMIC DETECTION). • ON: The head will detect material when the ohmic cap comes into contact with the grounded conductive material on the table. Once detection is complete, the head goes back to the pre-set TRANSFER HEIGHT piercing height.
-
Page 34: Selection Of Options
Selection of options: The table of options contains the controls of the options added on. These added On/Off control buttons are only visible if they have been validated in the OPTIONS PANEL. Below are instructions for use of the optional laser pointer. -
Page 35: Using The Shape Library In Vmd
Using the Shape Library in VMD In VMD, you can generate one of 36 standard shapes without needing to generate them in your CAD soft- ware. Access the Shape Library: To get to the Shape Library press SHAPE LIBRARY on the top centre of the VMD screen. The shape library proposes the 36 most common shapes where the dimensions, entry and exit, feed speed and tools can be personalised. - Page 36 Open Shape in VMD: In the MAIN screen, press SELECT JOB. That will make it possible to open the job selection screen. Select the job from the list. If you have not saved it in the JOBS folder you will need to press BROWSE and locate your job.
- Page 37 When you have a GM format file to run or shape generated in the VMD ready to cut there is a simple process to follow to get the job produced though the VMD. This will go over the workflow for running the job. Datum: When you start Visual Machine Designer for the first time and are connected to the Accumove controller, you need to load the machine...
- Page 38 Plate Setup: Press PLATE SETUP. Use the movement keys in PLATE SETUP to move the torch body to the lower left-hand corner of the plate to cut. Press SET PLATE ORIGIN. That sets the PROGRAM ZERO or the absolute coordinates (X= 0: Y=0) of the program. Press CLOSE.
-
Page 39: Cut Quality
Cut quality The aim is to ensure that the cuts delivered from your table are of the highest Line speed test: possible quality. That means minimal dross accumulation on the underside of your cut part and minimal bevel on the sides. We have supplied a file to cut in order to verify the feed rate for the material you plan to cut with the amperage set on the power supply. -
Page 40: Develop Your Own Cut Chart
Develop your own cut chart Use this template to create your own custom cut charts using the line speed test. Material Thickness Amperage Cut speed Pierce delay Pierce height Cut height Type LINC-CUT S 1020w-1530w ®... -
Page 41: Nesting
Nesting VMD allows you to nest irregular parts. That means that you can import DXF and DWG files without needing offsite CAM software to generate the proper G-Code. NESTING will apply kerf correction and the Lead in value to all features. Also, it will generate the closest nest available for the size of material you enter in. Start by clicking the NESTING button, and NESTED JOB LIST will be displayed on the screen. - Page 42 The ITEM LIST will open along with the NEST LAYOUT. To add parts, go to the right-hand toolbar and press PARTS. This will open the parts list. Select IMPORT CAD DRAWINGS for DXF/DWG files. This will bring up the PART SELECTOR. Apply the tool path: At the top of the screen, you will see FILE TYPE, SOURCE and DESTINATION.
- Page 43 When all the parts have the appropriate quantity, go to the list on the right Make Nest: hand and select NESTING. Press NEST to display a pop-up window asking if you want ALL or SELECTED parts. Make your choice and press OK. This will then arrange your parts into the material and display the layout in the Job screen If your nest does not need editing or is just a single part then select Complete Nest:...
-
Page 44: Performing Your First Test Cut
Performing Your First Test Cut There are multiple test files preloaded on the computer of the LINC-CUT S 1020w-1530w for testing and cut ® quality purposes. The LINES SPEED TEST and SIMPLE TEST CUT tests are provided to help determine the appropriate cutting speed in inches per minute (IPM) to cut the plate thickness with the current value that you have set on the power source. -
Page 45: Maintenance
Maintenance Like all machinery, this machine requires maintenance. This part covers daily, monthly, and ‘as needed’ tasks to keep your LINC-CUT S 1020w-1530w running like new. ® Daily maintenance Plasma power supply: The plasma power supply and torch body must be inspected between material thickness measurements and prior to cutting. -
Page 46: Monthly Maintenance
Machine: The torch impact safety system (breakaway) assembly contains two magnets and three notches that must cleared of any dross build-up, as it could move the torch support sufficiently far from the sensor to set off the torch impact safety system. Move the machine to the reference position and separate the torch support by pulling the torch down to the left or right. -
Page 47: Maintenance As Needed
Put back the longitudinal cover. Step 5 *IMPORTANT* Slide the cover so the bolts go back into their original position at the bottom of the keyhole, and tighten the bolts to 2Nm. Step 6 Repeat steps 1 to 5 on the other side of the table. Remove the red side covers of the gantry by removing the 3.175 Step 7 mm hex head bolts on each cover. - Page 48 After draining the water, remove all pieces of metal and dispose of them in accordance with national and local regulations. Close the valve and refill the table with water. The S 1020w can contain 260 litres and the LINC-CUT S 1530w 495 litres. Lincoln Electric LINC-CUT ®...
-
Page 49: Bevel Base
Bevel base Bevelled edges are caused by the motion of the plasma gas as it is emitted from the nozzle. The • phenomenon is unavoidable with plasma cutting. A high-definition plasma cutter produces less bevel than a standard cutter. Torch height, air pressure, air quality, cut direction, and consumable condition all influence bevel. •... -
Page 50: How The Torch Position Affects Bevel
How the torch position affects bevel Correct torch height Torch angled to Incorrect torch height Incorrect torch height Torch square to material material Torch too high Torch too low Position of torch while cutting Bevel of finished part Equal bevel on all sides Unequal bevel Excessive bevel Reversed bevel... -
Page 51: What Causes Bad Cuts
What causes bad cuts Cases where the metal is not fully cut may indicate different problems: • 1) The earth clamp is not correctly attached to the material 2) Drop or rise in air pressure 3) Presence of humidity in the air pipe 4) Drop in power supply 5) Contact between torch and material (most plasma cutting tools switch to low-power mode when they touch the material, which prevents the... -
Page 52: Optional Marker: Marker Installation And Configuration
Optional marker: Marker installation and configuration The marker is a pneumatic oscillating marking tool. It is supplied with air. The air supply moves a series of pneumatic cylinders and a solenoid which is activated via the control interface of the Accumove controller. The marker requires minimum air pressure of 6 bar and will consume approximately 1.7 m³/h at 6 bar. - Page 53 Move the gantry forward and switch off the power to the Accumove. Step 1 Disconnect the air fitting at the rear of the plasma supply. Switch off your air compressor and purge the air pipes. To the right of the cutting torch, there are 4 Step 2 holes for assembling the marker.
- Page 54 Check that the stylus is fastened in the clamp. Step 5 If the stylus is loose, tighten the adjusting screw. Stylus clamp Clamp adjusting screw Stylus Under the machine, above the Accumove, you Step 6 will find the cable drag chain of the machine. Locate the compressed air hose and connect it to the machine air inlet.
- Page 55 Step 10 Set the stylus intensity to the Stop position. Stylus intensity setting Switch on the Accumove and start the VMD software on the machine computer. Step 11 Press DATUM and move the torch on the table. Click on the Tool Library button. This action will call up a new menu showing two tools: •...
- Page 56 Step 15 Click on the Activate plasma button. That will start the height check so that the plasma installation pierces the plate. Once the plate is pierced, deactivate plasma to switch off the torch. Position the marker on the hole that has been Step 16 made.
-
Page 57: Basic Troubleshooting
Basic troubleshooting This will cover the most basic operational faults you might encounter with your LINC-CUT S 1020w-1530w ® machine. Machine errors: Problem Solution Log on as ADMIN. Reload your configuration. A motor will not engage when the machine goes Press OK. - Page 58 Software faults: Problem Solution Check that the orange ohmic wire is connected to the torch lug. During initial height sensing (IHS), the ohmic Check that the surface of the material is free from detection indicator does not indicate a yellow rust or corrosion, which could prevent electrical detection status when the torch touches the material.
- Page 59 Software faults: (continued) Problem Solution Check that the Cut height is set to the correct value. Check that the AVHC Auto/Manual mode is set to Auto. When the torch moves for the first cut, the torch tip comes into contact with the material and stops the Check that the Sample voltage mode is set to ON.
- Page 60 Software faults: (continued) Problem Solution Check that the breakaway capture leash and any dross on the magnet are not keeping the torch from sitting fully in position. The breakaway (torch impact safety) indicator shows Check contact points for any signs of corrosion, as Yellow and Not Connected, even though the torch clean and oil to keep the breakaway functioning is in the correct position.
- Page 61 Software faults: (continued) Problem Solution Make sure that the 24 VDC power supply is plugged in and shows a blue LED light. Make sure that the power supply is plugged into the The controller will not turn on (Accumove 2). rear of the Accumove 2 controller.
- Page 62 Software faults: (continued) Problem Solution Check that the plate is correctly aligned according to the zero point of the program in the bottom left corner, then select Align Corner, move the Positive Y axis forward over a small distance and click Align The job appears at an angle or rotated on the screen edges.
- Page 63 Software faults: (continued) Problem Solution Clear the surface of the material from any corrosion that could hinder ohmic detection. The torch retracts up fully after ohmic detection of Check that the torch lead is not getting pulled tight the material, and the Run Job button becomes avail- on the way down to the surface of the material.
- Page 64 LINC-CUT S 1020w-1530w ®...
-
Page 65: Spare Parts
Spare parts Ordering procedure: Almost all the parts of a machine or installation are referenced in the photographs and sketches. The descriptive tables contain three types of item: items normally held in stock: items not held in stock: articles upon request: no reference (For such parts, please complete the list of parts page and send us a copy. - Page 66 LINC-CUT S 1020w-1530w ®...
- Page 67 normally held in stock. not in stock upon request. Ref. Part no Stock Order Description AS-CS-07007220 Transverse geared motor AS-CS-07007200 Longitudinal geared motor AS-CS-07007164 S 1020w-1530w bellows (x2) LINC-CUT ® AS-CS-101-2000-00 Generation 2 tool holder - XLR connector Generation 2 torch impact safety (breakaway) system for AS-CS-101-5000-14 LC100M torch Generation 2 torch impact safety (breakaway) system for...
-
Page 68: Customer Assistance Policy
® information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not ® in a position to warrant or guarantee such advice, and assumes no liability with respect to such information or advice. - Page 69 User’s guide...
-
Page 70: Personal Notes
PERSONAL NOTES Lincoln Electric France S.A.S. Avenue Franklin Roosevelt 76120 Le Grand Quevilly 76121 Le Grand Quevilly Cedex www.lincolnelectriceurope.com LINC-CUT S 1020w-1530w ®...
