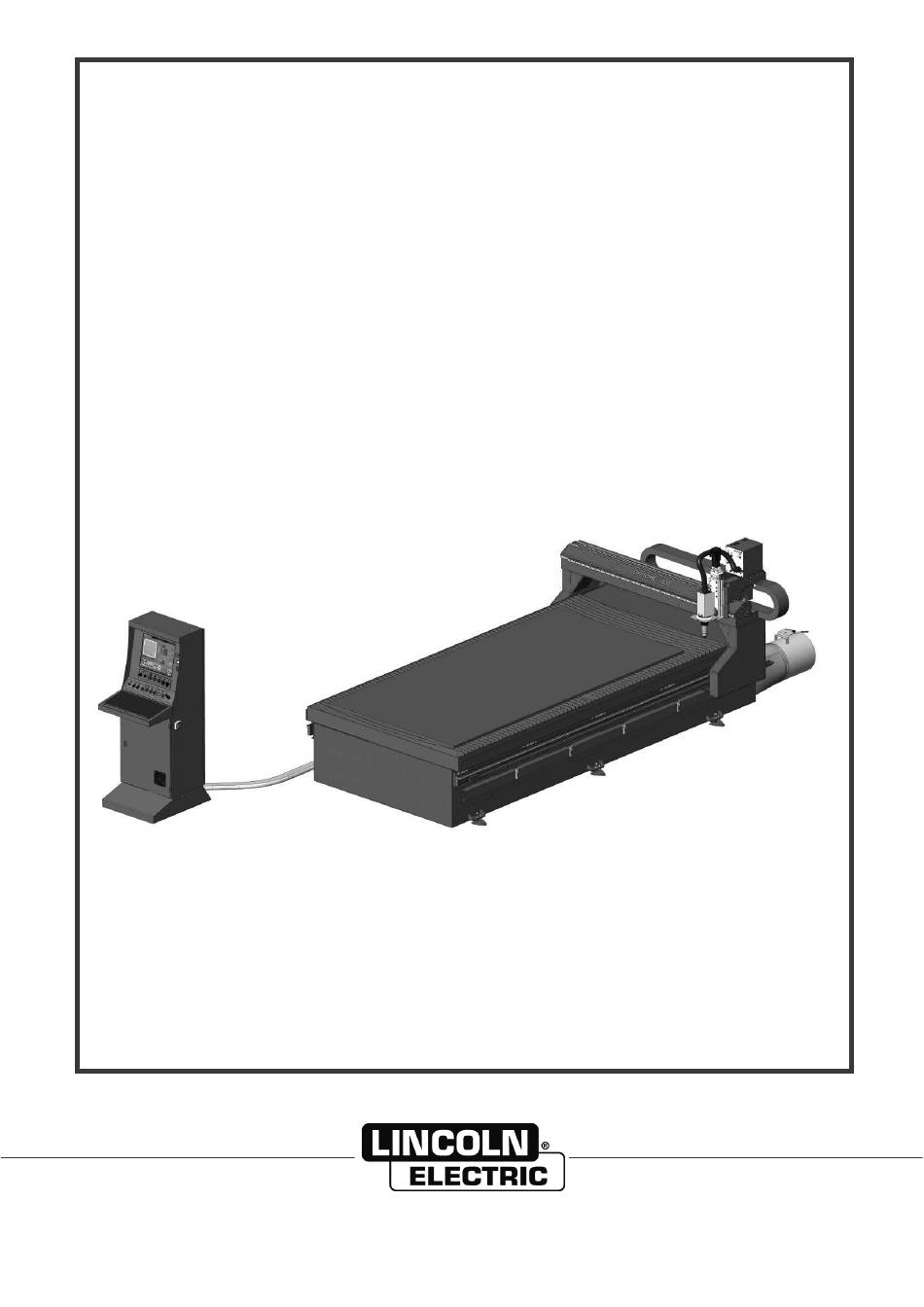

OPTITOME II
SAFETY INSTRUCTIONS FOR USE AND MAINTENANCE
: EN
EDITION
REVISION : A
DATE
: 11-2018
CUTTING MACHINE
HPC II
Instructions for use
8695 4788
REF :
Original instructions
