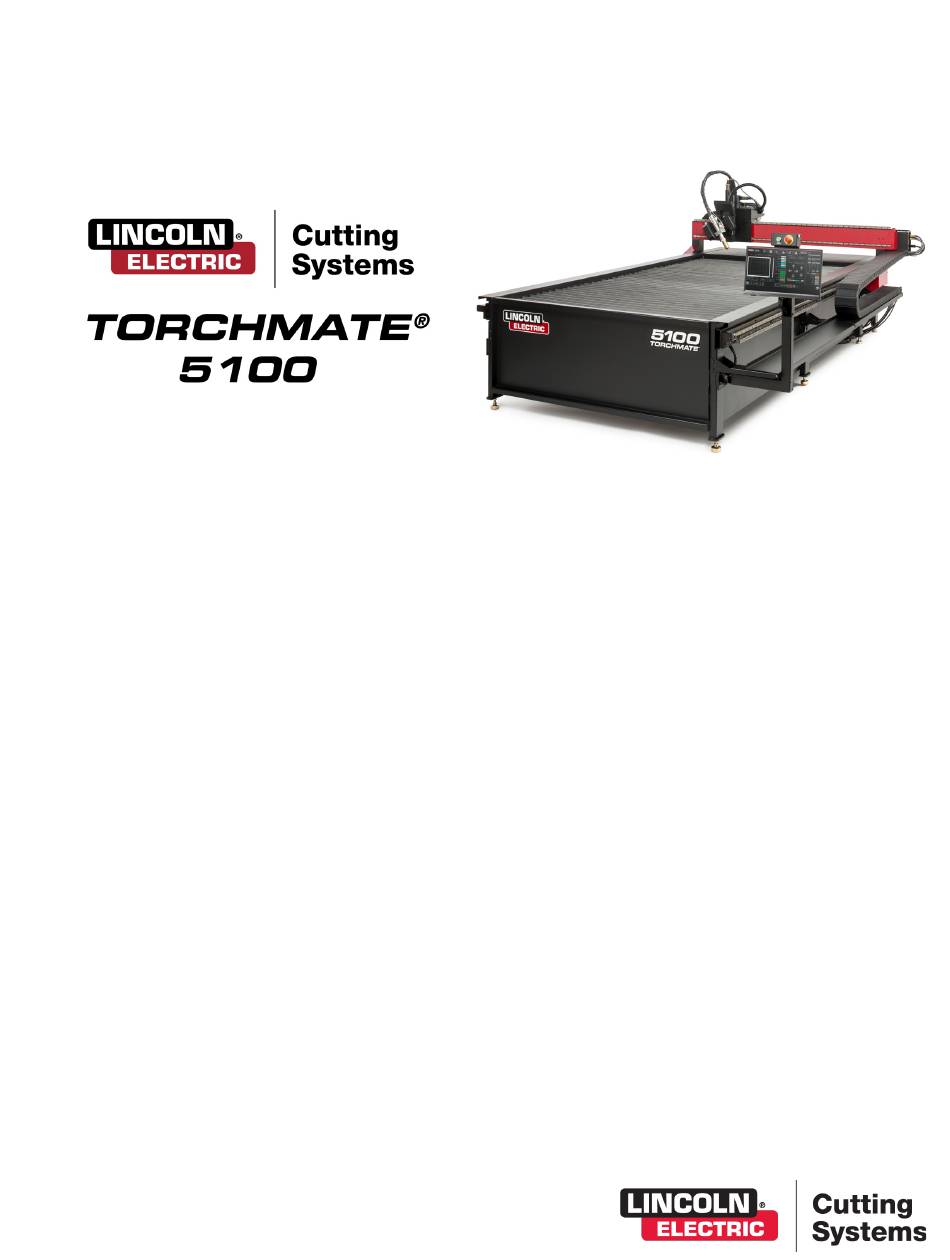

SITE PREPARATION
GUIDE
April 8, 2019
Copyright 2019
Lincoln Electric® Cutting Systems

Advertisement

loading
Need help?

Need help?

Do you have a question about the TORCHMATE 5100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincoln Electric TORCHMATE 5100

  • Page 1 SITE PREPARATION GUIDE April 8, 2019 Copyright 2019 Lincoln Electric® Cutting Systems...
  • Page 2 Page: Contents Title Page Table of Contents Site Preparation, Machine and Plasma Site Preparation, HD Spirit® II systems Site Preparation, FlexCut® systems 5100 Connections, Air & Power Machine Grounding Site Preparation Sign-Off Sheet Table Specifications Customer Assistance Policy Torchmate 5100...
  • Page 3: Site Preparation

    Water Table vs. Downdraft The Torchmate 5100 is offered in two configurations for fume control, a water table and a downdraft table. Each has certain considerations to be taken when preparing to install and operate the 5100 machine. The water table must have the ability to be filled with tap water frequently, especially in hot arid climates.
  • Page 4 Site Preparation, Equipment Layout (HD) Lincoln Electric Kaliburn® Spirit II power supplies have a larger power box and a Automatic Gas Control box to mix several different types of gases utilized in HD plasma cutting. The placement of these products in relationship to the 5100 must be within 6’...
  • Page 5 Site Preparation, Equipment Layout (FlexCut) When installing a Torchmate 5100 in your shop paired with a FlexCut 125 or FlexCut 200 plasma cutter, consult the lay- out below. 5100 14” Duct, Downdraft Models Only 15’ Power Cord, NEMA 5-15P Shop Air Supply...
  • Page 6 Torchmate 5100 Connections Internally the 5100 comes pre-wired and ready to run. All systems are test fired and disconnected at the facility before packaging and shipping. For shipping purposes, the plasma power supply is disconnected from the system and will require a connection to the machine.
  • Page 7 Grounding Your Machine Proper grounding must be provided to ensure personnel safety and to suppress high frequency noise. The foundation of good grounding is an effective earth ground rod. A star ground point connects to the rod with a short, heavy conductor. A simple copper clad steel rod can be driven into the ground to create a Grounding Rod.
  • Page 8 Site Preparation Sign-off Sheet In order to maximize the amount of time the operators will receive during machine training, Lincoln Electric requires a Please signed off completion sheet by the customer prior to scheduling an on-site machine commissioning or training.
  • Page 9 External Drive Power On Switch • 0.08g (0.06g Bevel) Warranty Deceleration Rate • *1 Year Warranty • 0.08g (0.06g Bevel) TORCHMATE 5100 CNC PLASMA SYSTEMS ii 275 ii 400 pirit pirit PRODUCTION CUTTING CAPACITY Mild Steel 1” (25mm) 1.25” 1.5” (38mm) 2”...
  • Page 10 Lincoln Electric Cutting Systems is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric Cutting Systems is solely within the control of, and remains the sole respon- sibility of the customer.
