Rice Lake 250-10-4 Operation Manual

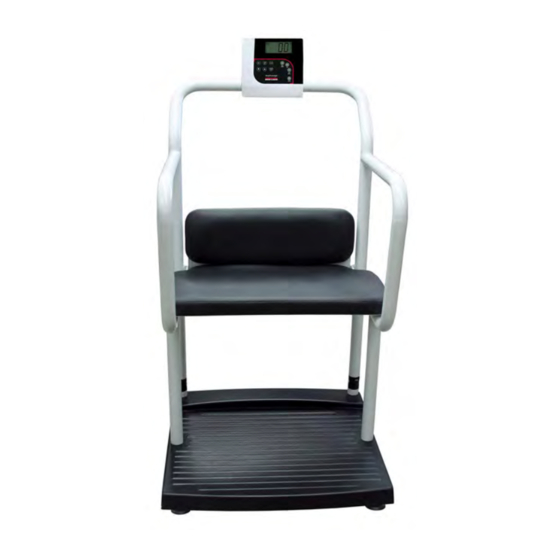

Bariatric scale with handrail and chair seat
Hide thumbs
Also See for 250-10-4:
- Operation instructions manual (20 pages) ,
- Operation manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rice Lake 250-10-4
Summary of Contents for Rice Lake 250-10-4
- Page 1 250-10-4 Bariatric Scale with Handrail and Chair Seat Software Version 11525 Operation Manual August 17, 2022 PN 151863 Rev D...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Established a revision history; formatted content to match other medical manuals; software version 11525 Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
6.0 Specifications ............... . . 13 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Introduction Introduction The 250-10-4 bariatric handrail scale with fold down chair seat is designed for weighing bariatrics and ensures sound, accurate weighing information. A non-skid platform paired with side rails assists persons who need extra support and safety. The fold down chair allows patients to sit down while being weighed. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Assembly
Use caution while removing packaging and unpacking the scale. After unpacking, visually inspect the 250- 10-4 bariatric handrail scale with seat to ensure all components are included and undamaged. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. Parts contained in the shipping box include: •... -
Page 8: Adjusting Scale Feet
2.2.2 Unfold Platform Seat The 250-10-4 comes with a fold down seat for those patients who need to be weighed while seated. To unfold the seat, simply pull down on the seat bottom as shown in Figure 2-2. -
Page 9: Insert Batteries
Power Connection An optional AC power adapter can be used when a power outlet is available. Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power IMPORTANT adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 10: Operation
250-10-4 Bariatric Handrail Scale with Chair Seat Operation This section describes the front panel and includes procedures for operation of the scale. Figure 3-1. Front Panel Keypad Key Descriptions The display has 10 front panel keys. Key functions are described in the table below. -
Page 11: Weighing
(default is programmed to be 33.0 lb/15.0 kg). 2. Use to adjust the value. Press to start the tare function. The NET annunciator turns on instead ENTER of the GROSS annunciator. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Using The Body Mass Index (Bmi) Function
250-10-4 Bariatric Handrail Scale with Chair Seat Using the Body Mass Index (BMI) Function Use the following steps in determining the BMI. 3.6.1 LB Mode 1. Ensure that the scale is at zero. 2. Place the patient on the scale to obtain a weight. The LOCK annunciator appears on the display. -
Page 13: Troubleshooting
Note: Load cell connection point is located underneath the curved plastic cover of the indicator. Remove four back retaining screws, remove curved back cover to access load cell connection point. Table 3-2. Troubleshooting Table © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Communication
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section on the next page. -
Page 15: Usb Connection
5. With weight on the scale, press and hold the Print button on the indicator for three seconds. The patient’s weight is sent to the PC. Figure 4-3. Patient Weight Displayed © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Maintenance
250-10-4 Bariatric Handrail Scale with Chair Seat Maintenance The following section provides instructions for maintaining and cleaning the unit. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 17: Specifications
85% relative humidity Capacity 1000 lb x 0.2 lb (453 kg x 0.1 kg) Dimensions Platform Dimensions 29.5 in W x 32 in L x 3 in H Certifications and Approvals E 113986 © Rice Lake Weighing Systems ● All Rights Reserved... - Page 18 250-10-4 Bariatric Handrail Scale with Chair Seat www.RiceLake.com Visit our website...
- Page 20 © Rice Lake Weighing Systems Specifications subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 August 17, 2022 PN 151863 Rev D...
