- Page 1 260-10-1 Bariatric Handrail Scale Software Version 11525 Operation Manual August 17, 2022 PN 172479 Rev A...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
- Page 3 Established a revision history; formatted content to match other medical manuals; software version 11525 Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department.
-
Page 4: Table Of Contents
7.0 Specifications ............... . . 17 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction

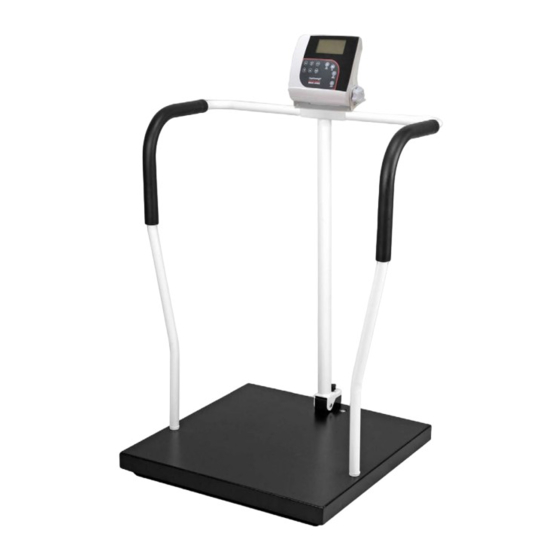

Introduction Introduction The 260-10-1 bariatric handrail scale is efficiently designed to provide accurate, reliable and repeatable weight measurements. A non-skid platform paired with side rails assists individuals needing extra support for safety reasons. The weight is displayed on the indicator in pounds or kilograms. -
Page 6: Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake Weighing Systems dealer for replacement manuals. -
Page 7: Assembly
Place the unopened box in an open area that has ample room for unpacking the scale. Use caution while removing packaging and unpacking the scale. After unpacking, visually inspect the 260-10-1 bariatric handrail scale to ensure all components are included and undamaged. If parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately. - Page 8 260-10-1 Bariatric Handrail Scale 6. Insert and tighten the screw knob on the base until the handrail center post is rigid and does not move. Secure screw knob Figure 2-2. Scale in Upright Position 7. Roll back the rubber grip from each handle.
- Page 9 ¼ x 3/8 inch Screws and Washers (incl. in parts kit) Bracket Figure 2-8. Indicator Assembly 15. Remove the four screws securing the back cover to the indicator with a Phillips screwdriver. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 10: Insert Batteries
260-10-1 Bariatric Handrail Scale 16. Connect the cable to the indicator by plugging it into the load cell connection port. 17. Replace the back cover of the indicator and the four screws and secure with a Phillips screwdriver. Screws Back Cover... -
Page 11: Power Connection
Power Connection An optional AC power adapter can be used when a power outlet is available. Only use power adapters supplied by or purchased from Rice Lake Weighing Systems. The use of a power IMPORTANT adapter not from Rice Lake Weighing Systems voids the warranty. -
Page 12: Operation
260-10-1 Bariatric Handrail Scale Operation This section describes the front panel and includes procedures for operation of the scale. Figure 3-1. Front Panel Keypad Key Descriptions The display has 10 front panel keys. Key functions are described in the table below. -
Page 13: Weighing
(default is programmed to be 33.0 lb/15.0 kg). 2. Use to adjust the value. Press to start the tare function. The NET annunciator turns on instead ENTER of the GROSS annunciator. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 14: Using The Body Mass Index (Bmi) Function
260-10-1 Bariatric Handrail Scale Using the Body Mass Index (BMI) Function Use the following steps in determining the BMI. 3.6.1 LB Mode 1. Ensure that the scale is at zero. 2. Place the patient on the scale to obtain a weight. The LOCK annunciator appears on the display. -
Page 15: Troubleshooting
Note: Load cell connection point is located underneath the curved plastic cover of the indicator. Remove four back retaining screws, remove curved back cover to access load cell connection point. Table 3-2. Troubleshooting Table © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 16: Communication
The unit comes with an RS-232 port that enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. That connection is shown in USB Connection section on the next page. -
Page 17: Usb Connection
5. With weight on the scale, press and hold the Print button on the indicator for three seconds. The patient’s weight is sent to the PC. Figure 4-3. Patient Weight Displayed © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 18: Maintenance
260-10-1 Bariatric Handrail Scale Maintenance The following section provides instructions for maintaining and cleaning the unit. Do not immerse the scale in cleaning or other liquid solutions. IMPORTANT Do not use Isopropyl alcohol or other solutions to clean the indicator display surface. -
Page 19: Optional Accessories
Optional Accessories Optional Accessories Height Rod (PN 172958) The optional height rod can be attached to the 260-10-1 bariatric handrail scale and the combination provides a single, convenient multi-purpose station for obtaining height and weight on individual patients. 6.1.1 Unpacking the Height Rod Parts contained in the shipping box include: •... -
Page 20: Using The Height Rod
Figure 6-3. Secure Height Meter Assembly to Scale 6. Verify the height rod by measuring an object of known height and adjust, if necessary. The Rice Lake 260-10-1 Bariatric Handrail Scale and height rod assembly is now ready for use. 6.1.3 Using the Height Rod The height rod can measure persons from 25½... -
Page 21: Specifications
800 lb x 0.2 lb (360 kg x 100 g) Dimensions Platform Dimensions 23½ in W x 23½ in L x 2¾ in H Overall Height 33½ in Height w/ Height Rod (optional) 87½ in © Rice Lake Weighing Systems ● All Rights Reserved... - Page 22 260-10-1 Bariatric Handrail Scale www.RiceLake.com Visit our website...
- Page 24 © Rice Lake Weighing Systems Specifications subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 August 17, 2022 PN 172479 Rev A...
