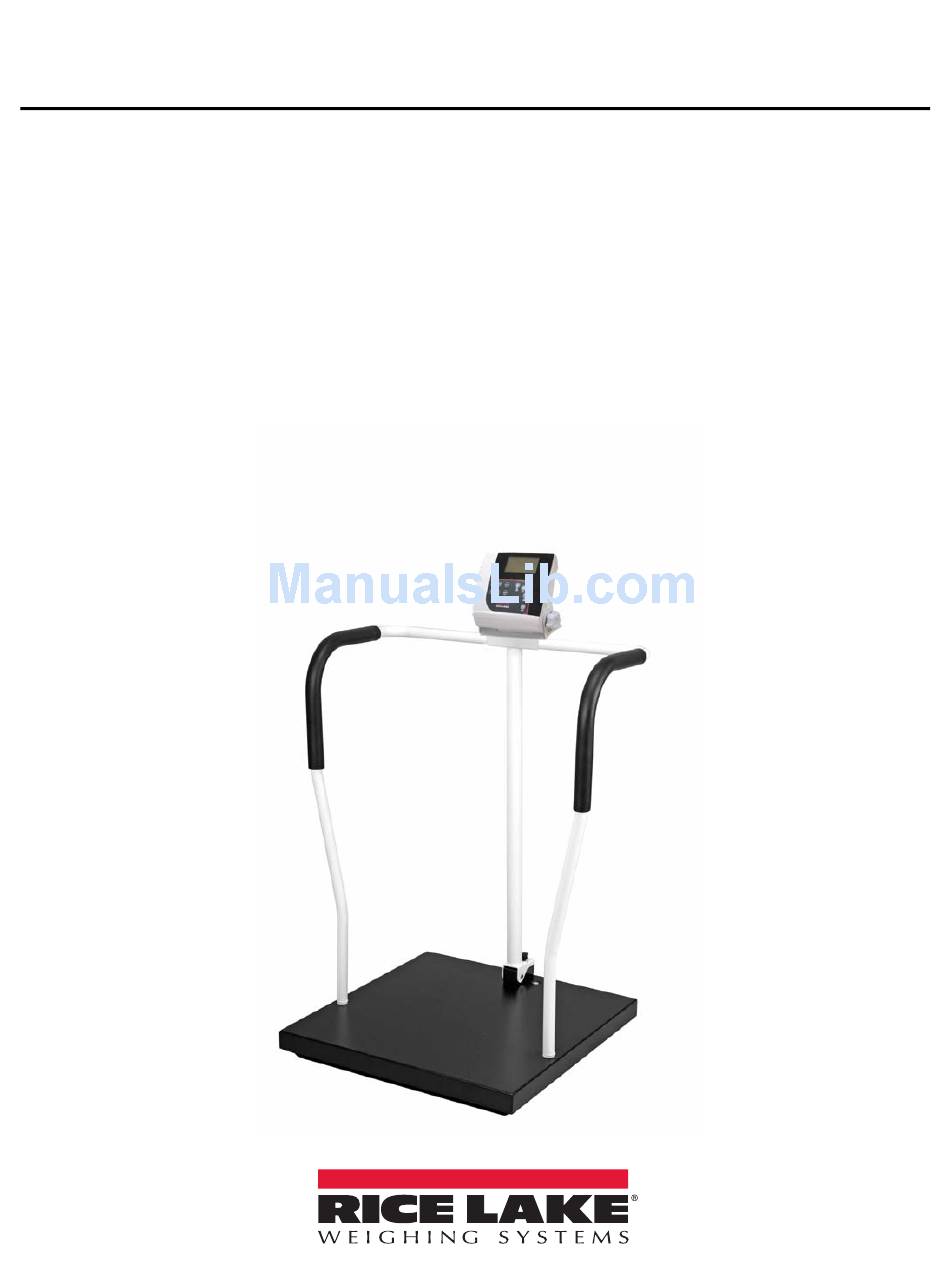

- Page 1 Digital Handrail Scale Model 260-10-1 Software Version 11454 Operation Manual PN 172479...
-
Page 3: Table Of Contents
Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. © Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars Rice Lake 260 Digital Handrail Scale...
-
Page 5: Introduction
Operating at voltages and frequencies other than specified could damage the equipment. Avoid contact with excessive moisture. Rice Lake Weighing Systems offers optional AC adapters; utilizing an adapter not supplied by RLWS voids all warranties and approvals. Do not make alterations or modifications to the scale. -
Page 6: Assembly
2.1.1 Repackaging the Scale If the Rice Lake 260-10-1 Digital Handrail Scale must be returned for modification or repair, it must be properly packed with sufficient packing materials. Whenever possible, use the original carton when shipping the scale back. Important Damage caused by improper packaging is not covered by the warranty. - Page 7 6. Roll back the rubber grip from each handle. Rubber Grip Figure 2-3. Scale Handrail 7. Insert the handles into the handrail post (Fig. 2-4). Indicator Bracket 5x16 mm Screws (incl. in parts kit) Handrail center post Right Handrail Figure 2-4. Handrail to Post Assembly The right handrail is denoted by a red dot sticker on the base end of the handrail (Fig.
- Page 8 15. Connect the cable to the indicator by plugging it into the load cell connection port. 16. Replace the back cover of the indicator and the four screws and secure with a Phillips screwdriver. Screws Back Cover Load Cell Connection Port Figure 2-9. Indicator to Load Cell Cable Connection Rice Lake 260-10-1 Digital Handrail Scale...
-
Page 9: Inserting Batteries
When using a battery power supply, the brightness of the backlight is reduced to 60 percent. AC Power Connections Rice Lake Weighing Systems offers optional 120 VAC or 230 VAC adapters to use when power is available. The optional AC power adapter plugs into the back of the indicator as shown in Figure 2-11. -
Page 10: Operation
Operation The Rice Lake 260-10-1 Digital Handrail Scale has the capability of performing operations beyond just calculating weight. The following describes the various operating keys and instructions for operating the scale. Key Description The Rice Lake 260-10-1 Digital Handrail Scale has ten front panel keys. -
Page 11: Weighing
Weighing Use the following steps to weigh a person. 1. Press to turn the scale on. The display shows and the annunciator is on. ZERO 2. Have the person step on the scale. The display shows the person’s weight, the annunciator is on and LOCK the indicator beeps to indicate the end of the weighing process. -
Page 12: Toggle Tare
ENTER 4. Press . The display shows the BMI value and the annunciator is on. CLEAR 5. Press to return to the weighing mode and turn off the BMI function. Rice Lake 260-10-1 Digital Handrail Scale... -
Page 13: Communication
Communication The Rice Lake 260-10-1 Digital Handrail Scale comes with an RS-232 port which enables weight data to be transmitted to other equipment, such as a computer or printer. The RS-232 cable with DB-9 connector (PN 100719) is available from Rice Lake Weighing Systems. Figure 4-1 shows where the RS-232 connection is located on the indicator. -
Page 14: Usb Connection
USB Connection The Rice Lake 260-10-1 Digital Handrail Scale has the capability of connecting to a PC using a USB connection and a USB cable (not included). The USB cable location is shown in Figure 4-1. USB Connection RS-232 Connection Figure 4-1. - Page 15 5. Select and then select No, not this time, Next 6. Select , then select . A file transfer screen will display as the file Install the software automatically Next downloads and installs to the computer. 7. Click on when the completion screen displays Finish 8.
-
Page 16: Maintenance
2. Dry with a clean, soft cloth. 3. Do not immerse the scale into cleaning or other liquid solutions. 4. Do not use isopropyl alcohol or other solvents to clean the display surface. Rice Lake 260-10-1 Digital Handrail Scale... -
Page 17: Troubleshooting
The weight is unstable and calibration Check the load cells’ mechanical surroundings does not work. and see that nothing touches them and that the cables are properly welded. Table 6-1. Troubleshooting Table for the Rice Lake 260-10-1 Digital Handrail Scale Troubleshooting... -
Page 18: Specifications
800 lb (360 kg) 0.2 lb (100 g) Dimensions Platform Dimensions 23½ in W x 23½ in L x 2¾ in H Height 33½ in Height with Height Rod (optional) 87½ in Certifications and Approvals RoHS Compliant Rice Lake 260-10-1 Digital Handrail Scale... - Page 20 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319 www.ricelake.com www.ricelake.mx www.ricelake.eu www.ricelake.co.in...
