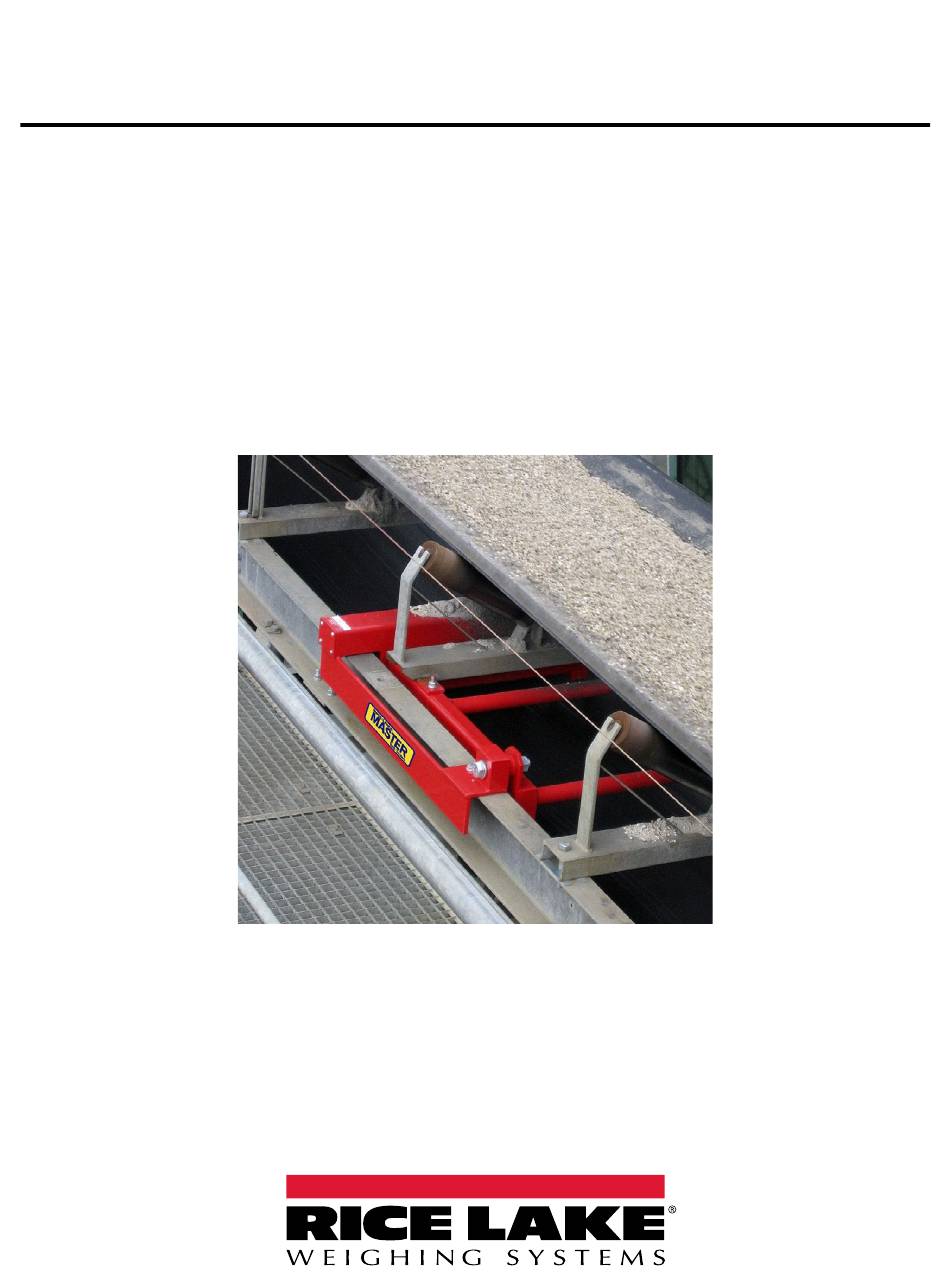

- Page 1 ™ MASTER Belt Scale Weigh Frame Installation Manual June 23, 2025 PN 165455 Rev B...
- Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
-
Page 3: Revision History
June 23, 2025 Updated Selection Criteria; added disposal information Table i. Revision Letter History Technical training seminars are available through Rice Lake Weighing Systems. Course descriptions and dates can be viewed at www.ricelake.com/training or obtained by calling 715-234-9171 and asking for the training department. -
Page 4: Table Of Contents
Specifications ..................12 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. -
Page 5: Introduction
Integrator electronics (see drawing WBF-S0000). Not every application is suited for a belt scale, this has to be analyzed by a Rice Lake Weighing Systems specialist. A series of weigh frames have been developed for a number of applications and for every type of conveyor, to achieve the optimum result. -
Page 6: Disposal
Master 211 Belt Scale Weigh Frame Disposal Product Disposal The product must be brought to appropriate separate waste collection centers at the end of its life cycle. Proper separate collection to recycle the product helps prevent possible negative effects on the environment and to health, and promotes the recycling of the materials. -
Page 7: Selection Criteria
Then the reproducibility and the state of the belt scale can be determined. To determine absolute accuracy, it is necessary to do a test with material. For this procedure, we refer to the manual of the electronics installed. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 8: Installation
Master 211 Belt Scale Weigh Frame Installation Installation procedures generally should be a combination of the end user’s best engineering practices in compliance with local codes and the manufacturer’s recommendations. To achieve maximum performance within the parameters designed into the system, the following precautions should be observed. -
Page 9: Electrical Installation
Let the installation run and totalize for a duration of at least 5 minutes. Collect the material during this period and compare the totalized value with a measurement on a static scale. If necessary, adjust the calibration parameter in the electronics. Refer to the manual of the electronics installed. © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 10: Maintenance
Master 211 Belt Scale Weigh Frame Maintenance Regular maintenance is essential to prevent predictable errors or unnecessary out of orders. The supplier does not accept any responsibility for the consequences of maintenance that was not performed according to the recommendations in this section. -
Page 11: Appendix
Example: 23.62 / 31.50 = 0.75 x 100 = 75% This reconciles expected mV signal at the integrator with actual mV signal experienced at the effort point of the lever. Load Fulcrum Effort Figure 4-1. Belt Scale Lever Ratio © Rice Lake Weighing Systems ● All Rights Reserved... -
Page 12: Specifications
Master 211 Belt Scale Weigh Frame Specifications Standard Material Weigh Frame Steel St.37 or Stainless Steel SS304 / 316 Rollers Aluminum, Steel St.37 or SS304 / 316 Weight Dependent on the belt width Load Cells 1 or 2 piece model B3G-9363 (SS/IP66/67) - Page 14 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 June 23, 2025 PN 165455 Rev B www.ricelake.com...
