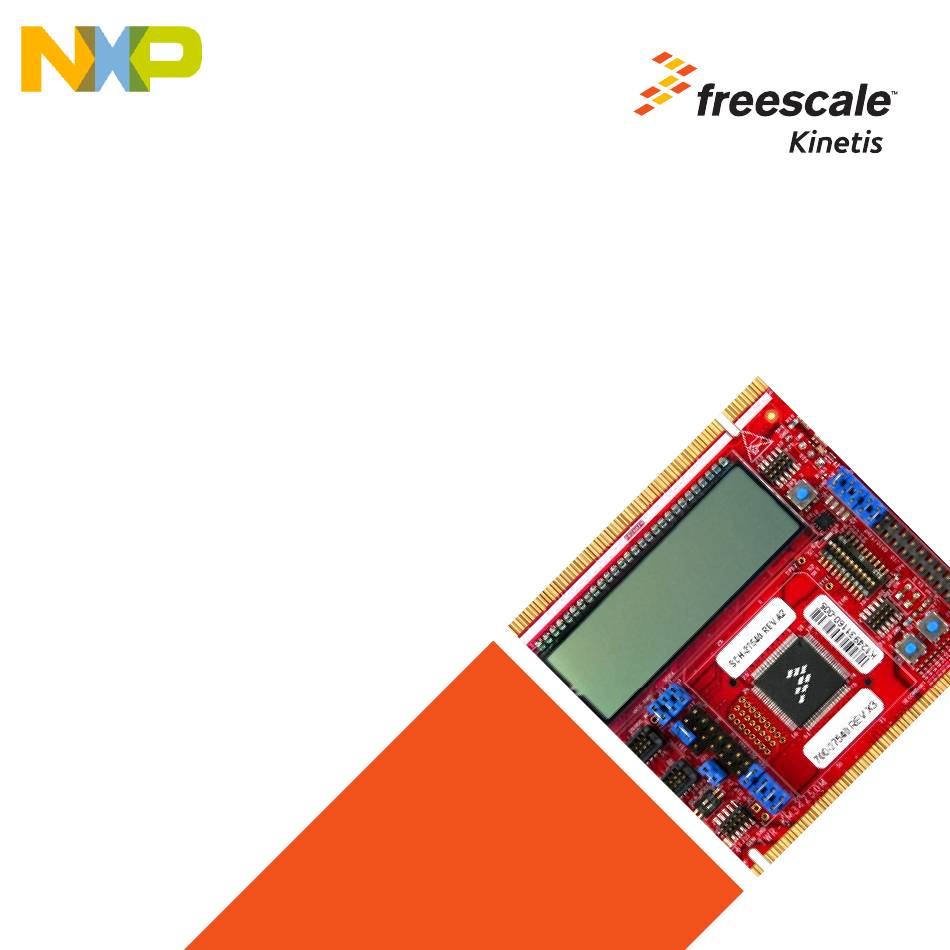

- Page 1 TWR-KM34Z50M Quick Start Guide Development Kit for Kinetis KM38/34/33/32/14/13 MCU Families Tower System Development Board Platform...
- Page 2 Analog Inputs/Gen. Out. Development Board Platform Figure 1: Front side of TWR-KM34Z50M board The TWR-KM34Z50M board is designed to work either in standalone mode or as (TWRPI devices not shown) part of the Freescale Tower System, a modular development board platform that enables rapid prototyping and tool re-use through reconfigurable hardware.
- Page 3 Features Installation Instructions In this Quick Start Guide, you will learn how to set up the TWR-KM34Z50M board and • MKM34Z5128CLL5 MCU (50 MHz, 128 KB Flash, 16 KB RAM, low power, LQFP 100 package) run the included demonstrated software. For more detailed information, review the user • USB interface with mini-AB USB connector...
- Page 4 Quick Start Guide freescale.com TWR-KM34Z50M Jumper Options GPIO Header (J10) Signal Connections MCU Signal J10 Pin MCU Signal The following is a list of all the jumper options. The default installed jumper settings are SW3 (Tamper switch) SW3 to TAMPER1 (when closed)
- Page 5 Get Started Download installation software and documentation under “Jump Start Your Design” at freescale.com/TWR-KM34Z50M. Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/Tower Join the online Tower community at towergeeks.org...
