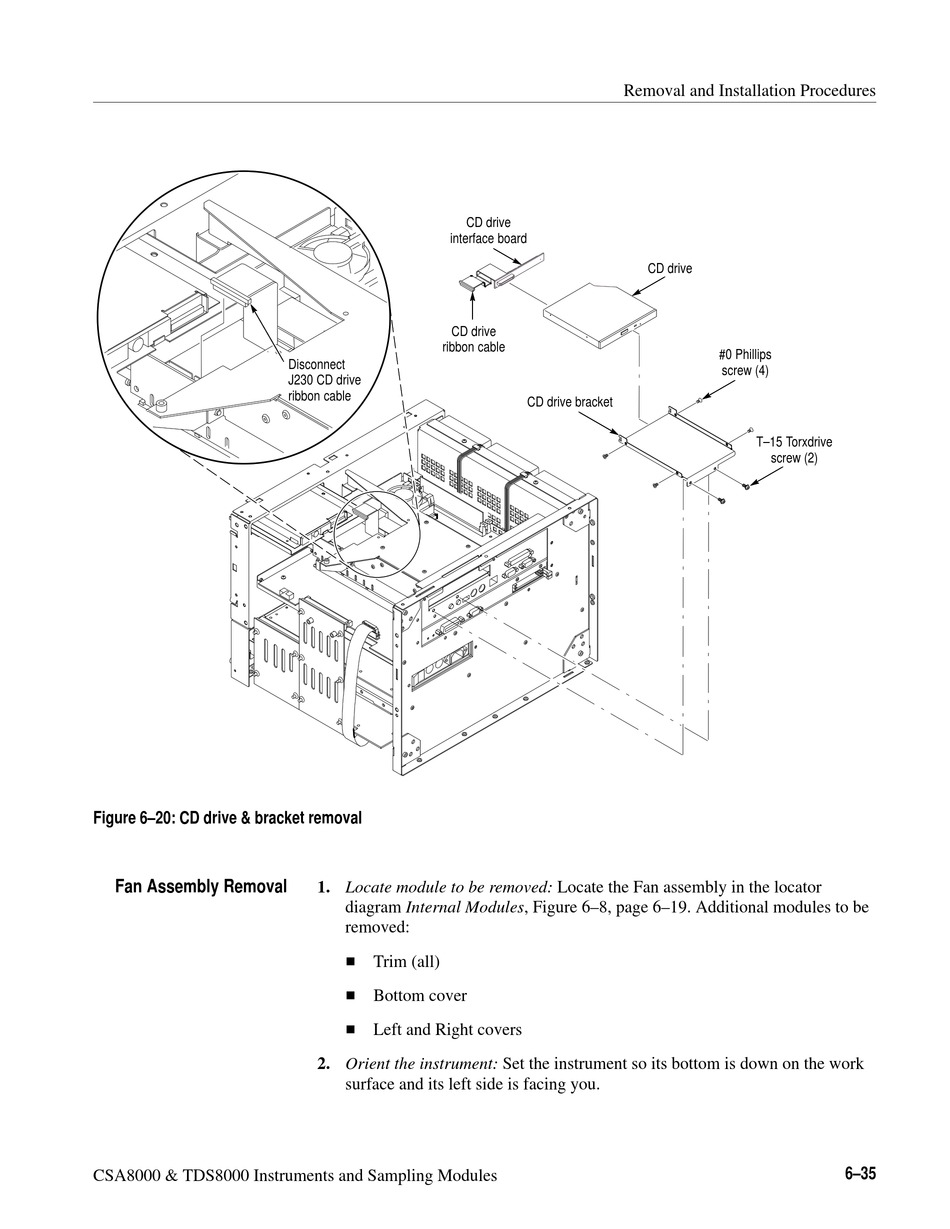

Figure 6–20: CD drive & bracket removal
Fan Assembly Removal
CSA8000 & TDS8000 Instruments and Sampling Modules
CD drive
interface board
CD drive
ribbon cable
Disconnect
J230 CD drive
ribbon cable
1. Locate module to be removed: Locate the Fan assembly in the locator
diagram Internal Modules, Figure 6–8, page 6–19. Additional modules to be
removed:
H Trim (all)
H Bottom cover
H Left and Right covers
2. Orient the instrument: Set the instrument so its bottom is down on the work
surface and its left side is facing you.
Removal and Installation Procedures
CD drive
CD drive bracket
#0 Phillips
screw (4)
T–15 Torxdrive
screw (2)
6–35
