Large-module compartments (2)
Small-module compartments (4)
Connect ESD wrist strap here
Maximum Configuration
Eight channels: Two large modules and
three small modules
Eight channels: No large and four
small modules
Seven channels: One large module,
installed in either compartment,
and three small modules
CSA8000 & TDS8000 Instruments and Sampling Modules

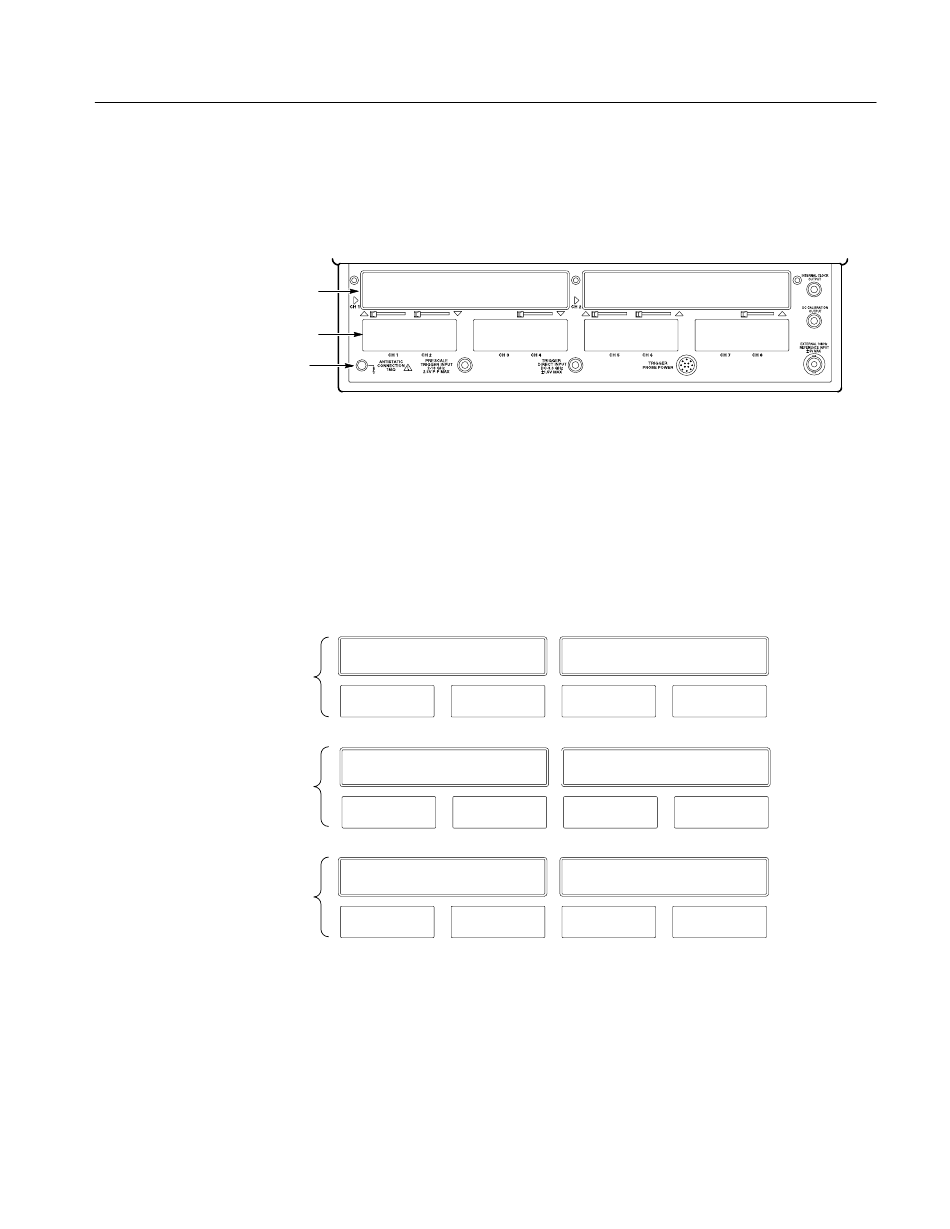

Figure 2–1 shows compartments for both large and small sampling modules,
along with the plug-in connector for the ESD wrist strap that you must use to
install these modules.
Figure 2–1: Compartments for sampling modules
You can install up to two large sampling modules and four small modules for a
total of 10 inputs. Of these 10 inputs, only eight inputs can be active at one time
(see Figure 2–2, top two configurations). Also, note that installing a single large
module in either compartment disables the first small-module compartment. This
configuration (see Figure 2–2, bottom configuration) limits the input count to
seven—one from the large, six from the small compartments.
CH 1
1
N.A. N.A. CH 3
N.A.
CH 1 CH 2 CH 3
CH 1/N.A.
N.A. N.A. CH 3
1
Not Available
Figure 2–2: Maximum inputs in three configurations
Install probes, cables, and other connection accessories to your sampling
modules as appropriate for your application and sampling module. Again,
CH 2
CH 4 CH 5 CH 6 CH 7
N.A.
CH 4 CH 5 CH 6 CH 7
CH 2/N.A.
CH 4 CH 5 CH 6 CH 7
Installation
CH 8
CH 8
CH 8
2–3
