H-5705

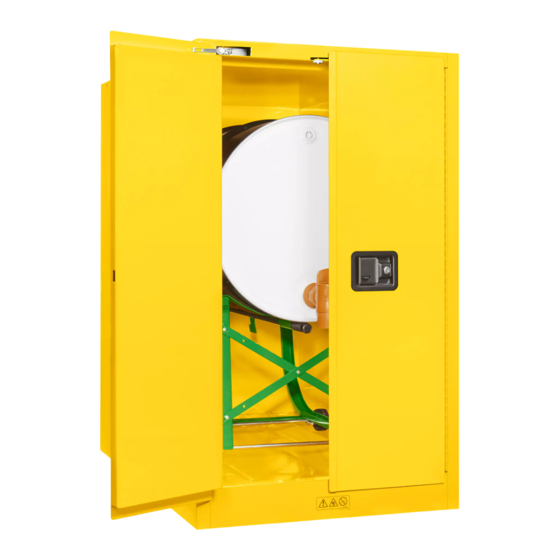

FLAMMABLE DRUM STORAGE
CABINET – HORIZONTAL
1.
Place cradle next to drum.
NOTE: Ensure cradle prongs are securely under
drum and hook on the handle is engaged on
the top drum chime. (See Figures 1-3)
Figure 1
Figure 2
Disengaged
PAGE 1 OF 3
1-800-295-5510
LOADING
Handle Hook
Cradle
Prongs
Figure 3
Engaged
uline.com
2. Tip drum to horizontal position using handle for
leverage. (See Figure 4)
3. Retract handle to allow lift truck to insert forks into
drum cradle. (See Figure 5)
NOTE: Maintain adequate clearance
between lift truck forks, mast and any
fittings installed in the head of the drum.
Para Español, vea página 2.
Pour le français, consulter la page 3.
Figure 4
Figure 5
0222 IH-5705
