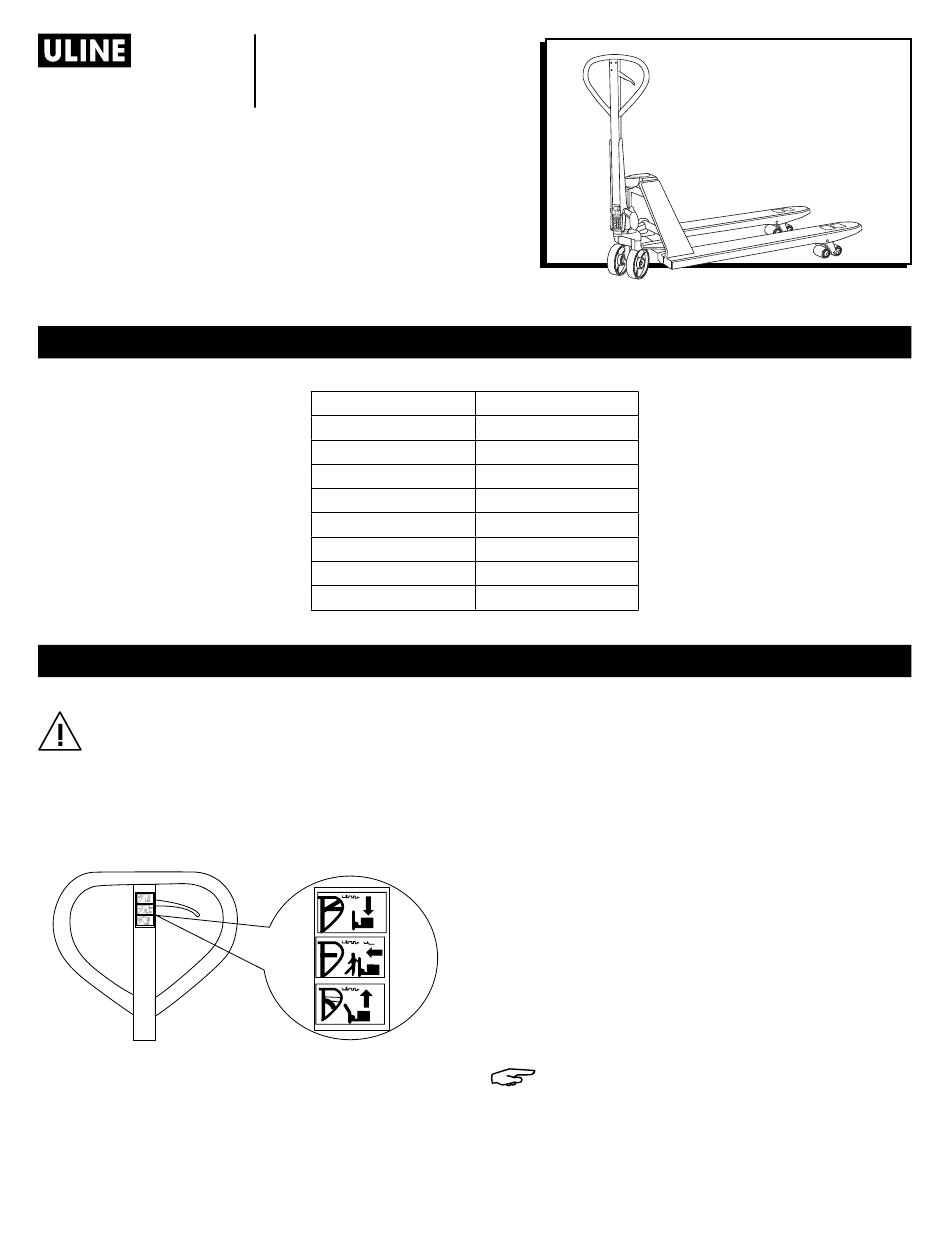

H-5484
HEAVY-DUTY
PALLET TRUCK
WARNING! Operator must read and understand
instructions here and on truck prior to use.
On the handle of the pallet truck, you will find the
control lever, which can be set in three positions.
(See Figure 1)
Figure 1
- DOWN = to lower the forks
- NEUTRAL = to move the load
- UP = to raise the forks
PAGE 1 OF 9
1-800-295-5510
uline.com
TECHNICAL DATA
MODEL
Capacity
Max. Fork Height
Min. Fork Height
Fork Length
Overall Fork Width
Fork Wheel Diameter
Steering Wheel Diameter
Net Weight
OPERATION
H-5484
11,000 lbs.
7.5"
3"
48"
27"
3" Nylon
7" Nylon
270 lbs.
1.
If the forks elevate while pumping in the NEUTRAL
position, turn the setting screw clockwise until
pumping the handle does not raise the forks and
the NEUTRAL position functions correctly.
2. If the forks descend while pumping in the NEUTRAL
position, turn the setting screw counterclockwise
until the forks do not lower.
3. If the forks do not descend when the control lever is
in the DOWN position, turn the setting screw clockwise
until raising the control lever lowers the forks. Then
check the NEUTRAL position as per steps 1 and 2.
4. If the forks do not lift while pumping in the UP
position, turn the setting screw counterclockwise until
the forks elevate while pumping in the UP position.
Then check the NEUTRAL and DOWN position as per
steps 1, 2 and 3.
NOTE: When viewing the truck from the handle
side, the setting screw is located on the right
side of the pump above the right wheel. The
truck will lower faster or slower depending on
how far in or out the screw is adjusted.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
0325 IH-5484

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-5484 and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Line H-5484

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-5484 1-800-295-5510 uline.com HEAVY-DUTY PALLET TRUCK TECHNICAL DATA MODEL H-5484 Capacity 11,000 lbs. Max. Fork Height 7.5" Min. Fork Height 3" Fork Length 48" Overall Fork Width 27"...
  • Page 2: Maintenance

    MAINTENANCE HOW TO EXPEL AIR FROM THE PUMP UNIT LUBRICATION Air may enter the unit over time or when the seals are Use motor oil or grease to lubricate all movable parts. replaced. To expel the air, lift the control lever to the DOWN position and move the handle up and down several times.
  • Page 3: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE CAUSES RECOMMENDATIONS The forks do not raise. The setting screw is not in the correct Adjust the setting screw. position. (See Operation) Air in the hydraulic oil. Expel the air. (See Maintenance) The forks do not descend. The rod and/or cylinder are deformed Replace the rod and/or cylinder.
  • Page 4: Información Técnica

    H-5484 800-295-5510 uline.mx PATÍN HIDRÁULICO DE USO PESADO INFORMACIÓN TÉCNICA MODELO H-5484 Capacidad 4,990 kg (11,000 lbs.) Altura Máx. de Horquilla 19 cm (7.5") Altura Mín. de Horquilla 7.6 cm (3") Longitud de Horquilla 121.9 cm (48") Ancho Total de Horquillas 68.5 cm (27")
  • Page 5: Mantenimiento

    MANTENIMIENTO CÓMO EXPULSAR AIRE DE LA BOMBA LUBRICACIÓN Puede entrar aire a la unidad con el tiempo o cuando se Use aceite para motor o grasa para lubricar todas las reemplazan los sellos. Para expulsarlo, levante partes móviles. la palanca de control a la posición DOWN (BAJAR) y mueva el asa hacia arriba y abajo varias veces.
  • Page 6: Solución De Problemas

    SOLUCIÓN DE PROBLEMAS PROBLEMA DE FUNCIONAMIENTO CAUSAS RECOMENDACIONES Las horquillas no se elevan. El tornillo de ajuste no está en la posición Reajuste el tornillo de ajuste. correcta. (Vea Funcionamiento) Aire en el aceite hidráulico. Expulse el aire. (Vea Mantenimiento) Las horquillas no bajan.
  • Page 7: Données Techniques

    H-5484 1 800 295-5510 uline.ca TRANSPALETTE ROBUSTE DONNÉES TECHNIQUES MODÈLE H-5484 Capacité 4990 kg (11 000 lb) Hauteur max. des fourches 19,1 cm (7,5 po) Hauteur min. des fourches 7,6 cm (3 po) Longueur des fourches 1,2 m (48 po) Largeur totale des fourches 68,6 cm (27 po) Diam.
  • Page 8 ENTRETIEN COMMENT PURGER L'AIR DE LA POMPE LUBRIFICATION De l'air peut pénétrer dans la pompe au fil du temps ou Utilisez de l'huile à moteur ou de la graisse pour lubrifier lors du remplacement des joints d'huile. Pour purger l'air, toutes les pièces mobiles.
  • Page 9: Dépannage

    DÉPANNAGE PROBLÈME DE FONCTIONNEMENT CAUSES RECOMMANDATIONS Les fourches ne se soulèvent pas. La vis de réglage n'est pas à la position Réglez la vis de réglage. appropriée. (Voir Fonctionnement) Il y a de l'air dans l'huile hydraulique. Purgez l'air. (Voir Entretien) Les fourches ne descendent pas.
