QUICK START GUIDE

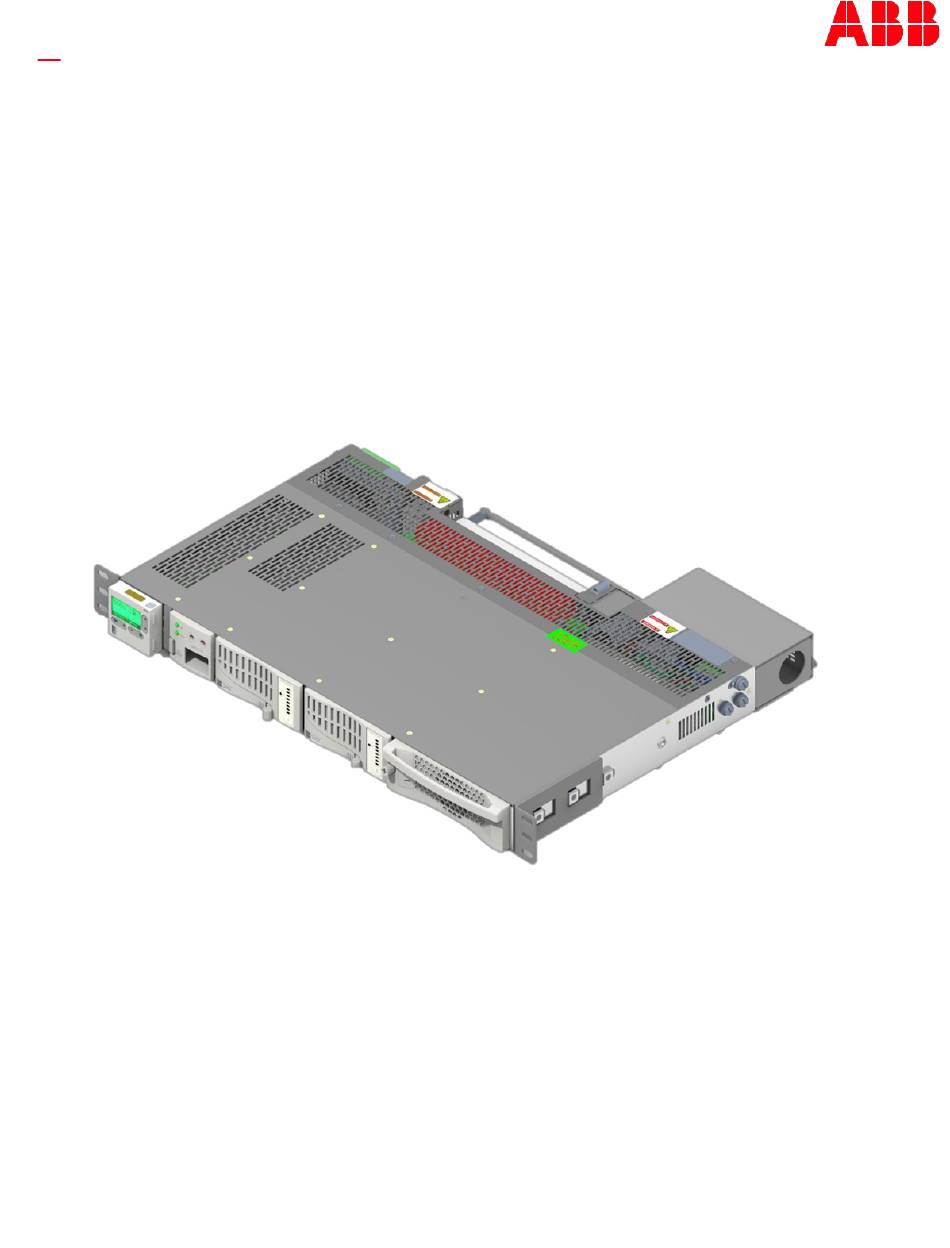

SPS POWER EXPRESS SHELF
INPUT: 100-120VAC 15A, 200-240VAC 7.5A
OUTPUT: 16 x -42 TO -57VDC 100VA PER CHANNEL
Quick Start Guide - 8600427867P
This equipment is not suitable for use in locations where children are likely to be present. This equipment is
intended only for use in a RESTRICTED ACCESS AREA.
Page 1
© 2021 ABB. All rights reserved.
Version 1.0
Advertisement
Table of Contents
Related Manuals for ABB J2007003L301CB
Summary of Contents for ABB J2007003L301CB
- Page 1 Quick Start Guide - 8600427867P This equipment is not suitable for use in locations where children are likely to be present. This equipment is intended only for use in a RESTRICTED ACCESS AREA. Page 1 © 2021 ABB. All rights reserved. Version 1.0...
-
Page 2: Table Of Contents
Information: Alarm Connections ···························································································· 17 Information: Rectifier Basic Information ··············································································· 17 Spare List ·································································································································· 18 Specifications and Applications ····························································································· 18 Change History (excludes grammar & clarifications) ···························································· 19 Disclaimer ·································································································································· 20 Page 2 © 2021 ABB. All rights reserved. Version 1.0... - Page 3 Table of Figures Figure 1 SPS Shelf front and Rear view ··················································································· 4 Figure 2 J2007003L301A and J2007003L301AB Dimensions ················································ 5 Figure 3 J2007003L301C and J2007003L301CB Dimensions ················································ 5 Figure 4 Mounting Shelf ··········································································································· 10 Figure 5 Chassis Ground Connection ····················································································· 10 Figure 6 AC Input IEC–...
-
Page 4: Introduction
SPS POWER EXPRESS SHELF WITH BATT J2007003L301C SPS POWER EXPRESS SHELF NO BATT J2007003L301AB SPS POWER EXPRESS IEC-C19 SHELF WITH BATT J2007003L301A SPS POWER EXPRESS IEC-C19 SHELF NO BATT Table 1: SPS Shelf Variants Page 4 © 2021 ABB. All rights reserved. Version 1.0... -
Page 5: Mounting Dimensions
QUICK START GUIDE Mounting Dimensions Figure 2: J2007003L301A and J2007003L301AB Dimensions Figure 3: J2007003L301C and J2007003L301CB Dimensions Page 5 © 2021 ABB. All rights reserved. Version 1.0... - Page 6 QUICK START GUIDE Customer Care +1 877 546-3243 Reference Documents Documents Title J2007003-AD SPS POWER EXPRESS SHELF ASSEMBLY DRAWING Page 6 © 2021 ABB. All rights reserved. Version 1.0...
-
Page 7: Safety Statement
In huts, vaults, and central offices connect to the system bonding network. • Circuit Breakers and Fuses - Use only those specified in the equipment ordering guide.. • GMT Style Fuses - Use only fuses provided with safety cap Page 7 © 2021 ABB. All rights reserved. Version 1.0... -
Page 8: Precautions
Personnel with electronic medical devices need to be aware that proximity to DC power and distribution systems, including batteries and cables, typically found in telecommunications utility rooms, can affect medical electronic devices, such as pacemakers. Effects decrease with distance. Page 8 © 2021 ABB. All rights reserved. Version 1.0... -
Page 9: Equipment Identification
QUICK START GUIDE Equipment Identification Product Label Page 9 © 2021 ABB. All rights reserved. Version 1.0... -
Page 10: Information - Tools Required
3. Torque to 30 in-lb (3.4Nm) - 5/16” socket. Some applications may rely on frame mounting screws for shelf ground omitting the chassis ground cable. Chassis Ground Connection Figure 5: Chassis Ground Connection Page 10 © 2021 ABB. All rights reserved. Version 1.0... -
Page 11: Step 3 - Connect Ac Input
Caution: Route AC cables to avoid contact with sharp or rough Figure 7: AC Input Terminal block Connector surfaces that may damage insulation and cause a short circuit. Step 4 – Connect Battery (Only applicable for J2007003L301CB and J2007003L301CB) Lugs Wire size: 6AWG Lug landing: Single hole 90°... -
Page 12: Step 5- Connect Dc Output & Output Return
LAN port may be temporarily set to Local mode, but must be set to Network mode for remote monitoring. • Alarm relays may be set to “Open on Alarm” or “Close on Alarm” Alarm relay Local/Network jumpers Jumper USB Craft Port Figure 10: Controller Jumpers Page 12 © 2021 ABB. All rights reserved. Version 1.0... -
Page 13: Step 7 - Install Controller
Insert alarm connector into the chassis. J3 Battery Temp and Voltage Monitor J2 Alarm Connection J1 Alarm Connection J5 LAN Connection (Not applicable for this System) Figure 12: Alarm Connections Page 13 © 2021 ABB. All rights reserved. Version 1.0... -
Page 14: Step 9- Install Wire Battery Temp And Voltage Monitor
Verify that all AC, DC and Alarm connections are complete and secure. • Turn on the AC input breakers. • If there are no alarms, make required adjustments to the default settings on the controller for this installation. Page 14 © 2021 ABB. All rights reserved. Version 1.0... -
Page 15: Step 14 - Controller Per Galaxy Pulsar Edge Controller
Internal Shelf Comm Fault is the loss of communication between the alarm card and 1 or more modules. Possible causes: module removal and module internal failure. Replace the module or remove and replaced the Alarm Card to clear the alarm. Page 15 © 2021 ABB. All rights reserved. Version 1.0... -
Page 16: Information: Circuit On/Off And Load Detection Circuit On
The OK LED is turned OFF when the button is pressed. It returns to ON when the button is released or after the button is held for 2 seconds. Circuit LED Converter Button Figure 18: Module LEDs & Button Page 16 © 2021 ABB. All rights reserved. Version 1.0... -
Page 17: Information: Fault Detection Circuit On
48 - 58 1200 CC109165610 EP1600-UTEZ: 1600W 200 - 240 48 - 58 1600 Table 6: Rectifier and Plant Data Note: Output Current at 54.5V. Outputs are power limited, not current limited. Page 17 © 2021 ABB. All rights reserved. Version 1.0... -
Page 18: Spare List
External Surge Protective Devices (SPDs) - are required on all AC inputs. Equipment Safety is Approved in IEC 60664-1 Installation Category II environments. • DC Returns - Isolated DC return (DC-I) or Common DC return (DC-C). Page 18 © 2021 ABB. All rights reserved. Version 1.0... -
Page 19: Change History (Excludes Grammar & Clarifications)
QUICK START GUIDE Change History (excludes grammar & clarifications) Version Date Description of the change 12/22/2021 Initial Release Page 19 © 2021 ABB. All rights reserved. Version 1.0... -
Page 20: Disclaimer
– in whole or in parts – is to purchase orders, the agreed particulars shall prevail. forbidden without prior written consent of ABB. ABB does not accept any responsibility whatsoever for potential errors or possible lack of information in this Copyright©...
