Installation guide
JSM D28 Handle profile for Magne
JSM D28 is an aluminum profile used as door handle for Magne 3 and Magne 4 on hinged (conventional)
doors. Designed for doors with a minimum opening radius of 200 mm.
Installation shall be done in accordance with a risk assessment for the individual application.
Installation must be carried out by authorized personnel and in accordance with instructions in this
document and the 'Magne Product Manual'.
Read and understand 'Magne Product manual' and 'Eden Product manual' before starting the
installation. Manuals are found at

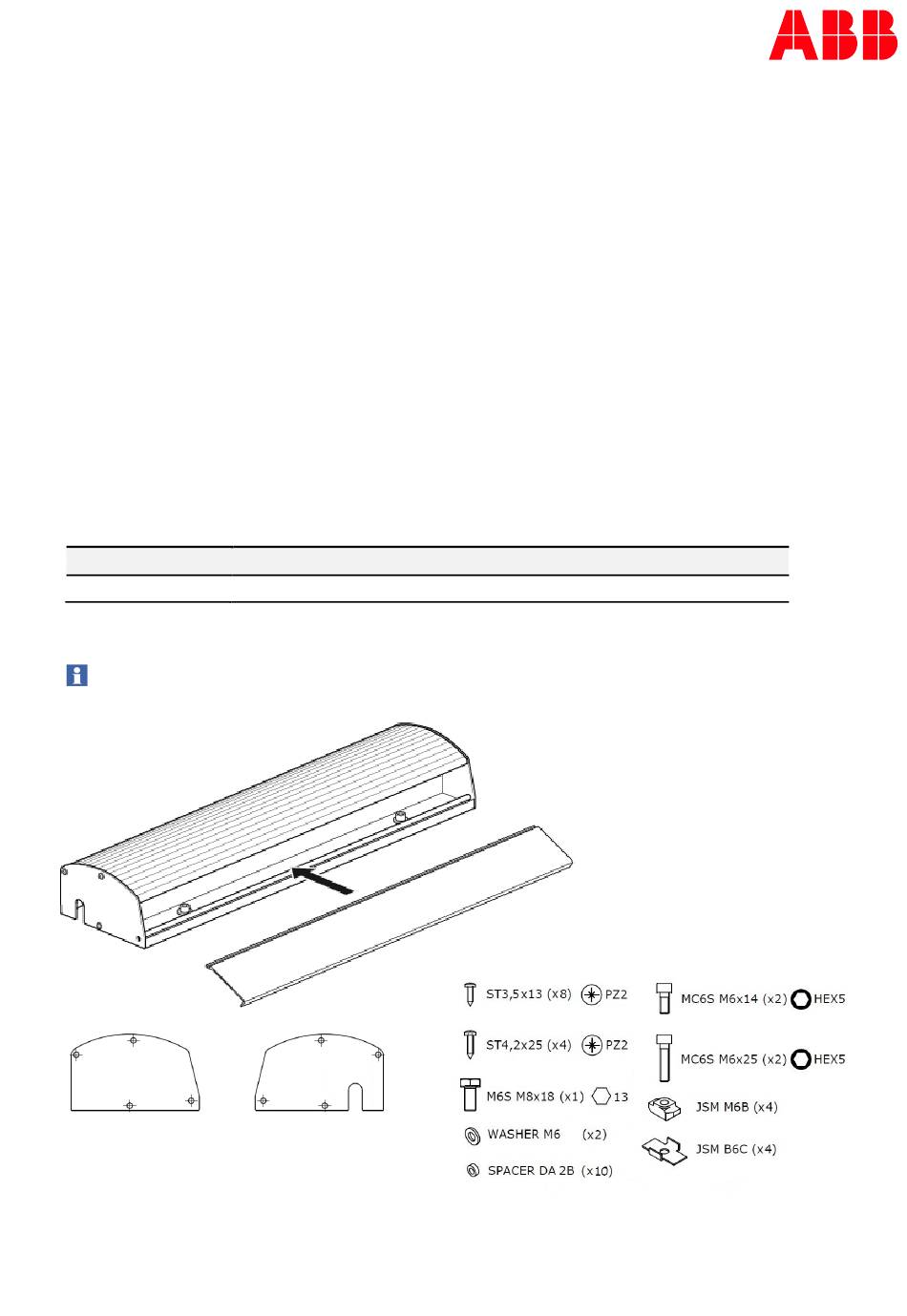

Parts overview
Product ID
Description
2TLA042023R0100
JSM D28 Handle profile in aluminum
The mounting kit includes all bolts and nuts necessary to install Magne on ABB Quick-Guard © fencing
system.
Note!
Magne, Eva, anchor plate and cellular rubber are not included in the kit. These items
must be ordered separately .
End cover (x1)
2T LC0100 40 M02 01 R EV. B
www.abb.com/jokabsafety
End cover with hole
for cabling (x1)
Handle profile (x1)
Cover profile (x1)
Special nut
Centering plate
1 /5
Advertisement
Related Manuals for ABB JSM D28
Summary of Contents for ABB JSM D28
- Page 1 Installation guide JSM D28 Handle profile for Magne JSM D28 is an aluminum profile used as door handle for Magne 3 and Magne 4 on hinged (conventional) doors. Designed for doors with a minimum opening radius of 200 mm. Installation shall be done in accordance with a risk assessment for the individual application.
- Page 2 I NSTA LLAT IO N GU ID E Dimensions All dimensions are in millimeter (mm). Handle profile dimensions Installation and orientation of Eva sensor Depending on how Magne is installed on the fence, Eva and the anchor plate can be installed in two holes to which the corresponding Magne model is ways.
-
Page 3: Installation And Assembly
I NSTA LLAT IO N GU ID E Installation and assembly Note! In the following step by step instructions, a Magne 4 is installed. 1. Pre-assemble Magne (D) using screw (A), 2. Install Eva sensor with self-tapping screw centering plate (B) and special nut (C) and install 4.2 x 25 (x2). - Page 4 I NSTA LLAT IO N GU ID E 5. Insert/slide the anchor plate into the handle 6. Install the positioning/stop screw (J) 4.2 x 25 (x1) profile. and DA 2B spacer (K) (x4) for the anchor plate. 7. Pre-assemble the handle profile (H) using suitable length of M6 screw (A), washer (R), centering plate (B) and special nut (C).
