DropCam-SDR
Sept 2022

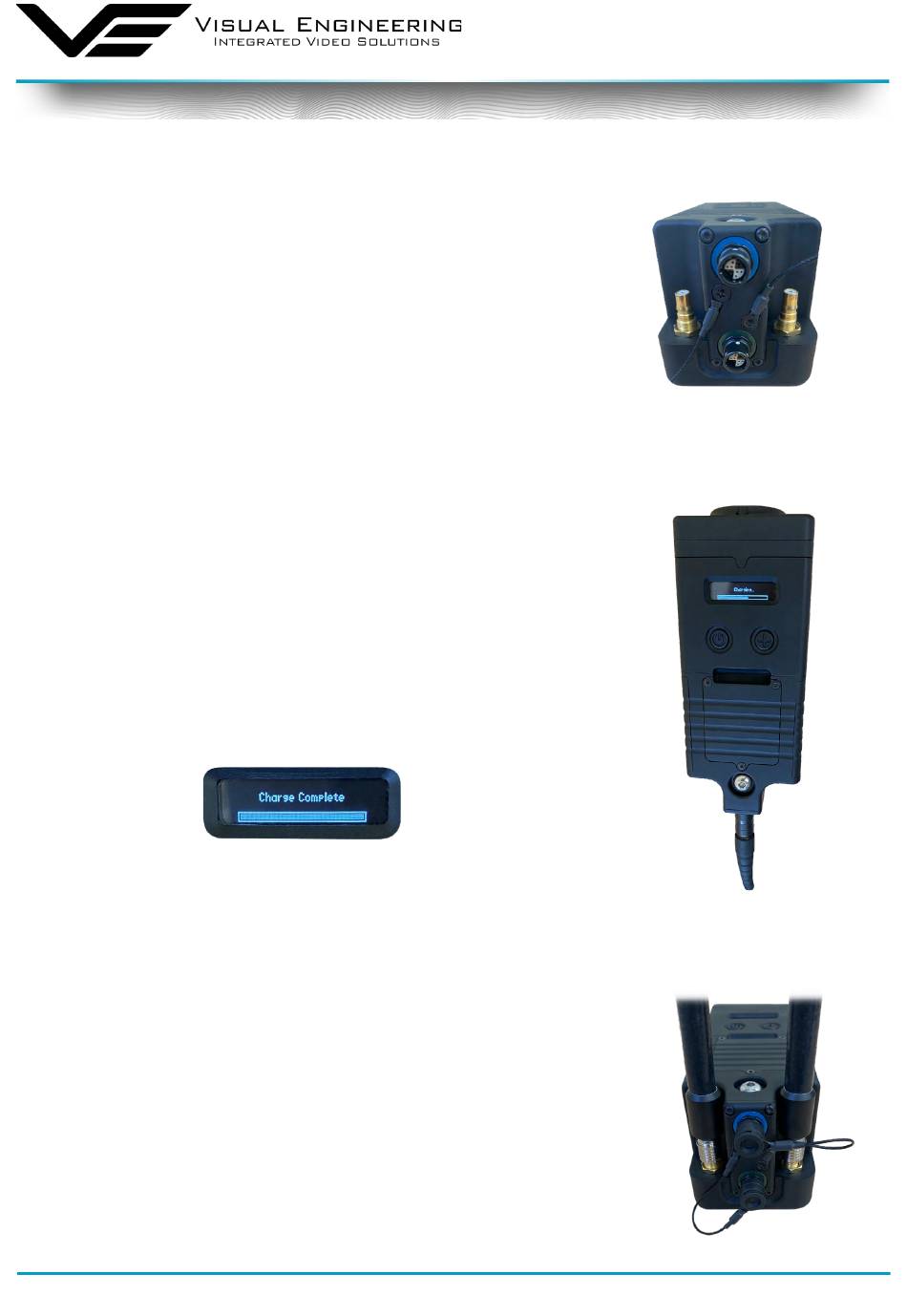

Rear Connectors
The DropCam-SDR has two Fischer connections on the rear� They
are key specific to avoid incorrect cable use.
Remove the protective caps before use�
The blue connector is used for battery charging with the mains
PSU, included in the kit�
The green connector is for an Ethernet connection to the
embedded SDR Mesh radio�
Battery Charging
The unit is charged by connecting the mains power supply to the
blue Fischer power connector�
The status screen displays the progress of the battery charging�
A fully depleted battery will take approximately 3 hours to gain a
full charge�
The status screen reports once the charging cycle is complete�
Connecting Antennas
The antennas are a push fit QMA type.
Click the antennas into position by inserting each antenna
vertically downwards on to the antenna connectors�
To remove: Slide the connector's silver collar up and continue to
pull the collar vertically upwards�
Avoid removing the antenna by pulling up on the antenna's
black body as this can cause damage�
visualengineering.co.uk
Page 7
