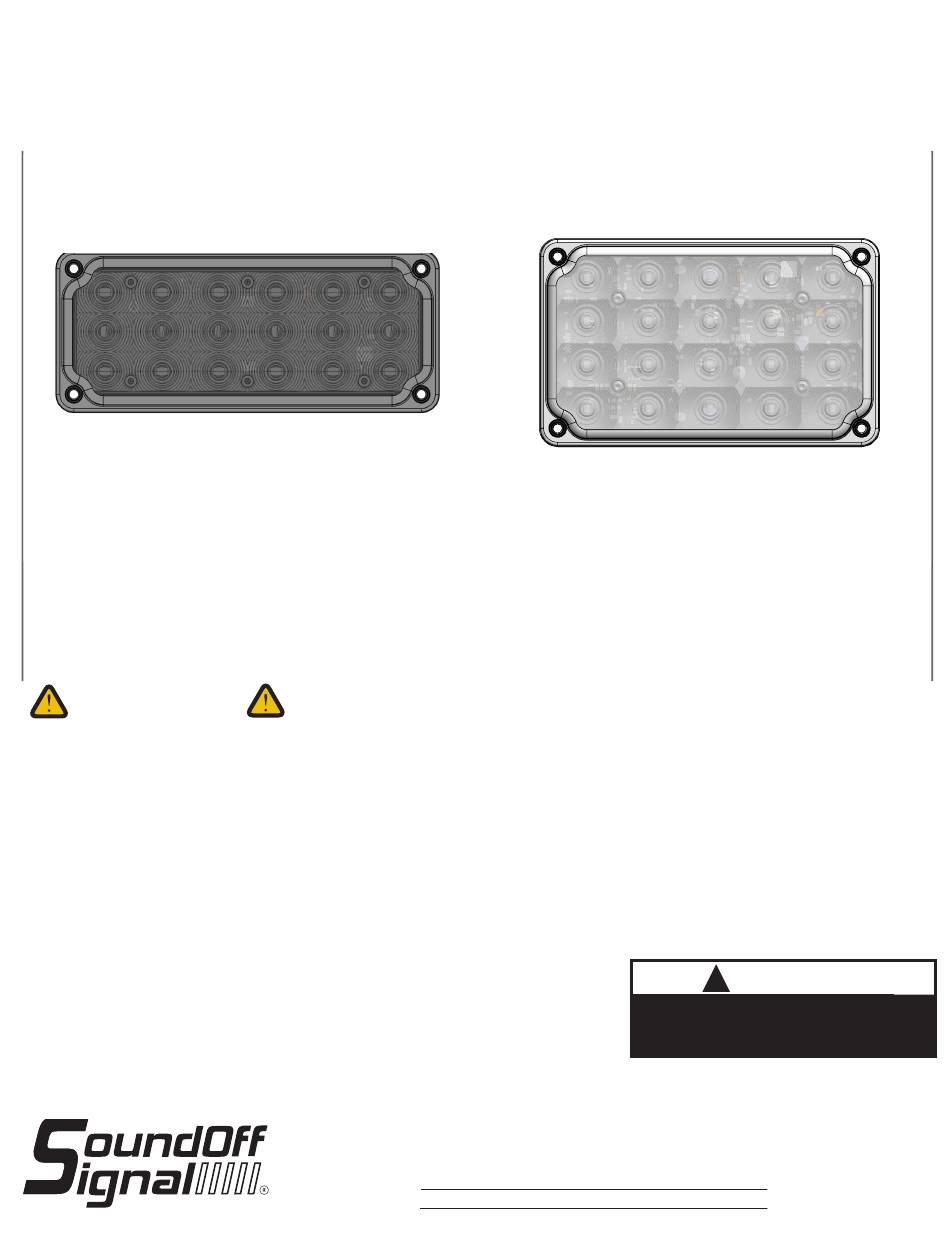

P SERIES STOP/TAIL & TURN LIGHTS

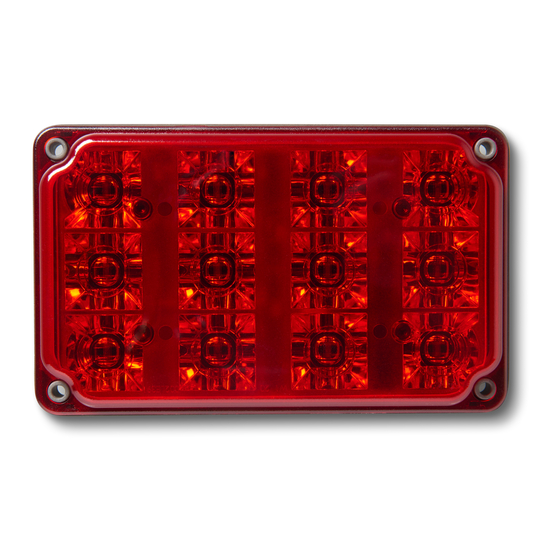

7x3 Stop/Tail Shown
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundoffsignal.com/legal/patent-notification/
WARNING
• HIGH CURRENT interconnects must be properly terminated. Poor crimp
quality can cause heat build-up and fire. Follow the crimp connector
manufacturer instructions.
• DO NOT install this product or route any wires in the Air Bag Deployment
Zone. Refer to vehicle Owner's Manual for deployment zones.
• Do NOT use system to disconnect headlights, brake lights or other safety
equipment.
• Unit may become hot to touch during normal operation.
• Failure to properly install connectors, fuses or wiring may cause vehicle
failure or fire.
• Installation must only be performed by trained technician. Installer must
determine vehicle wiring configuration and proper integration of system.
• Use proper wire gauge. All power wires connecting to positive (+) or
negative (-) battery terminal or local chassis ground (-) must be sized to
supply at least 125% of max. current and properly fused at power source.
• Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
EPSSC0JY(x)-(x) -- 7X3 Screw Mount & Stud Mount
EPSSBOJX(x)-(x) -- 6X4 Screw Mount & Stud Mount
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning
devices. Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy
for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have
questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press
#4). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N
6x4 Stop/Tail Shown
DIMENSIONS . . . . . . . . . . . . . . . . . . 2
STOP/TAIL & TURN LIGHT OPTIONS . . 2
TECHNICAL SPECIFICATIONS . . . . . . 3
WIRING INFORMATION . . . . . . . . 4-5
STUD MOUNT INSTALLATION . . . . . 6
SCREW MOUNT INSTALLATION . . . . 7
RETENTION CLIP INSTRUCTIONS . . . 8
WARNING
!
ROUTE WIRES ONLY IN LOCATIONS THAT ARE NOT SUBJECTED TO
POTENTIAL WEAR. MAKE SURE TO AVOID ROUTING WIRES IN THE
DEPLOYMENT AREA OF YOUR AIR BAG. REFER TO YOUR VEHICLE'S
OWNER'S MANUAL FOR AIRBAG DEPLOYMENT ZONES.
7X3 / 6X4 P SERIES_STT
00KPJL 0822 REV B

Advertisement

loading
Need help?

Need help?

Do you have a question about the P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Soundoff Signal P Series

  • Page 1 Improper use or installation may void warranty coverage.To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
  • Page 2 • 7x3 - EPSSC0JY X-X** • Amber • Green • 6x4 - EPSSB0JX X-X** • Blue **See SoundOff Signal configurator or sales representative 7x3 & 6x4 LENS COLOR OPTIONS for specific color, lens, and mounting options. • Red • Clear •...
  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS: 7X3 & 6X4 P SERIES STOP/TAIL LIGHT TECHNICAL SPECIFICATIONS Input Voltage: 9-32Vdc STOP/TAIL LIGHT CURRENT CONSUMPTION (Amps) 12.8Vdc 25.6Vdc Peak Peak STOP 0.35 0.18 0.04 0.02 TAIL 7X3 & 6X4 P SERIES STOP/TAIL LIGHT TECHNICAL SPECIFICATIONS Input Voltage:...
  • Page 4 WIRING AND TABLE INFORMATION: OVER-VOLTAGE PROTECTION WIRE HOOK-UP TABLE When an over-voltage condition is detected, the module will flash an overvoltage warning pattern of 50mS ON/950mS OFF to alert of the overvoltage condition and WIRE COLOR: FUNCTION: protect the electronics from damage due to heat/voltage. Power (Stop/Turn Function) THERMAL COMPENSATION PROTECTION BLACK...
  • Page 5 TYPICAL TRAILER CIRCUIT SCHEMATIC AFTERMARKET RELAY ISOLATION SCHEMATIC 1.800.338.7337 / www.soundoffsignal.com 7X3 / 6X4 P SERIES_STT 00KPJL 0822 REV B...
  • Page 6 STUD MOUNT INSTALLATION: 1. Drill (2) 1/4" holes to mount light and 3/4" wire hole (see Fig. 7). FIG. 6 The drill template shown is compatible with both the the 6x4 and WIRE HOLE WIRE HARNESS 7x3 stud mount light. GASKET 2.
  • Page 7 SCREW MOUNT INSTALLATION: Drill (4) 5/16" holes to mount light. Drill 3/4" wire hole. See Fig. FIG. 8 PLACE LIGHT INTO BEZEL, P 9 (7x3) OR Fig. 10 (6x4). AND GASKET AGAINST MO If a bezel is being used, place bezel over light. GASKET WIRE Place the gasket on the back of the light and bezel (if used).
  • Page 8 RETENTION CLIP INSTRUCTIONS: NOTE: In the event the harness needs to be disengaged from the light, these instructions can be used to reattach and apply the retention clip. 1. Plug harness into light housing, aligning tab to window, as shown in Fig 13. 2.
