Soundoff Signal PREDATOR EPRDDSMDB Series Assembly Instructions

WARNING
: Warning devices are strictly
regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into light
beam at close range.
MOUNTING INSTRUCTIONS
Important: DO NOT over tighten mounting screws
or nuts. This could cause permanent damage to the
bracket. Use appropriate hardware for mounting.
1. Locate flat mounting location for Predator Surface
Mount LEDs. If surface is perfectly flat, foam
gasket may not be required.
2. Using the hard gasket as a template, mark and drill
pilot holes for mounting screws.
Note: The mounting holes will be slightly
greater than 4-1/8" center to center (long
dimension) and slightly greater than 1-3/8"
(short dimension). These dimensions are for
approximate reference only.
3. Drill two (2) 1/2" holes on the center line of the
mounting hole pattern (see layout - do not scale).
Note: If possible, the back side of this hole
should be deburred where drill breakthrough
occurs.
4. Route cable through hole in hard gasket and center
of foam gasket. Then make electrical connections
(Red-power, Black-ground. White is for pattern
selection and will be taped after selection is made).
If the final location of the cable will be inaccessible,
pattern selection must be made before final
installation.
5. Install gasket over rear of light and loosely install
unit with #8 self-threading screws and plastic
washers. Washer must be installed under the head
of the screw. Note: Gasket must be used to
prevent oxidation and galvinization of the mounting
surface if differing metals come in contact.
6. When final position of unit is obtained tighten
screws. DO NOT OVERTIGHTEN!

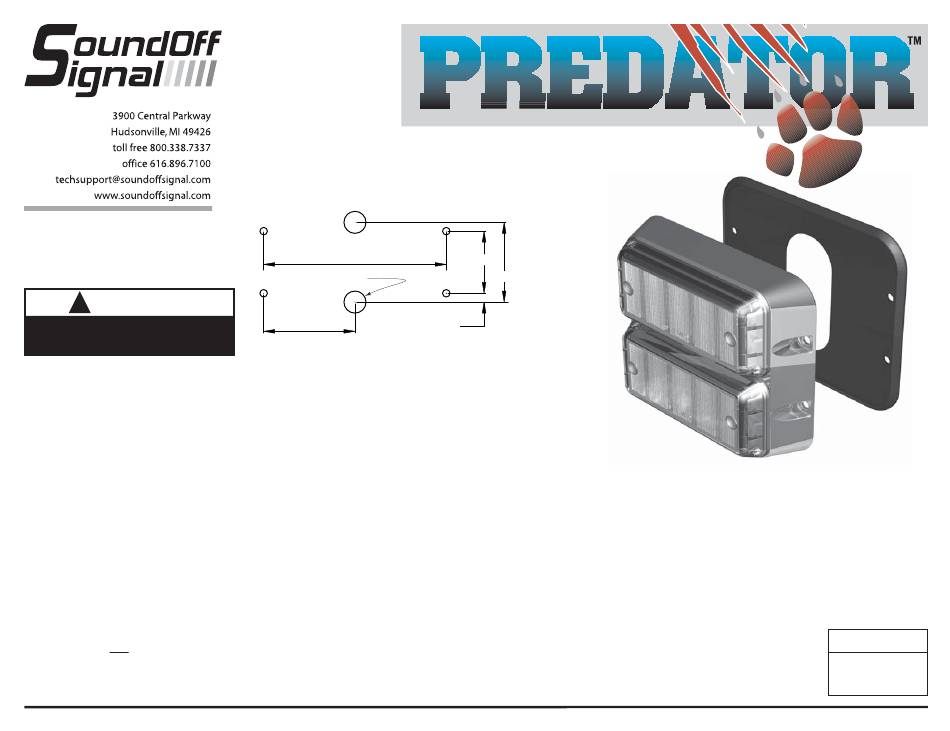

DUAL SURFACE MOUNT
WARNING SYSTEM
ASSEMBLY INSTRUCTIONS
EPRDDSMDBx
4.14"
DRILL TWO 1/2" DIA. HOLES
2.07"
IMPORTANT: DO NOT connect this device to a
strobe power supply.
OPERATING INSTRUCTIONS
The Dual Predator comes equipped with 2 independently
controlled internal flashers, each with 33 user selectable
patterns. Or each internal flasher can be put into slave mode and
driven through an external flasher.
1. Connect both Predator BLACK wires to a good, convenient
ground.
2. Connect both Predator RED wires to one side of a user supplied
on/off switch. Connect the other side of the switch, through a
5Amp fuse, to a source of +10-30Vdc.
PATTERN SELECTION
1. Turn Predator ON.
2. Touching and removing the WHITE wires to ground will advance
each Predator to the next flash pattern. See flash pattern table.
Continuing to touch and remove the WHITE wires to ground will
allow you to scroll through the pattern list. After pattern #33 is
reached the list will start over again at pattern #1.
NOTE: The Predator is equipped with flash pattern memory.
Once you have selected a pattern the Predator will always
activate to that pattern every time the unit is turned on. Tape up
and secure both WHITE wires so that your selected pattern will
not accidentally be changed.
1.41"
1.81"
0.20"
PATTERN RESET
1. Remove power.
2. Place WHITE (sync) wire to ground.
3. With sync wire grounded, re-power RED wire.
4. Maintain for one second (light will dim).
5. Remove power and ground (pattern 1 set).
SLAVE MODE
The Predator is capable of being activated through the use of a
user supplied flasher by putting it in slave mode.
1. Permanently connect both Predator WHITE and BLACK wires to
a good, convenient ground.
2. Connect both Predator RED wires, through a 5Amp fuse, to the
output of a +10-30Vdc switching flasher.
NOTE: The Predator is a factory sealed unit that CANNOT be
serviced in the field. Any attempt to gain access to the Predator
unit will cause permanent damage and void its warranty.
WIRE HOOK-UP TABLE
Wire Color Connect to:
Red +10-16Vdc
Black Ground (-)
White Pattern Select
EPRDDSMDBx 5.09
