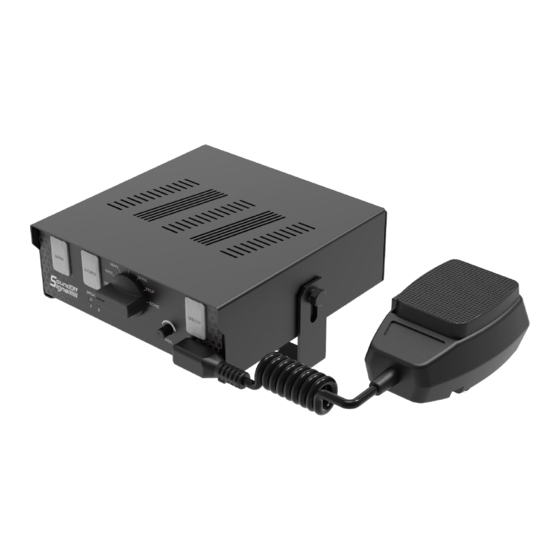

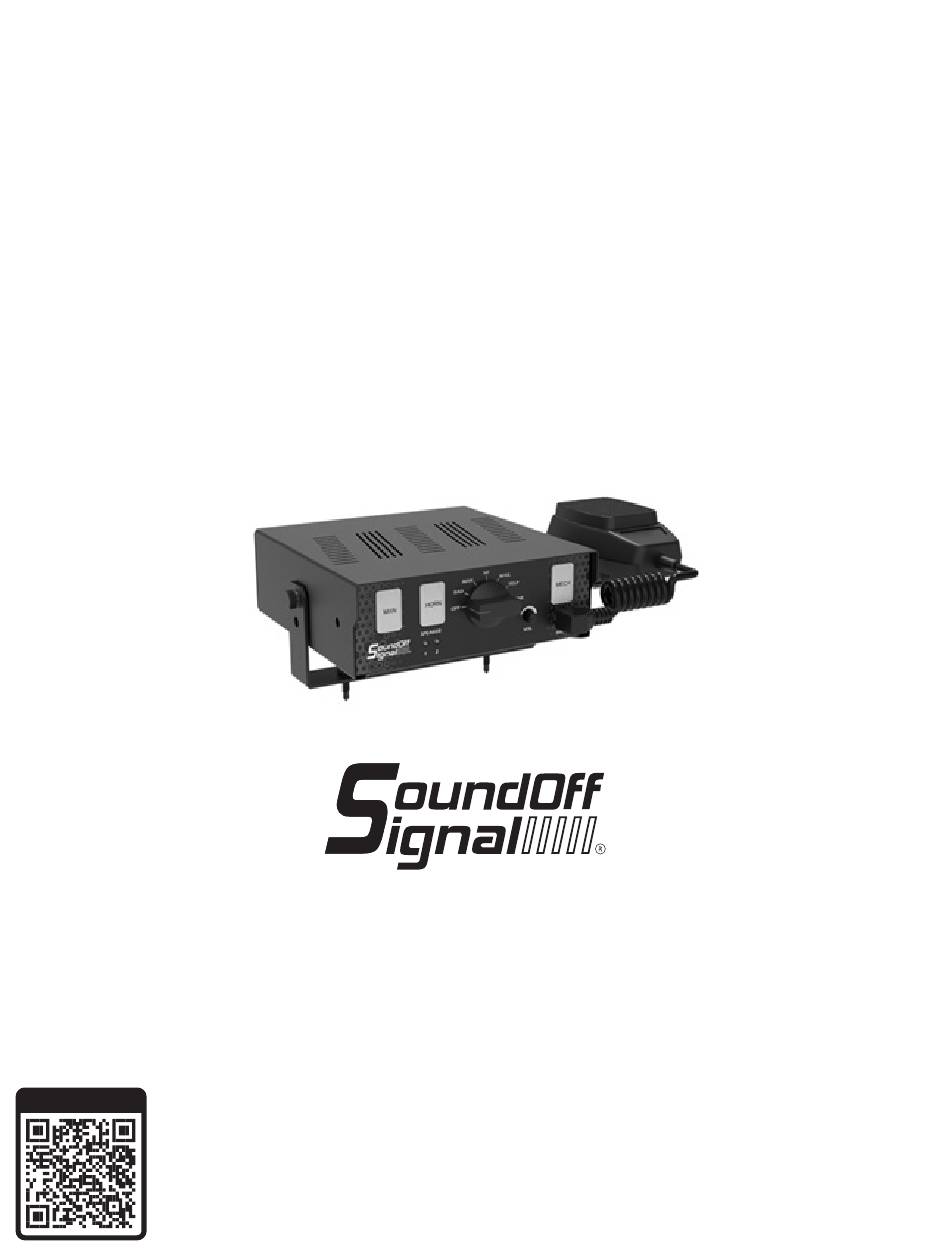

- Page 1 INSTALLATION INSTRUCTIONS FR100 SERIES SIREN W/ PA FUNCTION 200 WATT SINGLE TONE SCAN FOR NEWEST VERSION ETSAFR100 0622 REV A.
- Page 2 • Improper use or installation may void warranty coverage. • To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www. soundoffsignal.com/tech-services/returns/. • If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
-
Page 3: Table Of Contents
FR100 SERIES SIREN Table of Contents Introduction ..............4 Technical Specifications . -
Page 4: Introduction
Horn ring transfer input 12-PIN IP HARNESS (12") SIREN WARNING CARD SoundOff Signal is excited to be your partner for safety and we offer industry-leading service and support to all our products. After fully PRODUCT WARNING CARD reviewing these instructions, please contact us should you have USER WARNING STICKER questions or concerns about the installation or use of this product. -
Page 5: Siren Button / Layout Information
FR100 SERIES SIREN SIREN FUNCTIONS FRONT VIEW A. MAN BUTTON: Pressing button will activate a Manual D. MECH BUTTON: Pressing button will activate a Wail tone (default) while pressed, when button is released Simulated Mechanical tone (default) while pressed, Tone will STOP. -
Page 6: Siren Harness / Functions
FR100 SERIES SIREN SIREN HARNESS FUNCTION WIRE COLOR WIRE SIZE RADIO REBROADCAST INPUT BLUE INPUT 18AWG PARK KILL INPUT YELLOW INPUT 18AWG RADIO REBROADCAST INPUT BLUE INPUT 18AWG NOT USED GROUND BLACK POWER 16AWG POWER POWER 16AWG BACKLIGHT INPUT GRAY... -
Page 7: Speaker Harness / Functions
FR100 SERIES SIREN SPEAKER HARNESS FUNCTION WIRE COLOR WIRE SIZE SPEAKER A ( - ) ORANGE/BLACK OUTPUT 18AWG SPEAKER A (+) ORANGE OUTPUT 18AWG SPEAKER B ( - ) GREEN/BLACK OUTPUT 18AWG Rear View SPEAKER B ( + ) GREEN... -
Page 8: Programming Continued
FR100 SERIES SIREN PROGRAMMING CONTINUED Change Backlight Intensity levels Change MECH Override Tone for Rotary Switch Position Adjust ROTARY SWITCH to the OFF position. Apply power to Backlight wire. Adjust ROTARY SWITCH to the RAD position. Press and release the PROGRAMMING BUTTON on the rear of... -
Page 9: Wiring Diagram
FR100 SERIES SIREN WIRING DIAGRAM SPKR B SECONDARY USE ONE 11 OHM SPEAKER PER OUTPUT SPKR A PRIMARY ETSAFR100 0622 REV A. 1.800.338.7337 / www.soundoffsignal.com... -
Page 10: Horn Ring Wiring Diagram
FR100 SERIES SIREN HORN RING WIRING DIAGRAM *Only necessary when the horn requires more than five amps output. ETSAFR100 0622 REV A. 1.800.338.7337 / www.soundoffsignal.com... -
Page 11: Tone Defaults
FR100 SERIES SIREN TONE DEFAULTS PROGRAMMABLE TONES CA TITLE 13 OFF *CA TITLE 13 ON RR MAN OVERRIDE Manual Wail, Immediate OFF when Released RR MECH OVERRIDE Simulated Mechanical, Immediate OFF when Released HORN BUTTON HORN4 HORN4 MAN BUTTON Manual Wail, Immediate OFF when Released... -
Page 12: Tone List
FR100 SERIES SIREN TONES Tone List for Rotary Override Tone List MAN Override MECH Override Switch Positions for Rotary Switch Tone List for Tone List for Tone List for Tone List for Tone List for Tone List for Rotary Wail, Yelp,...
