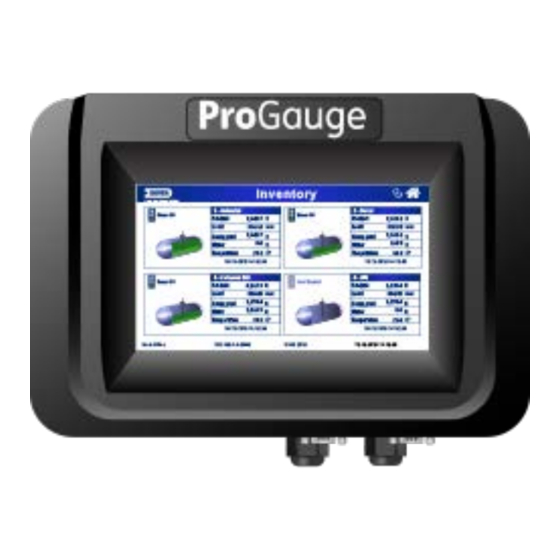

ProGauge MagLink LX 4 Installation Manual
Part Number: M2050
Revision: 4
MagLink LX 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProGauge MagLink LX 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dover ProGauge MagLink LX 4

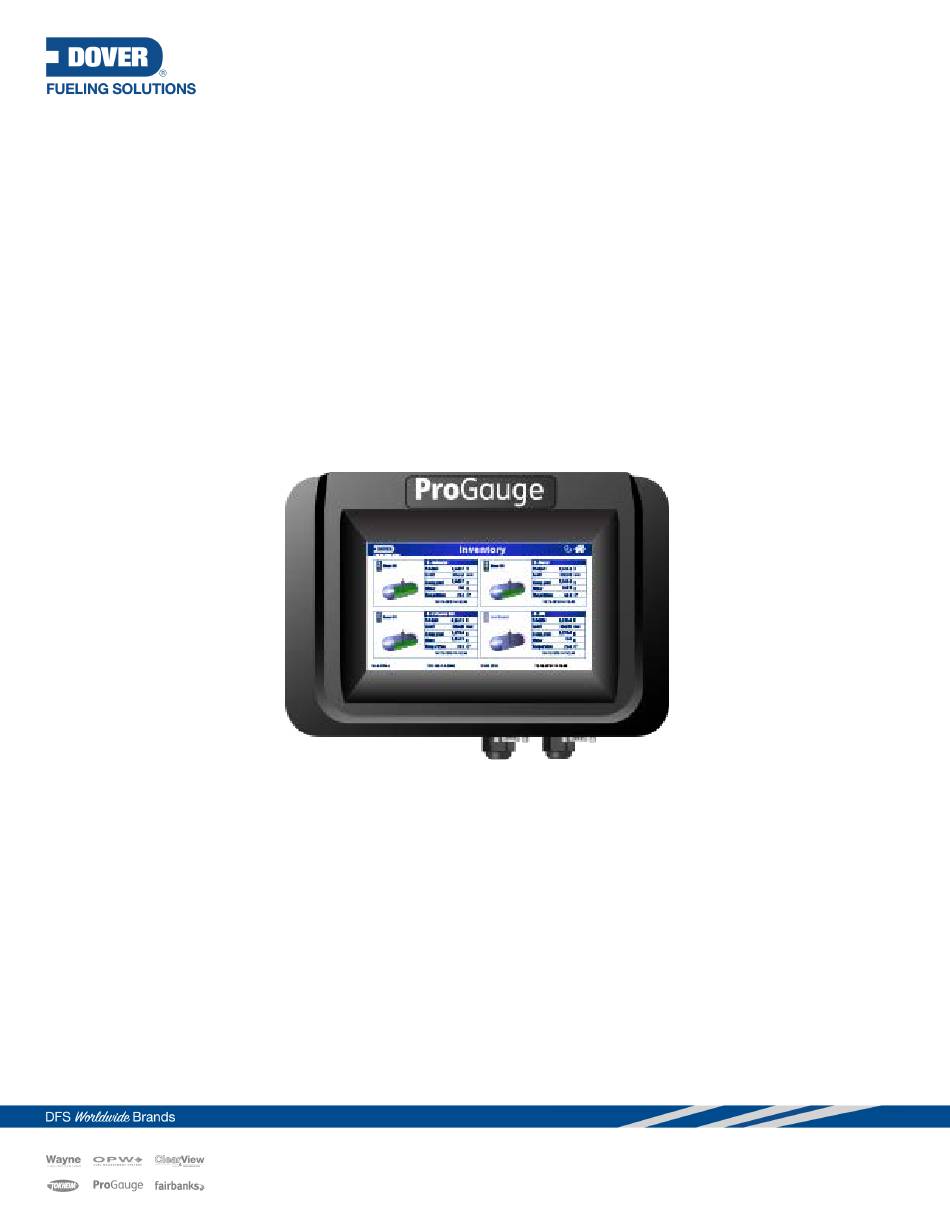

  • Page 1 ProGauge MagLink LX 4 Installation Manual Part Number: M2050 Revision: 4 MagLink LX 4...
  • Page 2: Table Of Contents

    7.7 Close and Start Up the Console 7.8 DB9 Connections to a Management System 7.8.1 FuelPOS/DIALOG Fuel Management System 7.8.2 GILBARCO Fuel Management System 7.8.3 Wayne Fusion Fuel Management System Section 8 Maintenance M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 3 Section 9 Technical Support Section 10 Wiring Diagrams 10.1 Connect XMT-SI probes 10.2 Connect XMT Exd probes 10.3 Connect RF Probes 10.4 Connect On/Off Sensors Appendix A - Console Dimensions M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 4: Section 1 Preface

    Making copies, citing quotes or other reproductions of all or part of this document is permitted only after written consent of Start Italiana S.r.l. Patents protect trademark or name. Copyright 2022© Start Italiana S.r.l. – All rights reserved M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 5: Section 2 General Warnings

    IMPORTANT: If a replacement power supply cable is necessary, use an applicable, approved ELBZ/7 type power cord. Do not use another type of power cable. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 6: Section 3 Introduction

    The table that follows lists reference data of the manufacturer: Data Description Name START ITALIANA S.r.l. Via Natta 6 Address 20823 Lentate Sul Seveso, (MB) Italy Telephone +39 0362 1581465 +39 0362 1581464 Website www.startitaliana.com e-Mail support@startitaliana.it M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 7 INFORMATION: The units of measurement contained in this manual refer to a specified selection by the user. Refer to the M2051 MagLink LX 4/LX Plus Configuration Manual for more information on how to set units of measure. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 8: Safety Warnings

    3.2 Information Panels NOTE: This panel gives more information about an instruction or procedure. IMPORTANT: This panel contains special information that is important and must be read and obeyed. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 9 INFORMATION: This panel shows references to more information in other sources. READ CAREFULLY: This panel points to information that must be fully read and understood before doing the procedure(s) that comes after. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 10: Section 4 General Indications

    Make sure that the power cable is correctly installed. Put the Power Switch to the on ("I") position to supply power to the console. Put the Power Switch in the off ("O") position to remove power from the console. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 11 This will prevent high voltages sent to the Intrinsically Safe wiring side if there is an electrical fault in the power side. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 12: Section 5 Product Labels

    The "Caution" symbol (0434B of 01/2004), according to ISO 7000 Serial number Year of production Power Supply(VAC and Hz) Power consumption (VA) Operating temperature (°C) Ingress protection (IP grade) Fuse rating Indication that inside there is intrinsically safe circuit M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 13 Name and address of the manufacturer Equipment Type (BRA-SI, BRA-SIP, or BRA-2SIP) ATEX Reference number of the certificate ATEX Marking: Ex II (1) G [Ex ia Ga] IIB Serial number Electrical data M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 14: Section 6 Installation

    Install the console in a place that is protected from moisture, direct sun, and water splashes. The console should be installed indoors in a climate-controlled room. CAUTION: The console must be installed in a safe area. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 15: Electrical Connection

    The power cord must be easy to identify and must have easy access so it can be used to remove power. WARNING: There is high voltage within the console. IMPORTANT: The electrical connection procedure must be done by approved personnel only! M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 16: Installation Procedure

    2. Lift the cover carefully and disconnect the ribbon cable from the rear panel of the console as shown in the illustration above. Put the cover and screws in a temporary safe location where they can be found later and where the components cannot be damaged. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 17 Tap the holes for an applicable screw size or put screw anchors in the hole. NOTE: It is recommended to use size 6 Fischer wall anchors. f. Attach the unit to the wall with the applicable screws. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 18: Section 7 Connections

    The table that follows shows a list of the inner components of the rear of the console. Component Description Power Supply Unit (PSU) protection panel BRA-2SIP barrier for connection to the DMP-SI-485 and XMT-SI-485 probes (8+8) Four (4) Built-in Relays, Six (6) Inputs M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 19: Connection To The Intrinsically Safe Xmt-Si And Dmp-Si Probes

    If a site installation has more than 16 probes/tanks you must use an external MagDirect barrier connected to the console MR1 or CN7 (see below) terminal blocks. Each MagDirect barrier can hold up to eight (8) probes. See the Wiring Diagram section for more information. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 20: Connection To The Xmt Explosion-Proof Probe

    The table that follows shows the wiring connections between the XMT Probes and the LX 4 Console main board CN7 terminal block: Connection Specification White (-0 V) - Terminal 4 Blue (RS485B) - Terminal 3 Brown (RS485A) - Terminal 2 Red (+ 12V) - Terminal 1 M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 21: Connection To The Rf Receiver (For Xmt-Si-Rf)

    Blue (RS485B) - Terminal 3 Brown (RS485A) - Terminal 2 Red (+ 12V) - Terminal 1 Refer to the RF Receiver installation manual's section on electrical connections for the correct connections of the receiver. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 22: Interface To Relay - Diagram Of Connectors

    7.4 Interface to Relay - Diagram of Connectors The illustration above shows the connections of a MagLink LX 4 Console. The table that follows shows the console connections: M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 23 Relay 3 status LED (On = relay energized) Relay 4 status LED (On = relay energized) Input 6 status LED (Terminal 7) Input 5 status LED (Terminal 6) Input 4 status LED (Terminal 5) M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 24: Dip-Switch Configuration

    ON: Closed Under Power OFF = Internal inputs not available for alarms ON = Internal inputs available for alarms Enables Weights & Measures lock (W&M) OFF: W&M disabled ON: W&M enabled M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 25: Micro Sd Card

    IMPORTANT: Do not remove the micro SD card while the console is in operation. The console cannot function without the SD card in place. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 26: Close And Start Up The Console

    DIALOG ORPAK DOMS PIGNONE FUEL POS (VR350 Interface) Probe emulation GILBARCO (VR350 interface) RETALIX Pin-out diagrams for some of these connections are shown below. 7.8.1 FuelPOS/DIALOG Fuel Management System M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 27: Gilbarco Fuel Management System

    Connect PIN 4 with PIN 6 7.8.2 GILBARCO Fuel Management System Console (DB9) GILBARCO System (RJ45) PIN 2 PIN 8 PIN 3 PIN 1 PIN 5 PIN 4 7.8.3 Wayne Fusion Fuel Management System M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 28 PIN 3 PIN 3 PIN 5 PIN 5 IMPORTANT: Do not use cabling longer than 15 meters (3.2 feet) for RS232 serial connections between the console and the management system. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 29: Section 8 Maintenance

    Do not use compressed air or liquid detergents to clean the touchscreen or the console. Clean the touchscreen and the outside of the console with a monitor/TV cleaning cloth. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 30: Section 9 Technical Support

    Refer to the "Utility" section of the M2051 LX 4 Configuration manual for for information on log files and the database backup in the console. M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 31: Section 10 Wiring Diagrams

    Section 10 Wiring Diagrams 10.1 Connect XMT-SI probes M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 32: Connect Xmt Exd Probes

    10.2 Connect XMT Exd probes M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 33: Connect Rf Probes

    10.3 Connect RF Probes M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 34: Connect On/Off Sensors

    10.4 Connect On/Off Sensors M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 35: Appendix A - Console Dimensions

    Appendix A - Console Dimensions M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
  • Page 36 Add note for Maximum # of probes. Add power shutdown instruc- tion/note/warning panel. Removed 2045 7/28/2022 IFSF/GSM card from inner com- ponent list. NOTE: It is possible that older software versions might not support all features M2050 MagLink LX 4 Installation Manual | Dover Fueling Solutions...
