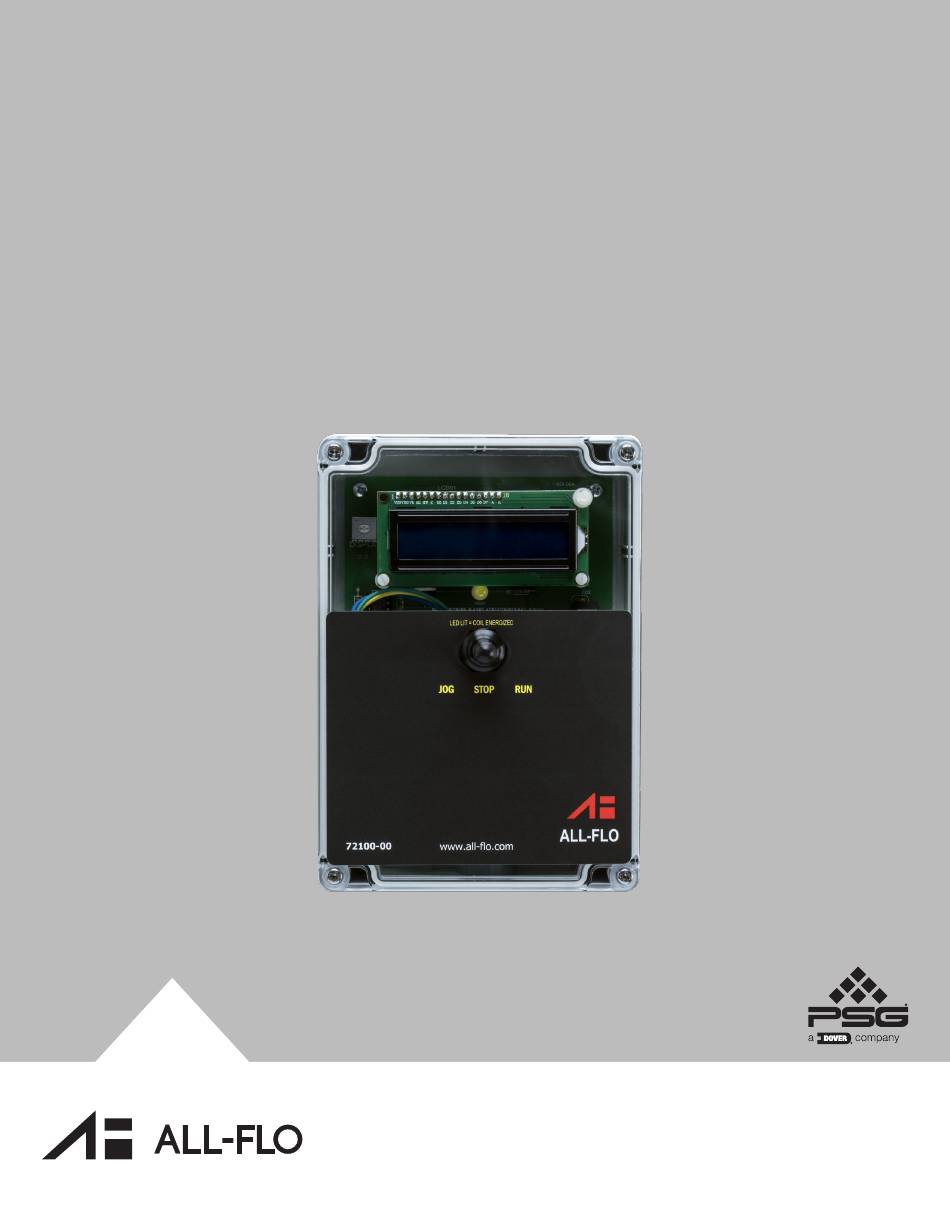

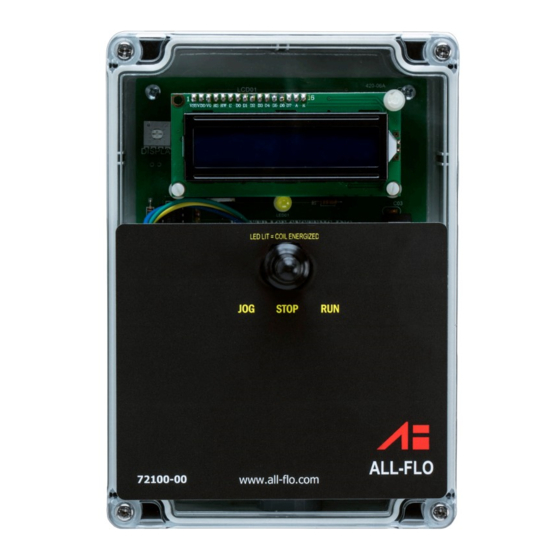

- Page 1 INSTALLATION OPERATION & MAINTENANCE BATCH CONTROLLER 72100-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 PRINCIPLES OF OPERATION SECTION 3 INSTALLATION SECTION 4 BATCH SET UP SECTION 5 SPECIFICATIONS ALF-14021-E-01 All-Flo... -
Page 3: Warnings, Dangers And Cautions
SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR WARNING = Hazards or unsafe practices which TO INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH could result in severe personal injury, THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY death or substantial property damage AND OR PROPERTY DAMAGE. -
Page 4: Principles Of Operation
SECTION PRINCIPLES OF OPERATION 72100-00 BATCH CONTROLLER The 72100-00 controller works by adjusting the time interval between Energized the signals sent to the solenoid controlled AODD pump. These signals De-energized dictate when the pump will discharge one of the fluid chambers of the pump. -
Page 5: Installation
SECTION INSTALLATION 72100-00 BATCH CONTROLLER The 72100-00 controller requires 100 volts AC (220 volts AC is also available) to power and it delivers 12 volts DC to the pump. The appropriate 12-volt DC solenoid pump is needed to be used with this controller. This system is programmed using the keypad on the cover and can be remotely paused or stopped using dry contact via a Switch terminal on the circuit bord. -
Page 6: Batch Set Up
SECTION BATCH SET UP 72100-00 BATCH CONTROLLER CALCULATING VOLUMETRIC DELIVERY 1. Hit the Set button to enter Setup mode and then The pump manufacturer supplies information about adjust the values and move the cursor (using the the delivery of fluid per pump stroke (emptying of one left and right arrow buttons) and raise or lower chamber), but factors like inlet and outlet head, inlet the values (using the up and down arrow buttons) -
Page 7: Specifications
SECTION SPECIFICATIONS 72100-00 BATCH CONTROLLER Dimensions: 6-2/4˝ Height x 4-3/4˝ Width x 2-1/4˝ Depth Weight: 1-1/2 lbs Enclosure Construction: NEMA 4x with Sealing Gland for Cable and Boot for Switch Power Consumption: 12 Watts Voltage Requirement: 120VAC Voltage Output (to Solenoid): 12VDC 750ma Maximum (the pump’s solenoid must operate on 12VDC) Operating Temperature Range: 40°F to 100°F... - Page 8 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
