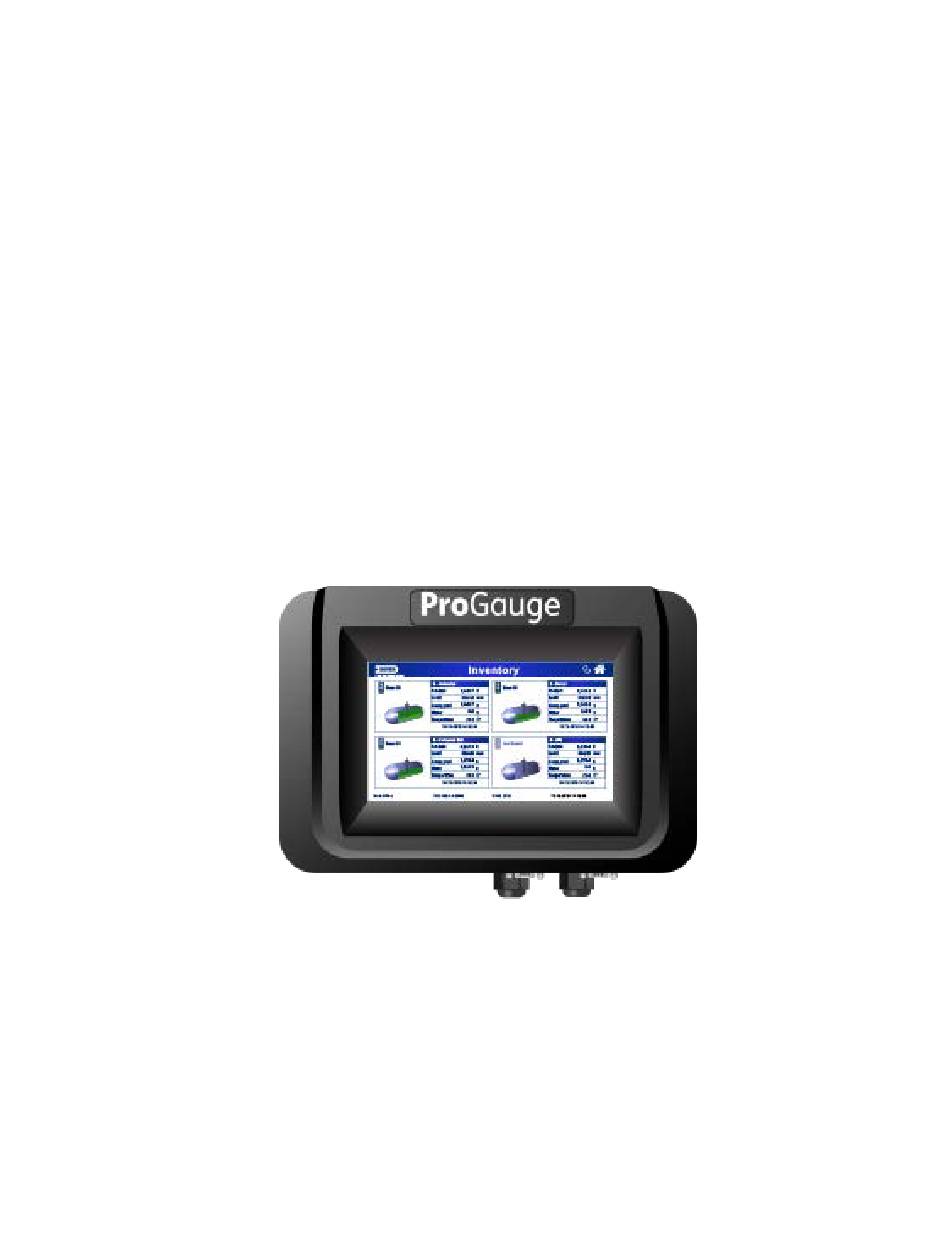

- Page 1 Configuration Manual MagLink LX4 M2051-EU Revision: 1 Part Number: M2051-EU, Rev. 1 Issue Date: V...
- Page 2 Fax +39 0362 1581464 Copyright Information © 2020 Dover Fueling Solutions. All rights reserved. DOVER, the DOVER D Design, DOVER FUELING SOLUTIONS, and other trademarks referenced herein are trademarks of Delaware Capital Formation. Inc./Dover Corporation, Dover Fueling Solutions UK Ltd. and their affiliated entities.
-
Page 3: Table Of Contents
6.1.8 Site Mapping (for Reconciliation/Autocalibration mode only) 6.1.8.1 Map Dispensers and Nozzles to Tanks 6.1.9 IFSF 6.1.10 DIP-Switches 6.2 Notifications Menu 6.2.1 Contacts 6.2.2 Notifications 6.3 Tank Setup Menu 6.3.1 Settings 6.3.2 Thresholds M2051-EU Rev.: 1 Dover Fueling Solutions Page 3... - Page 4 Section 10 Reports Menu 10.1 History 10.2 Tank Alarms 10.3 Sensor Alarms 10.4 Delivery 10.5 Leak Tests 10.6 Sales 10.7 Shifts 10.8 Reconciliation Section 11 Maintenance 11.1 Timezone 11.2 Network Configuration 11.3 Utility M2051-EU Rev.: 1 Dover Fueling Solutions Page 4...
- Page 5 11.4 Console Settings Section 12 Change Password Section 13 Logout Section 14 Guest Account Section 15 Technical Support M2051-EU Rev.: 1 Dover Fueling Solutions Page 5...
-
Page 6: Section 1 Preface
Making copies, citing quotes or other reproductions of all or part of this document is permitted only after written consent of Start Italiana S.r.l. Patents protect trademark or name. Copyright 2019© Start Italiana S.r.l. – All rights reserved M2051-EU Rev.: 1 Dover Fueling Solutions Page 6... -
Page 7: Section 2 General Warnings
You must read and obey all safety instructions in this manual before you use this equipment. WARNING: Incorrect use of this equipment that does not agree with the instructions in this manual can cause a risk to safety. M2051-EU Rev.: 1 Dover Fueling Solutions Page 7... -
Page 8: Section 3 Introduction
The table that follows lists reference data of the manufacturer: Data Description Name START ITALIANA S.r.l. Via Pola 6 Address 20813 Bovisio Masciago (MB) Italy Telephone +39 0362 1581465 +39 0362 1581464 Website www.startitaliana.com e-Mail support@startitaliana.it M2051-EU Rev.: 1 Dover Fueling Solutions Page 8... - Page 9 INFORMATION: The units of measurement contained in this manual refer to a specified selection by the user. Refer to "System" on page 20 for more information on how to set units of measure. M2051-EU Rev.: 1 Dover Fueling Solutions Page 9...
-
Page 10: Safety Warnings
3.2 Information Panels NOTE: This panel gives more information about an instruction or procedure. IMPORTANT: This panel contains special information that is important and must be read and obeyed. M2051-EU Rev.: 1 Dover Fueling Solutions Page 10... - Page 11 This panel shows information that has been given before in the manual that is important to show again. TIP: A step or procedure that is recommended to make another step or procedure easier. INFORMATION: This panel shows references to more information in other sources. M2051-EU Rev.: 1 Dover Fueling Solutions Page 11...
-
Page 12: Direct Connection
Navigate to C o n tr o l Pa n e l > Al l C o n tr o l Pa n e l Ite ms > N e tw o r k a n d Sh a r i n g C e n te r on your laptop. Change adapter settings 1. Click in the left-side panel. M2051-EU Rev.: 1 Dover Fueling Solutions Page 12... - Page 13 Local Area Connections 2. Right-click Properties 3. Select from the menu. Internet Protocol version 4 (IPv4) 4. Select to highlight on the list in the pop-up. Properties 5. Click M2051-EU Rev.: 1 Dover Fueling Solutions Page 13...
- Page 14 Enter the IP address: 255.255.255.0 c. Enter the Subnet mask: 7. Click Your laptop is now set up to communicate directly with your MagLink LX4 console. Enter the IP address into your browser to connect. M2051-EU Rev.: 1 Dover Fueling Solutions Page 14...
-
Page 15: Section 5 Login Procedure
: Can only see Tank Status, Sensor Status and Reports (measures, deliveries, leakages, sudden loss). A Guest User cannot make changes to the configuration. Admin : Has the same rights as Guest and can also make changes to the configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 15... - Page 16 4. If you did not select the applicable language in the Home screen you can push the LANGUAGE button to go back to the Home screen. The table that follows shows the types of data that can be seen by the two User types: M2051-EU Rev.: 1 Dover Fueling Solutions Page 16...
- Page 17 Touch screen calibration of the console; Restarting the console, Restarting the operating system of the console) Reconciliation (if enabled) Shift report with scheduling IFSF module configuration Sensors current status Autocalibration Analysis Print stock at predefined time of the day SMS config M2051-EU Rev.: 1 Dover Fueling Solutions Page 17...
-
Page 18: Section 6 Admin Account
It is recommended to start from the Site Info tab and complete all applicable fields. Then, continue to the next tab to the right and complete all applicable fields. Continue this procedure until you have completed all tabs. M2051-EU Rev.: 1 Dover Fueling Solutions Page 18... -
Page 19: System Settings
This field shows the number of environmental sensors configured in the console. Optional cards Select the applicable radio button: None, Modem (for SMS functionality), IFSF *Fields marked with an asterisk are mandatory. Save Click . A confirmation message will come into view. M2051-EU Rev.: 1 Dover Fueling Solutions Page 19... -
Page 20: System
6.1.2 System NOTE: All fields have selections (but not Alarm settings/Tolerance & Leak threshold) with default values. Changes to level and/or volume unit and number of decimals can automatically change with the selection. M2051-EU Rev.: 1 Dover Fueling Solutions Page 20... - Page 21 The system must have 2 hrs of continuous idle time to do a 0.2 gph tank test and 3 hrs of idle time to do a 0.1 gph tank test. The tank must be filled to a 50% minimum and the last tank delivery must have occurred at least 6 hours before M2051-EU Rev.: 1 Dover Fueling Solutions Page 21...
-
Page 22: Protocols
The system will also show the status of the Dip-switches 1 & 2. 6.1.3 Protocols This section specifies the protocol to use to communicate with a POS (point of sale) system or a FCC (forecourt controller system). M2051-EU Rev.: 1 Dover Fueling Solutions Page 22... -
Page 23: Tank Group
The number of tanks are configured in the Site Info tab. Tank parameters are configured in Tanks setup from the Main Menu. This tab is used to make Siphon (Manifold) groups. IMPORTANT: Tanks in a Siphon (Manifold) group must contain the same product. M2051-EU Rev.: 1 Dover Fueling Solutions Page 23... -
Page 24: Shifts
The "Shifts" screen is used to configure shift reports. A shift report shows the tank contents at the beginning and end of the shift. The shift report is made in another menu. M2051-EU Rev.: 1 Dover Fueling Solutions Page 24... -
Page 25: Fairbanks
How often the console will attempt to establish connection to the server in order to send the files Transfer Active or Passive, info provided by the server administrator. mode Enable SSL Activate for SSL connections Click Save when you complete the Fairbanks tab configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 25... -
Page 26: Smtp
6.1.8 Site Mapping (for Reconciliation/Autocalibration mode only) A POS/FCC that uses the Gilbarco BCD Dispenser Interface Protocol must be used to communicate pump sales. Configure the tank-to-nozzle mapping on this tab. M2051-EU Rev.: 1 Dover Fueling Solutions Page 26... -
Page 27: Map Dispensers And Nozzles To Tanks
The reconciliation reports and the delivery reports for the full manifold Group will be shown under the 1st tank. Autocalibration cannot be performed in a tank that is part of a Manifold Group. M2051-EU Rev.: 1 Dover Fueling Solutions Page 27... -
Page 28: Ifsf
Serial number of the console. Password Password (required by the POS in to make the connection). TLG type Type of console (LX4 ). Save IFSF Click when you complete the tab configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 28... -
Page 29: Dip-Switches
APPLY SETTINGS TO CONSOLE When all applicable tabs have been configured, click the button. 6.2 Notifications Menu 6.2.1 Contacts When the contacts tab is selected, all contacts that have been entered can be seen. M2051-EU Rev.: 1 Dover Fueling Solutions Page 29... -
Page 30: Notifications
Name Email: To receive notifications by email Save New Contact Click when you complete the configuration. 6.2.2 Notifications Set up the contact name(s) and notification type for each of the Notification Events. M2051-EU Rev.: 1 Dover Fueling Solutions Page 30... -
Page 31: Tank Setup Menu
ON to let the application query the installed probe during the read cycle. A probe query does not occur if this button is OFF. b. Serial: This is the Probe address (if it is incorrect, there will be no reading). M2051-EU Rev.: 1 Dover Fueling Solutions Page 31... - Page 32 The name of the tank group of which the selected tank is a member. A list of all of the tanks in the tank group. Save Settings i. Click when you complete the configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 32...
-
Page 33: Thresholds
%) must be lower than the one above it. For example, the Low Threshold must have lower values than the High Threshold. If the values are not set correctly, the SAVE button will not be M2051-EU Rev.: 1 Dover Fueling Solutions Page 33... -
Page 34: Density
5. The are values that are given with the density sensor. a. Enter the Coefficient A (negative) and Coefficient B (positive) values in the fields. Save b. Click after you enter the values. M2051-EU Rev.: 1 Dover Fueling Solutions Page 34... -
Page 35: Relays
The available alarms/actions that can be linked to a relay: Disabled Very high Water No Link Out of scale Very low Ethanol High Probe Communication Not Initialized Click Save when you complete the Relays configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 35... -
Page 36: Straptable
Use the scroll bar to see more points A selected strapping table can be exported to a csv format that can be saved in a spreadsheet or text editor. CSV Export Click the button to continue. M2051-EU Rev.: 1 Dover Fueling Solutions Page 36... -
Page 37: Acr Mode
Autocalibration. This would also increase the time to complete Autocalibration. Low segment : This shows the lowest segment of the calibration range. High segment : This shows the top segment of the calibration range. M2051-EU Rev.: 1 Dover Fueling Solutions Page 37... -
Page 38: Acr Results
Average time : This specifies the time for the loss warning or loss alarm. Loss warning (liters) : A difference more than this threshold will cause a Loss Warning M2051-EU Rev.: 1 Dover Fueling Solutions Page 38... - Page 39 : A difference more than this threshold will cause a Loss Alarm. Unaccounted variance (%) : If a difference in the daily reconciliation is more than this threshold, it will cause an alarm. M2051-EU Rev.: 1 Dover Fueling Solutions Page 39...
-
Page 40: Section 7 Sensor Setup
: Alarm is active and it has been acknowledged : Alarm is active and it has not been acknowledged Edit Use the button to make changes to the sensor configuration. Delete button will erase the sensor configuration from the system. M2051-EU Rev.: 1 Dover Fueling Solutions Page 40... -
Page 41: Discriminating Sensors
: For normally open sensors, the alarm will trigger when the sensor contact closes. Closed : For normally closed sensors, the alarm will trigger when the sensor contact opens. Location : Enter the location of the sensor (for reporting purposes only). M2051-EU Rev.: 1 Dover Fueling Solutions Page 41... -
Page 42: Wireless
“Has water float” 8. Enter the This will be available only when the slide button is toggled to the on position. 9. Select a Relay to start when a high water alarm is sensed. M2051-EU Rev.: 1 Dover Fueling Solutions Page 42... - Page 43 11. The saved Wireless sensor configuration will show at the bottom of the screen. Save Delete 12. Select the icon to save the configuration to a connected pc. Use the icon to remove this configuration. M2051-EU Rev.: 1 Dover Fueling Solutions Page 43...
-
Page 44: Section 8 Tank Status
The graph on the right side of the screen will scroll automatically to show the information that follows: Product / water height Product volume / Product volume TC Water volume Density / TC density Temperature M2051-EU Rev.: 1 Dover Fueling Solutions Page 44... - Page 45 : Click the Autocalibration drop-down menu to show information on the status of the autocalibration function. Tank inventory is shown at the bottom of the page. TC volume refers to the temperature compensated volume. This is calculated through the API tables. M2051-EU Rev.: 1 Dover Fueling Solutions Page 45...
-
Page 46: Section 9 Tank Group Status
Section 9 Tank Group Status A summary of the tank group is shown on this screen: Gross volume (at 15C°) Water volume Mass (in Kg) M2051-EU Rev.: 1 Dover Fueling Solutions Page 46... -
Page 47: Section 10 Reports Menu
Section 10 Reports Menu Reports can be made for eight (8) types of information: Tank inventory History Tank Alarms Sensor Alarms Product Deliveries Leak Tests Pump Sales Shifts Reconciliation 10.1 History M2051-EU Rev.: 1 Dover Fueling Solutions Page 47... - Page 48 The image below shows data as a Graph. The History Report can be exported to a csv format that can be saved in a spreadsheet or text editor. Click the CSV Export button to continue. M2051-EU Rev.: 1 Dover Fueling Solutions Page 48...
-
Page 49: Tank Alarms
4. The Sensor Alarms Report can be exported to a csv format that can be saved in a spreadsheet or text editor. Click the CSV Export button to continue. M2051-EU Rev.: 1 Dover Fueling Solutions Page 49... -
Page 50: Delivery
4. The Delivery Report can be exported to a csv format that can be saved in a spreadsheet or text editor. CSV Export Click the button to continue. M2051-EU Rev.: 1 Dover Fueling Solutions Page 50... -
Page 51: Leak Tests
The start and end time of the test The Leak threshold The volume difference between the start-end (at ambient temperature and temperature compensated) The result of the test and if the test was aborted. M2051-EU Rev.: 1 Dover Fueling Solutions Page 51... -
Page 52: Sales
Push the button to show the data. The Shift Report can be exported to a csv format that can be saved in a spreadsheet or text editor. Click CSV Export button to continue. M2051-EU Rev.: 1 Dover Fueling Solutions Page 52... -
Page 53: Reconciliation
ACR settings in the Tank Setup). The difference because of the water change in liters between the current hour and the hour before. M2051-EU Rev.: 1 Dover Fueling Solutions Page 53... - Page 54 : The quantity of liters that were sold by the tank (as recorded by the dispensers). Test vend : The quantity of fuel that was pumped out of the tank during a pump calibration check. M2051-EU Rev.: 1 Dover Fueling Solutions Page 54...
- Page 55 (variance): This is calculated as: Unaccounted variance = Operating variance – Temp variance – Evap variance – Water variance - Pump calibration – Theft. This is calculated in liters and as a % of sales. M2051-EU Rev.: 1 Dover Fueling Solutions Page 55...
-
Page 56: Section 11 Maintenance
2. Select the applicable time zone from the drop-down. 3. Click Save. The console application will restart. 11.2 Network Configuration 1. Enter the network parameters into the applicable fields Save 2. Click when you have completed all applicable fields. M2051-EU Rev.: 1 Dover Fueling Solutions Page 56... -
Page 57: Utility
Interface of the console can be changed. The timeout session gives the time that the user can be logged in to the Maintenance section before the system automatically logs the user out. M2051-EU Rev.: 1 Dover Fueling Solutions Page 57... - Page 58 TIP: As you type your password only neutral "bullet" characters will show (e.g. • • • • • •). Select the "eye" icon to show the password characters as you type. M2051-EU Rev.: 1 Dover Fueling Solutions Page 58...
- Page 59 Section 13 Logout Select Logout from the Main Menu . The Login screen will come into view. Logout Click the button to log out of the console. M2051-EU Rev.: 1 Dover Fueling Solutions Page 59...
- Page 60 Section 14 Guest Account A Guest account only gives access to the Tank Status page and a view of data from Reports. M2051-EU Rev.: 1 Dover Fueling Solutions Page 60...
- Page 61 Dover Fueling Solutions Technical Support personnel. If access to the Internet is not available, the user must give Dover Fueling Solutions Technical Support personnel the applicable data related to the console so a debugging procedure can be done.
- Page 62 Software Version Key Changes 1784 8/19/2020 Initial Release Added Autocalibration and Recon- 1836 12/3/2020 ciliation. Updated screens and pro- cedures NOTE: It is possible that older software versions might not support all features M2051-EU Rev.: 1 Dover Fueling Solutions Page 62...
