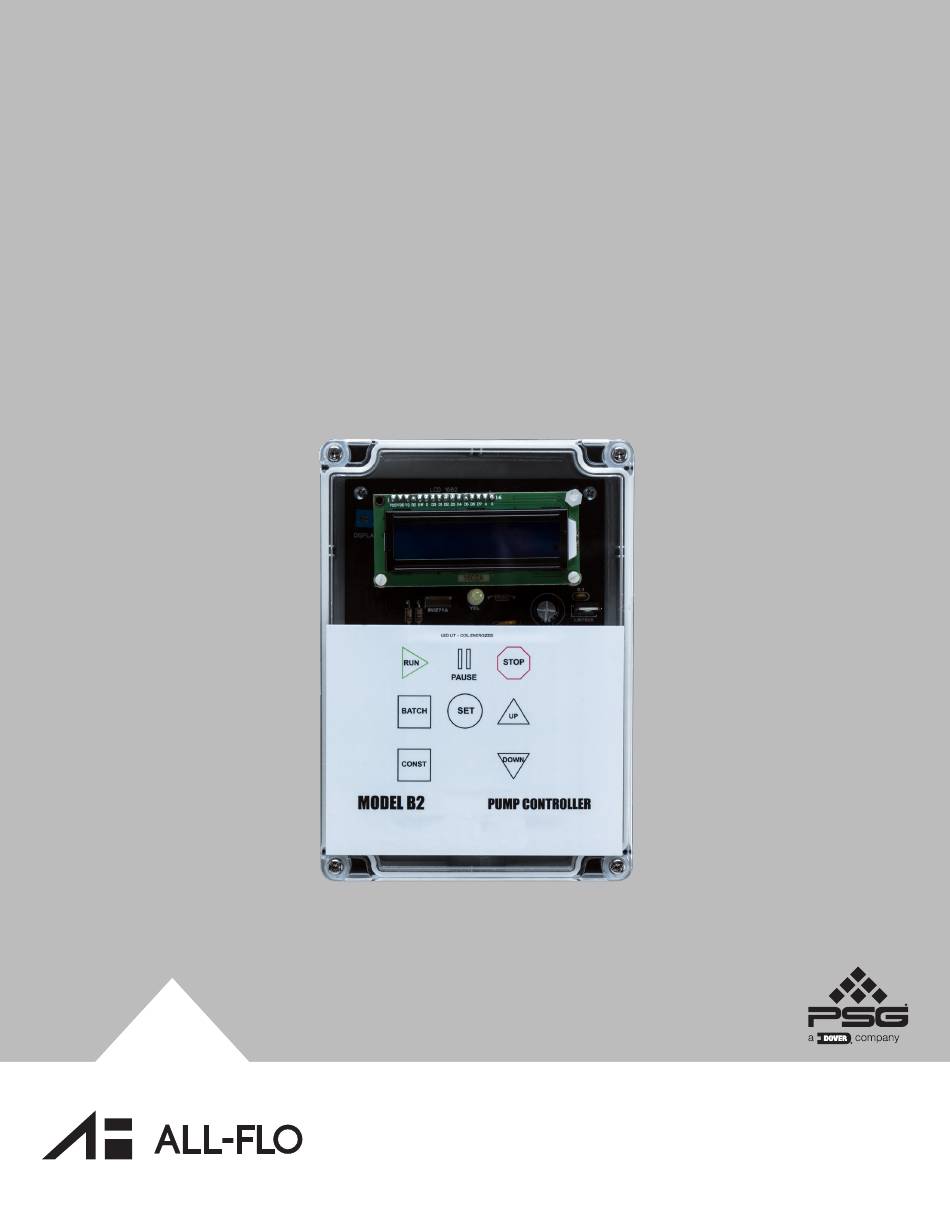

- Page 1 INSTALLATION OPERATION & MAINTENANCE BATCH CONTROLLER 72000-00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 PRINCIPLES OF OPERATION SECTION 3 INSTALLATION SECTION 4 BATCH SET UP SECTION 5 SPECIFICATIONS ALF-14020-E-02 All-Flo... -
Page 3: Warnings, Dangers And Cautions
SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR WARNING = Hazards or unsafe practices which TO INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH could result in severe personal injury, THESE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY death or substantial property damage AND OR PROPERTY DAMAGE. -
Page 4: Principles Of Operation
SECTION PRINCIPLES OF OPERATION 72000-00 BATCH CONTROLLER The 72000-00 controller is engineered to provide control of the number Energized of times a solenoid pump fully discharges both liquid chambers, referred De-energized to as a “cycle”, in a batching application. It also controls the speed that the pump cycles, how many “Batches”... -
Page 5: Installation
SECTION INSTALLATION 72000-00 BATCH CONTROLLER The 72000-00 controller requires 100 volts AC (220 volts AC is also available) to power. It delivers 12 volts DC to the pump. The appropriate 12-volt DC solenoid pump is needed to be used with this controller. This system is programmed using the keypad on the cover and can be remotely paused or stopped using dry contact via a Switch terminal on the circuit bord. - Page 6 SECTION INTERNALS A. The Display control changes the contrast on the LCD display. You will probably never touch it unless the temperature around the unit is unusually high or low. If there is no information on the display, someone probably fiddled with the control.
-
Page 7: Batch Set Up
SECTION BATCH SET UP 1. Enter the Batch you wish to program (Batch 1, Batch 2 or Batch 3) by hitting the Set button (7) to enter Setup mode and display the number of Cycles per batch. A PUMP STROKE IS ONE CHAMBER A PUMP CYCLE IS BOTH CHAMBERS 2. -
Page 8: Specifications
SECTION SPECIFICATIONS 72000-00 BATCH CONTROLLER Dimensions: 6-2/4˝ Height x 4-3/4˝ Width x 2-1/4˝ Depth Weight: 1-1/2 lbs Enclosure Construction: NEMA 4x with Sealing Gland for Cable and Boot for Switch Power Consumption: 12 Watts Voltage Requirement: 120VAC Voltage Output (to Solenoid): 12VDC 750ma Maximum (the pump’s solenoid must operate on 12VDC) Operating Temperature Range: 40°F to 100°F... - Page 9 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
