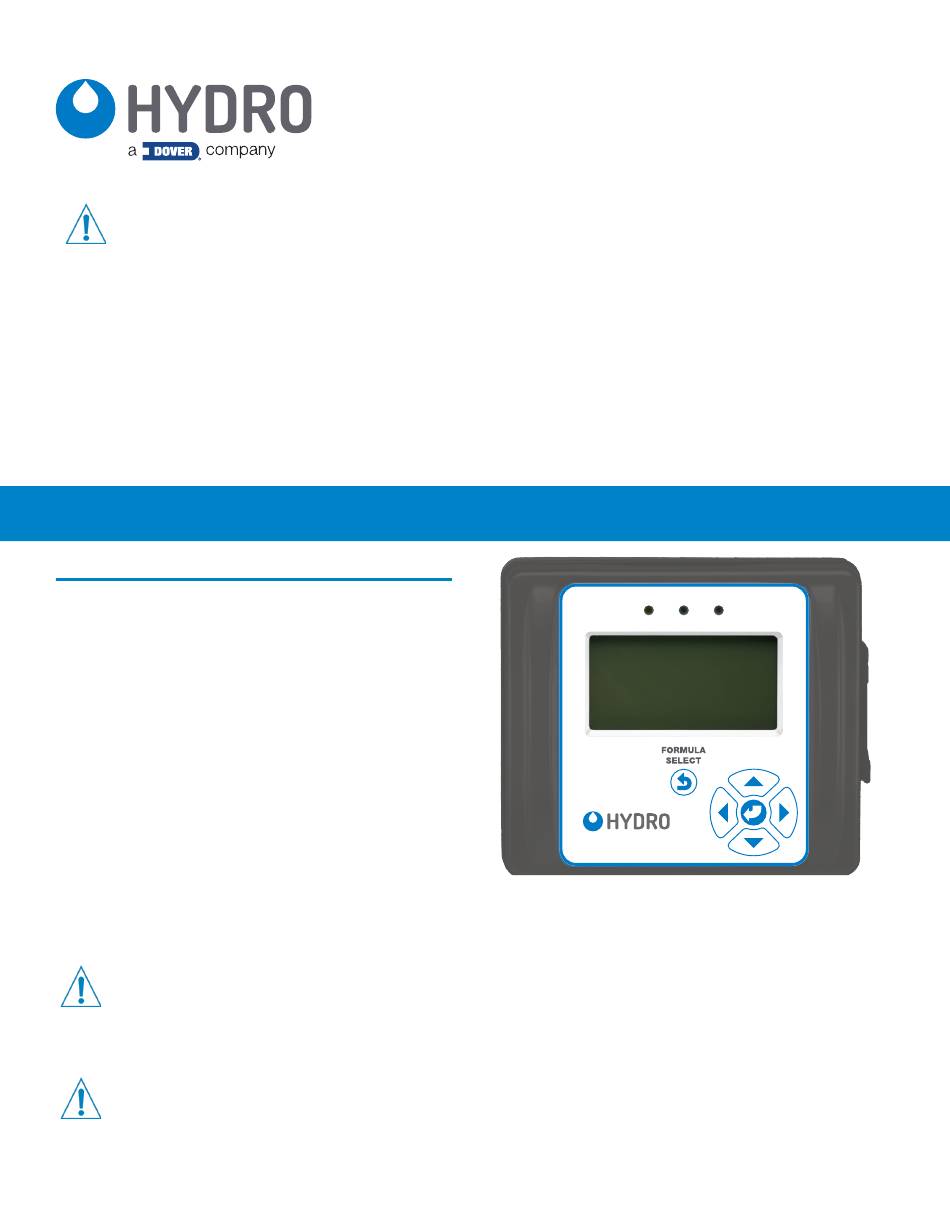

Safety Precautions
WARNING! Please read precautions thoroughly before operation. Meet all applicable local codes and regulations.
Please use this equipment carefully and observe all warnings and cautions.
protective clothing and eyewear when dispensing chemicals or other materials or when working in the
WEAR
vicinity of all chemicals, filling or emptying equipment, or changing metering tips.
observe safety and handling instructions of the chemical manufacturer.
direct discharge away from you or other persons or into approved containers.
dispense cleaners and chemicals in accordance with manufacturer's instructions. Exercise CAUTION when
ALWAYS
maintaining your equipment.
reassemble equipment according to instruction procedures. Be sure all components are firmly screwed or
latched into position.
KEEP
equipment clean to maintain proper operation.
introduction
System Components
1) Connected Total Eclipse Controller, Gray
2) Ethernet Cable Splitter and Terminator
3) Controller Interface Cable
4) Cable from Controller to Gateway
5) Cellular Gateway, SIM Card (factory installed), and RS485 Interface
The actual components delivered will depend on the
configuration of the system ordered. The Connected Total
Eclipse Controller can be connected to various Hydro
laundry dispensers and communicates data to Hydro
Connect via manual uploads or in real-time with a cellular
gateway. The system may also include:
Machine Interface – Accepts washer signals and
converts them to safe, low-voltage inputs.
Product Dispenser – Provides product transfer to the
wash machine.
Flush Manifold (optional) – Available for water flush
chemical transfer applications.
WARNING!
Connected Total Eclipse Controller Systems are intended to be installed by experienced installers, in accordance with
all applicable electrical and plumbing codes.
NOTE: Always use proper lockout or tagout procedures when servicing the dispenser.
CAUTION!
This manual was written and illustrated to present the basic installation, operation and servicing instructions of the
Connected Total Eclipse Controller. Guidelines are suggested in reference to the preferred method of installation, but
the variety of equipment and the surrounding environment will dictate the actual installation of the Connected Total
Eclipse Controller.
quick start guide
Connected Total Eclipse Controller
THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS
connect
The Connected Total Eclipse Controller is
compatible with most Hydro laundry dispensers,
and supports two modes of operation; Standard
and Pump Mapping mode
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hydro Connected Total Eclipse and is the answer not in the manual?

Questions and answers

Summary of Contents for Dover Hydro Connected Total Eclipse

  • Page 1 quick start guide Connected Total Eclipse Controller Safety Precautions WARNING! Please read precautions thoroughly before operation. Meet all applicable local codes and regulations. THANK YOU FOR YOUR INTEREST IN OUR PRODUCTS Please use this equipment carefully and observe all warnings and cautions. protective clothing and eyewear when dispensing chemicals or other materials or when working in the WEAR vicinity of all chemicals, filling or emptying equipment, or changing metering tips.
  • Page 2: Installation Summary

    installation summary Below is a summary of the key steps for the successful installation of a Connected TE controller and Gateway. Details of the installation are presented in subsequent sections. 1) Physical Installation a) Gateway installation & location i) Check for good cell signal ii) 120VAC or 240VAC power outlet (depending on gateway model) located near gateway, within 5 feet or 1.5 meter III) Mount box to wall iv) Install 2 antennas...
  • Page 3: Installation Details

    installation details Machine Interface Installation WARNING! The Connected Total Eclipse controller is intended to be 1) Route MI signal wires through knock-out on washer within the wiring installed by a qualified technician area (approximately 3/4 inch or 20mm). Use lock nut on MI nipple to only, in accordance with all applicable secure MI to washer.
  • Page 4 installation details (continued) Supply Trigger Wiring Supply Trigger Wiring by Operation Mode Connect by Operating Mode to: Trigger Supply Signal Signal Common Standard Pump Mapping Black Wire White & Black Wire Prewash Signal 1 Product 1 Signal 2 Brown Wire White &...
  • Page 5 installation details (continued) Cellular Gateway Installation (continued) 4) Connect the interface board (included in the gateway package) to the Serial Port 2 Serial Port 2. RS485 Serial Port Interface Connection Pins Board This RS485 interface board may be installed on up to four Connected TE controllers to establish communications with the gateway.
  • Page 6: Initial Controller Setup

    installation details (continued) Connected Total Eclipse Controller Mounting The Connected Total Eclipse controller may be mounted either horizontally (such as on top of the washer) or vertically (such as on the front of the washer). Mount the unit using the self-adhesive strips provided, or for added security, you may use nuts and Allen bolts or other fasteners (provided) as is appropriate to the mounting surface.
  • Page 7: Date And Time

    initial controller setup (continued) Setting the Date, Time and Time Zone After setting the operating language on the first power-up from the factory, or whenever the controller is powered up afterward, the DATE & TIME menu is displayed. When installing the controller, you must change the Date, Time, and Time Zone to match the installation location, as this controls the data contained in reports.
  • Page 8 initial controller setup (continued) Setting the Date, Time and Time Zone (continued) TIME ZONE Setting the Time Zone: (continued) We s t e r n E U C e n t r a l E U If a custom time offset is needed select CUSTOM and press E a s t e r n E U T h a i l a n d the Enter key.
  • Page 9: Operator Menus

    operator menus Home Screen The Home Screen appears after the controller language has been selected (See Set Operating Language on page 5 for more information) or whenever the controller is active. Home Screen: (Idle - No formula running.) HYDRO SYSTEMS Company Name SELECT FORMULA Product...
  • Page 10 operator menus (continued) Main Menu To reach the Main Menu from the Home Screen press any key (except the Exit key). MAIN MENU Emergency Stop: Stops all dispensing and formulas. EMERGENCY STOP LOAD WEIGHT : 075 LB Load Weight Menu: Displays the default load weight for the current formula.
  • Page 12 programming About Programming Formulas: The PROGRAM FORMULAS menu allows an installer to create and edit formulas for both Standard and Pump Mapping Modes. The Connected Total Eclipse controller allows up to 48 formulas to be created, each using up to 8 products. •...
  • Page 13: Installer Menu

    programming (continued) WARNING! It is imperative that when the installer is programming the washer signals, to allow plenty of time between triggers to ensure that a product (or group of products) will run for each of its triggers. Programming Notes: •...
  • Page 14 programming (continued) Set Default Weight Set Default Weight F01 PADS Here the default load weight for this formula can be input. PRODUCT SETTINGS SET DEFAULT WEIGHT When a load runs, either the default load weight or the operator-entered SET COUNT PUMP actual load weight for a specific load is recorded in the data log (for SET END TIME OFFSET Reports).
  • Page 15: Specifications

    programming (continued) Set Formula Name Edit Name (Optional) F01 PADS PRODUCT SETTINGS This feature allows a customized name to be added to a formula, up to 15 SET DEFAULT WEIGHT characters in length. SET COUNT PUMP SET END TIME OFFSET 1) Move the selection box onto the EDIT NAME menu item and press the EDIT NAME Enter key to launch the NAME F## input screen.
  • Page 16: Warranty

    specifications (continued) Gateway Specifications Category Specification Size 5.55” W x 4.94” H x 1.3” D (14.1cm W x 12.56cm H x 3.3 cm D) Weight 1.22 lb. (0.55 kg) Power Ratings Input Current 700 mA @ 12 VAC Input Voltage 12 to 36 VDC Power Consumption 6 W Housing Material Metal...
