Inogen One G3 Portable Concentrator Manual

Introduction

The air we breathe is made up of 21% oxygen, 78% nitrogen and 1% other gases.
Your Inogen One® G3 portable oxygen concentrator works by drawing in air and separating out oxygen from other gases using a filter system.
This filter traps some gases; but allows oxygen to pass through. This oxygen, now up to 95% pure, is delivered to you via your nasal cannula to assist in your breathing and ability to get out and about.
It is lightweight, compact, reliable and highly efficient. The Inogen One® G3 therefore gives you increased mobility whilst using oxygen.
BOC Homecare hopes that this product and the support, training and education we offer will benefit you and that, in turn, you will be able to get out and about as much as possible so you can live life to the fullest.

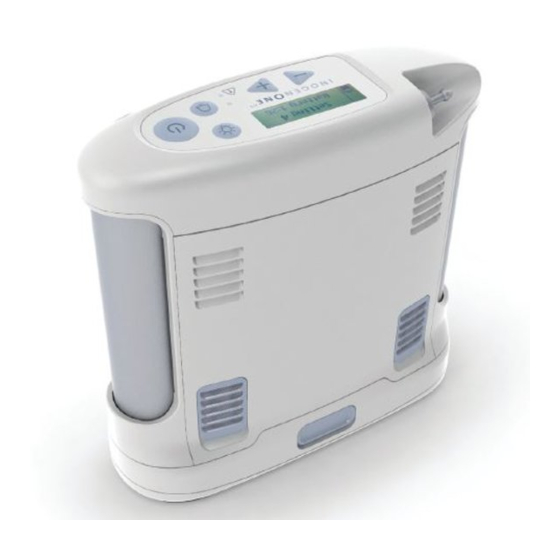

Inogen One® G3 device overview

Inogen One® G3 device overview Step 1

ON/OFF button
Press button once to turn the device "ON". Press and hold for one second to turn the device "OFF".
ON/OFF button

Audible alarm button
Pressing this button will toggle the Inogen One® G3's breath detection audible alert on and off.
Audible alarm button

Flow control buttons
Use the flow control buttons (– or +) to change the setting shown on the display. Depending on device version, there are four or five settings (1 to 4, or 1 to 5 pulsed).
Flow control buttons

Display backlight button
Push this button to turn on the display backlight for better illumination of the device settings. The backlight turns off again automatically after 10 seconds.
Display backlight button

Inogen One® G3 device overview Step 2

Display
This screen displays information regarding flow setting, power status, battery life and errors. In the picture to the right, the device is at setting 4, with one hour and 26 minutes of battery life remaining at this setting.
Display

Indicator lights
A red light indicates a change in operating status or a condition that may need a priority response.
A flashing light is a higher priority than a solid light.
Indicator lights

Audible signals
An audible signal (beep) indicates a change in operating status or a condition that may need a priority response (alarm). More frequent beeps indicate higher priority conditions.

Inogen One® G3 filters and connections

Particle filters
Particle filters keep out dust, dirt and large particles. They must be kept in place during concentrator operation to keep input air clean. Note: depending on device version, the intake filters may be at the top or bottom of the device.
Particle filters

Cannula fitting
Your high-flow nasal cannula connects to this outlet for oxygen delivery.
Cannula fitting

Power input
Located at the top of the device to one side, this is the connection for external power from the AC power supply or DC power cable.
Power input

How to use the Inogen One® G3


Please read the important safeguards in the "Dos and don'ts" section and observe all warnings and cautions in this guide. Follow all operating instructions. If you have any questions or concerns please call BOC immediately on 0800 136 603.

  1. Device location
    Place your Inogen One® G3 device in a wellventilated location so the intake and exhaust vents are clear and unobstructed (the position of these can vary as pictured alongside). The device should also be located so auditory alarms can be heard.
    Device location
  2. Filters
    Ensure both intake particle filters (those with the blue plastic surround) are clean and correctly installed.
    Filters
  3. Battery
    Install the Inogen One® G3 battery by sliding it into place at the bottom of the device until an audible click is heard and the latch securing the battery to the device returns to the upper position.
    Battery
  4. Power sources (AC, DC, Battery)
    The Inogen One® G3 portable concentrator can operate from AC, DC or battery power, with the detachable battery acting as a secondary power supply in the event of power loss (AC or DC). Therefore, when operating the device from AC or DC power, you should always keep a properly-inserted battery in the unit. This will ensure uninterrupted operation and continuous oxygen production.
    AC operation (mains)
    Connect the AC power plug to mains power. Then connect the AC power output plug into the Inogen One® G3 device as shown below. The LED on the power supply will illuminate and a beep will sound from the concentrator.
    Power sources (AC, DC, Battery)
    DC operation (eg. car 12 volt)
    Connect the DC power plug to a 12 volt car power outlet or auxiliary DC power supply. Then connect the DC power plug into the Inogen One® G3 device as shown below.
    DC operation (eg. car 12 volt)
    Battery operation
    To operate the device via its detachable battery, install the battery by sliding it into place at the bottom of the device until an audible click is heard and the battery latch returns to the upper position.
    Battery operation
  5. Connect nasal cannula
    The oxygen outlet fitting is located at the top of the device. Push your high-flow nasal cannula tubing onto this, ensuring a good seal and tight fit between the tubing and oxygen outlet.
    Connect nasal cannula
  6. Turn on device
    Turn the device on by pressing the ON/OFF button. A single, short beep will sound after the logo is displayed. The display will show the selected flow setting and power condition. Following this, the device takes up to 2 minutes to warm up (longer if stored in a cold environment). During this time, the oxygen purity of the device is building to – but may not reach – specification. You should therefore leave the device to run for at least two minutes prior to use.
  7. Pulsed flow setting
    When powered up, the Inogen One® G3 device retains the previous setting it was used at. If you need to change this, use the "+" or "–" setting buttons to adjust to the desired setting (1, 2, 3, 4 or 5 pulsed flow). The current setting is viewed on the display. Note: you should only use the device at the setting prescribed by your clinician (or only change as clinically instructed).
  8. Oxygen delivery
    Position the nasal cannula on your face with the soft prongs sitting just inside your nostrils and breathe through your nose. The Inogen One® G3 device will sense the onset of inhalation and deliver a pulse of oxygen when you inhale through your nose. Thereafter, the device senses each breath and delivers oxygen every time you inhale through your nose, even if your breathing rate changes.
    Note: A green light will flash on the top of the unit each time a breath is detected. Make sure the nasal cannula is properly aligned on your face and you are breathing through your nose to trigger the device to deliver pulses of oxygen.
    Oxygen delivery
  9. Power OFF
    When you are finished using the device, press and hold the ON/OFF button for approximately one second. Store the Inogen One® G3 unit in a cool, dry location when not in use.

Battery charging

When out and about, your Inogen One® G3 device operates from battery power which will discharge over time. You therefore need to monitor the device's battery status and keep it charged up as required (the device display indicates the estimated remaining percentage (%) or minutes of available use).
When the concentrator detects that battery life is low (<10 mins remaining) a low priority alert will sound. When the battery is empty, the alert changes to a high priority. When battery life is low, do one of the following:
→ Plug the Inogen One® G3 into an AC or DC power source using the AC power supply or DC cable.
→ Replace the battery with a charged battery after turning off the Inogen One® G3 (by pressing the ON/OFF button). To remove a battery, press and hold the battery latch button and slide the battery away from the concentrator.
→ If the battery is drained, charge the battery or remove it from the concentrator.
→ If the Inogen One® G3 is being powered by the AC power supply or DC power, batteries will charge during operation.
→ Note: leaving your Inogen One® G3 device plugged in past full charge will not harm the concentrator or battery.
To ensure your battery is properly charging, use the correct AC or DC power cables and check that the display shows a battery-charging symbol (see p12 for examples). To take care of your device, only use Inogen One® G3 batteries as supplied by BOC Homecare.

Always:
→ Store device batteries in a cool, dry place.
→ Keep liquids away from batteries. If batteries become wet, discontinue use immediately and dispose of the battery properly.
→ If using multiple batteries, make sure that each battery is rotated-for-use on a regular basis. Batteries should not be left dormant for more than 90 days at a time.

Dos and don'ts


Please ensure you read all accompanying literature supplied to you prior to using your home oxygen equipment. In particular, pay attention to the section on not smoking or allowing others to smoke near your equipment.

Dos
→ Always ensure you have access to a power source to recharge your Inogen One® G3 unit.
→ Always use only those power sources (AC/DC) supplied with the device.
→ Always protect the battery and power adapters from fluid spills or drips to avoid possible shock hazards.
→ Always keep the Inogen One® G3 unit at least 10 feet/3.2 metres from hot, sparking objects or naked sources of flame.

Don'ts
→ Never block the air intake and exhausts on the front of the Inogen One® G3 unit.
→ Never lie the unit on its side during operation and do not cover with clothing or other materials.
→ Never expose the unit to extremes of temperature and do not store overnight in a car at any time of year (the operating temperature of the unit is 5°C to 40°C).
→ Never use oil or grease near or with the unit: a spontaneous and violent ignition may occur if oil, grease or other petroleum substances come into contact with oxygen under pressure. Keep these substances away from the oxygen system, tubing, connections and any other oxygen source.
→ Never use any petroleum-based or other lubricants on your hands or person.
→ Never allow unauthorised or untrained individuals to service the equipment or attempt to open the device.
→ Never operate the Inogen One® G3 unit or accessories in standing water and do not submerse these or expose to water. Electric shock or damage to the unit may result.
→ Never expose the rechargeable battery to fire or dispose of in a fire. It may explode and cause potential injury.
→ Never short circuit the battery's metal contacts with metallic objects such as keys or coins. It may cause sparks or excessive heat.
→ Never disassemble, puncture or crush the battery. Rechargeable battery electrolytes may be toxic if swallowed and can be harmful to skin and eyes. Use of a damaged battery may cause personal injury. Always keep the battery away from children.
→ Never dispose of any electrical components and/or electronic equipment supplied with this device.
→ Never operate the Inogen One® G3 in an area where the air may be contaminated with carbon monoxide or hydrocarbons as this may shorten the life of the unit; i.e. near car exhausts, furnaces or gas heaters.
→ Never place this device near other equipment or devices that create or attract electromagnetic fields. Placing the unit in electromagnetic fields greater than 10 V/m can affect its operation. Examples of such equipment include defibrillators, diathermy equipment, cellular telephones, CB radios, radio-controlled toys and microwave ovens.
→ Never expose the Inogen One® G3 rechargeable battery or accessories to temperatures outside of specified operating or storage temperatures (5°C to 40°C) as this may cause damage.

Alarms and warnings


The Inogen One® G3 display is divided into three areas. The upper left corner shows the breath activation mode status; the lower left corner indicates power source and battery charge level; and the right hand side of the display contains text information such as flow setting, battery time remaining and error notifications.
Alarms and warnings

Power status icons – operating on battery
The below icons are displayed in the power status window when the Inogen One® G3 is operating on battery power:

Icon Meaning
Battery is empty.
Battery has less than 10% charge remaining. This icon flashes.
Battery has approximately 40% to 50% charge remaining.
Battery is full.

Power status icons – operating on battery

Power status icons – plugged in to AC power and charging battery
The below icons are shown when the Inogen One® G3 is operating from an external power supply and is charging the battery (a lightning bolt indicates external power supply).

Icon Meaning
Battery is charging with charge level between 60% and 70%.
The battery is fully charged and is charging as necessary to maintain its charge.
Battery is charging with charge level less than 10%.
The Inogen One® G3 is operating from an external power source with no battery present.

Power status icons – plugged in to AC power and charging battery Step 1
Power status icons – plugged in to AC power and charging battery Step 2

Mode icons – top left corner of display
One of two icons can be displayed in the top left corner of the Inogen One® G3's display window. Both relate to whether or not the breath detection audible alarm is enabled or not.

Icon Meaning
The breath detection audible alarm has been enabled.
The breath detection audible alarm is disabled. This is the default condition.

Inogen One® G3 system notifications
The Inogen One® G3 monitors various parameters during operation and utilises an intelligent alarm system to indicate concentrator malfunction. If multiple alarm conditions are detected, the highest priority alarm will be displayed. The following notification messages are accompanied by a single, short beep:

Message display and text Meaning
Inogen One® G3 shutting down ON/OFF button has been pressed for two seconds. Concentrator is performing system shut down.
HH:MM Vx.x: Serial Number The alarm button has been pressed for five seconds.

Inogen One® G3 low priority alerts
The Inogen device has three types of priority alert: low, medium and high. Low priority alerts typically mean the device can still be used but may require attention. Medium and high priority alerts may require immediate attention and the use of an alternative oxygen supply.
The information on the following pages provides more detail. In all cases, please contact BOC Homecare on 0800 136 603 to discuss any questions you may have.
Low priority alert messages (see table on the next page) are accompanied by a double beep with a solid red light showing on the display panel.

Message display and text Condition/action/explanation
Check battery Battery error has occured. Check the connection of your battery and ensure that it is properly attached and latched onto the concentrator. If battery error recurs with the same battery, stop using the battery and switch to a new battery or remove and operate concentrator using external power supply.
Oxygen low see manual Concentrator is producing oxygen at a slightly low level (<82%) for a period for 10 minutes. If condition persists, contact your equipment provider.
Remove battery to cool Battery has exceeded its charging temperature and charging has stopped. The battery will not charge while this alert is present but will begin to charge when the battery temperature returns to the normal operating range. If the battery charging is desired sooner, remove the battery from the concentrator and allow it to cool in an open area for approximately 10-15 minutes. Then, re-insert the battery into the Inogen One® G3. If the problem still persists, contact BOC Homecare on 0800 136 603.
Comm error see manual Concentrator is producing oxygen but cannot report battery status. Replace battery. If condition persists, contact BOC Homecare on 0800 136 603.
Service needed The concentrator requires servicing at the earliest convenience. The concentrator is operating to specification and may continue to be used. Contact BOC Homecare to arrange service.
O2 sensor fail see manual The concentrator's oxygen sensor has malfunctioned. You may continue to use the concentrator. If the condition persists, contact BOC Homecare on 0800 136 603.

Inogen One® G3 medium priority alerts
The following medium priority alert messages are accompanied by a triple beep repeated every 25 seconds, accompanied with a flashing red light.

Message display and text Condition/action/explanation
No breath detect check cannula Concentrator has not detected a breath for 60 seconds. Check that cannula is connected to concentrator, there are no kinks in tubing and cannula is positioned properly in your nose.
Oxygen error service needed Oxygen output concentration has been below 50% for 10 minutes. If condition persists, switch to your backup oxygen source and contact BOC Homecare on 0800 136 603 to report fault and arrange repair/replacement.
O2 delivery error A breath has been recognized, but proper oxygen delivery has not been detected.
System error see manual Concentrator is experiencing an error but is capable of continued operation. Remove and re-insert battery and/or check external power supply connections. If condition persists, contact BOC Homecare on 0800 136 603.
Battery HOT warning Battery has exceeded temperature limit while concentrator is running on battery power. If possible, move concentrator to a cooler location or power unit with an external power supply and remove battery. If condition persists, contact BOC Homecare on 0800 136 603

Inogen One® G3 high priority alerts
The following high priority alert messages are accompanied by a five beep pattern repeated every 10 seconds, accompanied with a flashing red light.
Inogen One® G3 high priority alerts

Message display and text Condition/action/explanation
Battery empty attach plug Concentrator has insufficient battery power to produce oxygen. Attach external power supply or exchange battery, then restart unit if necessary by pressing ON/OFF button.
Battery HOT shut down Battery has exceeded temperature limit while concentrator is running on battery power. Concentrator has stopped producing oxygen. If possible, move concentrator to a cooler location, then turn power off then back on. Ensure air intake and outlet vents have clear access and particle filters are clean. If condition persists, switch to a backup source of oxygen and contact BOC Homecare on 0800 136 603.
System HOT shut down Concentrator temperature is too high and oxygen production is shutting down. Ensure air intake and outlet vents have clear access and particle filters are clean. If condition persists, switch to a backup source of oxygen and contact your BOC Homecare on 0800 136 603.
System COLD shut down This may result from the concentrator being stored in a COLD enviroment (below 0ºC (32ºF). Move to a warmer enviroment to allow the unit to warm up before starting it. If condition persists, switch to a backup source of oxygen and contact BOC Homecare on 0800 136 603.
Error (###) service needed Concentrator has stopped producing oxygen and is shutting down. You should:
  1. Note error number
  2. Switch to backup oxygen source
  3. Contact BOC Homecare on 0800 136 603.

Troubleshooting

Some issues you may experience with the G3 portable concentrator are described below along with potential solutions.

Problem Possible cause Recommended solution

Concentrator does not power on when ON/OFF button is pressed

 Battery is discharged or no battery is present Use external power supply or replace battery with one that is fully charged
AC power supply is not connected properly Check power supply connection and verify green light is solid
DC cable is not connected properly Check DC cable connection at the concentrator and at cigarette lighter or auxillary DC power source
Malfunction Contact your equipment provider

No oxygen

 Concentrator is not fully powered on Press ON/OFF button to power concentrator
Cannula is not connected properly or is kinked or obstructed Check cannula and connection to concentrator nozzle

Cleaning and maintenance

Device exterior
You may clean the outside case of the Inogen One® G3 device using a cloth dampened with a mild liquid detergent (washing up liquid) and water. Do not use excessive amounts of water and damp clean only.


Do not submerse the Inogen One® G3 or its accessories in water or allow water to enter the case – this may lead to electrical shock and/or damage.
Do not use cleaning agents such as alcohol-based wipes, ethylene chloride or petroleum-based cleaners on the exterior case of the portable concentrator or particle filters.

Filter cleaning and replacement
The Inogen One® G3 device comes with two external particle filters located at the bottom front of the device. Both of these filters must be cleaned on a weekly basis to ensure air flow continues to enter the device during operation.
Filter cleaning and replacement Step 1
To clean the filters, firstly remove them from their location at the bottom of the device.
Now clean the filters with water and a mild liquid detergent (washing up liquid). Rinse the particle filters in clean running water and allow to dry before replacing in the Inogen One® G3 portable concentrator device.
Filter cleaning and replacement Step 2

Note: it may be necessary to clean the particle filters more frequently in dusty environments.

Inogen One® G3 specifications

Weight 2.19kgs with single battery
2.63kgs with double battery
Battery duration Up to 4.5 hours with single battery (setting 2)*
Up to 9.0 hours with double battery (setting 2)*
Battery charging time Up to 4 hours for single battery
Up to 8 hours for a double battery
Flow control Settings Settings: 1-to-4 or 1-to-5 (depends on device version)

*Battery durations vary according to breath rate.

If you are visually impaired and require a large print copy, please contact us.
Our normal working hours are Monday to Friday 8am until 5.30pm. We are open 24 hours for emergencies only.

BOC Healthcare
Patient Service Centre, Priestley Road, Worsley, Manchester M28 2UT, United Kingdom Tel 0800 136 603, Fax 0800 169 9989, healthcare.home-uk@boc.com, www.bochealthcare.co.uk

Inogen® and Inogen One® are registered trademarks of Inogen, Inc.
BOC Healthcare is the trading name of BOC Limited, registered office: The Priestley Centre, 10 Priestley Road, Surrey Research Park, Guildford, GU2 7XY, England. Number 337663 – English Register. Authorised and regulated by the Financial Conduct Authority, register number 715528. BOC is a trading name used by companies within The Linde Group. The BOC logo and the BOC word are trademarks of Linde AG. Copyright © 2017. Linde AG.

Brand

Videos

Inogen One G3 - Setting Video

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Inogen One G3 Portable Concentrator Manual

Advertisement

Need help?

Need help?

Do you have a question about the One G3 and is the answer not in the manual?

Questions and answers

Related Manuals for Inogen One G3

Save Article as PDF

Table of Contents
