Summary of Contents for Inogen One G3

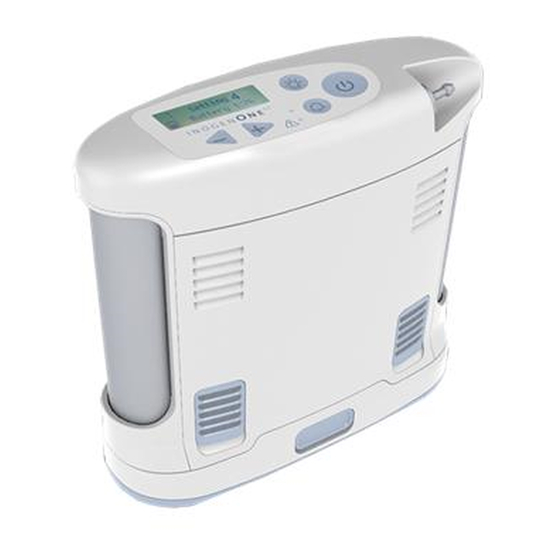

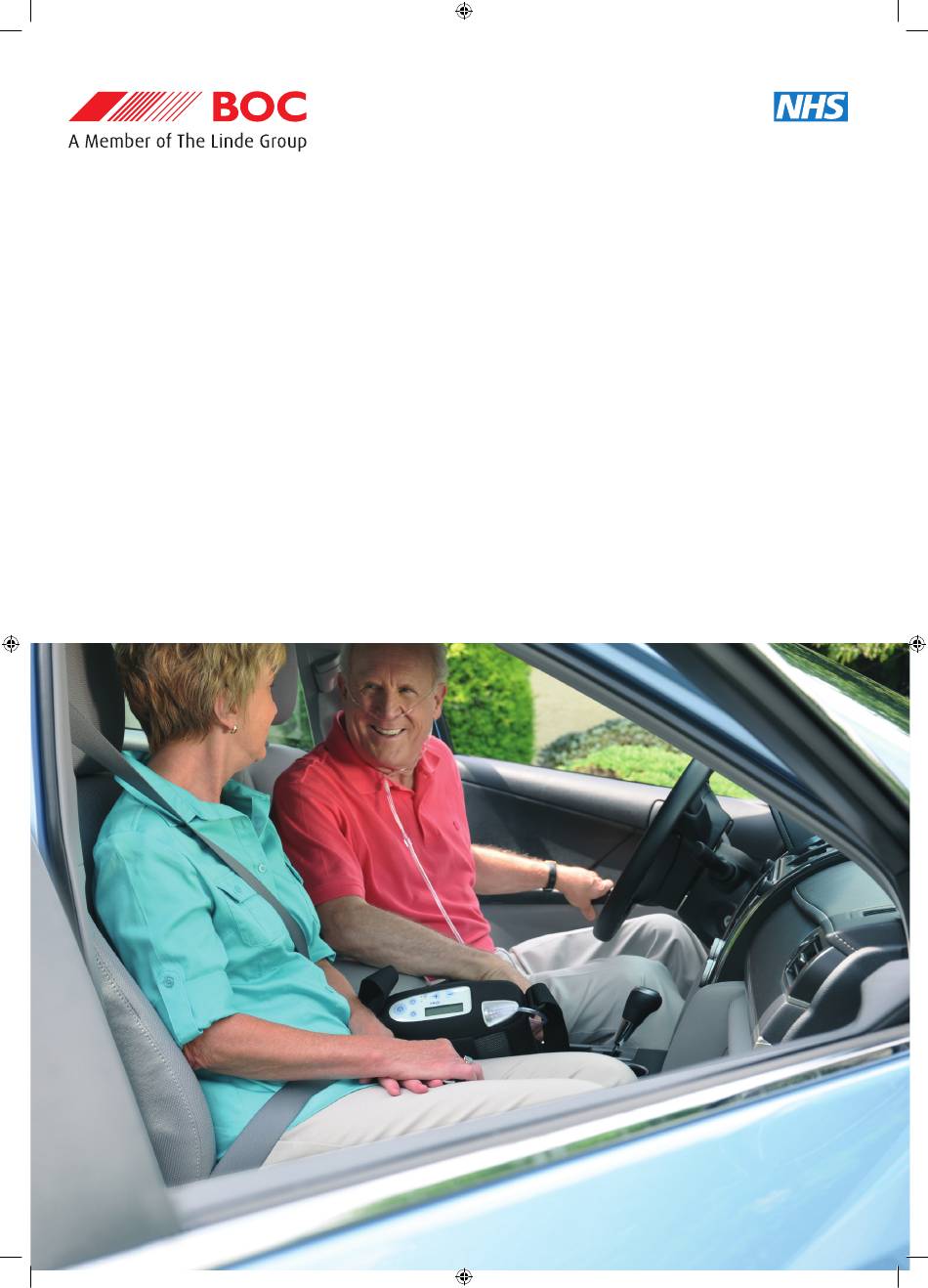

- Page 1 Inogen One® G3 portable concentrator. Equipment guide. BOC: Living healthcare 605360-HC Inogen One G3 POC Brochure NHS-03.indd 1 09/06/2017 08:31...
-
Page 2: Table Of Contents
6 Filters and connections 7 How to use the Inogen One® G3 10 Battery charging 11 Dos and don’ts 12 Alarms and warnings 17 Troubleshooting 18 Cleaning and maintenance 19 Inogen One® G3 specifications 605360-HC Inogen One G3 POC Brochure NHS-03.indd 2 09/06/2017 08:31... -
Page 3: Introduction
The air we breathe is made up of 21% oxygen, 78% nitrogen and 1% other gases. Your Inogen One® G3 portable oxygen concentrator works by drawing in air and separating out oxygen from other gases using a filter system. This filter traps some gases; but allows oxygen to pass through. -
Page 4: Inogen One® G3 Overview
5 pulsed). Display backlight button Push this button to turn on the display backlight for better illumination of the device settings. The backlight turns off again automatically after 10 seconds. 605360-HC Inogen One G3 POC Brochure NHS-03.indd 4 09/06/2017 08:31... -
Page 5: Indicator Lights
A flashing light is a higher priority than a solid light. Audible signals An audible signal (beep) indicates a change in operating status or a condition that may need a priority response (alarm). More frequent beeps indicate higher priority conditions. 605360-HC Inogen One G3 POC Brochure NHS-03.indd 5 09/06/2017 08:31... -
Page 6: Filters And Connections
Power input Located at the top of the device to one side, this is the connection for external power from the AC power supply or DC power cable. 605360-HC Inogen One G3 POC Brochure NHS-03.indd 6 09/06/2017 08:31... -
Page 7: How To Use The Inogen One® G3
3. Battery Install the Inogen One® G3 battery by sliding it into place at the bottom of the device until an audible click is heard and the latch securing the battery to the device returns to the upper position. - Page 8 Connect the DC power plug to a 12 volt car power 6. Turn on device outlet or auxiliary DC power supply. Then connect the DC power plug into the Inogen One® G3 device as shown below. Turn the device on by pressing the ON/OFF button.
- Page 9 ON/OFF button for approximately one need to change this, use the “+” or “–“ setting second. Store the Inogen One® G3 unit in a cool, buttons to adjust to the desired setting (1, 2, 3, 4 or dry location when not in use.
-
Page 10: Battery Charging
→ Plug the Inogen One® G3 into an AC or DC power → If using multiple batteries, make sure that each source using the AC power supply or DC cable. -
Page 11: Dos And Don'ts
→ Never disassemble, puncture or crush the hazards. battery. Rechargeable battery electrolytes may → Always keep the Inogen One® G3 unit at least be toxic if swallowed and can be harmful to skin 10 feet/3.2 metres from hot, sparking objects or and eyes. -
Page 12: Alarms And Warnings
Power status icons – operating on battery Power status icons – plugged in to AC Power Display Icons The Inogen One® G3 display is divided into three areas. The upper left corner of the Text power and charging battery Power Display Icons display shows the breath detection alert status. - Page 13 Power Status Icons (continued) Power Status Icons (continued) The icons below are examples of those shown when the Inogen One® G3 is operating The icons below are examples of those shown when the Inogen One® G3 is operating from an external power supply and charging the battery. The lightning bolt indicates from an external power supply and charging the battery.
- Page 14 10-15 minutes. Then, re-insert the battery into the Inogen One® G3. If the problem still persists, contact BOC Homecare on 0800 136 603. Comm error see manual Concentrator is producing oxygen but cannot report battery status.
- Page 15 If possible, move concentrator to a cooler location or power unit with an external power supply and remove battery. If condition persists, contact BOC Homecare on 0800 136 603 605360-HC Inogen One G3 POC Brochure NHS-03.indd 15 09/06/2017 08:31...
- Page 16 Concentrator has stopped producing oxygen and is shutting down. needed You should: 1. Note error number 2. Switch to backup oxygen source 3. Contact BOC Homecare on 0800 136 603. 605360-HC Inogen One G3 POC Brochure NHS-03.indd 16 09/06/2017 08:31...
-
Page 17: Troubleshooting
No oxygen Concentrator is not fully Press ON/OFF button to power concentrator powered on Cannula is not Check cannula and connection to concentrator connected properly or is nozzle kinked or obstructed 605360-HC Inogen One G3 POC Brochure NHS-03.indd 17 09/06/2017 08:31... -
Page 18: Cleaning And Maintenance
Inogen One® G3 portable concentrator Cleaning and maintenance. Device exterior You may clean the outside case of the Inogen One® G3 device using a cloth dampened with a mild liquid detergent (washing up liquid) and water. Do not use excessive amounts of water and damp clean only. -
Page 19: Inogen One® G3 Specifications
Up to 4 hours for single battery Up to 8 hours for a double battery Flow control Settings Settings: 1-to-4 or 1-to-5 (depends on device version) *Battery durations vary according to breath rate. 605360-HC Inogen One G3 POC Brochure NHS-03.indd 19 09/06/2017 08:31... - Page 20 Tel 0800 136 603, Fax 0800 169 9989, healthcare.home-uk@boc.com, www.bochealthcare.co.uk Inogen® and Inogen One® are registered trademarks of Inogen,Inc. BOC Healthcare is the trading name of BOC Limited, registered office: The Priestley Centre, 10 Priestley Road, Surrey Research Park, Guildford, GU2 7XY, England.
