INOGEN ONE G5 OXYGEN CONCENTRATOR
TECHNICAL MANUAL
96-09302-00-01
Revision A
This Manual applies to the following Inogen, Inc. products:

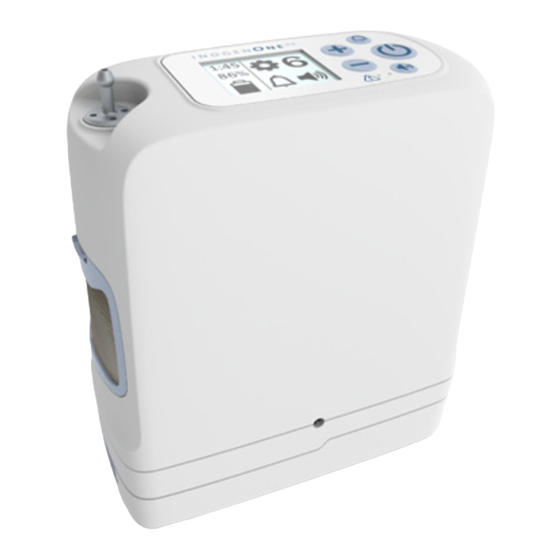

• Inogen One G5 Oxygen Concentrator, model #IO-500
• Inogen One AC Power Supply, model #BA-501
• DC Power Cord, model #BA-306
• Battery, model #BA-500
• Battery, model #BA-516
CONFIDENTIAL
96-09302-00-01 revA
DCR 19-030
21-Mar-2019
INOGEN ONE G5 TECHNICAL MANUAL
Page 1 of 18
and PROPRIETARY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the One G5 and is the answer not in the manual?

Questions and answers

Related Manuals for Inogen One G5

Summary of Contents for Inogen One G5

  • Page 1 INOGEN ONE G5 OXYGEN CONCENTRATOR TECHNICAL MANUAL 96-09302-00-01 Revision A This Manual applies to the following Inogen, Inc. products: • Inogen One G5 Oxygen Concentrator, model #IO-500 • Inogen One AC Power Supply, model #BA-501 • DC Power Cord, model #BA-306 •...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INFORMATION FOR PROVIDERS OF THE INOGEN ONE G5 ..........3 1.1................... 3 AUTION AND ARNING TATEMENTS SETTING UP A PATIENT ON INOGEN ONE G5 ................. 4 2.1........................4 NDICATIONS FOR 2.2........................4 YSTEM OMPONENTS 2.3.

  • Page 3: Information For Providers Of The Inogen One G5

    This Technical Manual will familiarize you with provider-specific information regarding the Inogen One G5 Oxygen Concentrator and its accessories. Before reading this Technical Manual, please read and review the Inogen One G5 Patient Manual for description and indications for use of the device.

  • Page 4: Setting Up A Patient On Inogen One G5

    6. Plug into closest AC outlet. 7. Turn on the Inogen One G5 by pressing the on/off button. 8. Use the + (increase flow) or – (decrease flow) buttons to adjust the Inogen One G5 to the flow setting prescribed by the physician or clinician.

  • Page 5: Selecting The Proper Flow Setting

    OCD’s efficacy at maintaining the patient’s blood oxygen saturation. As an oxygen concentrator, the Inogen One G5 does not contain a finite stored volume of oxygen, such as with compressed gas or liquid cryogenic systems. The Inogen One G5 can provide oxygen to the patient as long as a source of electricity is available.

  • Page 6: Servicing The Inogen One G5

    3.1. Maintenance by the Provider 3.1.1. Authorized Repair Centers The Inogen One G5 is only intended to be repaired by authorized repair centers. If a repair is required, please contact Inogen to locate your nearest authorized repair center. If you would like to become an authorized repair center, please contact Inogen for access to certification training, service instructions, component part lists and the necessary repair equipment.
  • Page 7 This filter is intended to protect the user from small particles in the product gas flow. The Inogen One G5 includes an output filter conveniently located behind the removable cannula nozzle fitting. Inogen suggests that this filter be replaced between patients.
  • Page 8 • Battery Status • Charging Status 3.1.8. Data Download To download data from the Inogen One G5, you will need a micro USB cord and the Inogen field service communication program. To collect data: a) With the Inogen One G5 off, remove the Particle Filter on the left side, beneath the cannula barb.

  • Page 9: Maintenance By The Patient

    G5 unless proper saturation has been verified by a clinician. 3.2.2. Particle Filter Cleaning and Replacement On the sides of the Inogen One G5, ambient air passes through two particle filters that remove dust fragments. These particle filters must be cleaned on a weekly basis to ensure adequate air flow through the device.
  • Page 10 3.2.5. Battery Care and Maintenance The Inogen One G5 Lithium Ion Battery requires special care to ensure proper performance and long life. Use only Inogen One G5 Batteries with the Inogen One G5 Oxygen Concentrator. The Inogen One G5 Oxygen Concentrator adjusts its oxygen production rate to match the oxygen demand specified by the user flow setting.
  • Page 11 3.2.5.5. Storage Instruct patients to remove the battery from the Inogen One G5 when it is not in use to avoid inadvertent discharge. Leaving a battery attached to an idle Inogen One G5 for prolonged periods will result in battery damage that will severely shorten the expected life of the battery.

  • Page 12: Expected Service Requirements

    Storage of the Inogen One G5 battery in a cool, dry location will help to maximize the longevity of the battery. 3.3. Expected Service Requirements The following table is provided as an estimate only and assumes nominal environmental conditions for temperature, humidity, and air pollution.

  • Page 13: Classifications

    Degree of Protection Against Ingress of Water: IP 22 Degree of Safety for Application in Presence of Not suitable for such applications Anesthetic Gases: CONFIDENTIAL Page 13 of 96-09302-00-01 revA DCR 19-030 21-Mar-2019 INOGEN ONE G5 TECHNICAL MANUAL and PROPRIETARY...

  • Page 14: Inogen One G5 Errors

    5. INOGEN ONE G5 ERRORS 5.1. DEFINITIONS ⚠ 5.1.1. Alert LED: The alert LED is positioned above a warning symbol ( ) on the user interface panel and is used to indicate when an error is occurring. 5.1.2. Breath Detect LED: The breath detect LED is used to indicate proper bolus delivery.
  • Page 15 The concentrator should be serviced within 30 days. CONFIDENTIAL Page 15 of 96-09302-00-01 revA DCR 19-030 21-Mar-2019 INOGEN ONE G5 TECHNICAL MANUAL and PROPRIETARY...
  • Page 16 LCD screen, press the mode button to confirm. This resets the system software. 4. Press the power button to resume normal use of the concentrator. CONFIDENTIAL Page 16 of 96-09302-00-01 revA DCR 19-030 21-Mar-2019 INOGEN ONE G5 TECHNICAL MANUAL and PROPRIETARY...

  • Page 17: Medium Priority Errors

    Warning temperature limit. Ensure air intake and outlet vents have clear access and particle filters are clean. If this error persists, replace the concentrator. CONFIDENTIAL Page 17 of 96-09302-00-01 revA DCR 19-030 21-Mar-2019 INOGEN ONE G5 TECHNICAL MANUAL and PROPRIETARY...

  • Page 18: High Priority Errors

    5.6. CONTACT for MORE INFORMATION Inogen, Inc. 326 Bollay Drive Goleta, CA 93117 Toll Free: 1-866-765-2800 http://www.inogenone.com http://www.inogen.net CONFIDENTIAL Page 18 of 96-09302-00-01 revA DCR 19-030 21-Mar-2019 INOGEN ONE G5 TECHNICAL MANUAL and PROPRIETARY...
