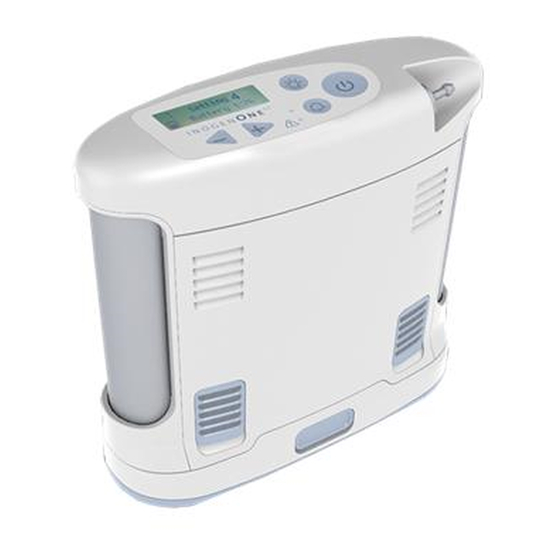

Inogen One G3 Manual

Column change procedure

Hide thumbs Also See for One G3:

4. Install a replacement fuse, Inogen RP#125 (BUSS MDA-12) and reassemble the tip.

Ensure the retainer ring is properly seated and tightened.



Inogen One G3 Column Change Procedure

Cigarette Adapter Plug

CAUTION

For continued protection against risk of ﬁre, only use fuse speciﬁed.

Inogen One® G3 Column Change Procedure

NOTE

Column change instructions are only to be used when maintenance is

required and are not intended for practice purpose.

1. Turn off the Inogen One® G3 concentrator by pressing the power button to shut

down the device.

2. Remove the Inogen One® G3 concentrator from the carry bag.

3. Remove the battery from the Inogen One® G3 concentrator.

4. Turn Inogen One® G3 over so that is standing in the

upside down position where the display panel is

facing down and the bottom of the Inogen One® G3

is facing up.

5. There are two columns (metal tubes) on the

Inogen One® G3 concentrator and one is located on

each side of the device.



 

Cleaning, Care and Maintenance Chapter 6

Fuse

Retainer Tip

Retainer

Table of Contents

Need help?

Do you have a question about the One G3 and is the answer not in the manual?

Page 1 Column change instructions are only to be used when maintenance is required and are not intended for practice purpose. 1. Turn off the Inogen One® G3 concentrator by pressing the power button to shut down the device. 2. Remove the Inogen One® G3 concentrator from the carry bag.
Page 2 Inogen One® G3 Column Change Procedure (continued) Open and unlocked 6. Remove column by pressing the latch button with thumb or ﬁnger. 7. While holding the button open, slide the column (metal tube) out by gripping the exposed aluminum surface with other hand.
Page 3 Inogen One® G3 Column Change Procedure (continued) 11. Insert column (metal tube) into the Inogen One® G3 concentrator. Do not leave the column exposed; it should be inserted into the Inogen One G3 as soon as the dust caps have been removed. Closed and locked 12.
