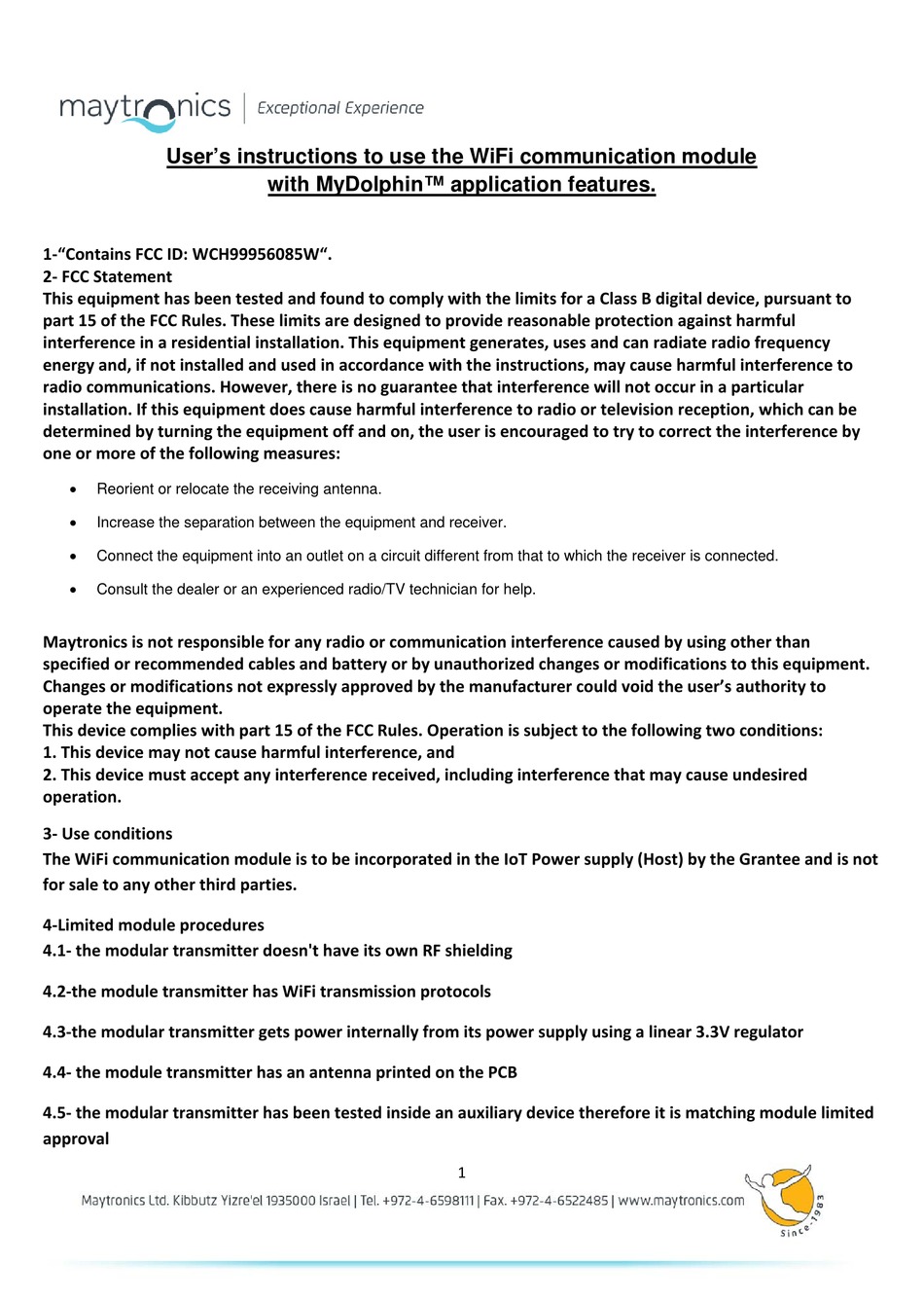

User's instructions to use the WiFi communication module
1‐"Contains FCC ID: WCH99956085W".
2‐ FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Maytronics is not responsible for any radio or communication interference caused by using other than
specified or recommended cables and battery or by unauthorized changes or modifications to this equipment.
Changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
3‐ Use conditions
The WiFi communication module is to be incorporated in the IoT Power supply (Host) by the Grantee and is not
for sale to any other third parties.
4‐Limited module procedures
4.1‐ the modular transmitter doesn't have its own RF shielding
4.2‐the module transmitter has WiFi transmission protocols
4.3‐the modular transmitter gets power internally from its power supply using a linear 3.3V regulator
4.4‐ the module transmitter has an antenna printed on the PCB
4.5‐ the modular transmitter has been tested inside an auxiliary device therefore it is matching module limited
approval
with MyDolphin™ application features.
1
